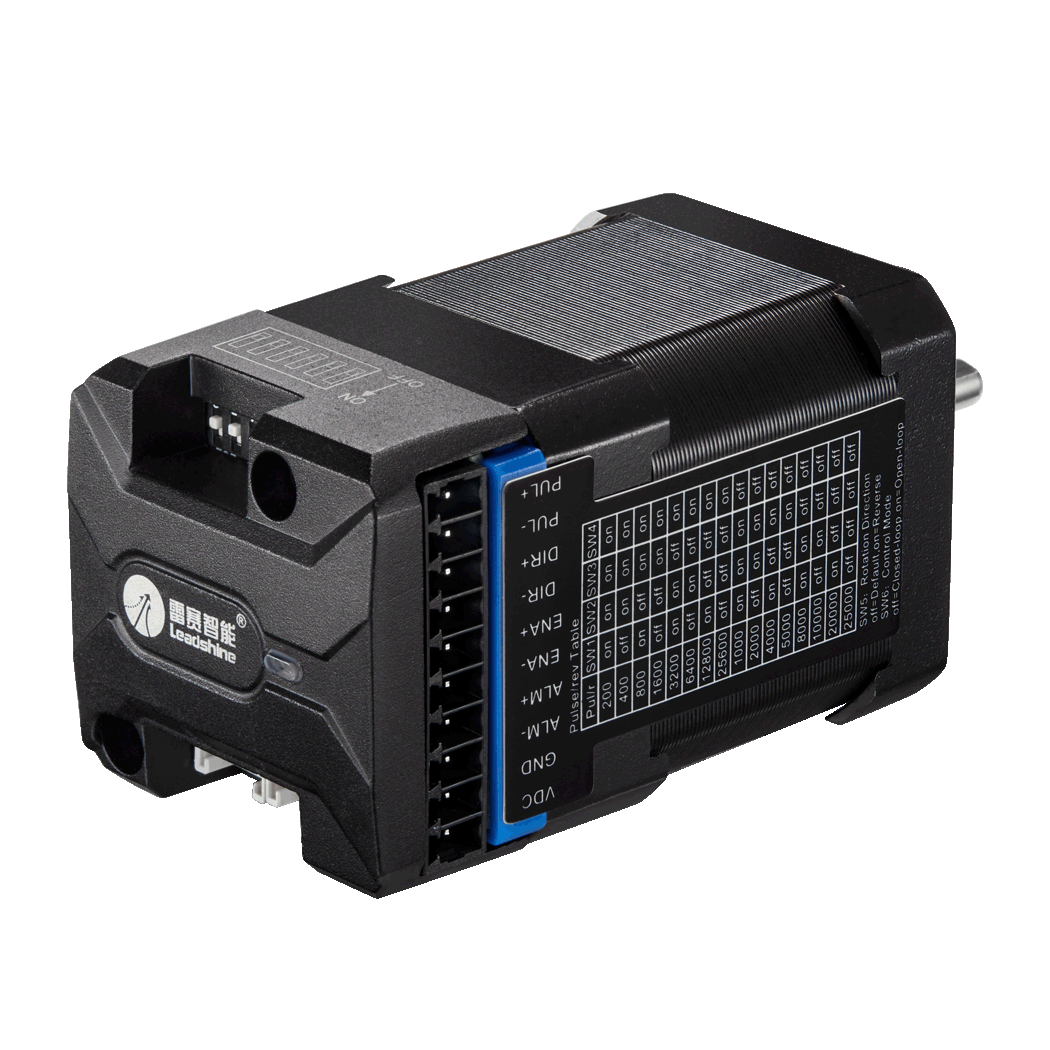

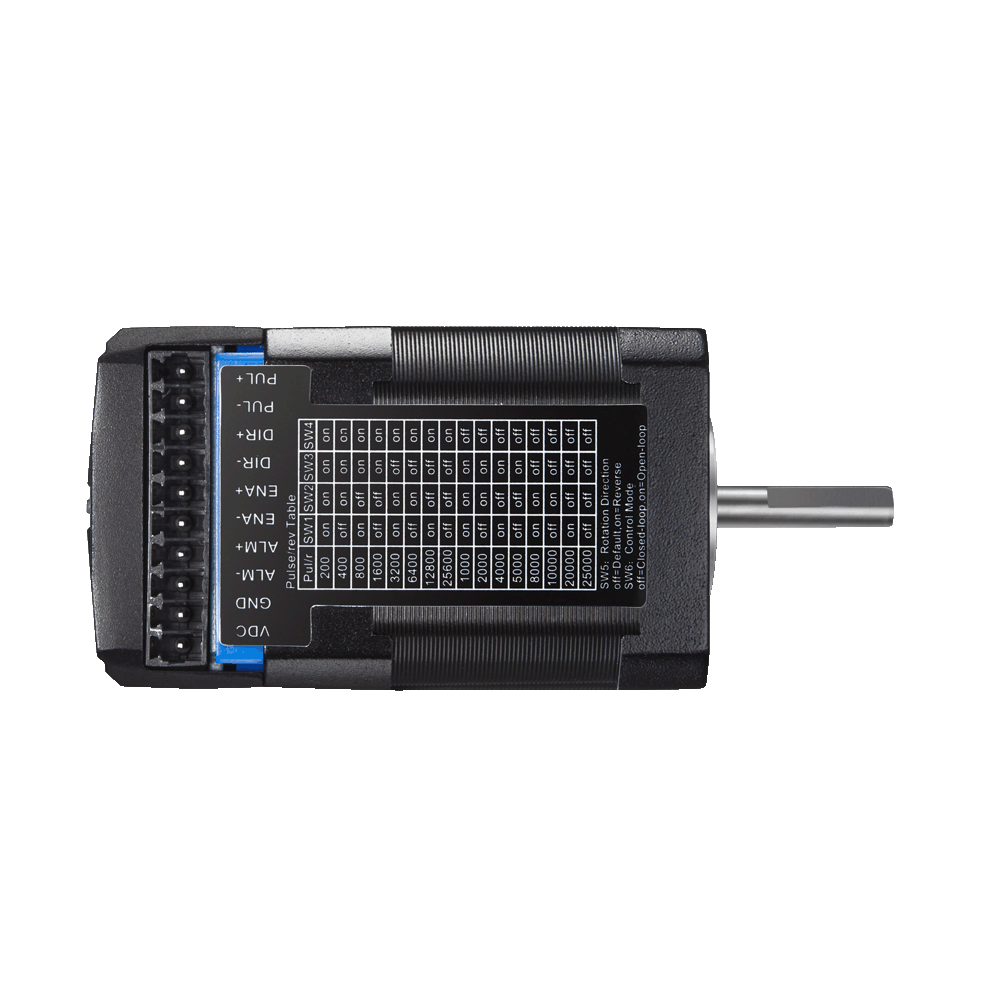

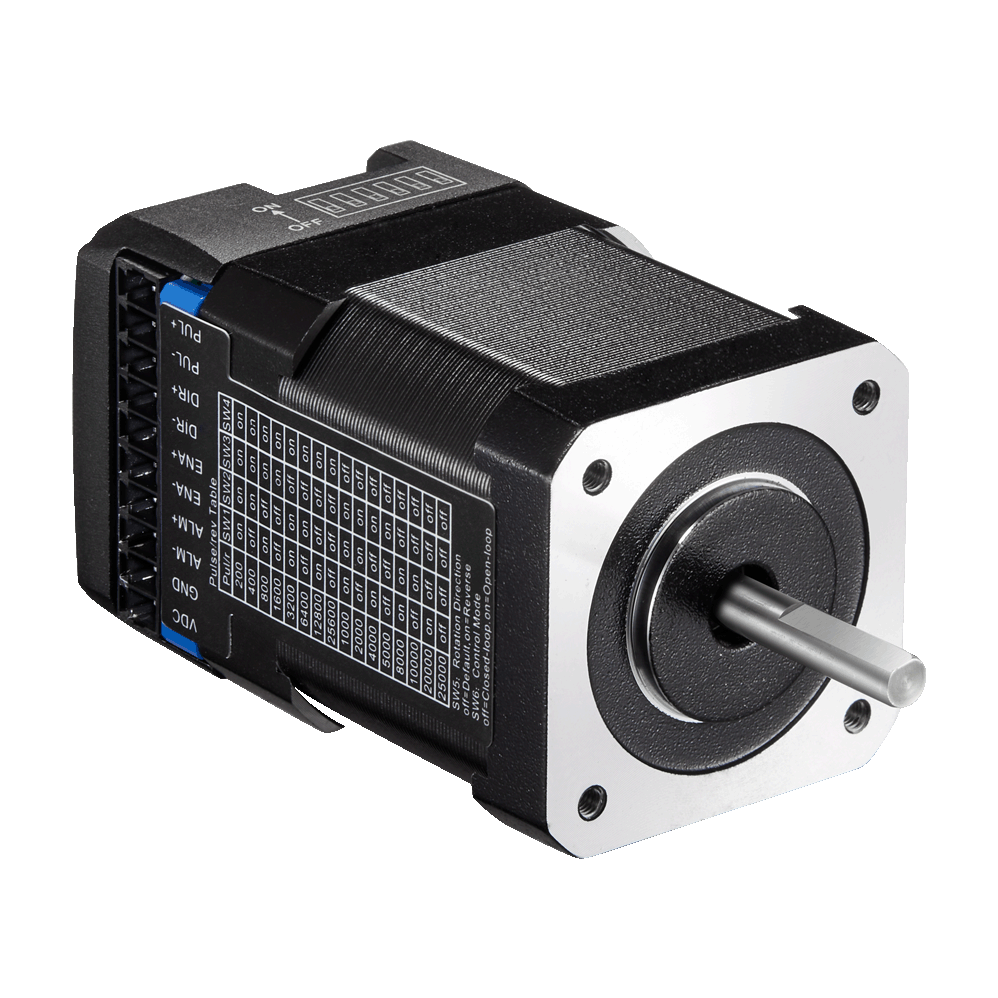

iEM-1706
Product Category

iEM-1706

● NEMA17, 0.6N.m

● No tuning for easy setup

● Soft-start with no “jump” when powered on

● Low noise and vibration, smooth motion

● Step&Direction or CW&CCW control

● 3 digital inputs, 1 optically isolated digital output

● RS232 communication for Leadshine software connection

● Over voltage, over current protections


List Price: $ 199.00
Online Special Price: $ 199.00

iEM series is integrated open-loop stepper motor with Leadshine's latest digital stepper technology.

iEM series motors output torque can up to 3.5Nm and supports Modbus RS485 communication with Indexer control function. And with a more compact design, it is especially suitable for applications with strict mounting space requirements, and it is easy to use, which can further reduce customers' procurement and labor costs.

Technical Data
ModeliEM-1706
SeriesiEM
Frame Size (NEMA)NEMA17
Length (mm)72
Holding Torque (N.m)0.6
Command SourcePul&Dir
Operation Voltage (VDC)24
Input Frequency (KHz, Max.)200
Logical Voltage (VDC)5
# of Inputs3
# of Outputs1


Mechanical
