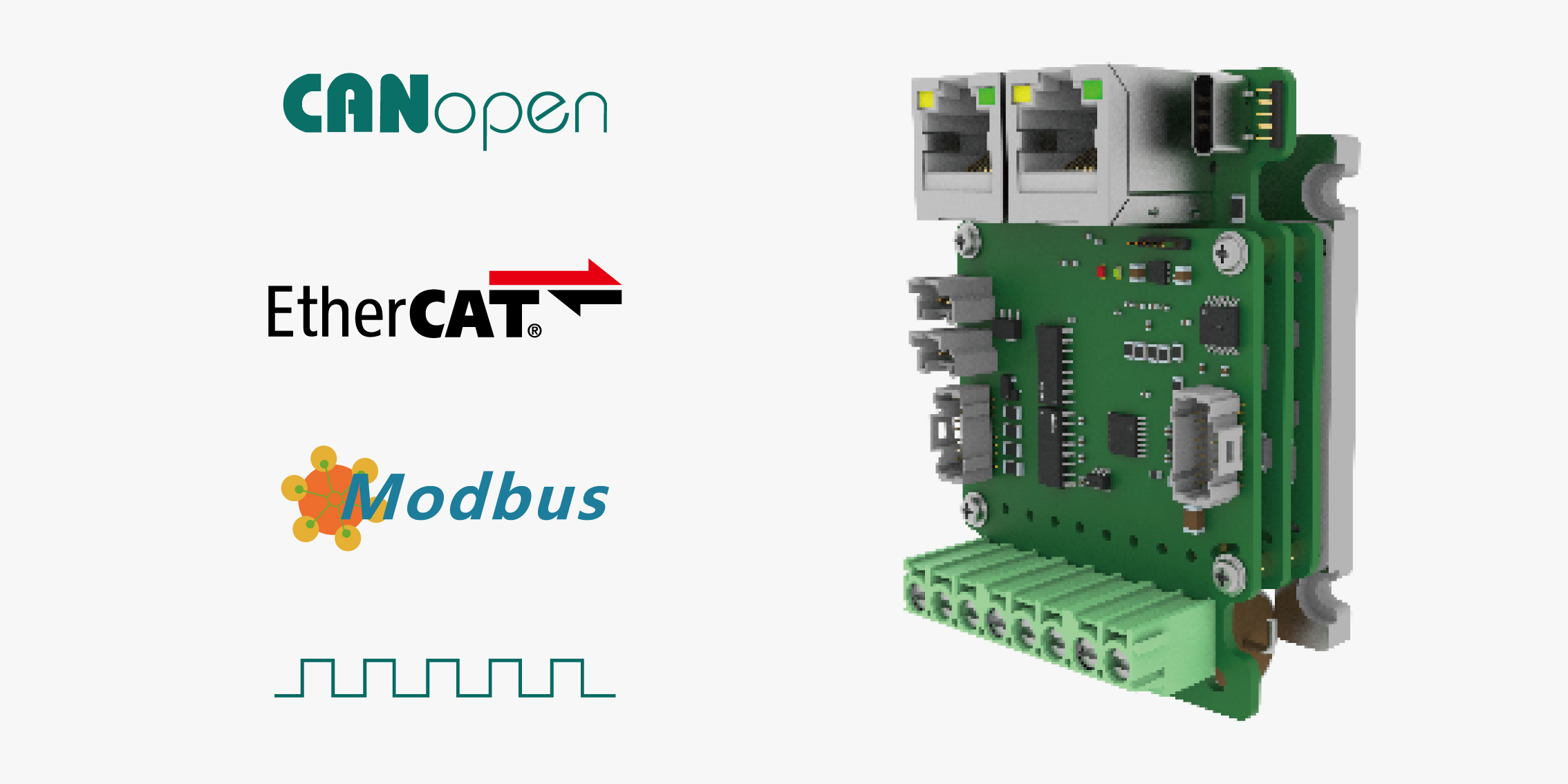

Supports various protocols
ELD3 series servo drives can be controlled using EtherCAT, CANopen and Modbus RTU communication protocol. Besides that, pulse and analogue control are available as well. Leadshine ELD3 can also be applied in controlling of linear motors.
![ELD3 DC Servo-1 ELD3 DC Servo-1](/downUeditor/image/20240511/5e372104ed45cd60f532f086d3b80a8e.jpg)

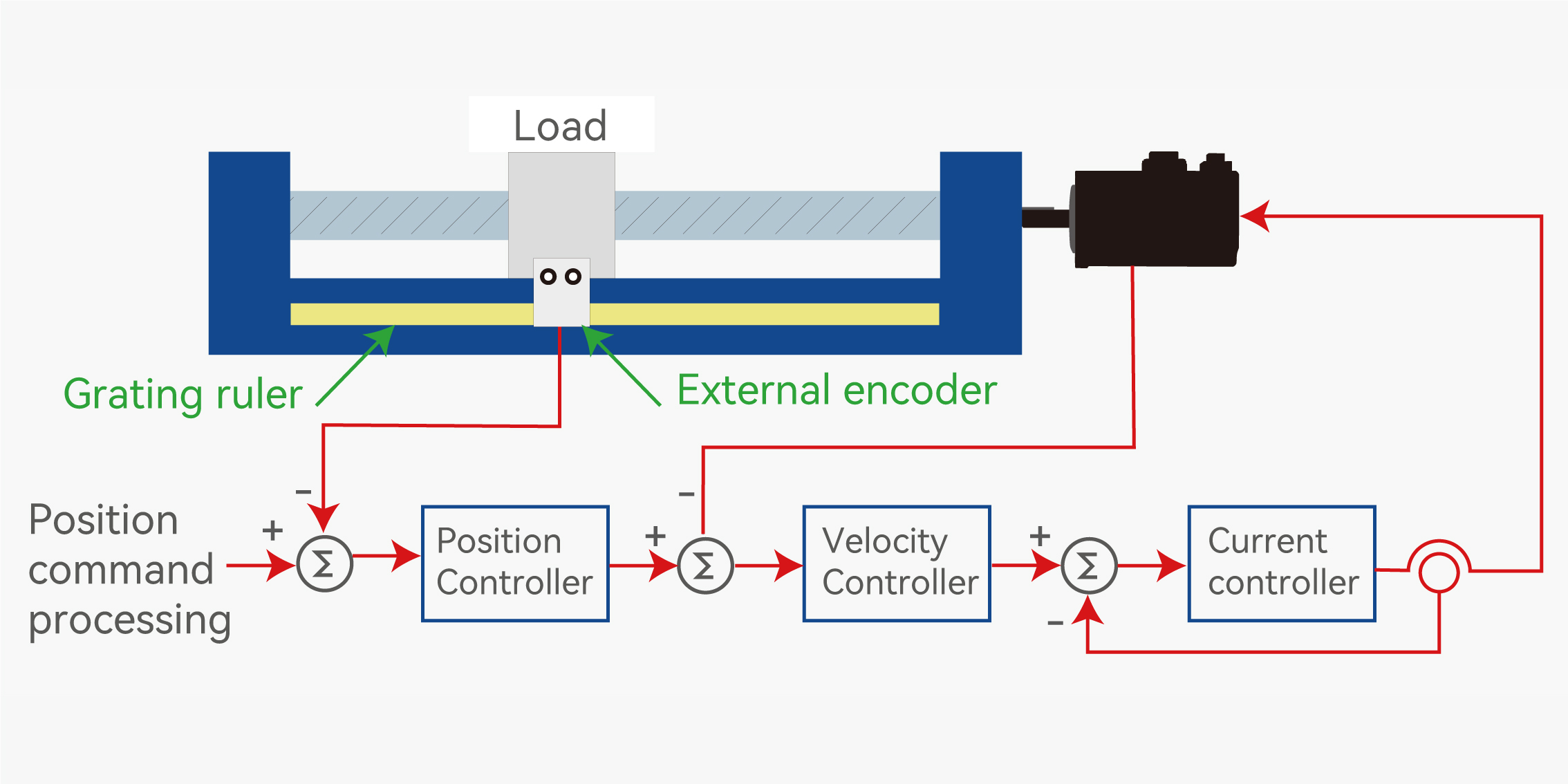

Full closed loop control
ELD3 series servo drives support full closed loop control which can eliminate the position deviation due to mechanical gap, and precision will have an obvious improvement.
![ELD3 DC Servo ELD3 DC Servo](/downUeditor/image/20240511/140309e187b764ad83fde99317ef9ffe.jpg)

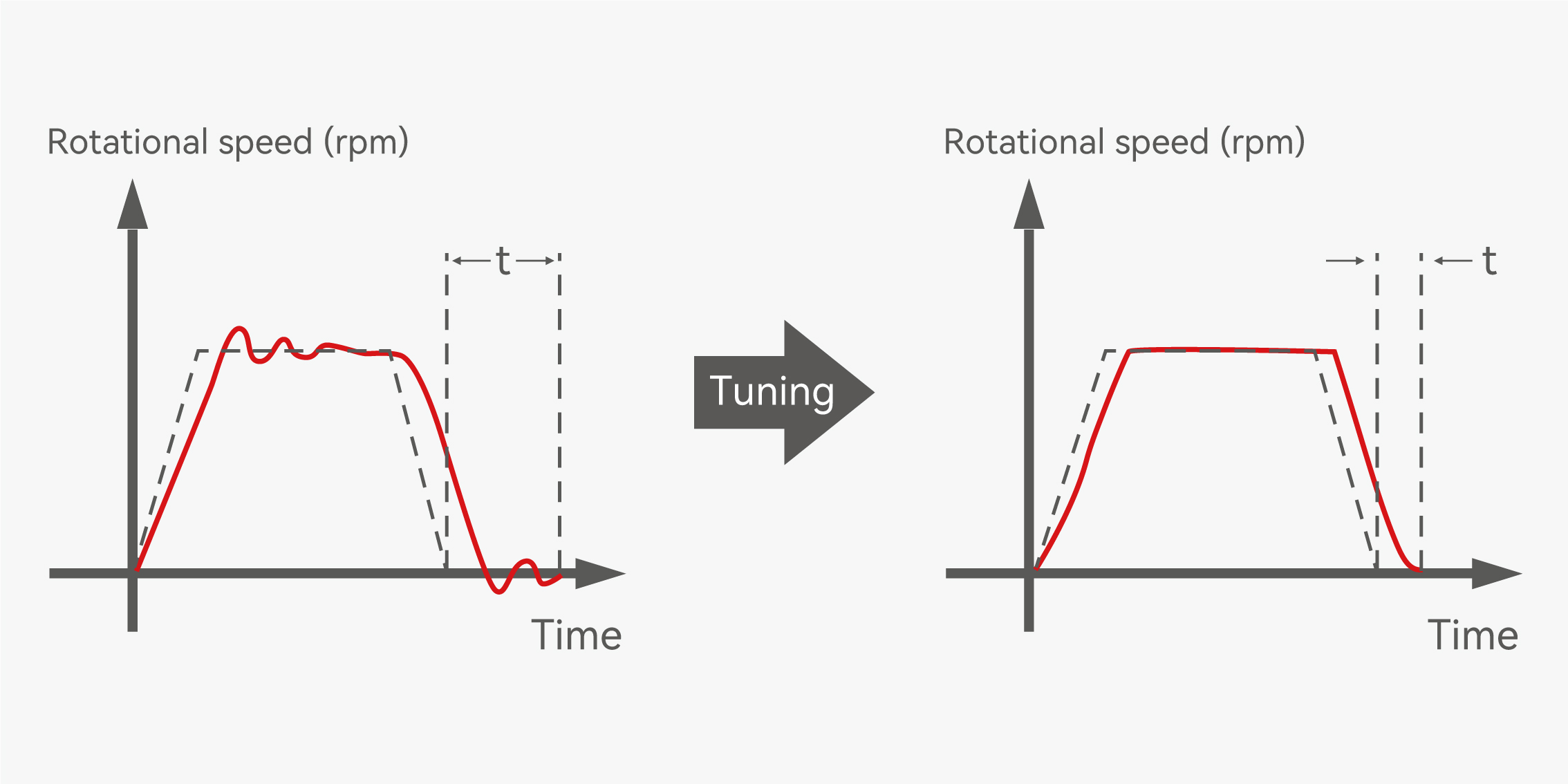

Easy tuning
Follow a few simple steps to get servo tuning done. Tested and proven to be easy to use and effective.
![ELD3 DC Servo ELD3 DC Servo](/downUeditor/image/20240511/fd85d1212ae7fb5fa747a783a61f76d5.jpg)

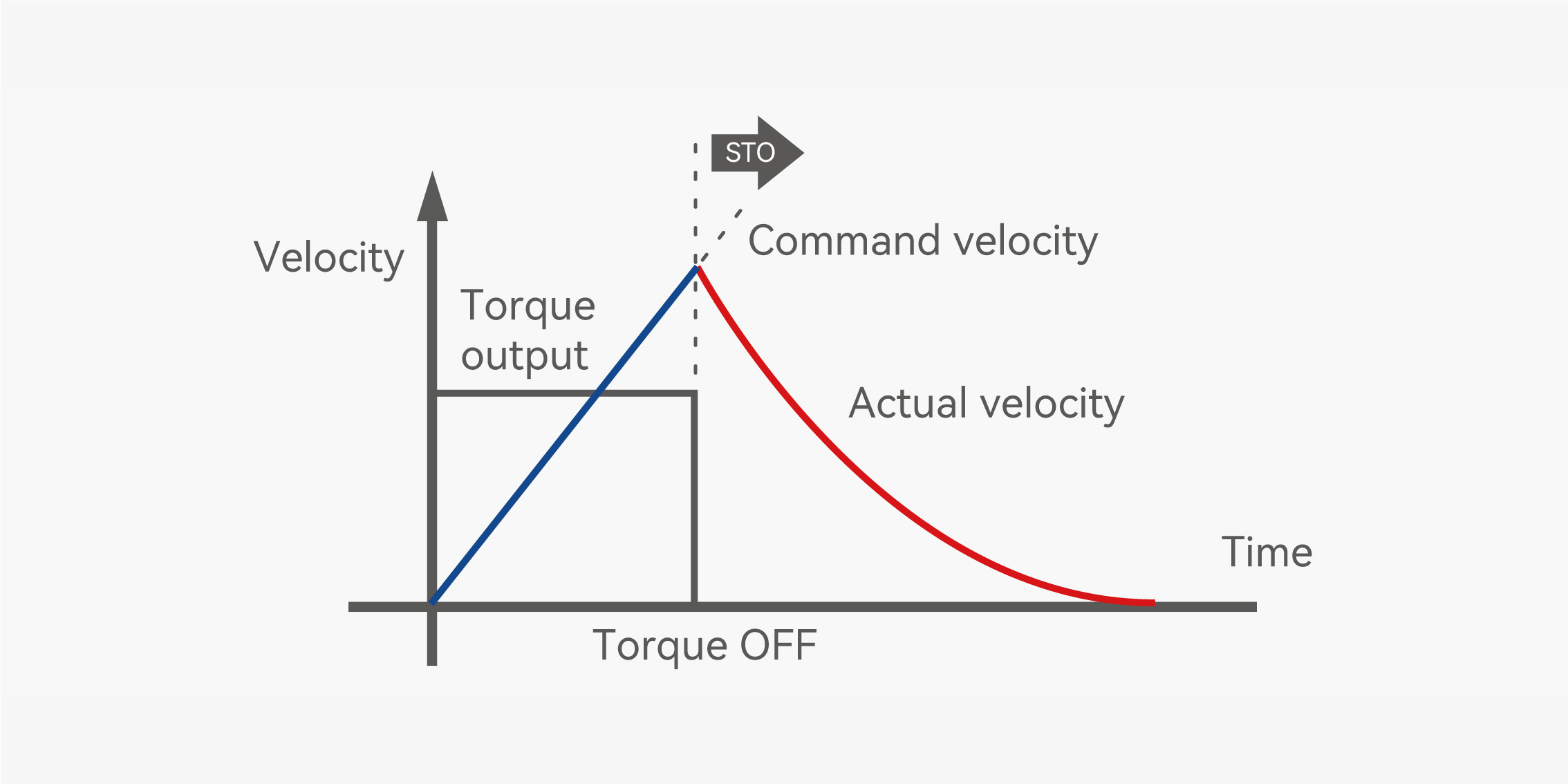

Safe Torque Off
When Safe Torque Off is activated, internal circuit will cut off motor power supply immediately, guaranteeing operator and machine safety.
![ELD3 DC Servo ELD3 DC Servo](/downUeditor/image/20240511/6fba2e43247342cc86246348c0f6835a.jpg)

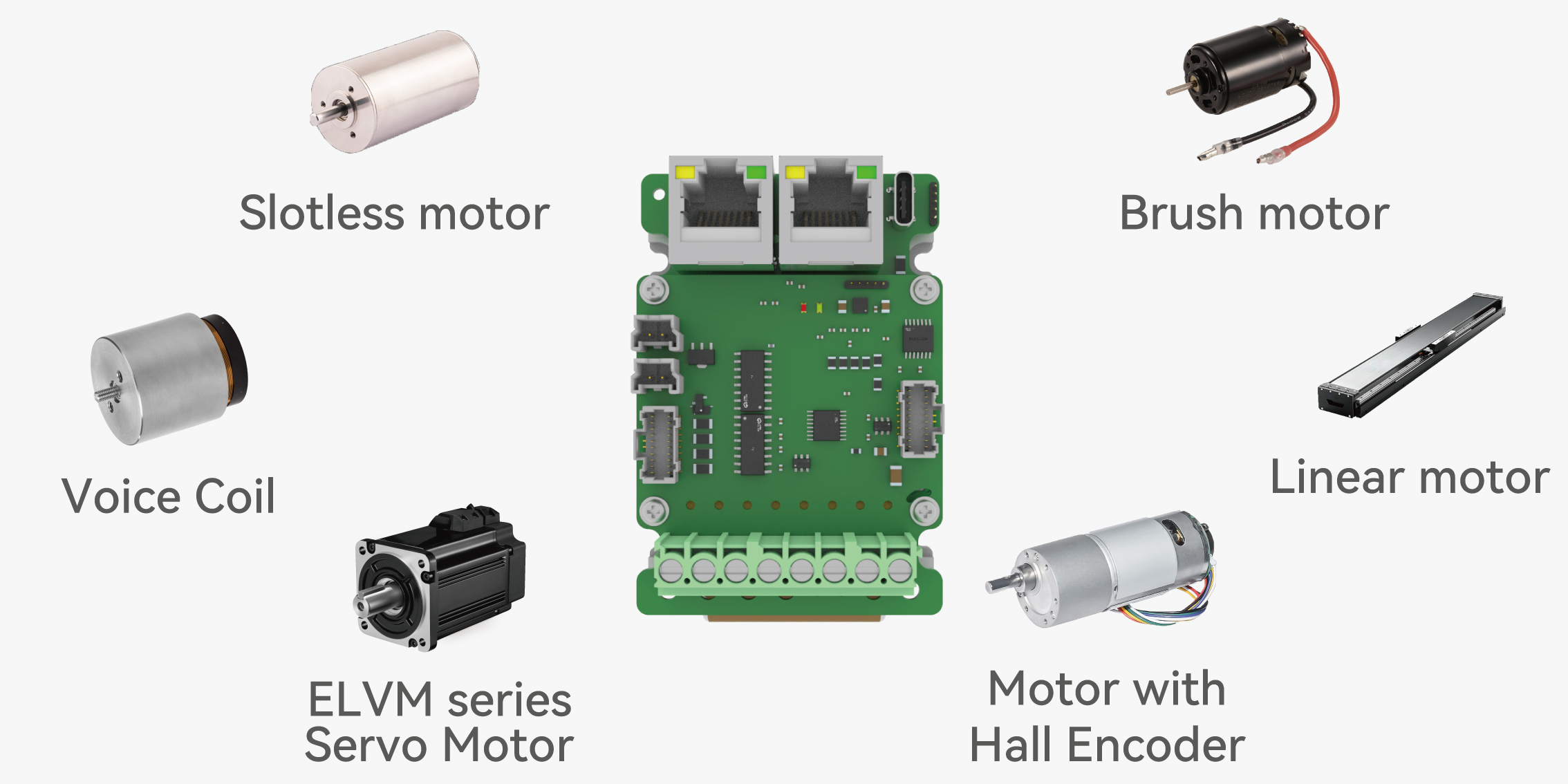

Can be matched to many types of motors
Slotless Motor, ELVM Series DC Servo Motor, Brush Motor, Motor with Hall Encoder, Voice Coil.
![ELD3 DC Servo ELD3 DC Servo](/downUeditor/image/20240511/5ff671e68d60b1cee9e575969a704ac0.jpg)
