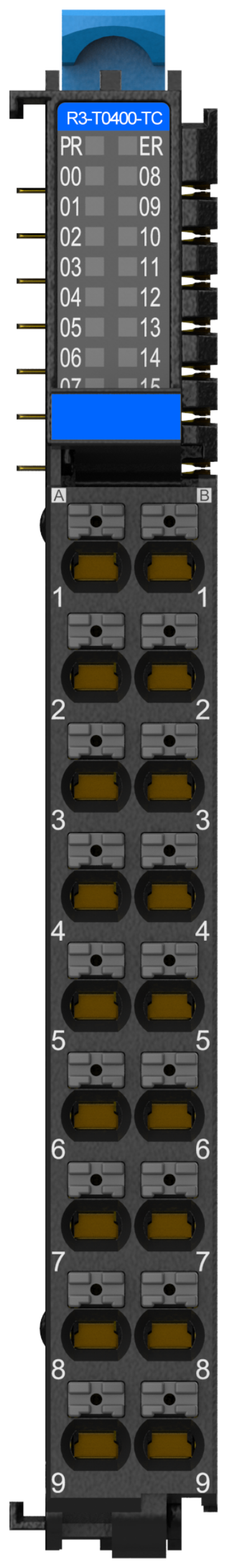

R3-T0400-TC Remote I/O Modules

R3-T0400-TC

4 channels Thermocouple Temperature Module, PID control

4 channels Thermocouple Temperature Module, PID control

Model	R3-T0400-TC Thermocouple Temperature Module
Channel	4
Input Type	J, K, R, S, T, E, N, B type, ±100mV voltage input
Wiring Type	two wire
Resolution	24-Bit
Respond time	250ms, 500ms, 1000ms / four channels (configurable by software)
input method	Single-Ended/Differential (Compatible)
Temperature	℃ or ℉
Measurement input range	J: -80℃~1200℃/-112℉~2192℉ K: -90℃~1300℃/-130℉~2372℉(Default) R: -50℃~1300℃/-58℉~2372℉ S: -50℃~1300℃/-58℉~2372℉ T: -100℃~400℃/-148℉~752℉ E: -100℃~950℃/-148℉~1742℉ N: -100℃~1300℃/-148℉~2372℉ B: 200℃~1800℃/392℉~3272℉ Voltage: -100mv~100mv
Accuracy	±0.1% +1°C (cold end compensation) at (25°C, 77°F) ±0.3%+1°C (cold end compensation) at (-20 to 60°C, -4 to 140°F)
Sensitivity	0.1℃, 0.1℉
Cold End Compensation	Cold end compensation accuracy ±1℃
