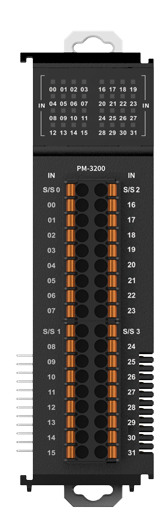

PM-3200

32 digital inputs, NPN/PNP input type, push-in terminal

32 digital inputs, NPN/PNP input type, push-in terminal

Model	PM-3200 Digital Input Module
Channel	32
OFF to ON	>15VDC, 1.5mA or above
ON to OFF	<5VDC, 1.0mA or below
Input Frequency	1k
ON/OFF Response Time	20µs/50µs
Input Type	NPN/PNP
Input Resistance(max)	4.7kΩ
Input Protection	Optocoupler isolation, Interference Filter
Common	1 common per 8 input channels
Terminal	Push-in

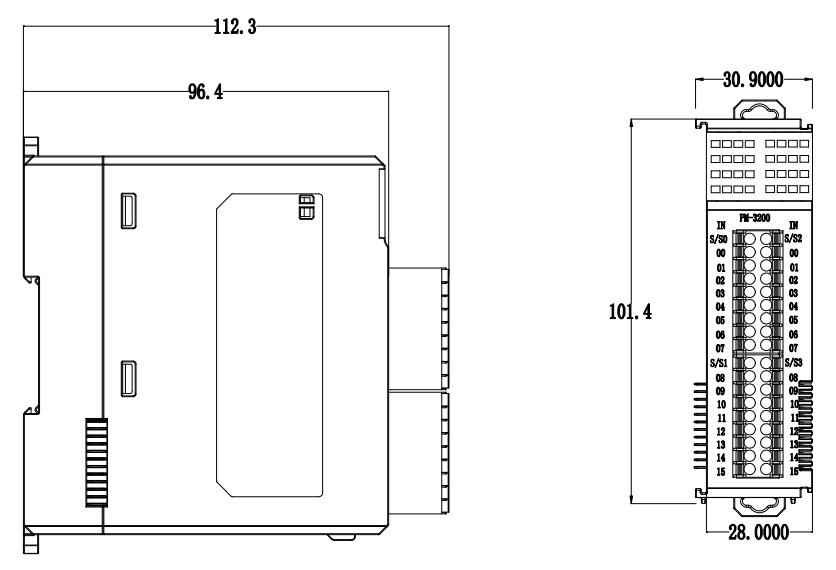

Dimension	111.9230.9101.5mm
Installation	Standard DIN rail
Others	Indicator LEDs corresponding to each input channel
