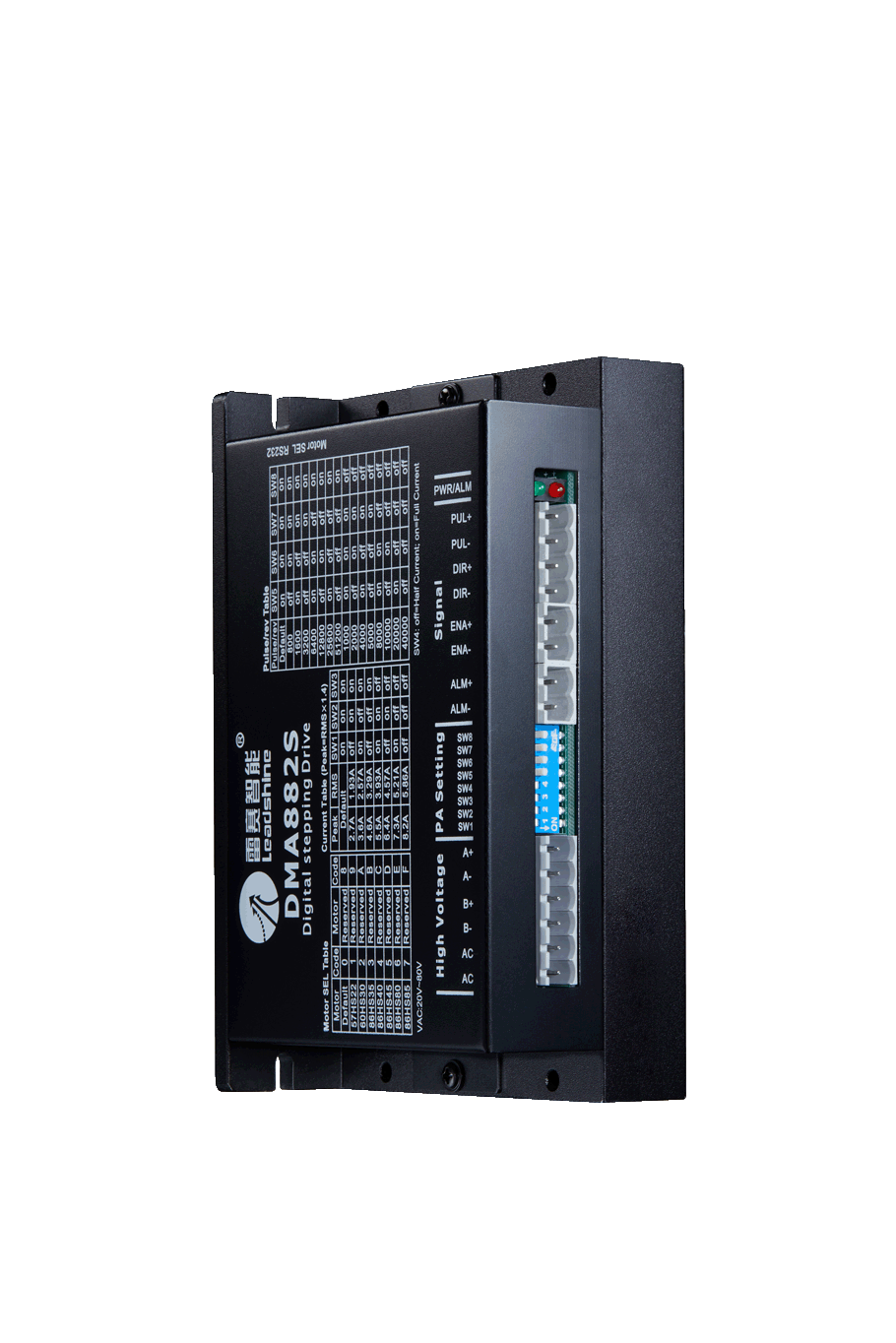

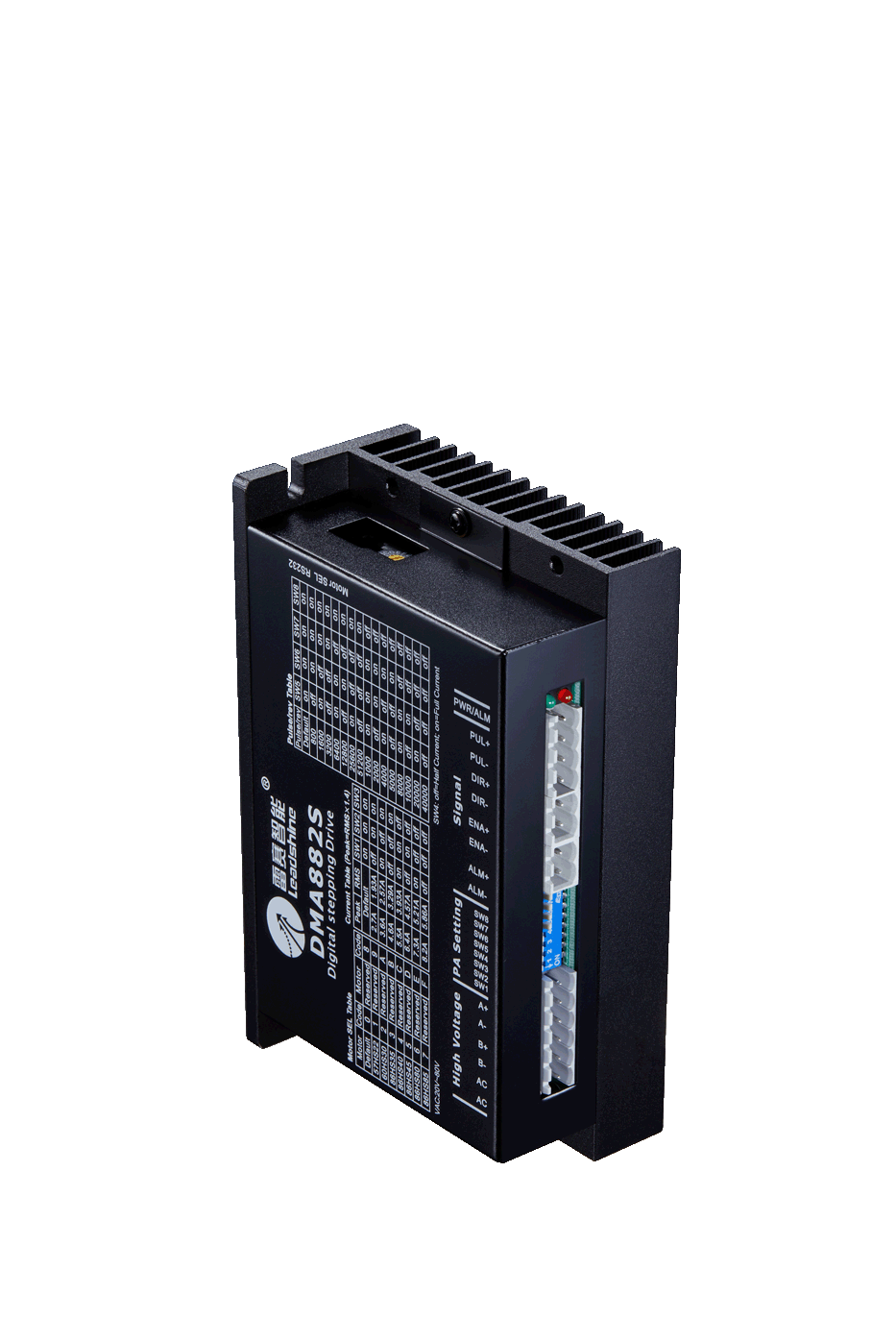

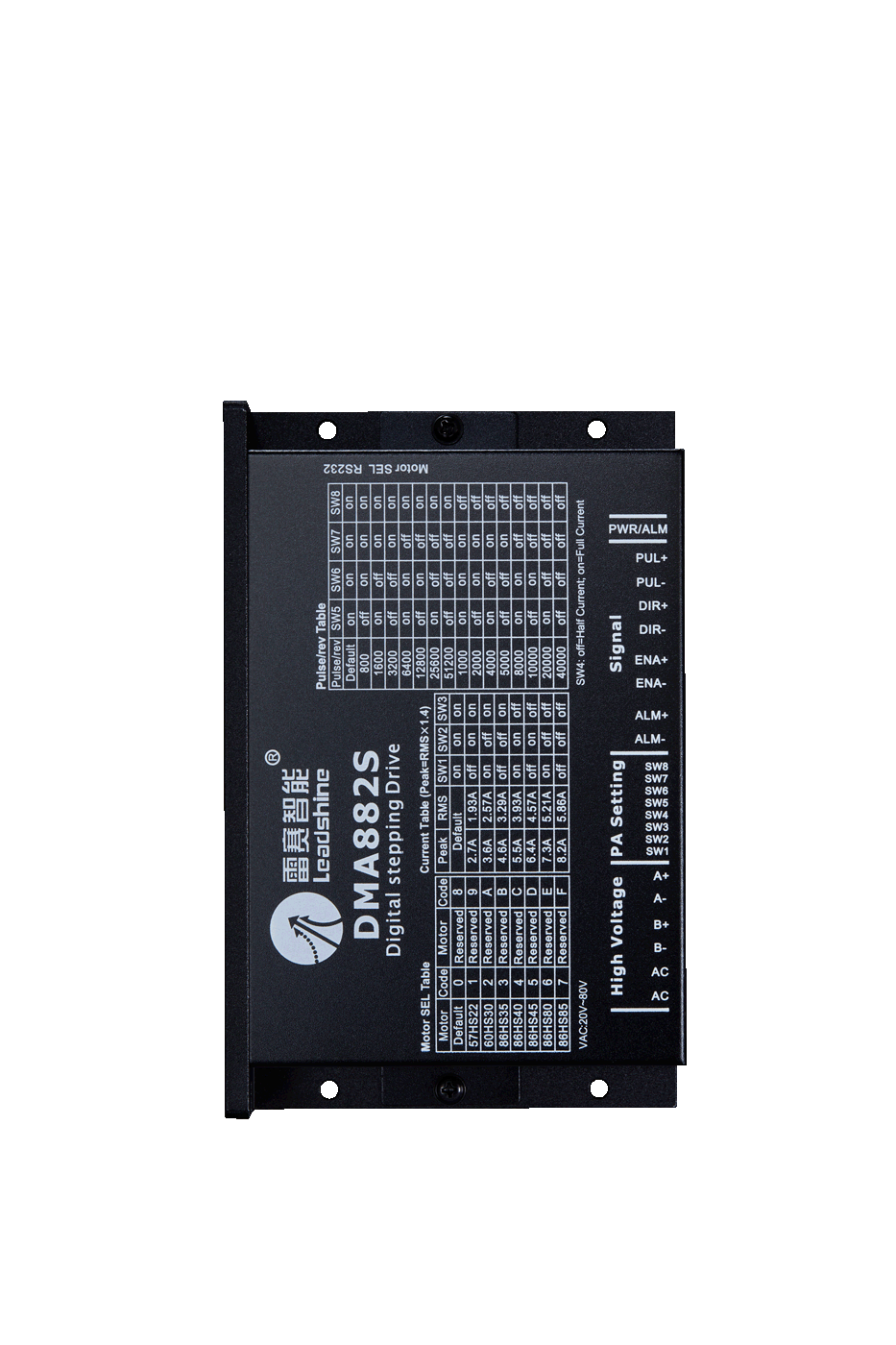

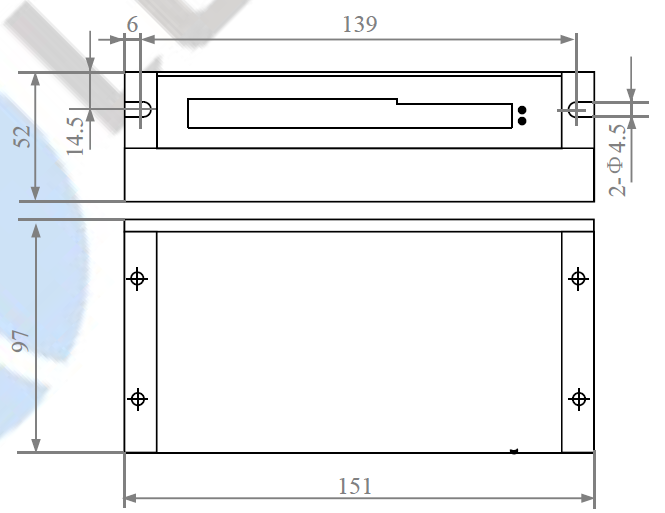

DMA882S

● Step & direction (PUL/DIR) or CW/CCW (double pulse) control

● 24-110VDC or 18-80VAC supply voltage

● 200 KHz max pulse input frequency

● 16 microstep resolutions of 400-51,200 via DIP switches, or 200-51,200 via software

● 8 output current settings of 2.1-8.2A via DIP Switches, or 0.5-8.2A via software

● Configurable control command smoothing for reducing motor vibration

Description

Specifications

Downloads

The DM series consists of stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.

Accessories

CABLE-PC

1.2-meter (3.9-foot) RS232 cable with RJ11 for tuning

Related Products

86CM120

1.8°, NEMA 34, 129 mm (5.08 inch), 6.0A/Phase, 12 N.m (1714.32 oz-in)

86CM85

1.8°, NEMA 34, 118 mm (4.65 inch), 6.0A/Phase, 8.5 N.m (1214.31 oz-in)

86CM80

1.8°, NEMA 34, 98 mm (3.86 inch), 6.0A/Phase, 8.0 N.m (1142.88 oz-in)

86CM45

1.8°, NEMA 34, 80 mm (3.15 inch), 6.0A/Phase, 4.5 N.m (642.87 oz-in)

86CM35

1.8°, NEMA 34, 65 mm (2.56 inch), 4.0A/Phase, 3.5 N.m (500.01 oz-in)

60CM30X

1.8°, NEMA 24, 85 mm (3.35 inch), 5.0A/Phase, 3.0 N.m (428.58 oz-in)

LSP-360-48

48 VDC power supply 7.5A continuous current

LSP-400-60

60 VDC power supply 6.7A continuous current

Model	DMA882S
Series	DM
Command Source	PUL&DIR, CW&CCW
Operation Voltage (VDC)	18-80VAC or 30-110VDC
Output Current (A, Peak)	8.2
Input Frequency (KHz, Max.)	200
Logical Voltage (VDC)	5
# of Inputs	3
# of Outputs	1
Characteristics	Standard
