● Step & direction (PUL/DIR) or CW/CCW (double pulse) control

● Input voltage 18-80VAC or 24-110VDC (recommended 20-70VAC or 30-90VDC)

● 200 KHz max pulse input frequency

● 16 microstep resolutions of 400-51,200 via DIP switches, or 200-51,200 via software

● 8 output current settings of 2.4-7.2A via DIP Switches, or 1.0-7.2A via software

● Configurable control command smoothing for reducing motor vibration

List Price: $ 199.00
Online Special Price: $ 199.00

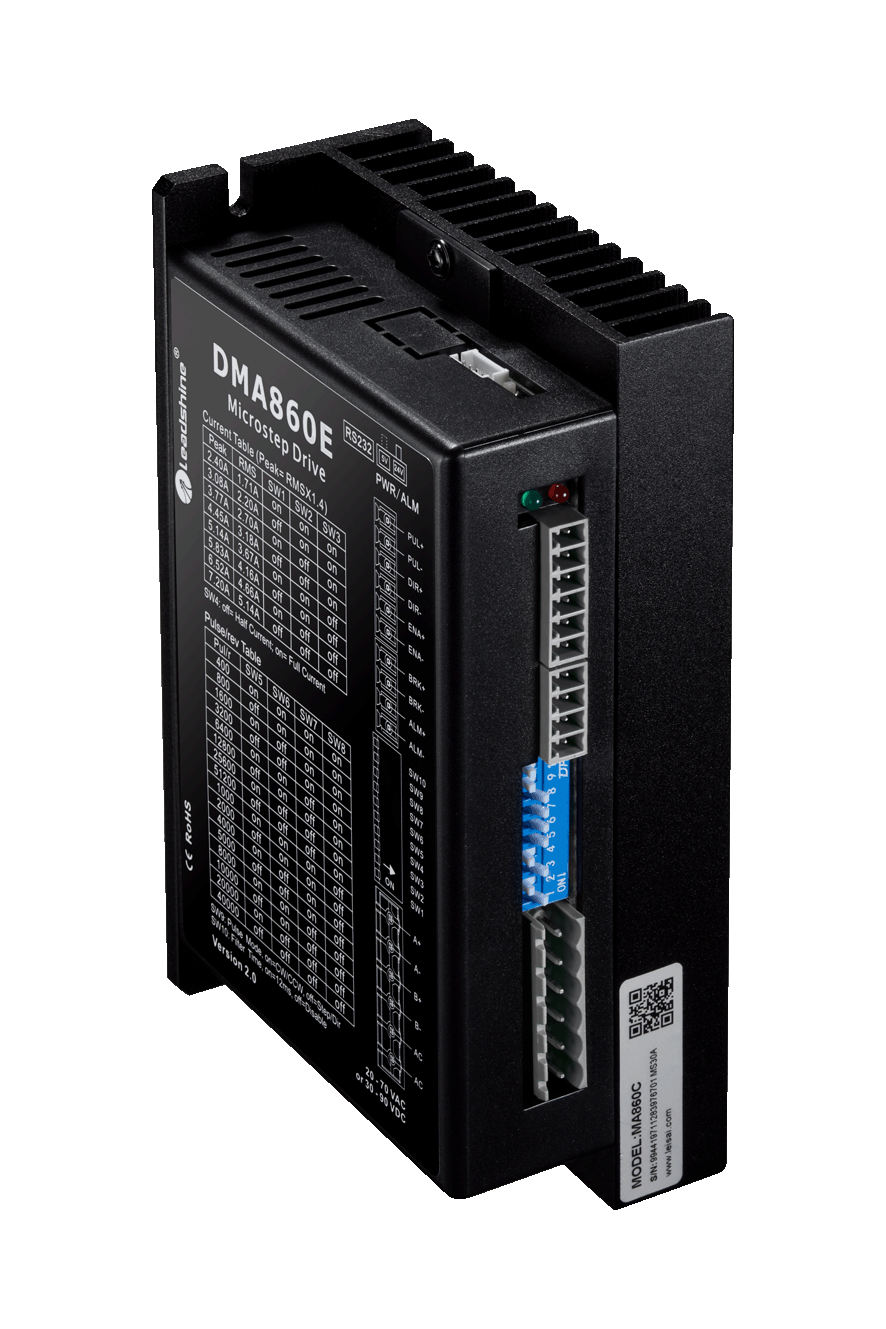

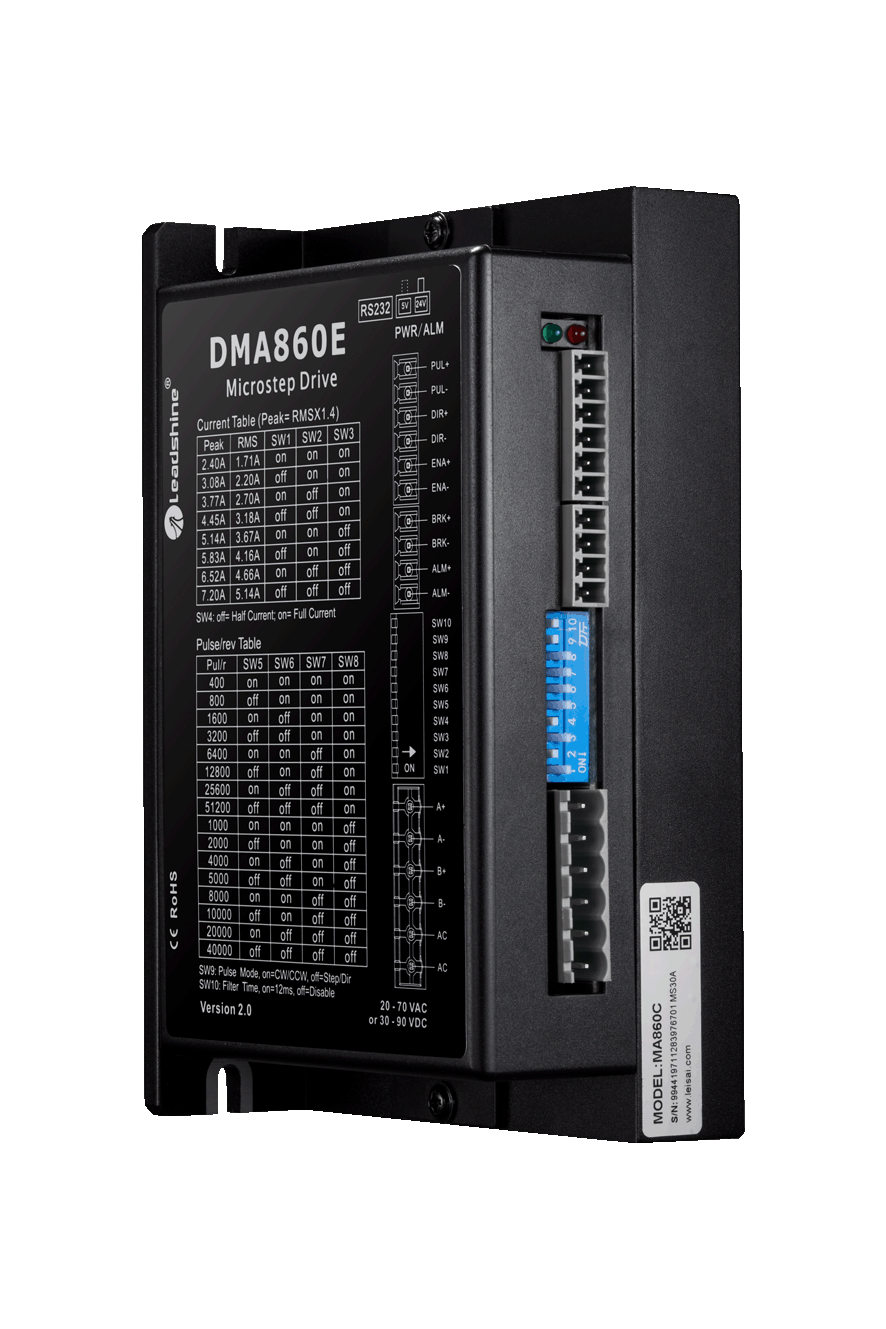

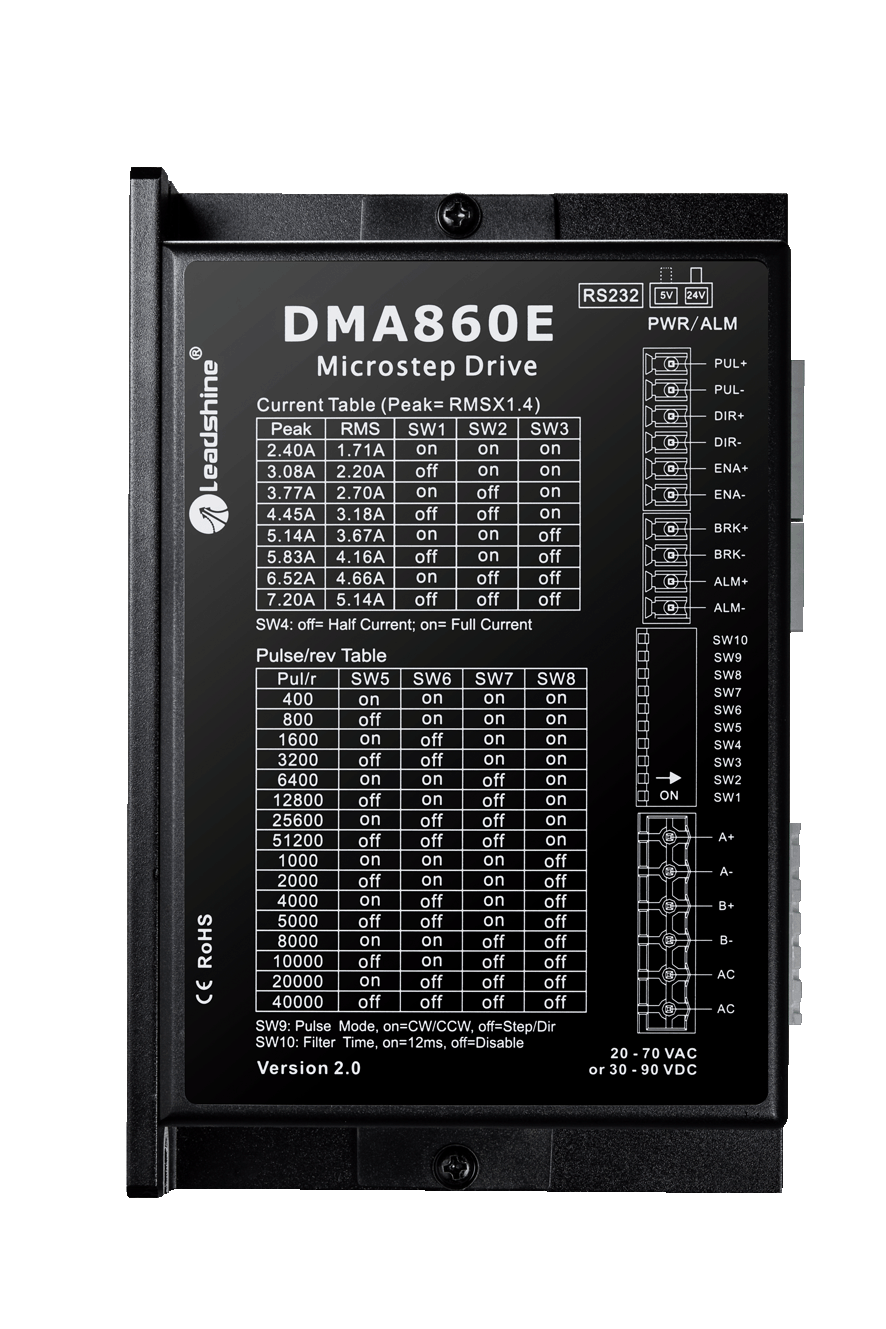

The DMA860E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 18-80VAC or 24-110VDC and it can output up to 7.2A current. All the micro step and output current are done via DIP switches. Therefore, the DMA860E are ideal choices for applications requiring simple step & direction control of NEMA 23, 24, 34, and 42 stepper motors.

Technical Data
Command SourcePUL&DIR,   CW&CCW
Operation Voltage (VDC)18-80VAC or 30-110VDC
Output Current (A, Peak)7.2
Input Frequency (KHz, Max.)200
Logical Voltage (VDC)5 or 24
# of Inputs3
# of Outputs2
