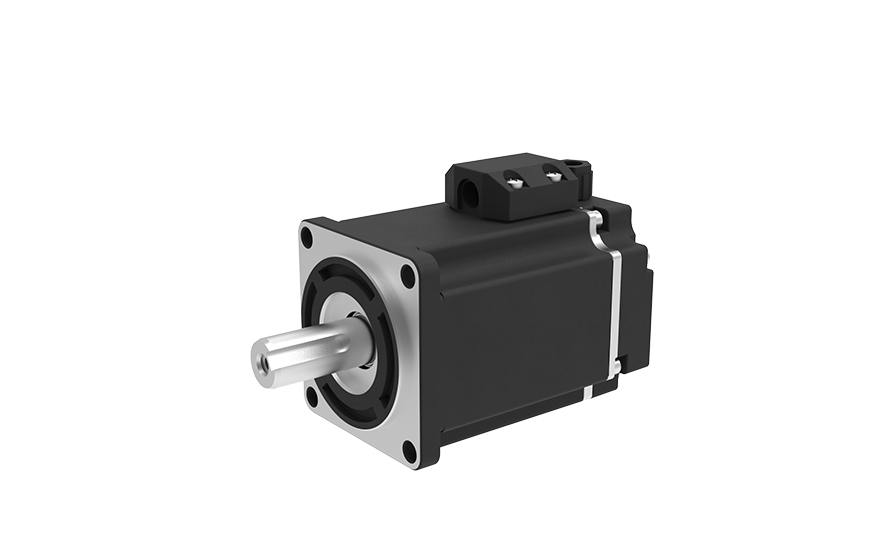

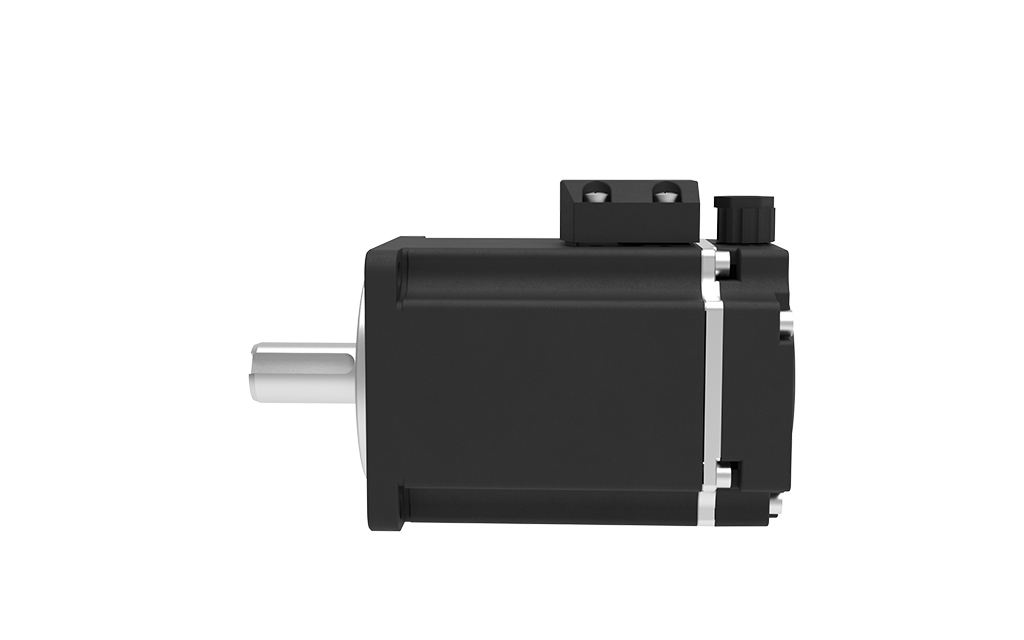

ELVM6060V48FH-B25-HD
Product Category

ELVM6060V48FH-B25-HD

  • Rated voltage 48V, rated power 600W

  • Frame 60mm, rated torque 1.91Nᄋm, rated speed 3000r/min

  • No brake

  • Insulation class: Class F

  • 2500 ppr single-turn incremental optical encoder

  • IP65

List Price: $ 199.00
Online Special Price: $ 199.00

The ELVM series is a new low voltage servo motor series designed by Leadshine with own intellectual property rights. The servo motors provide features of short length, high torque density, high peak torques, low noise, low temperature rising and IP65 protection. The servo motors power range from 50W to 2000W, with 2500ppr incremental encoder or 17-bit absolute encoder.

Technical Data
ModelELVM6060V48FH-B25-HD
Frame Size (mm)60
Rated Voltage (Vac)48
Rated Power (W)600
Rated Torque (N.m)1.91
Peak Torque (N.m)5.73
Rated Speed (rpm)3000
Peak Speed (rpm)4000
Rated Current (Amp)15
Peak Current (Amp)46.5
Torque Constant (N.m/Amp)0.141
Back EMF Constant (V/krpm)8.5
Resistance (Ω)0.16
Inductance (mH)0.39
Inertia (kg*m2*10-4)0.83
Poles10
Encoder Type2500   ppr
Max radial load(N)245
Max axial load(N)74
IP RatingIP65
Weight (Kg)1.7

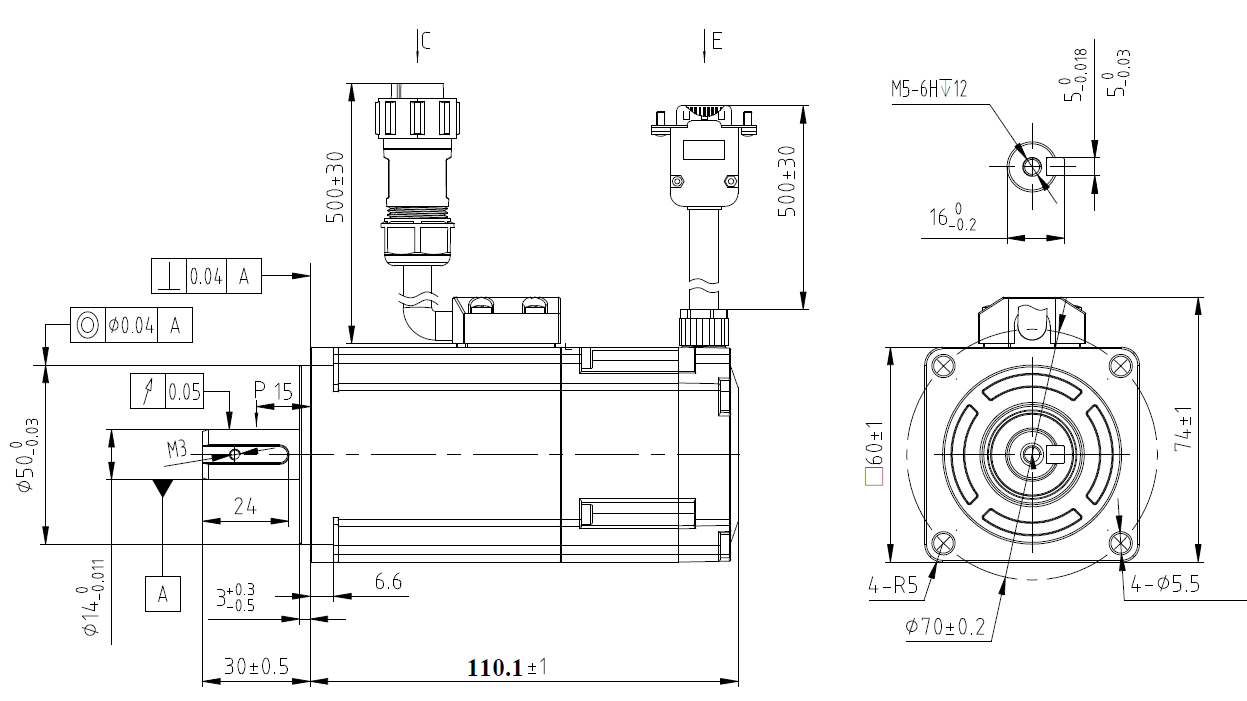

Mechanical

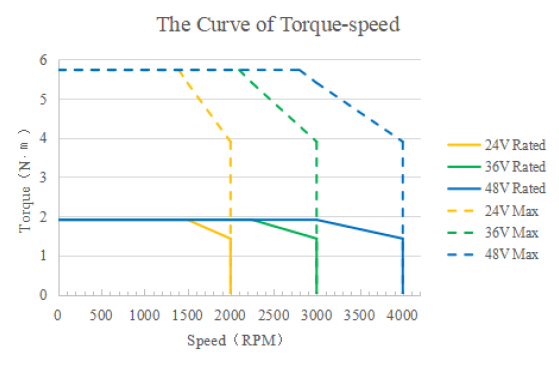

Speed-Torque Curve
