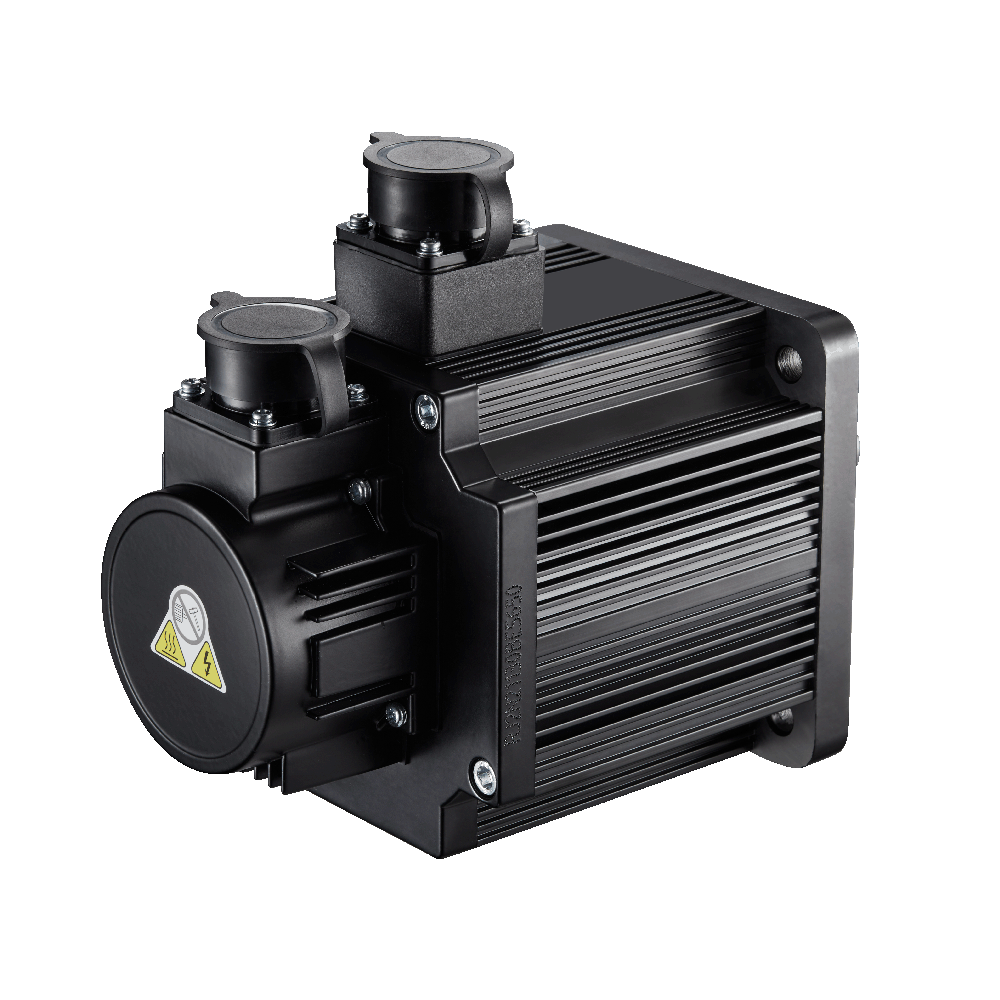

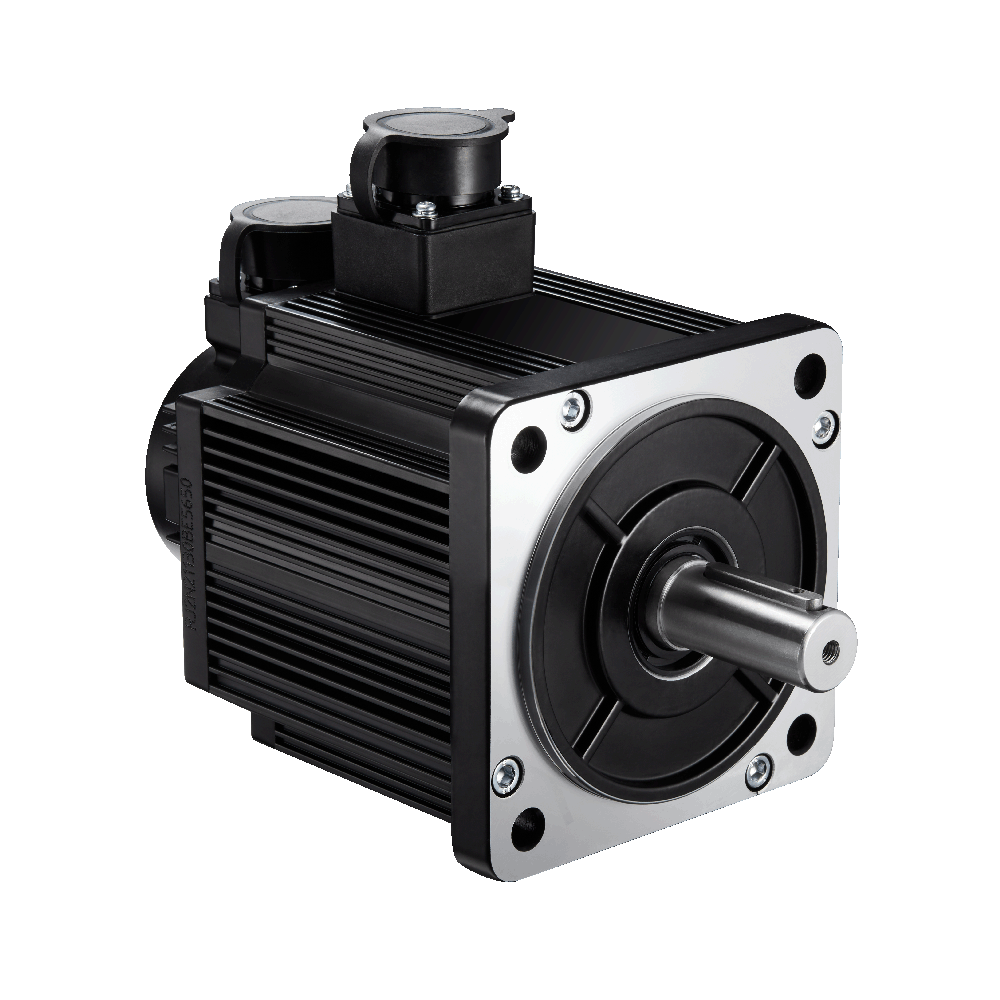

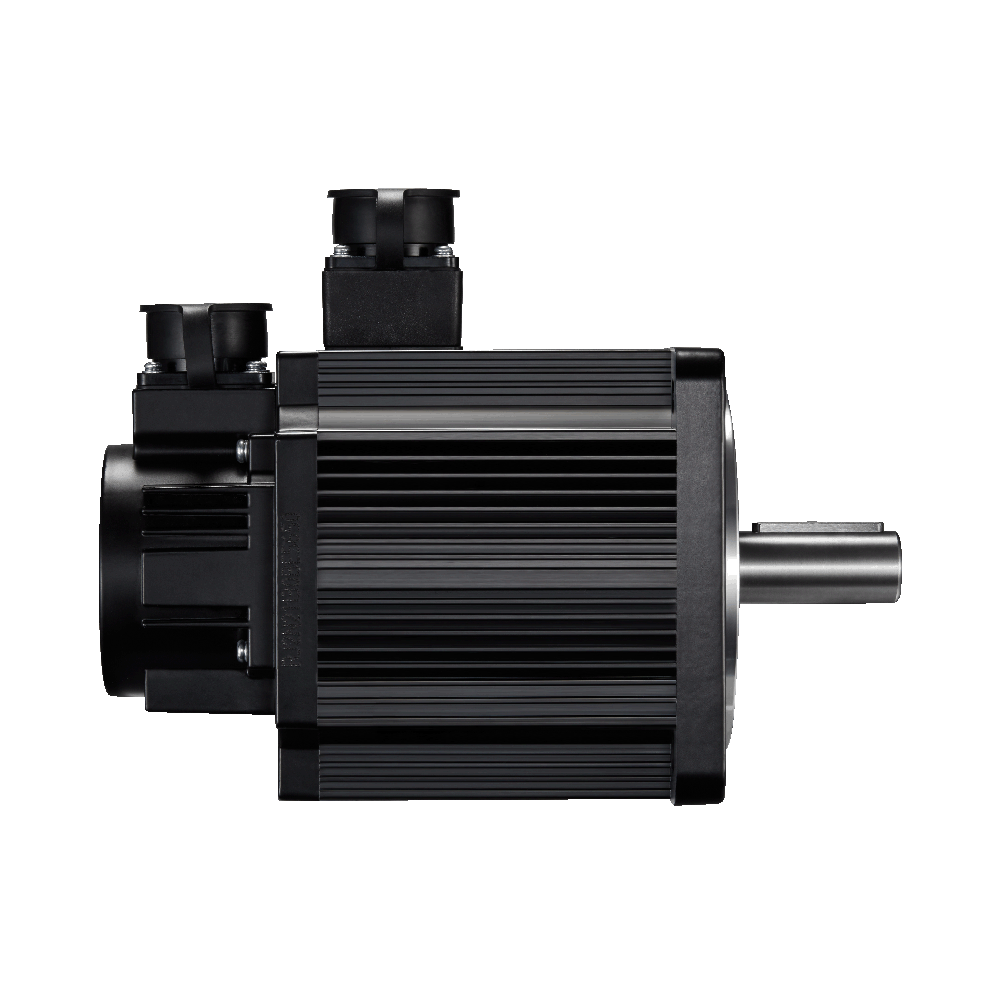

ELM2M-1500LB130F-H
Product Category

ELM2M-1500LB130F-H

  • Rated voltage 220VAC, rated power 1500W

  • Frame 130mm, rated torque 6N·m, rated speed 2500r/min

  • 23-bit optical encoder

  • No brake, aviation connector

  • Strong overload capacity

  • IP65


List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 850W to 2000W.

Technical Data
ModelELM2M-1500LB130F-H
Frame Size (mm)130
Rated Voltage (Vac)220-220
Rated Power (W)1500
Rated Torque (N.m)6
Peak Torque (N.m)18
Rated Speed (rpm)2500
Peak Speed (rpm)2600
Rated Current (Amp)6
Peak Current (Amp)18
Torque Constant (N.m/Amp)1
Back EMF Constant (V/krpm)65
Resistance (Ω)1.21±10%
Inductance (mH)3.87±20%
Inertia (kg*m2*10-4)12.6
Poles8
Encoder Type23bit   absolute
IP RatingIP65
Weight (Kg)7.4

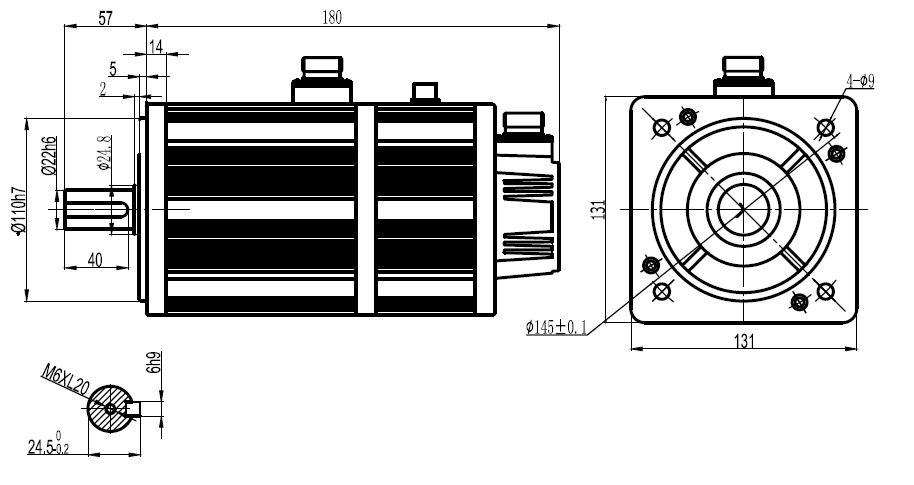

Mechanical
