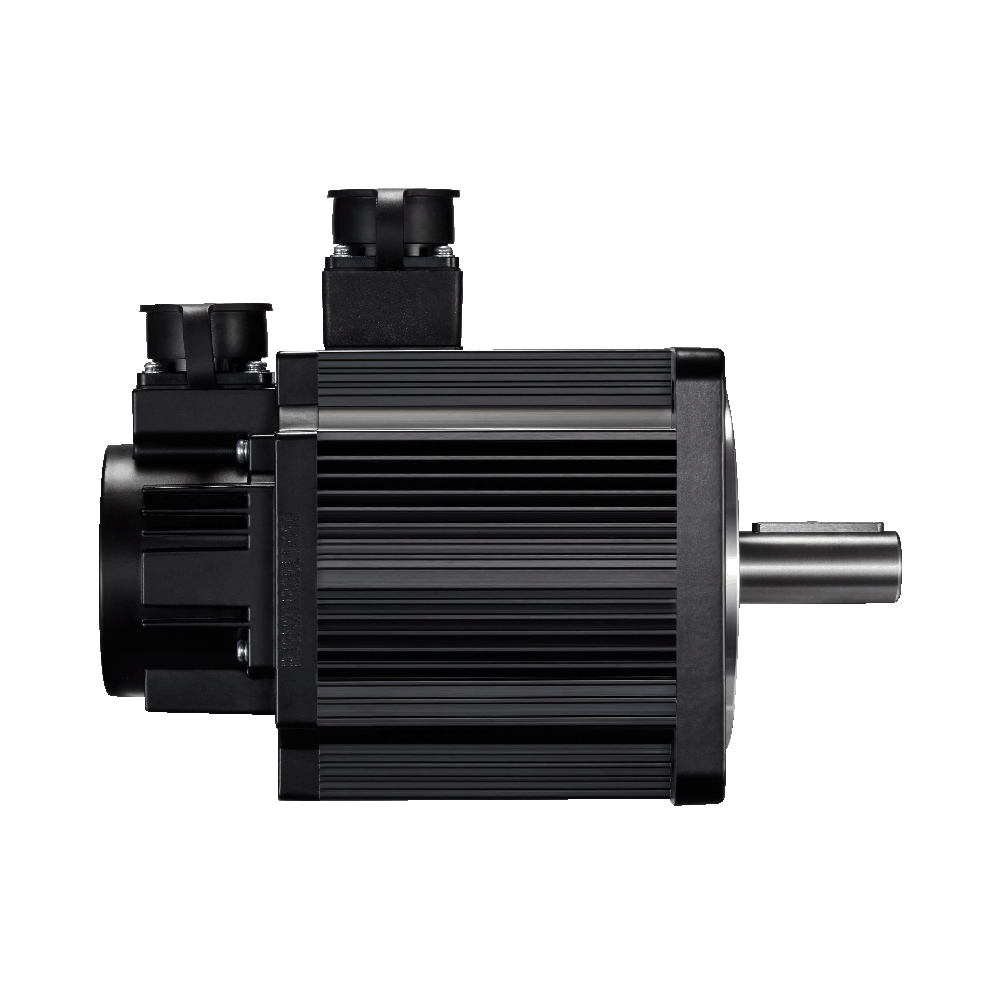

ELM2H-1000LA80FT
Product Category

ELM2H-1000LA80FT

  •  Rated voltage 400VAC, rated power 1000W

  •  Frame 80mm, rated torque 3.18N·m, rated speed 3000r/min

  • 23-bit optical encoder

  • No brake, aviation connector

  •  Strong overload capacity

  •  IP67


List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 750W to 1000W.

Technical Data
ModelELM2H-1000LA80FT
Frame Size (mm)80
Rated Voltage (Vac)400
Rated Power (W)1000
Rated Torque (N.m)3.18
Peak Torque (N.m)9.54
Rated Speed (rpm)3000
Peak Speed (rpm)5000
Rated Current (Amp)4
Peak Current (Amp)12.4
Torque Constant (N.m/Amp)0.8
Back EMF Constant (V/krpm)53.3
Resistance (Ω)2.2±10%
Inductance (mH)10.5±20%
Inertia (kg*m2*10-4)2
Poles10
Encoder Type23bit   optical
IP RatingIP67
Weight (Kg)2.8


Mechanical

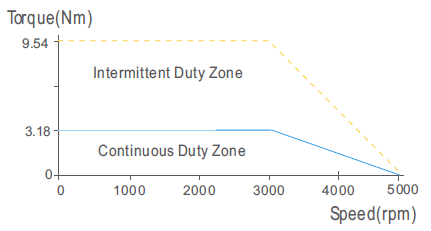

Speed-Torque Curve
