Rated voltage 400VAC, rated power 750W

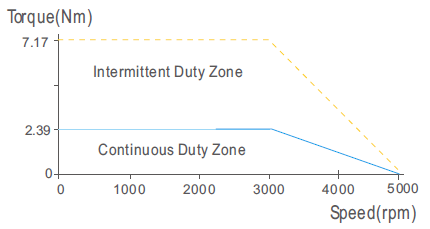

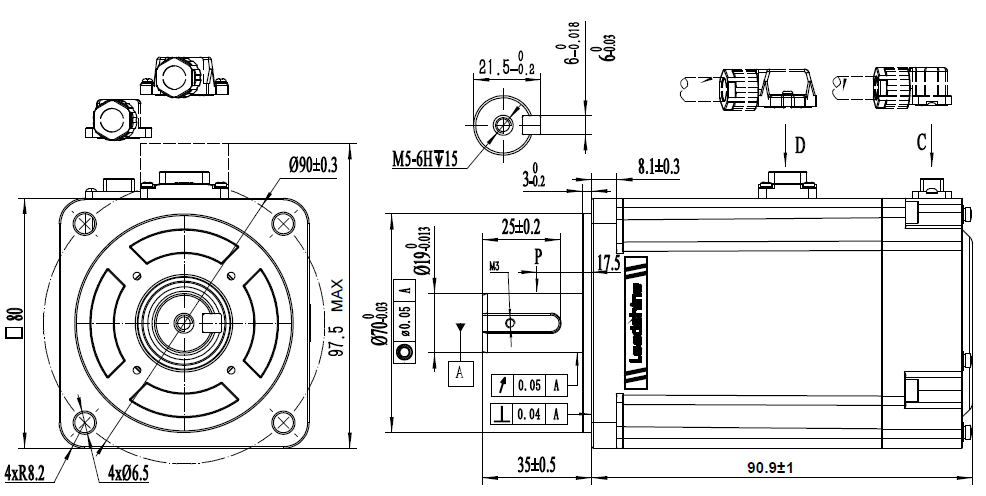

Frame 80mm, rated torque 2.39N·m, rated speed 3000r/min
23-bit optical encoder
No brake, aviation connector
Strong overload capacity
IP67

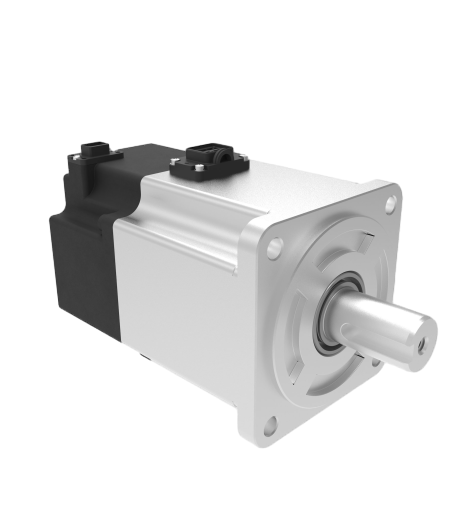

The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 750W to 1000W.
