ELVM8075V48EH-B25-HD
Product Category

ELVM8075V48EH-B25-HD

  • Rated voltage 48V, rated power 750W

  • Frame 80mm, rated torque 2.39Nᄋm, rated speed 3000r/min

  • With brake

  • Insulation class: Class F

  • 2500 ppr single-turn incremental optical encoder

  • IP65

List Price: $ 199.00
Online Special Price: $ 199.00

The ELVM series is a new low voltage servo motor series designed by Leadshine with own intellectual property rights. The servo motors provide features of short length, high torque density, high peak torques, low noise, low temperature rising and IP65 protection. The servo motors power range from 50W to 2000W, with 2500ppr incremental encoder or 17-bit absolute encoder.

Technical Data
ModelELVM8075V48EH-B25-HD
Frame Size (mm)80
Rated Voltage (Vac)48
Rated Power (W)750
Rated Torque (N.m)2.39
Peak Torque (N.m)7.17
Rated Speed (rpm)3000
Peak Speed (rpm)3900
Rated Current (Amp)19
Peak Current (Amp)59
Torque Constant (N.m/Amp)0.142
Back EMF Constant (V/krpm)8.6
Resistance (Ω)0.09
Inductance (mH)0.38
Inertia (kg*m2*10-4)1.65
Poles10
Encoder Type2500   ppr
Max radial load(N)392
Max axial load(N)147
IP RatingIP65
Weight (Kg)2.7


Mechanical

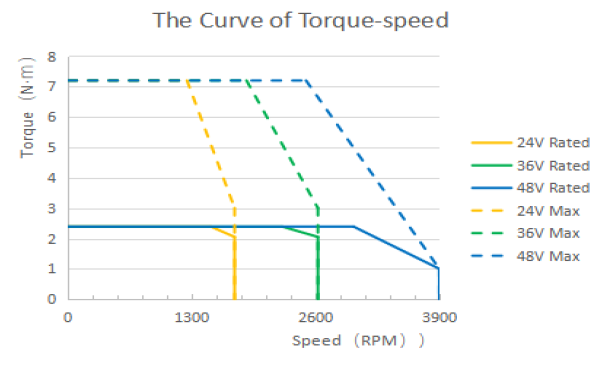

Speed-Torque Curve
