● Pulse control, max pulse input frequency up to 500 kHz

● Support position mode and internal velocity mode

● Support single-ended pulse input and differential pulse input

● 4 inputs and 3 outputs

● Rated voltage 220VAC 1ph

● Rated power 750W

● Available 17-bit/23-bit encoder

● Automatic motor identification

List Price: $ 199.00
Online Special Price: $ 199.00

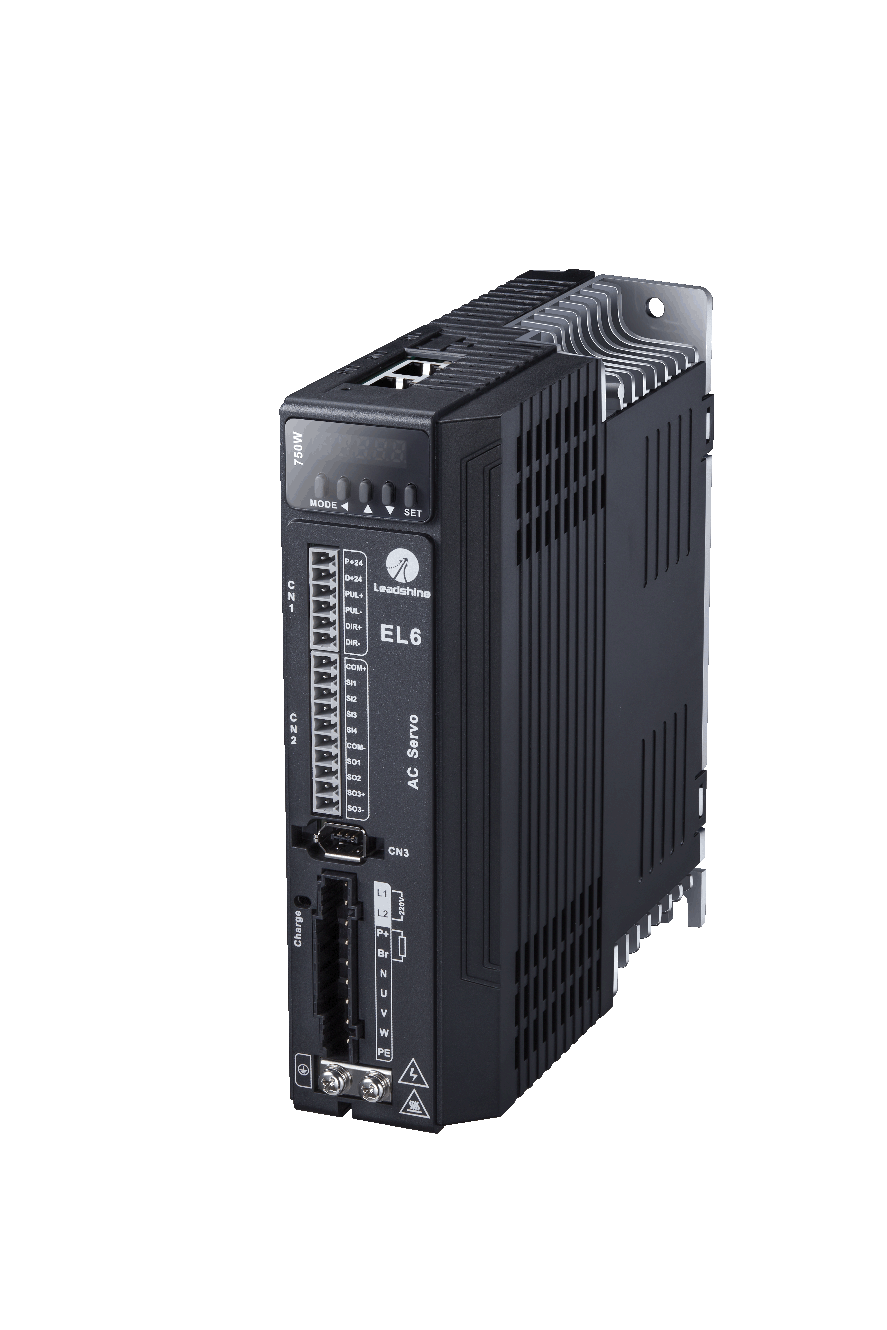

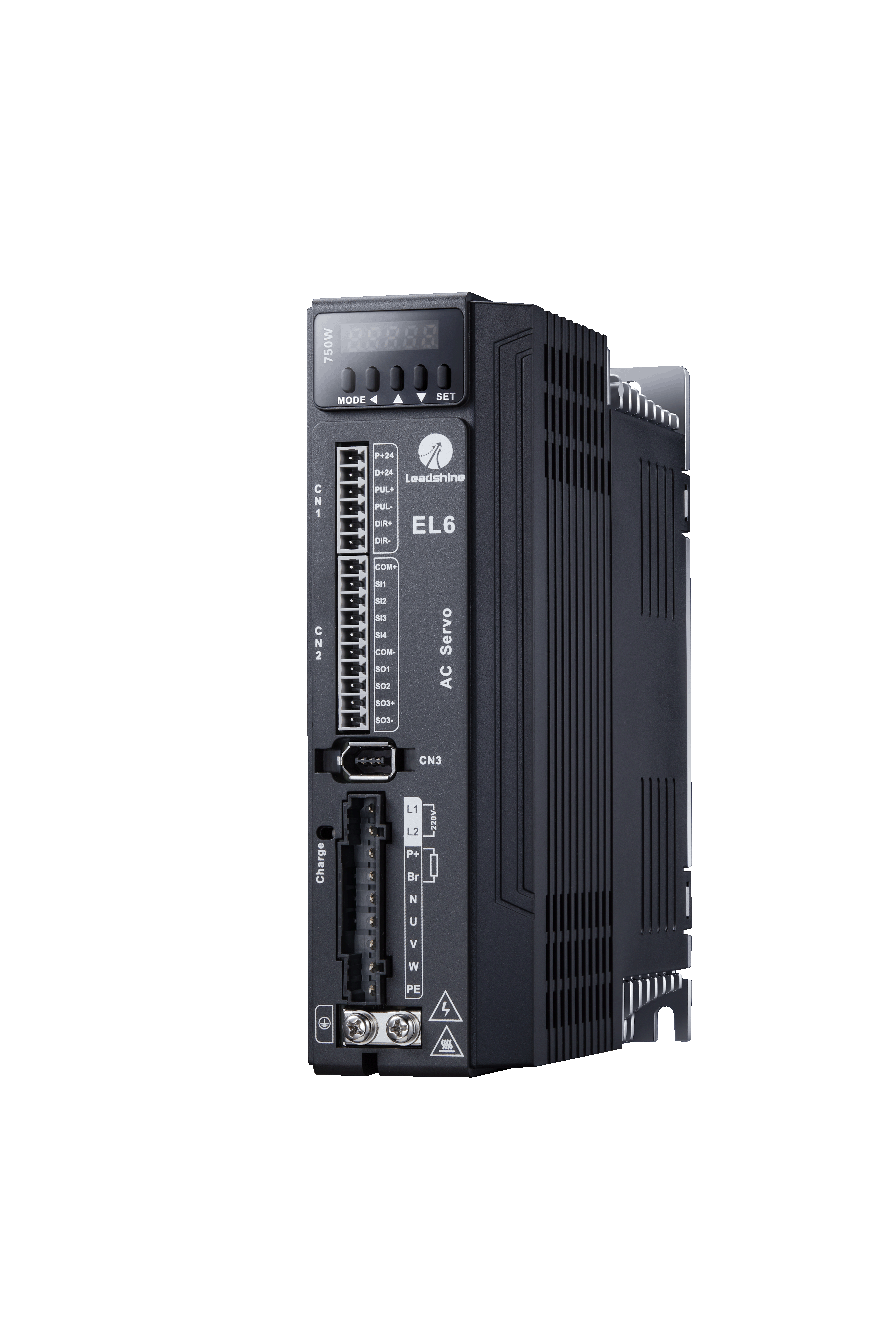

EL6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control, power range up to 1kW, which can provide a perfect solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.

Technical Data
Input Voltage220VAC 1ph
Rated Power (W)750
Rated Current (Arms)5.2

Peak Current (Arms)

Command SourcePulse+Direction
# of Inputs4
# of Outputs3
