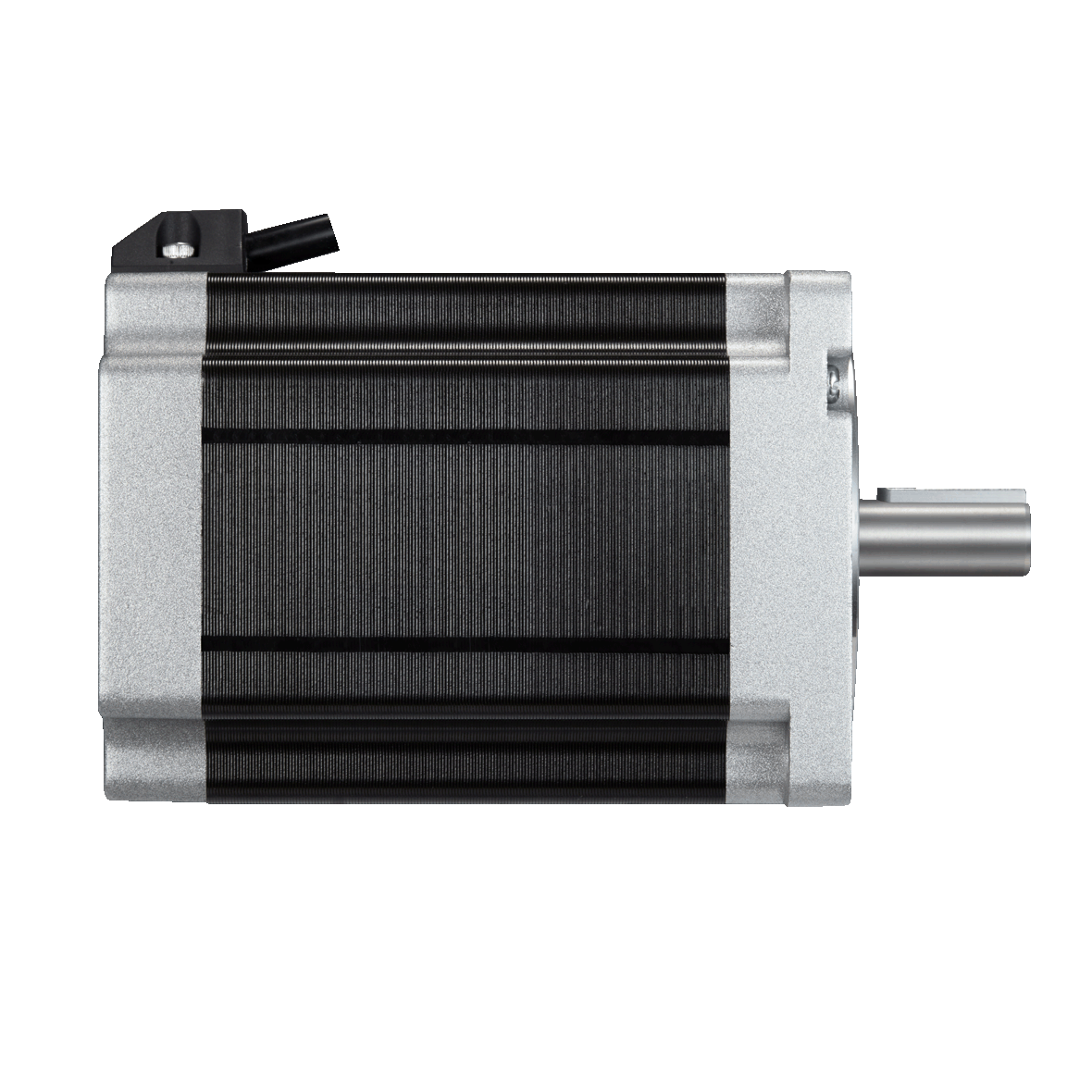

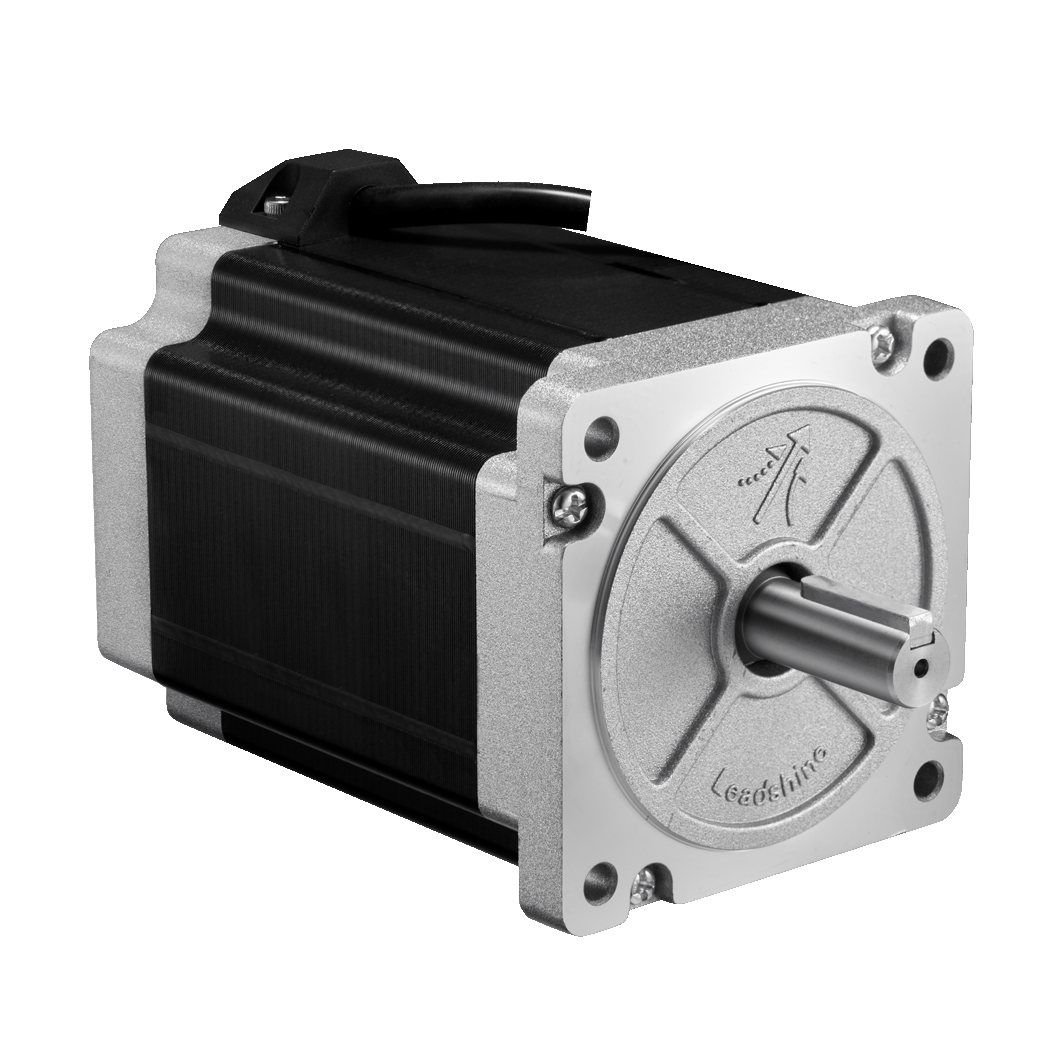

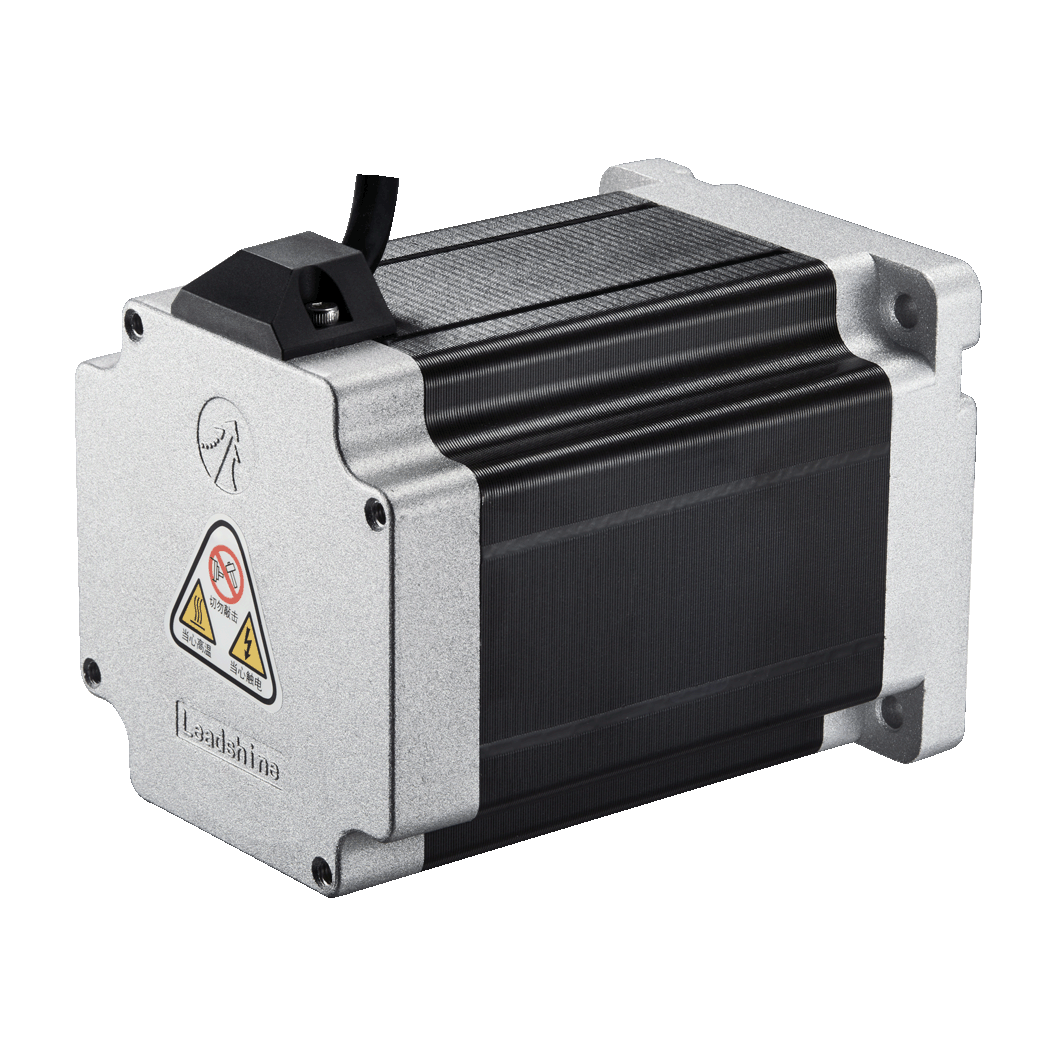

86CM120
Product Category

86CM120

  • 2 phase, NEMA 34 frame size

  • 129 mm (5.08 inch) long

  • 6 A phase current

  • 12 N.m (1700 oz-in) holding torque

  • 14 mm (0.551 inch) shaft size

  • Built with high quality materials including bearings and shaft made by Japanese manufacturers

  • High precision, low motor heating, and low vibration



List Price: $ 199.00
Online Special Price: $ 199.00

The CM series stepper motors can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.

Technical Data
Model86CM120
Frame Size (NEMA)34
Length (mm)129
Holding Torque (N.m)12
Phase Current (A)6.0
Shaft Diameter (mm)14
Center Diameter (mm)73
IP RateIP40
CharacteristicsStandard
Resistance (ohm)0.75
Inductance (mH)5
Inertia (kg/cm2)2.94
Weight (kg)4.45

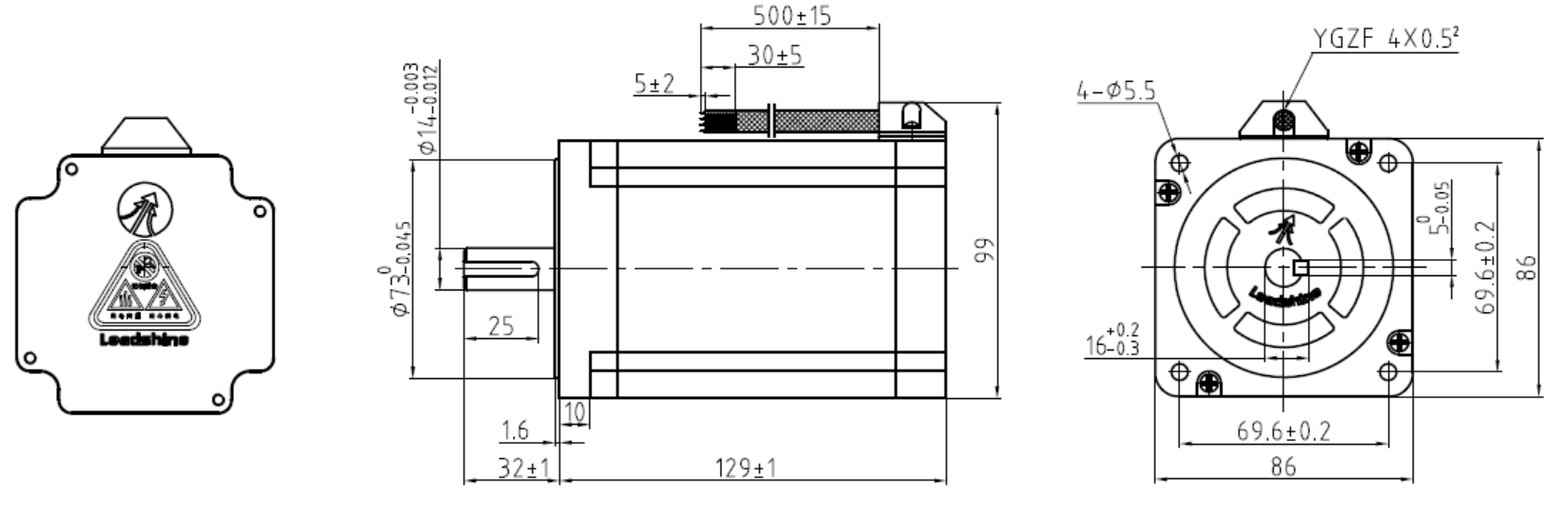

Mechanical

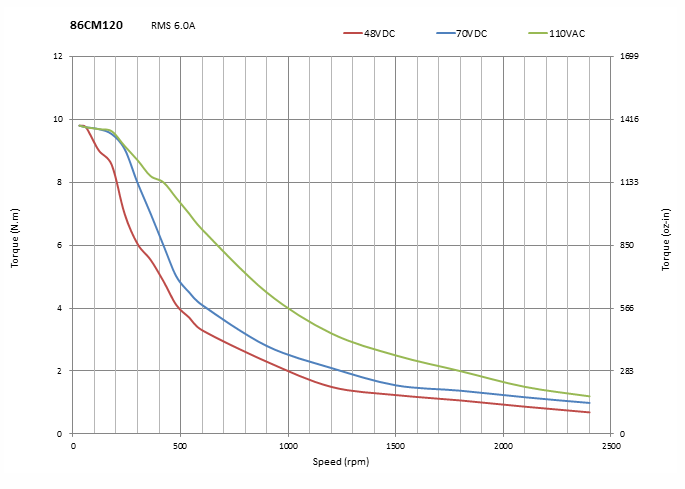

Speed-Torque Curve
