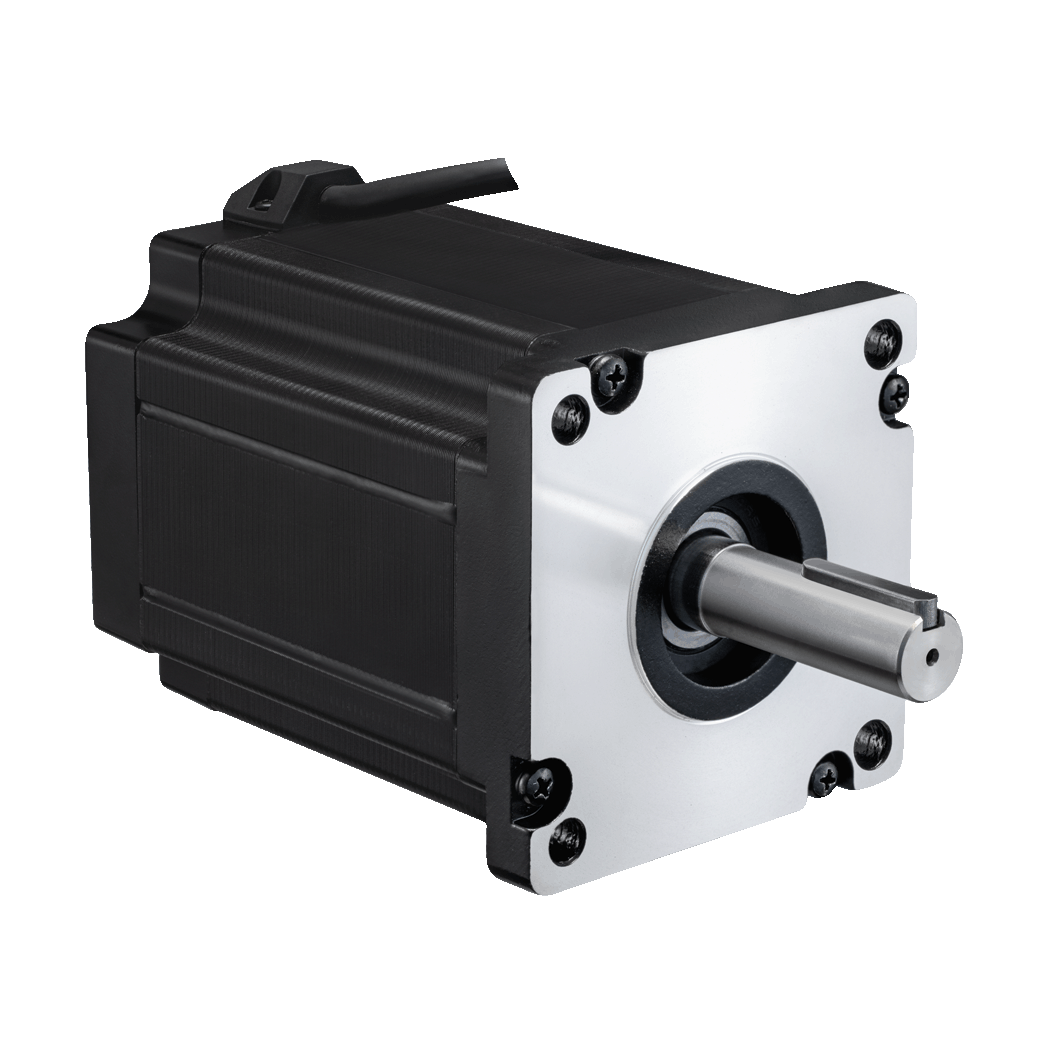

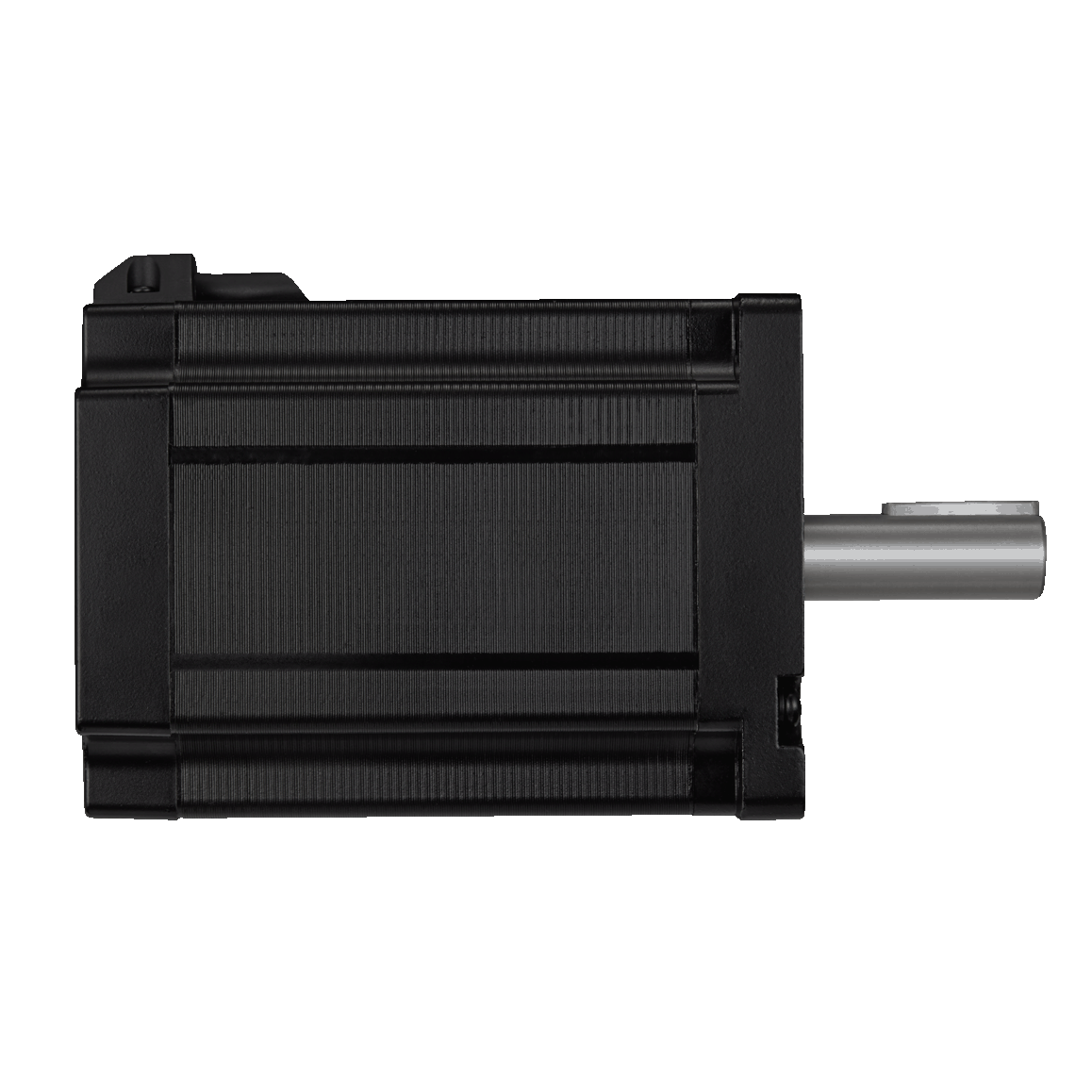

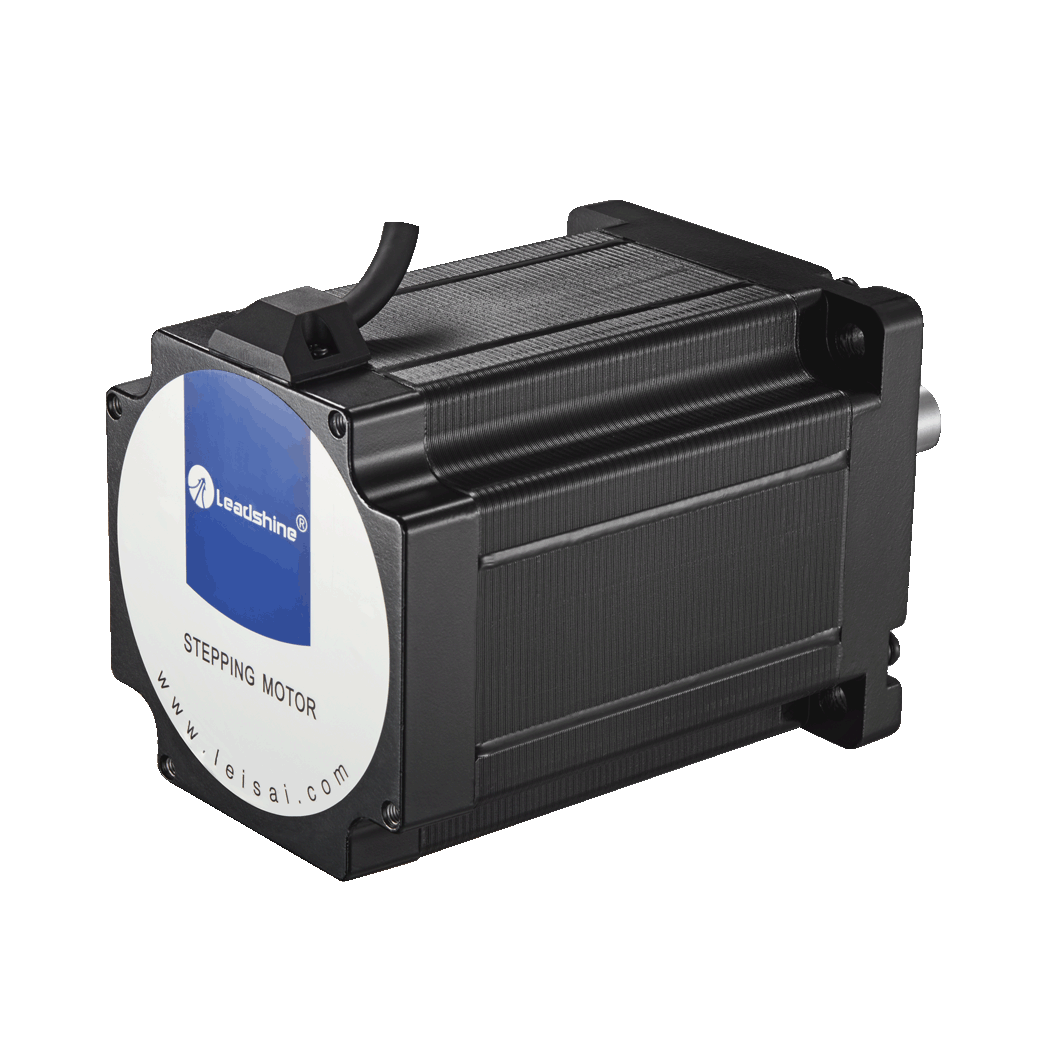

110CM28
Product Category

110CM28

  • 2 phase, NEMA 42 frame size

  • 201 mm (7.91 inch) long

  • 6.5 A phase current

  • 28 N.m (3967 oz-in) holding torque

  • 19 mm (0.748 inch) shaft size

  • Built with high quality materials including bearings and shaft made by Japanese manufacturers

  • High precision, low motor heating, and low vibration


List Price: $ 199.00
Online Special Price: $ 199.00

The CM series stepper motors can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.

Technical Data
Model110CM28
Frame Size (NEMA)42
Length (mm)201
Holding Torque (N.m)28
Phase Current (A)6.5
Shaft Diameter (mm)19
Center Diameter (mm)55.5
IP RateIP40
CharacteristicsStandard
Resistance (ohm)1.2
Inductance (mH)22
Inertia (kg/cm2)16.2
Weight (kg)11.7

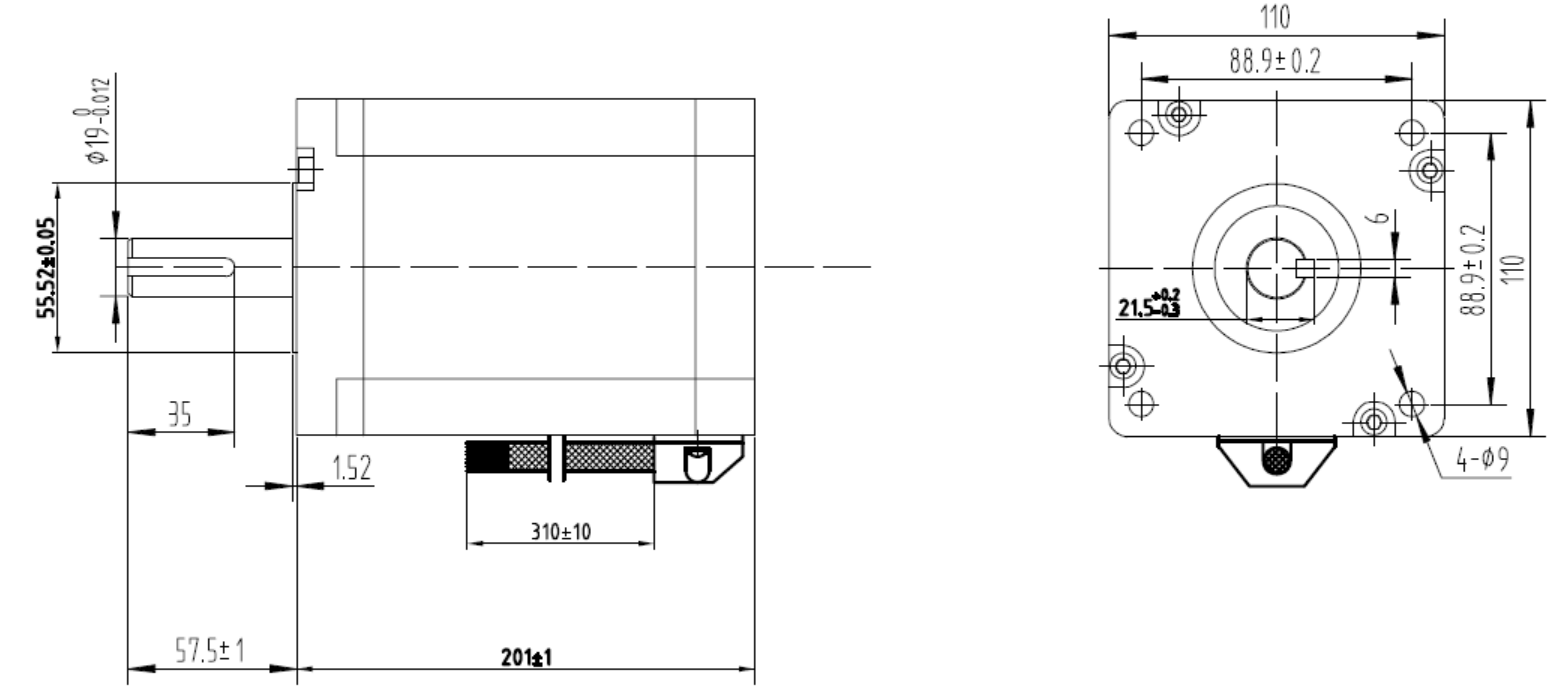

Mechanical

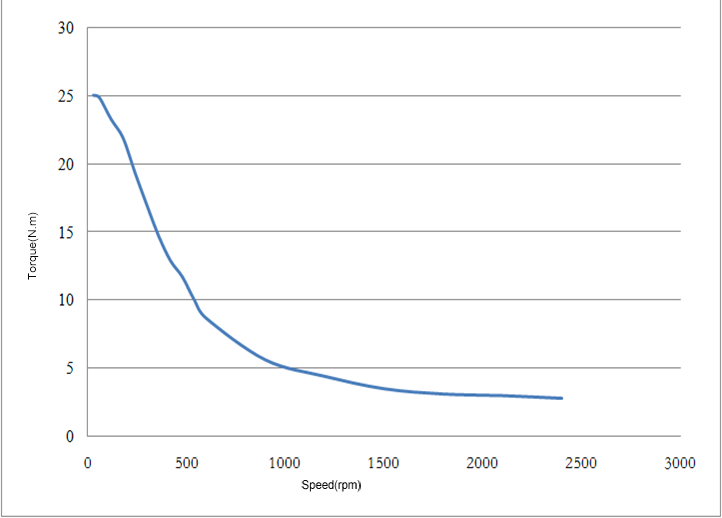

Speed-Torque Curve
