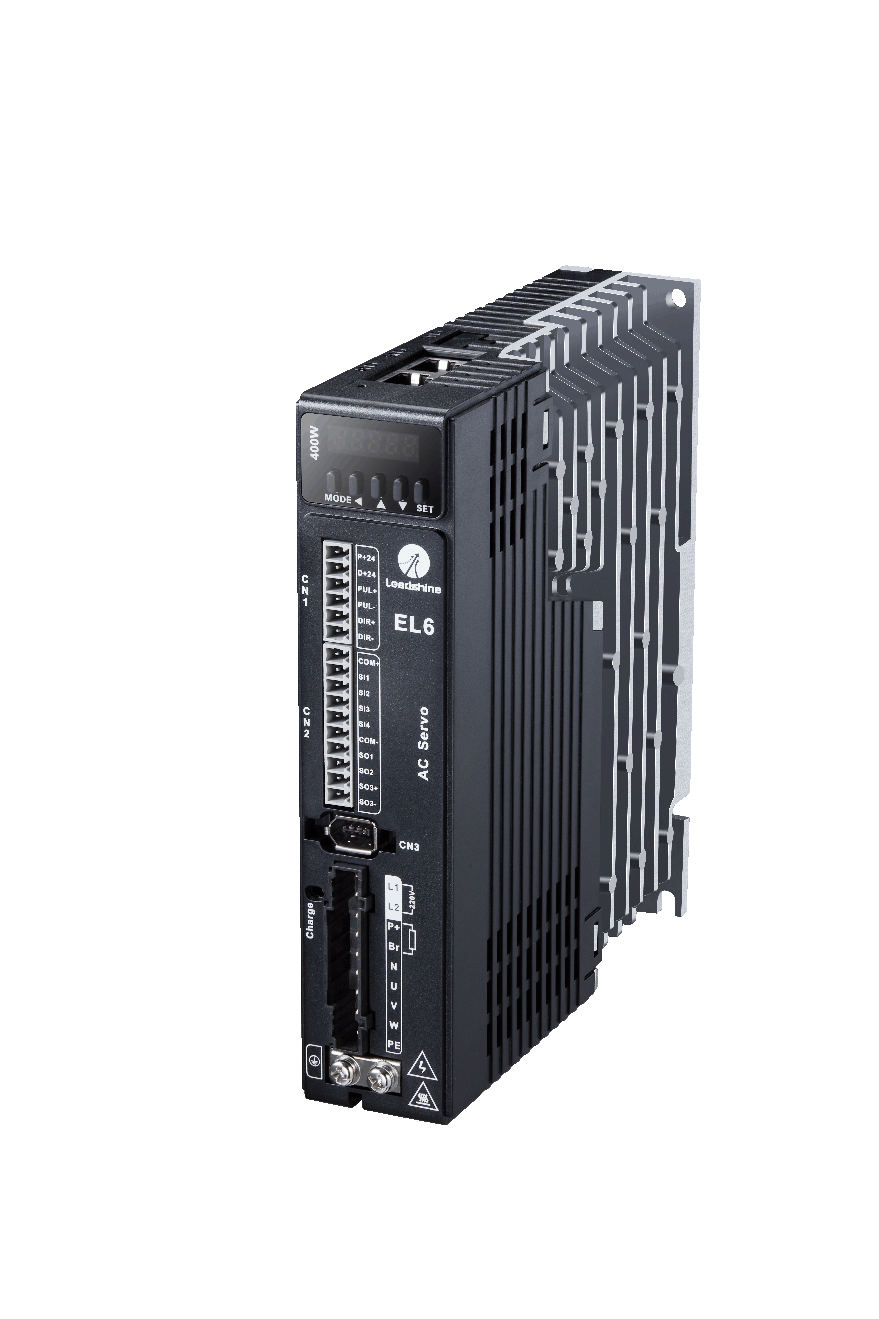

EL6-RS400Z
Product Category

EL6-RS400Z

● Modbus RTU communication

● Support pulse control

● PR function, 16 paths

● Encoder signals A/B/Z differential output and Z OC output

● 4 inputs and 3 outputs

● Rated voltage 220VAC 1ph

● Rated power 400W

● Available 17-bit/23-bit encoder

● Automatic motor identification


List Price: $ 199.00
Online Special Price: $ 199.00

EL6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control, power range up to 1kW, which can provide a perfect solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.

Technical Data
ModelEL6-RS400Z
Input Voltage220VAC 1ph
Rated Power (W)400
Rated Current (Arms)3
Peak Current (Arms)9.2
Command SourceModbus RTU/ Pulse+Direction
# of Inputs4
# of Outputs3

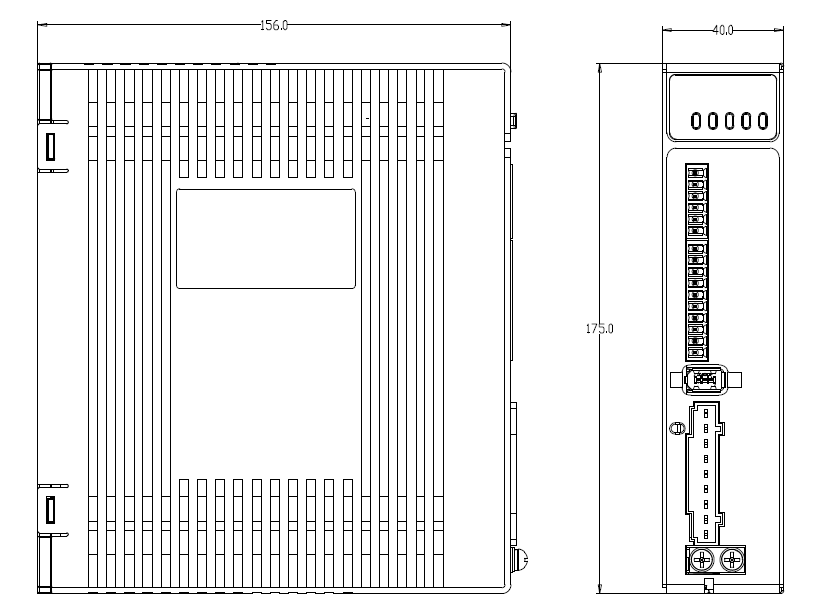

Mechanical
