● Support Modbus RTU using Isolated RS485

● 20-80VDC supply voltage, max 7.0A output current

● HMI, PLC or external I/O start motion

● 7 programmable inputs: limit, origin, quick stop, alarm reset, enable, JOG or position table inputs

● 3 Programmable outputs: alarm, brake, homing / instruction / path complete

● Modes of operation: profile velocity, profile position, homing

● RS232 communication for Leadshine MotionStudio

● Over voltage, over current, motor cable error, etc. protections

List Price: $ 199.00
Online Special Price: $ 199.00

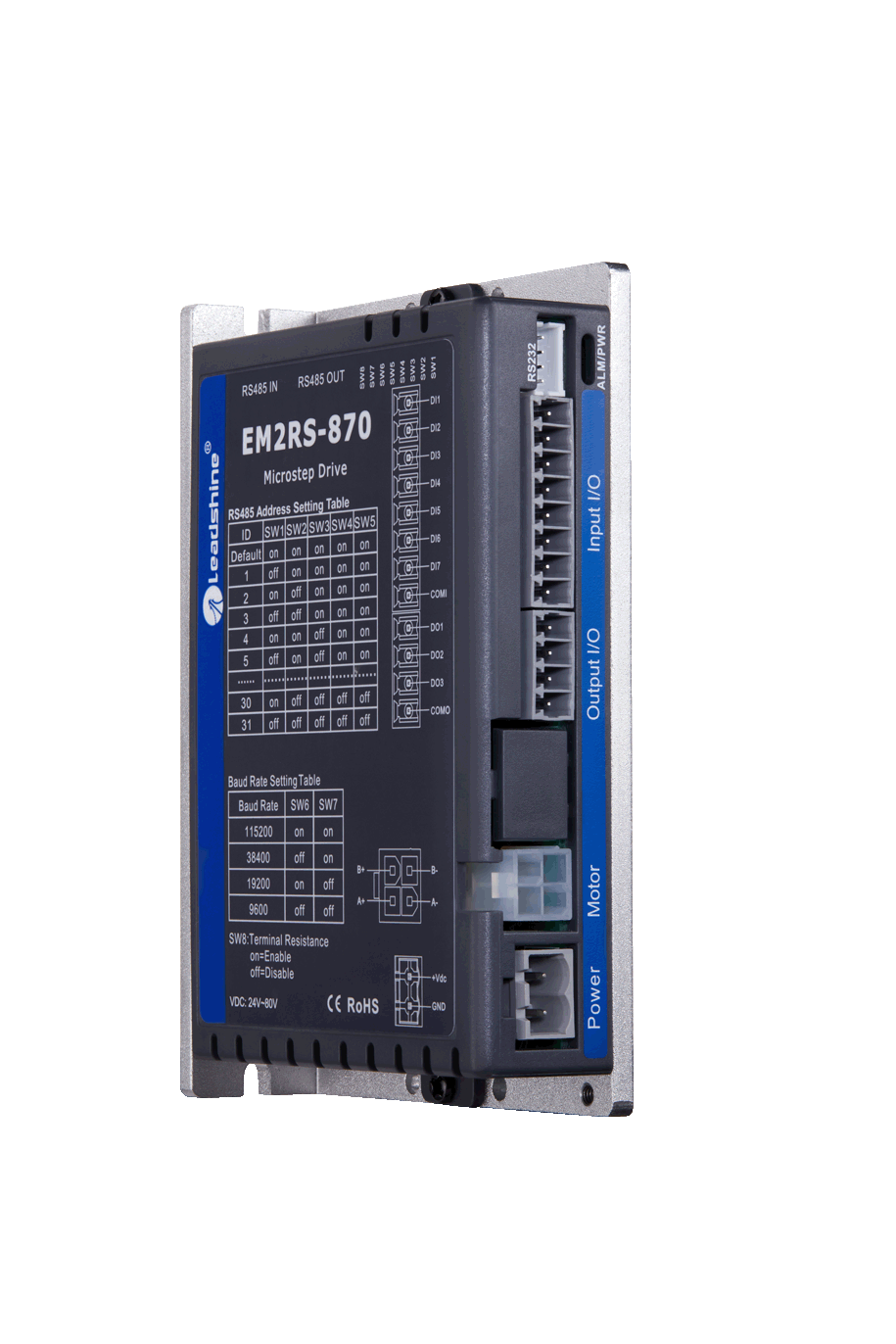

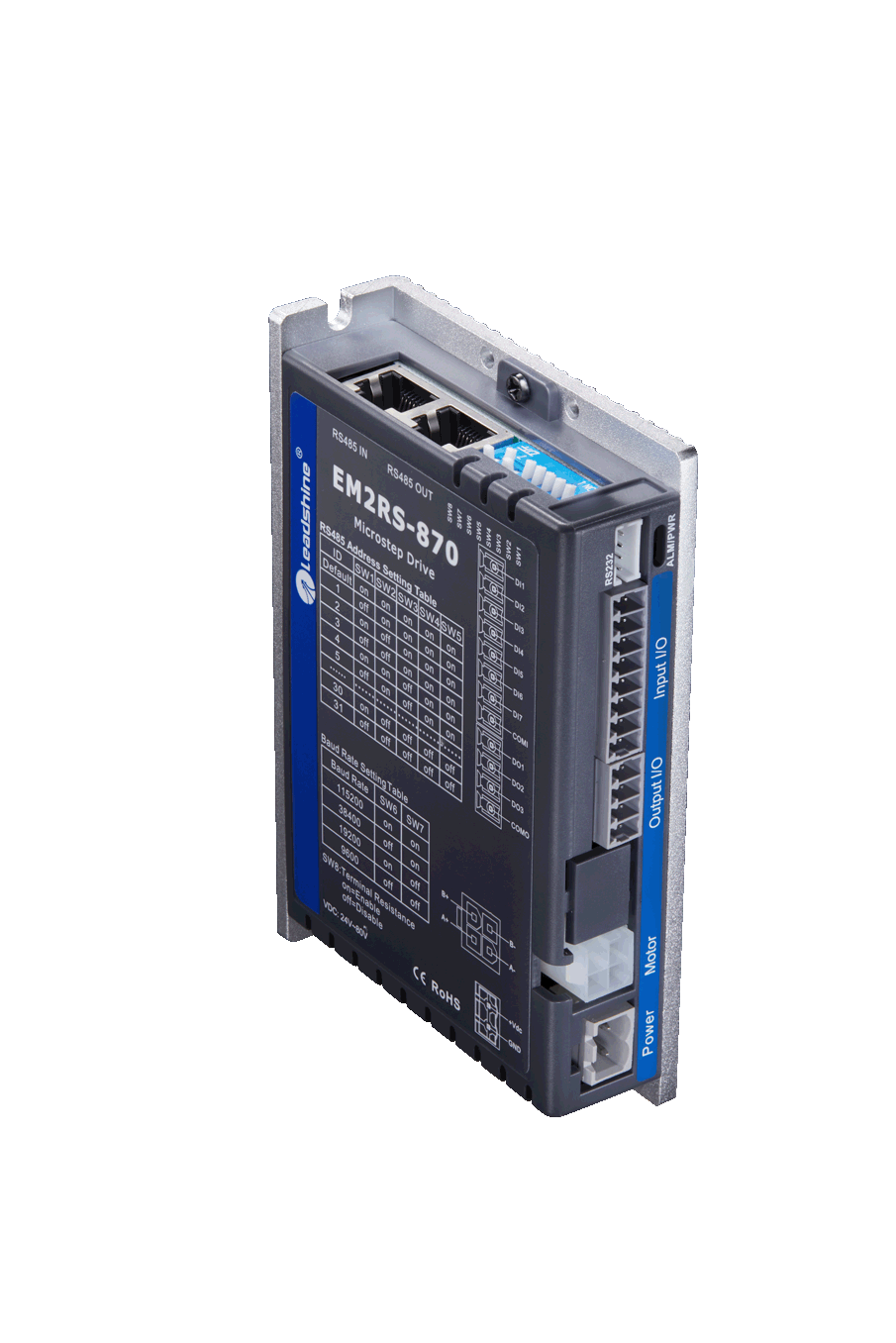

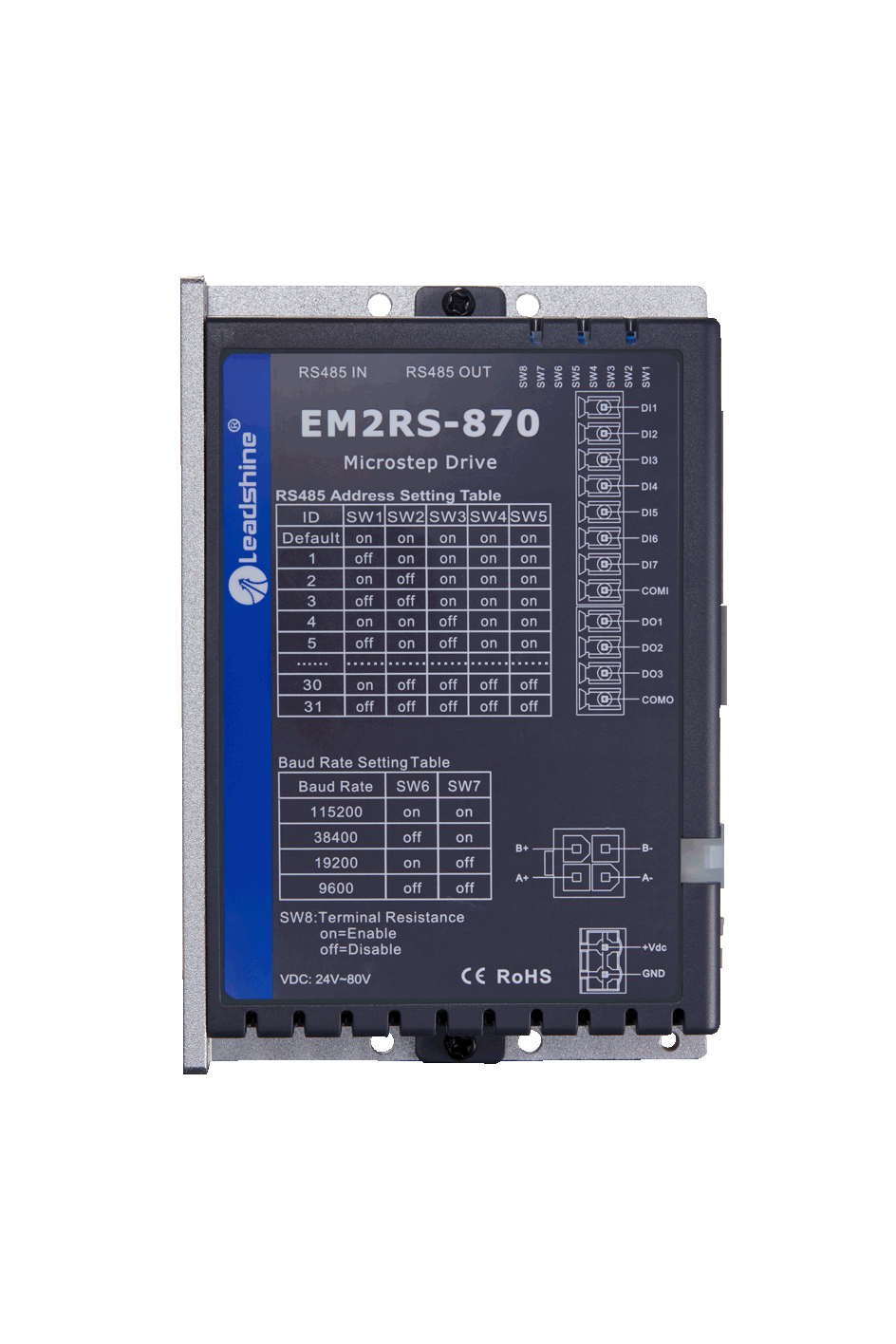

EM2RS Series are stepper drive based on standard Modbus RTU protocol, using RS485 communication can network up to 31 axes. They built-in PR feature with 16-segment position table (PR Mode) can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. EM2RS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing. EM2RS-A882 can power 2-phase NEMA 24, 34 stepper motors.

Technical Data
Command SourceModbus RTU
Operation Voltage (VDC)18-80VAC or 30-110VDC
Output Current (A, Peak)8.2
Input Frequency (KHz, Max.)10
Logical Voltage (VDC)12-24
# of Inputs7
# of Outputs3
