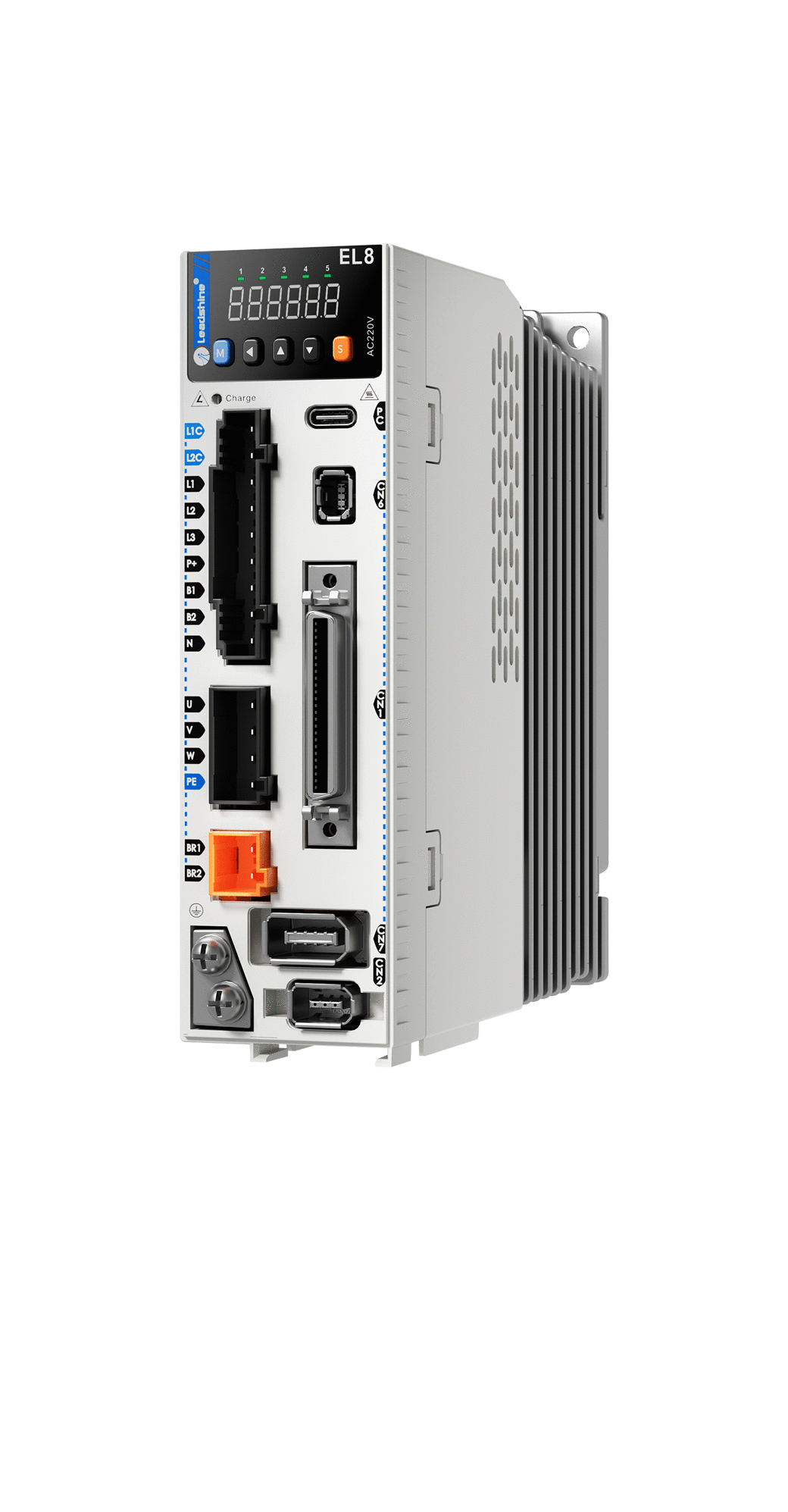

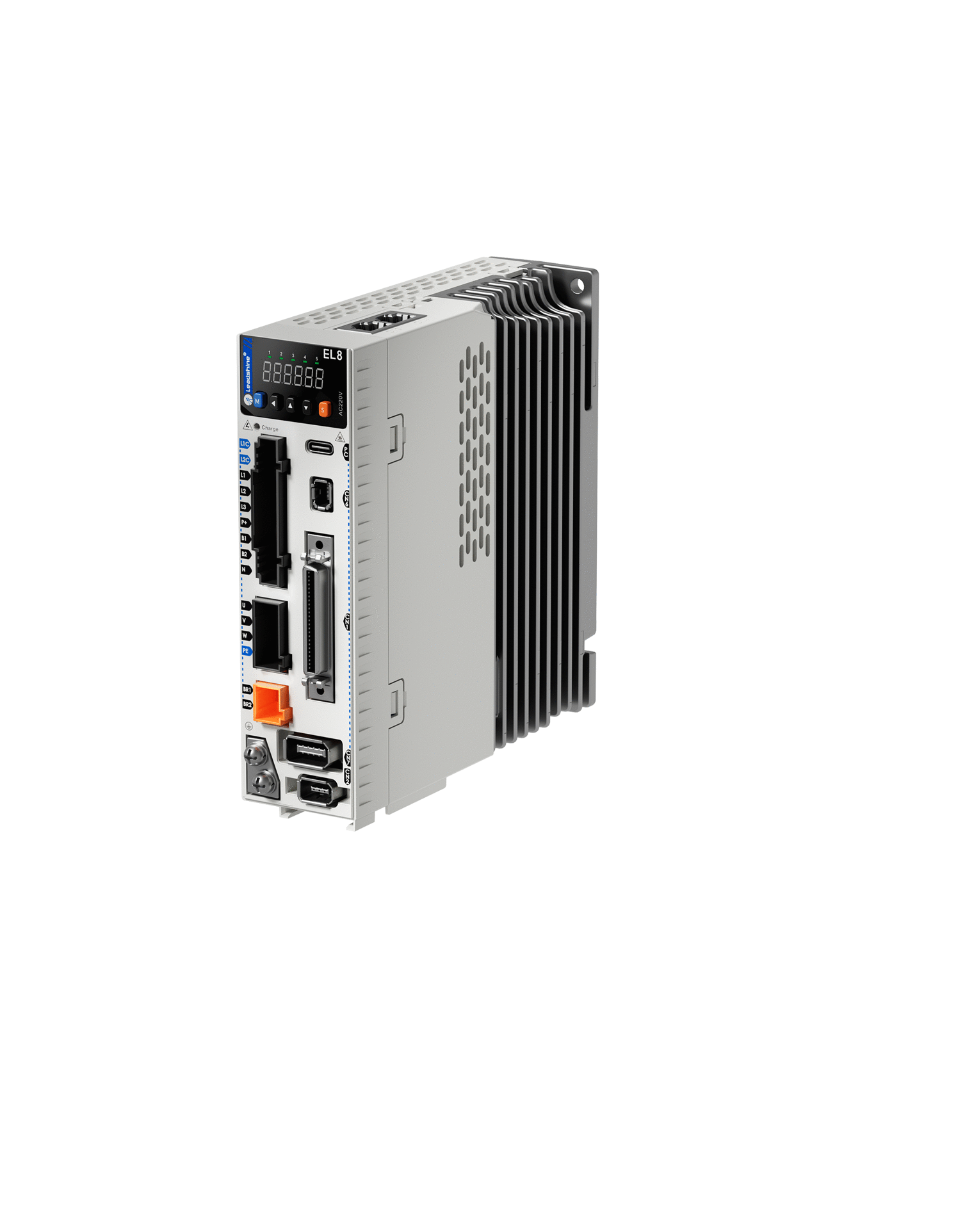

EL8-RS1000F
Product Category

EL8-RS1000F

  • Servo drives with power rating from 400W to 1000W

  • User-configurable I/Os: 10 DI, 6 DO, 3 AI, 2 AO

  • Equipped with internal regenerative resistor and direct drive holding brake

  • Position, velocity, torque and hybrid control

  • New servo functions including Zero Tracking Control (ZTC), Position comparison, Black box, 1-click/1-parameter easy tunings

  • Safety functions such as Safe Torque Off (STO) with SIL3 grading

  • Matching motors with power rating from 50W to 1000W

  • Motors with 23-bit magnetic/optical encoders

  • Optional holding brake

List Price: $ 199.00
Online Special Price: $ 199.00

EL8-RS Series AC Servo Product is a whole new high-end AC servo drivers and motors product range that we have proudly developed at Leadshine Technology Co.,Ltd. EL8-RS series AC servo drivers range from power rating of 450W up to 2000W with matching servo motors from 50W up to 2000W.

EL8-RS Series AC Servo Drives support Modbus RS485 communication protocol. This servo drive series can be controlled using analogue input signal, pulse command input and RS485 communication.

Our new EL8-RS Series AC Servo Drive is equipped with easy servo tuning (One-click Tuning/ Single Parameter Tuning), better auto gain adjustments, vibration suppression and many more. We have not only upgraded the existing functionalities but also added in new features such as Gantry synchronization, full closed loop control and black box.

Technical Data
ModelEL8-RS1000F
Input Voltage1ph/3ph   220VAC
Rated Power   (W)1000
Rated Current (Arms)7
Peak Current (Arms)21.2
Command   SourceModbus   RTU/Pulse+Direction/Analogue
# of Digital   Inputs10
# of Digital   Outputs6
# of Analog   Inputs3
# of Analog   Outputs2

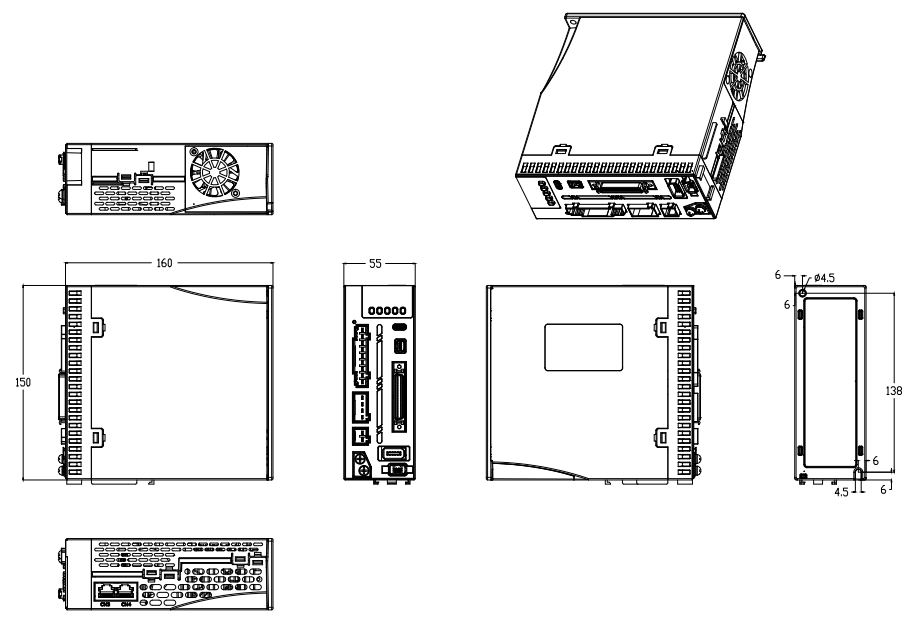

Mechanical
