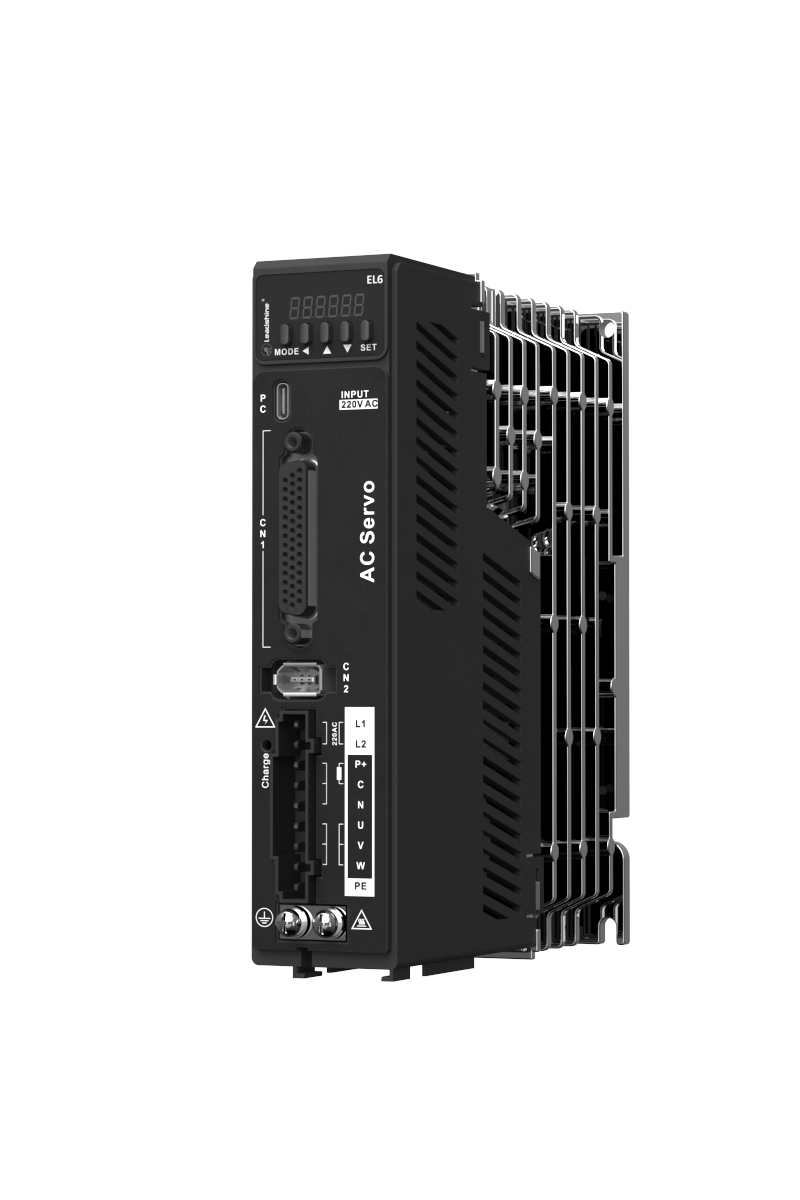

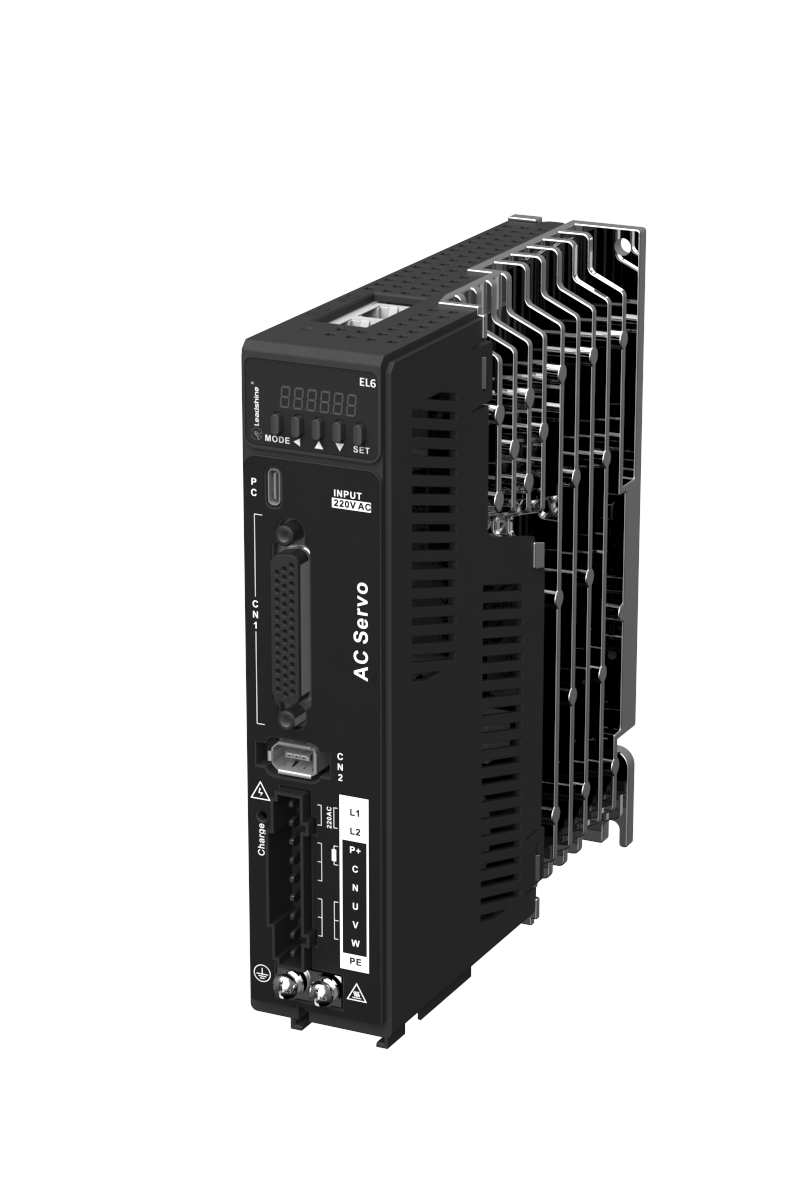

EL6-RS400P
Product Category

EL6-RS400P

  • Servo drive power rating: 400W

  • User-configurable I/Os: 8 DI, 5 DO

  • Pulse input: High speed – 4MHz, Low speed – 200kHz (24V), 500kHz(5V)

  • Position, velocity, torque and hybrid loop control

  • Servo functions including Zero Tracking Control (ZTC), vibration suppression, friction compensation, 16 configurable PR paths and easy servo tunings.

  • Matching motors with power rating from 50W to 400W

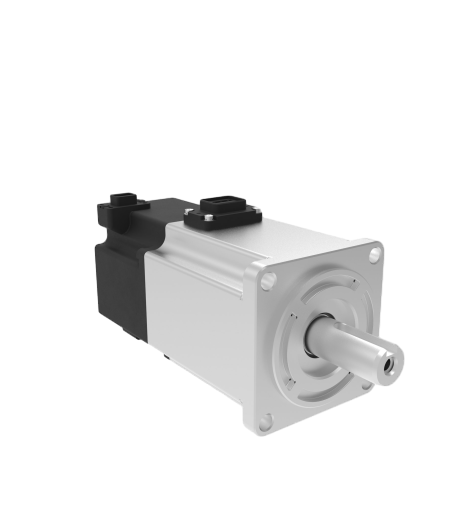

  • Motors with 23-bit magnetic/optical encoders

  • Optional holding brake

List Price: $ 199.00
Online Special Price: $ 199.00

EL6-RS Series AC Servo Product is a whole new economical AC servo drivers and motors product range that we have proudly developed at Leadshine Technology Co.,Ltd. This product series provides more in demanded functionalities and control. While designing this AC servo drive series with cost concerns in mind, this product series doesn’t compromise in term of performance and functions.

EL6-RS Series AC Servo Drive comes with power rating from 450W up to 1000W which supports Modbus communication protocol in addition to  pulse + direction input control.

EL6-RS series AC Servo Drive is equipped with easy servo tuning (One-click Tuning/ Single Parameter Tuning), Zero Tracking Control (ZTC), vibration suppression and many more. This AC servo drive series also comes with new AC servo motors with 23-bit optical/magnetic encoder which offers better accuracy and stability.

Technical Data
ModelEL6-RS400P
Input Voltage220VAC 1ph
Rated Power   (W)400
Rated Current (Arms)3.5
Peak Current (Arms)9.5
Command   SourceModbus   RTU/Pulse+Direction
# of Digital   Inputs8
# of Digital   Outputs5

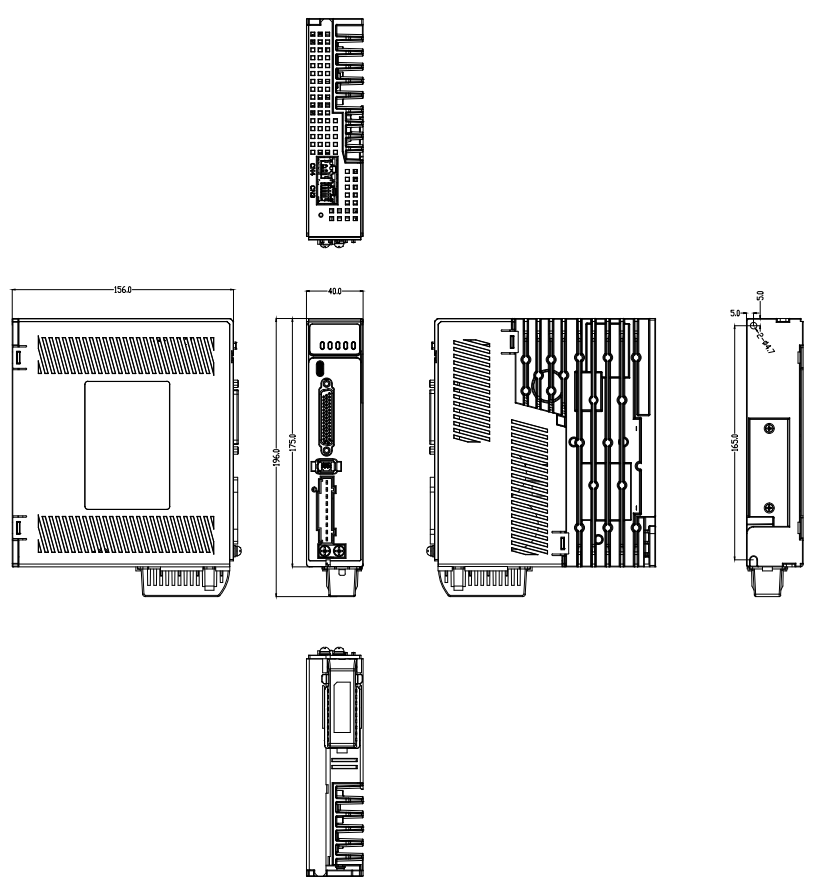

Mechanical
