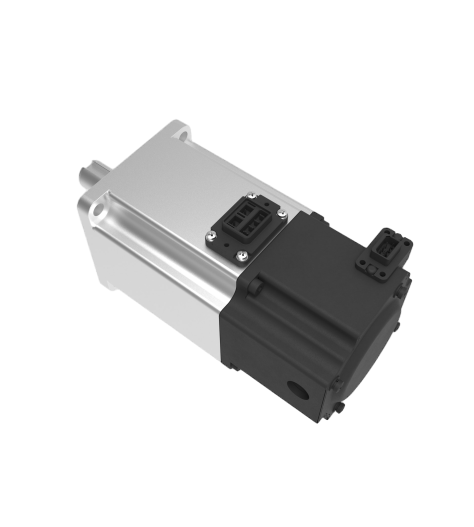

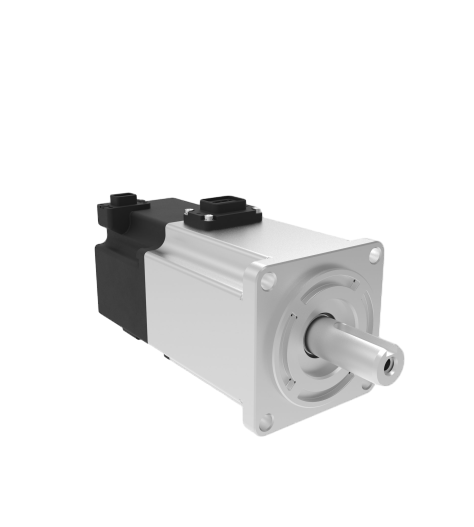

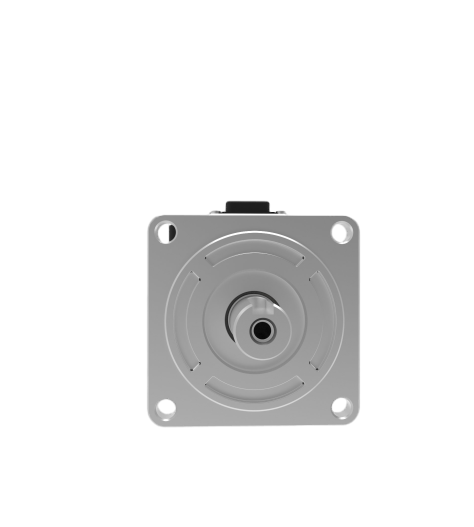

ELM1H-0200MA60E
Product Category

ELM1H-0200MA60E

  • Rated voltage 220VAC, rated power 200W

  • Frame 60mm, rated torque 0.64N•m, rated speed 3000r/min

  • 23-bit magnetic encoder

  • With brake, direct connector

  • Strong overload capacity

  • IP67


List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.

Technical Data
ModelELM1H-0200MA60E
Frame Size (mm)60
Rated Voltage (Vac)220
Rated Power (W)200
Rated Torque (N.m)0.64
Peak Torque (N.m)1.92
Rated Speed (rpm)3000
Peak Speed (rpm)5000
Rated Current (Amp)1.5
Peak Current (Amp)4.5
Torque Constant (N.m/Amp)0.4
Back EMF Constant (V/krpm)26.9
Resistance (Ω)7.0
Inductance (mH)12.7
Inertia (kg*m2*10-4)0.3
Poles10
Encoder Type23bit   magnetic
IP RatingIP67
Weight (Kg)1.3

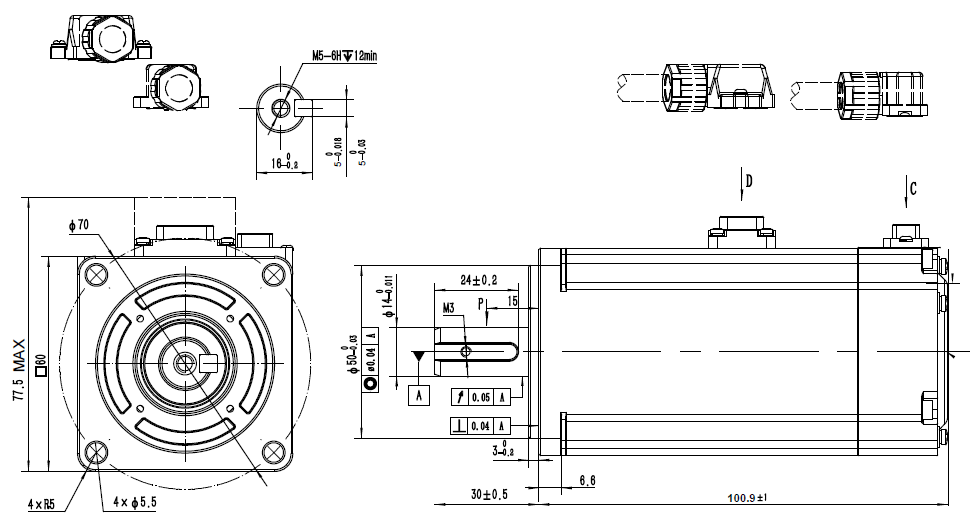

Mechanical
