● No loss of step, no hunting, no torque reservation.
● CANopen over EtherCAT (CoE) with full support of CiA402,100Mbps full-duplex.
● Operation modes: profile position, profile velocity, cyclic synchronous position, homing.
● 6 configurable digital inputs, 2 optically isolated digital outputs include brake output.
● Low noise and vibration, smooth motion.
● Micro-USB port for Leadshine software connection.
● Over voltage, over current and position following error, encoder cable error, etc. protections.

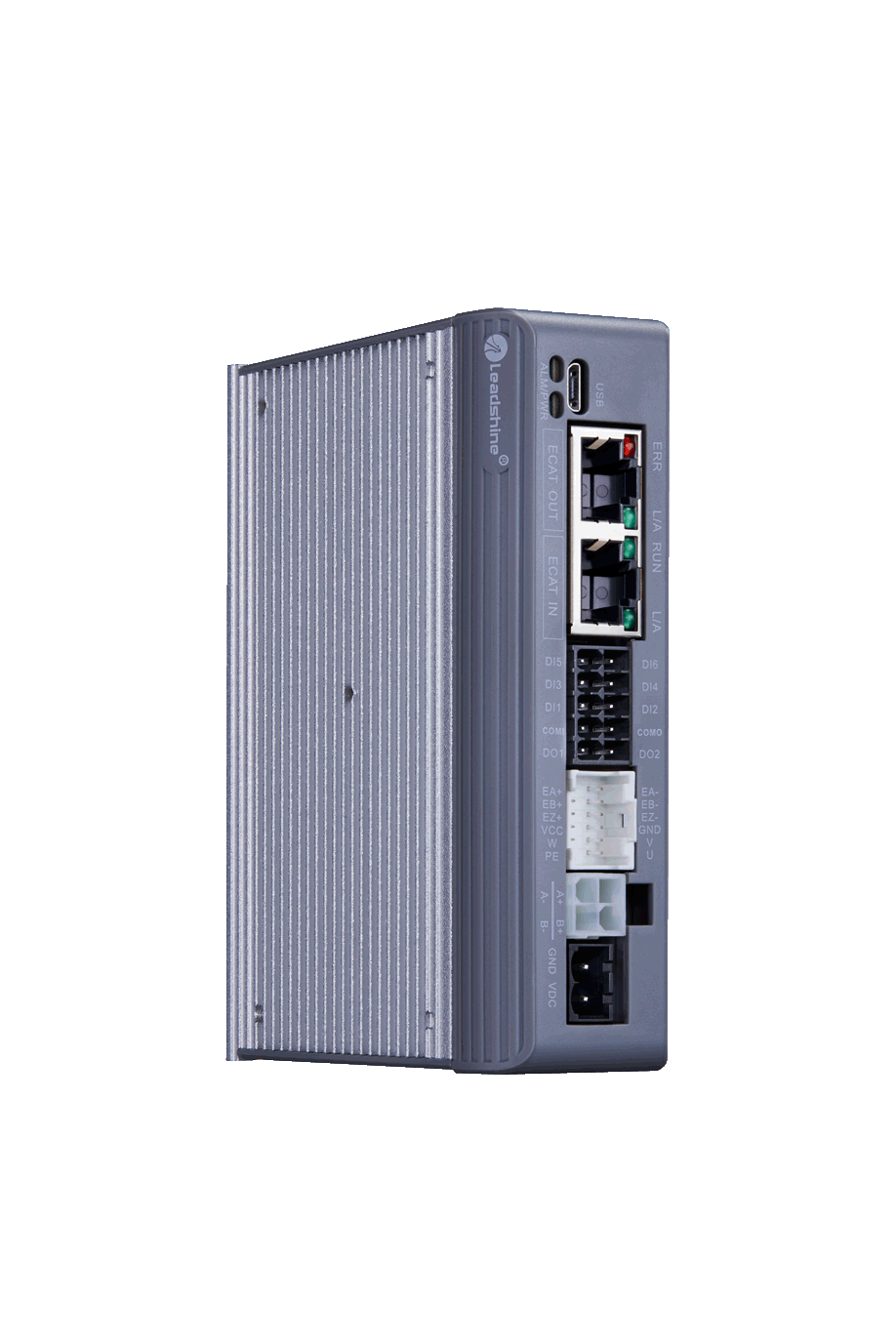

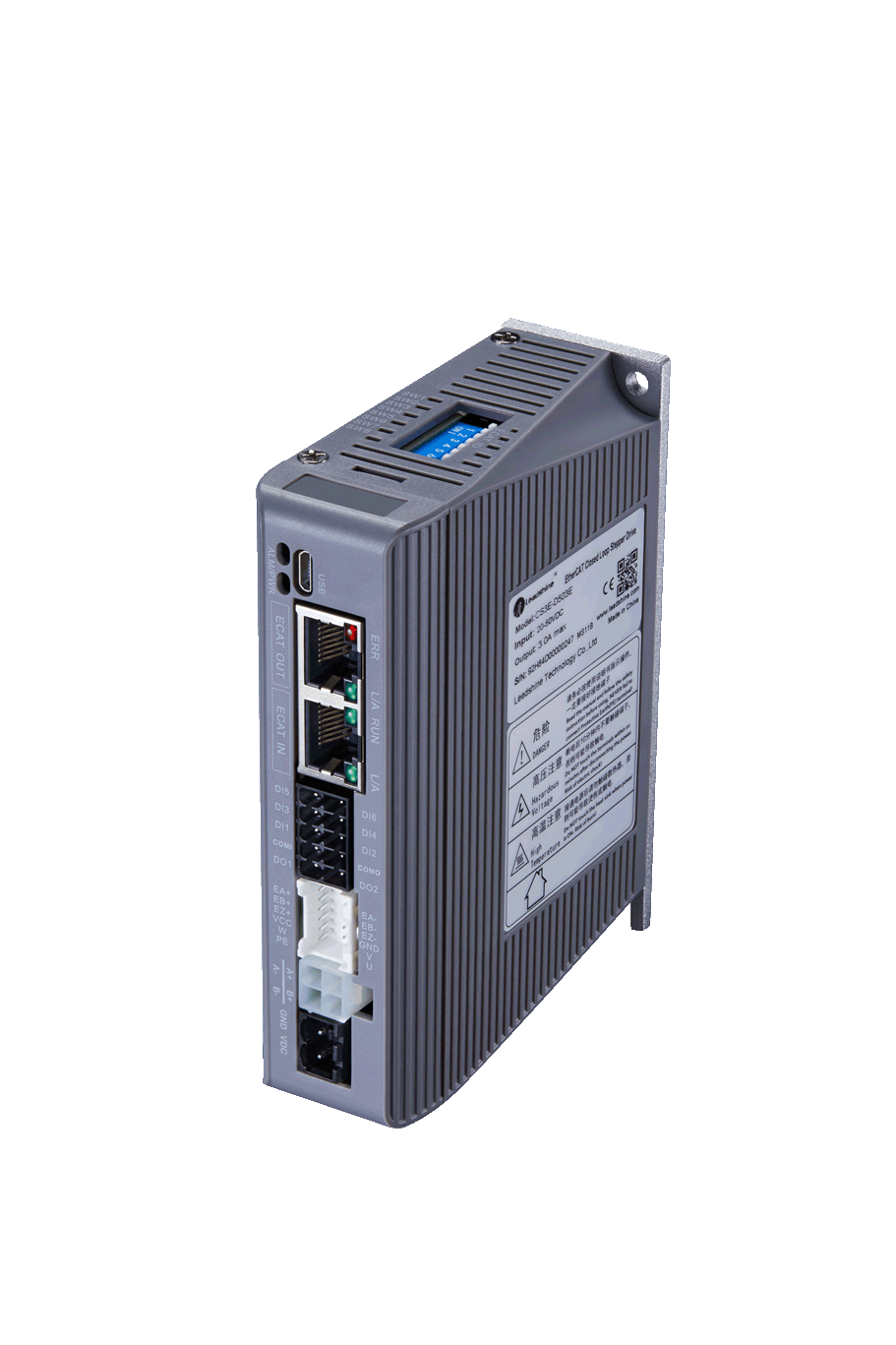

The newly released CS3E-E series drives support CANopen over EtherCAT (CoE) control and CiA 402 operating modes including Profile Position (PP), Profile Velocity (PV), Homing (HM) and Cyclic Synchronous Position (CSP). The products can be matched with many brands of EtherCAT controller/PLC such as Beckhoff,Omron, Trio, Keneyce, etc.
The CS3E-E series is highly reliable and affordable and performs excellently in many industrial applications such as solar equipment, textile, civil, robotics, power generation equipment, 3C,packaging...
|Operation Voltage (VDC)||20-50|
|Output Current (A, Peak)||7.0|
|Input Frequency (KHz, Max.)||10|
|Logical Voltage (VDC)||12-24|
|# of Inputs||6|
|# of Outputs||2|
