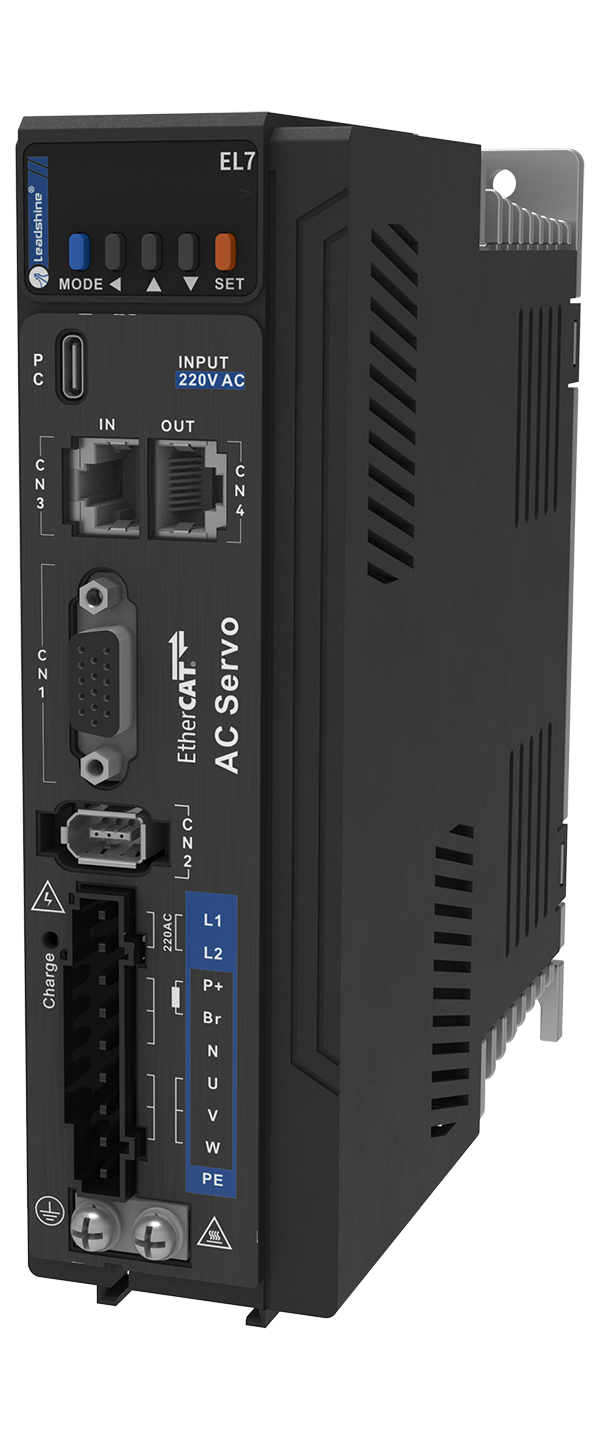

EL7-EC1000N
Product Category

EL7-EC1000N

  • Servo drive with power rating from 400W to 2000W

  • User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input DB15 I/O port

  • USB Type-C tuning port, stable and easy to get

  • Equipped with internal regenerative resistor

  • Position, velocity and torque loop control

  • Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments

  • Safety functions such as Safe Torque Off (STO) with SIL3 grading

  • Matching motors with power rating from 30W to 1000W

  • Motors with 23-bit magnetic/optical encoders

Optional holding brake


List Price: $ 199.00
Online Special Price: $ 199.00

EL7-EC Series AC servo products are high performance 220V 1ph AC digital servo which is designed for position/velocity/torque

high accurate control with power rating ranging up to 2.0kW which provides a perfect solution for different applications with

easy tuning process. Based on the ETG COE + EtherCAT DSP402 protocol, it can be seamlessly connected to controllers/drives

that support this standard protocol.


EL7-EC series AC servo drives are using the latest Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM)

with compact components integration and great reliability. Using the best PID calculation for Pulse Width Modulation (PWM) control,

our EL7-EC series products are the one to beat in this product category.


Technical Data
ModelEL7-EC1000N
Input Voltage220VAC   1ph
Rated Power   (W)1000
Rated Current (Arms)7.5
Peak Current (Arms)21.5
Command   SourceEtherCAT
# of Inputs4
# of Outputs3
STOSIL3
