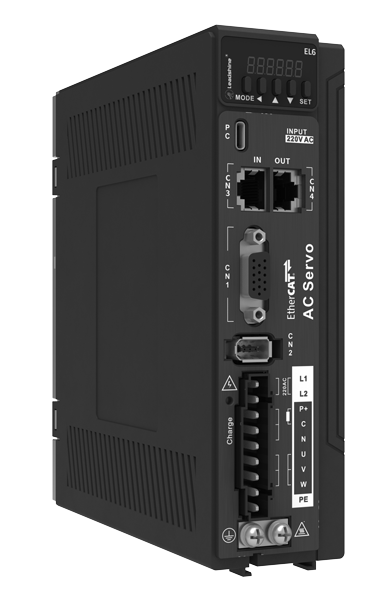

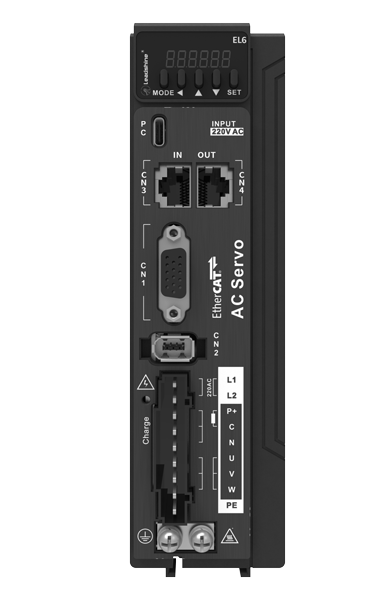

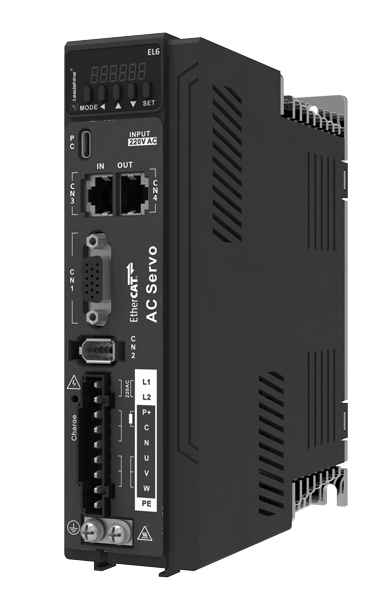

EL6-EC1000
Product Category

EL6-EC1000

  • Servo drive with power rating from 400W to 2000W

  • User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input

  • Equipped with internal regenerative resistor (For drives above 400W)

  • Position, velocity and torque loop control

  • Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments

  • Matching motors with power rating from 30W to 1000W

  • Motors with 23-bit magnetic/optical encoders

  • Optional holding brake


List Price: $ 199.00
Online Special Price: $ 199.00

EL6-EC Series AC servo products are high performance AC digital servo which is designed for position/velocity/torque high

accurate control with power rating ranging up to 2kW which provides a perfect solution for different applications with easy

tuning process. Based on the ETG COE + EtherCAT DSP402 protocol, it can be seamlessly connected to controllers/drives

that support this standard protocol.


EL6-EC series AC servo drives are using the latest Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM)

with compact components integration and great reliability. Using the best PID calculation for Pulse Width Modulation (PWM) control,

our EL6-EC series products are the one to beat in this product category.


Technical Data
ModelEL6-EC1000
Input Voltage220VAC   1ph
Rated Power   (W)1000
Rated Current (Arms)7.5
Peak Current (Arms)21.5
Command   SourceEtherCAT
# of Inputs4
# of Outputs3
