Servo drive with rated power range from 400W to 750W
General-purpose debugging port: USB Type-C Tuning
User-configurable I/O:
-4 Digital inputs
-2 Digital outputs
-2 Probe inputs
Built-in regenerative resistor
Standard: 2 STO safety circuits common to all 4 axes,assignable.
Supports PP, CSP/PV, CSV/PT, CST/HM mode control
Servo functions: 5 notch filters + 2 end vibration suppression,Black Box , set triggering conditions and analyze the data from emergency situations. Brake Control,terminals provide direct drive — no external relay required.
Matching motors with rated power range from 400W to 750W
Motor encoder: 23-bit magnetic/optical encoder
Optional: Holding brake

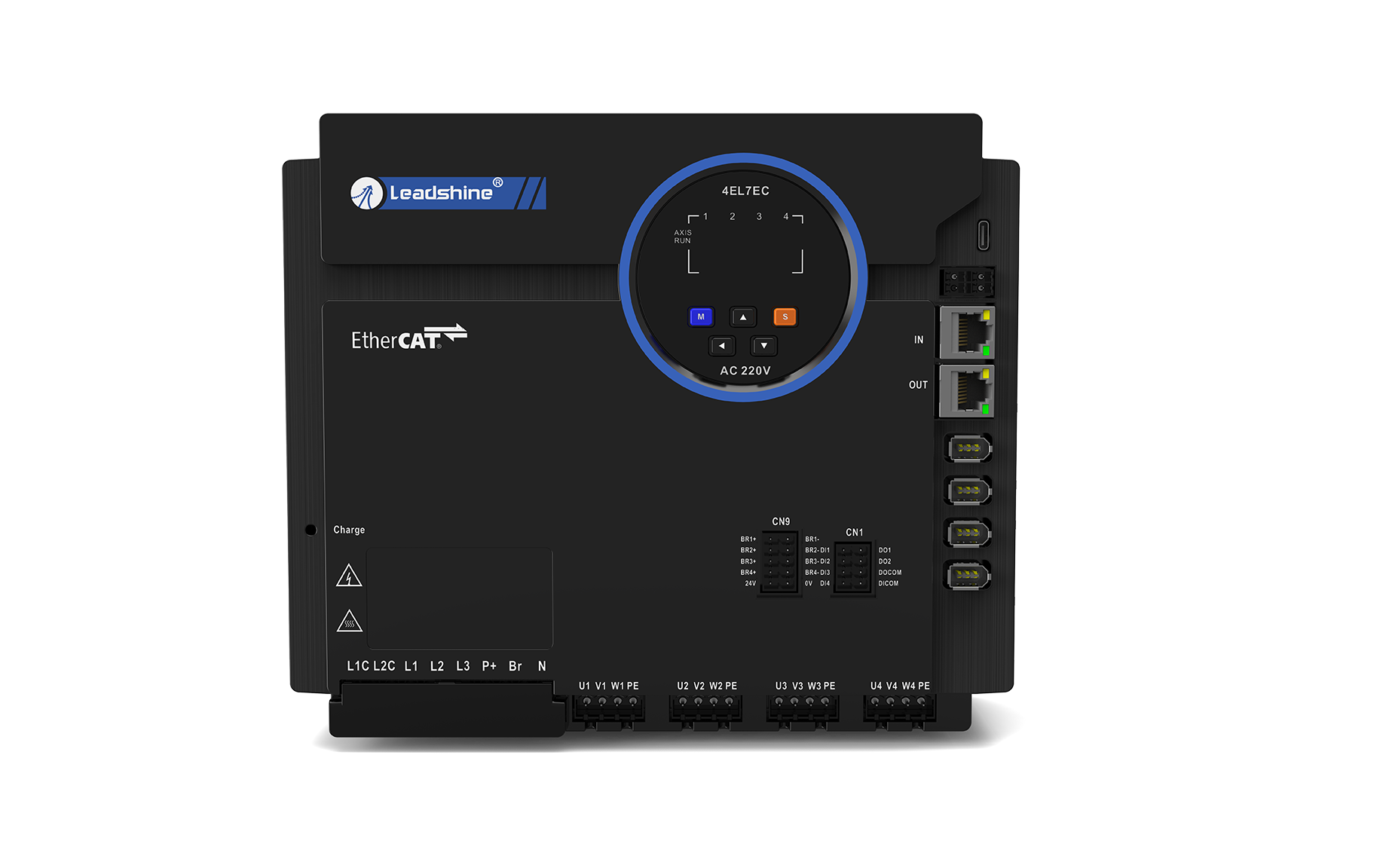

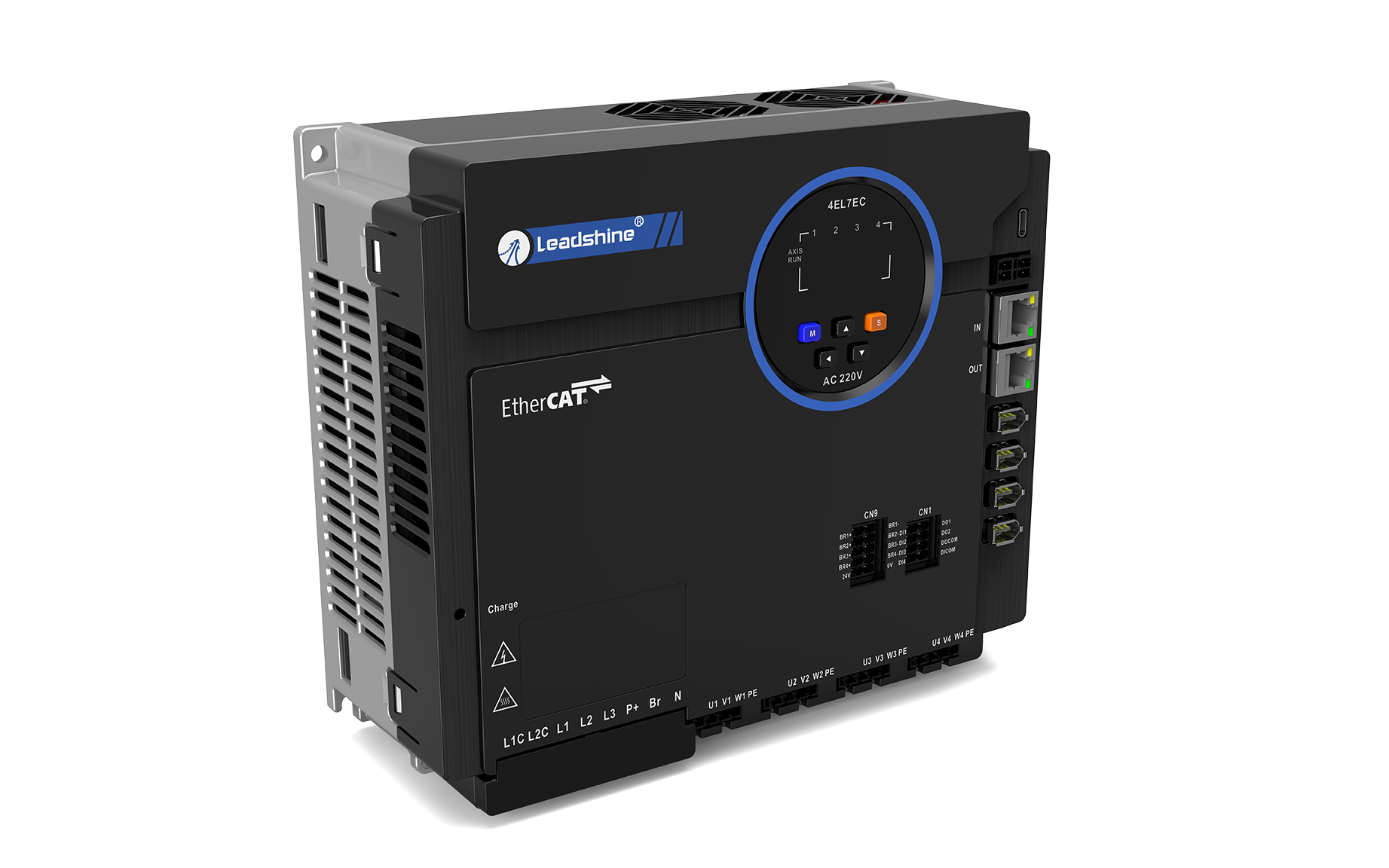

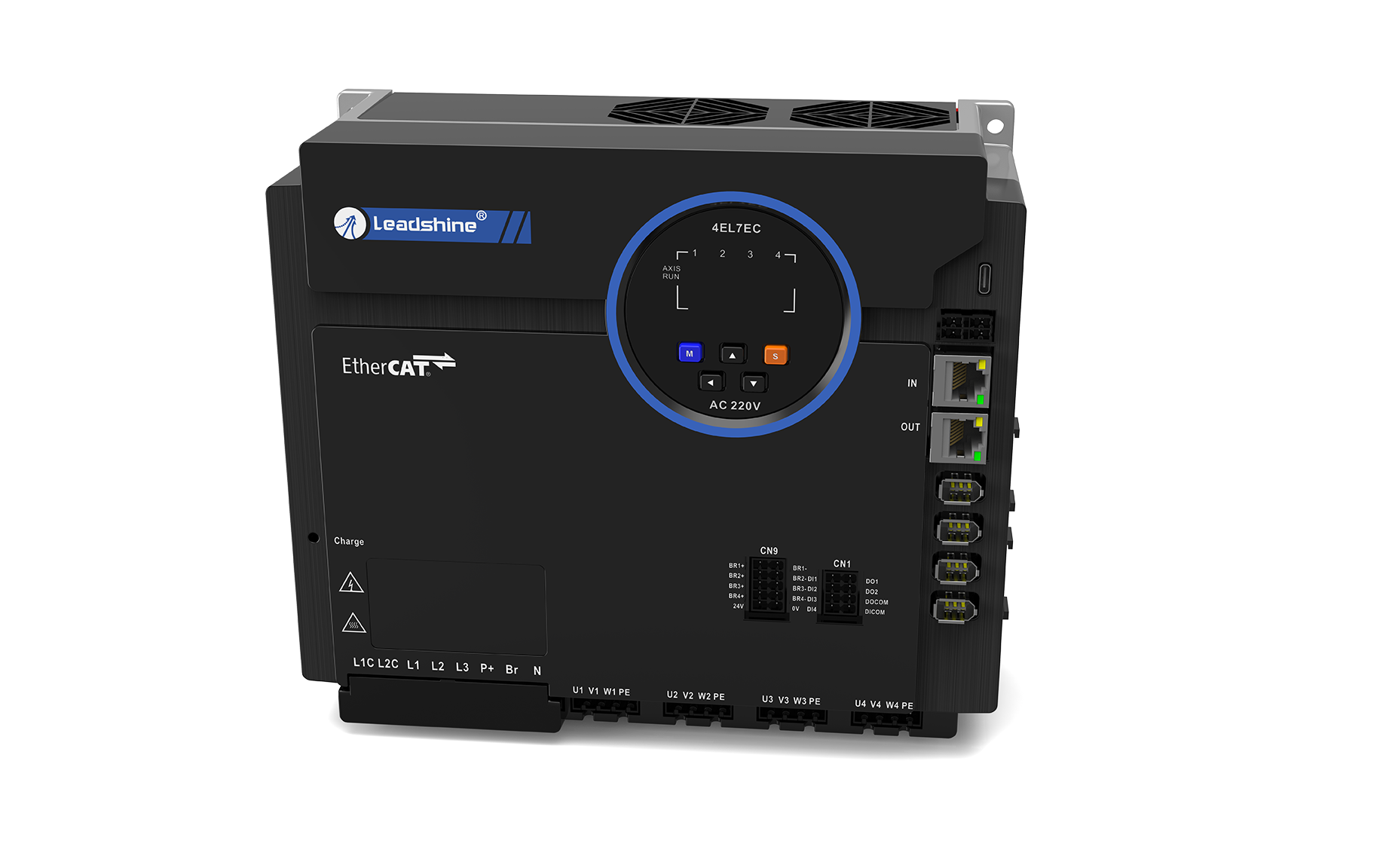

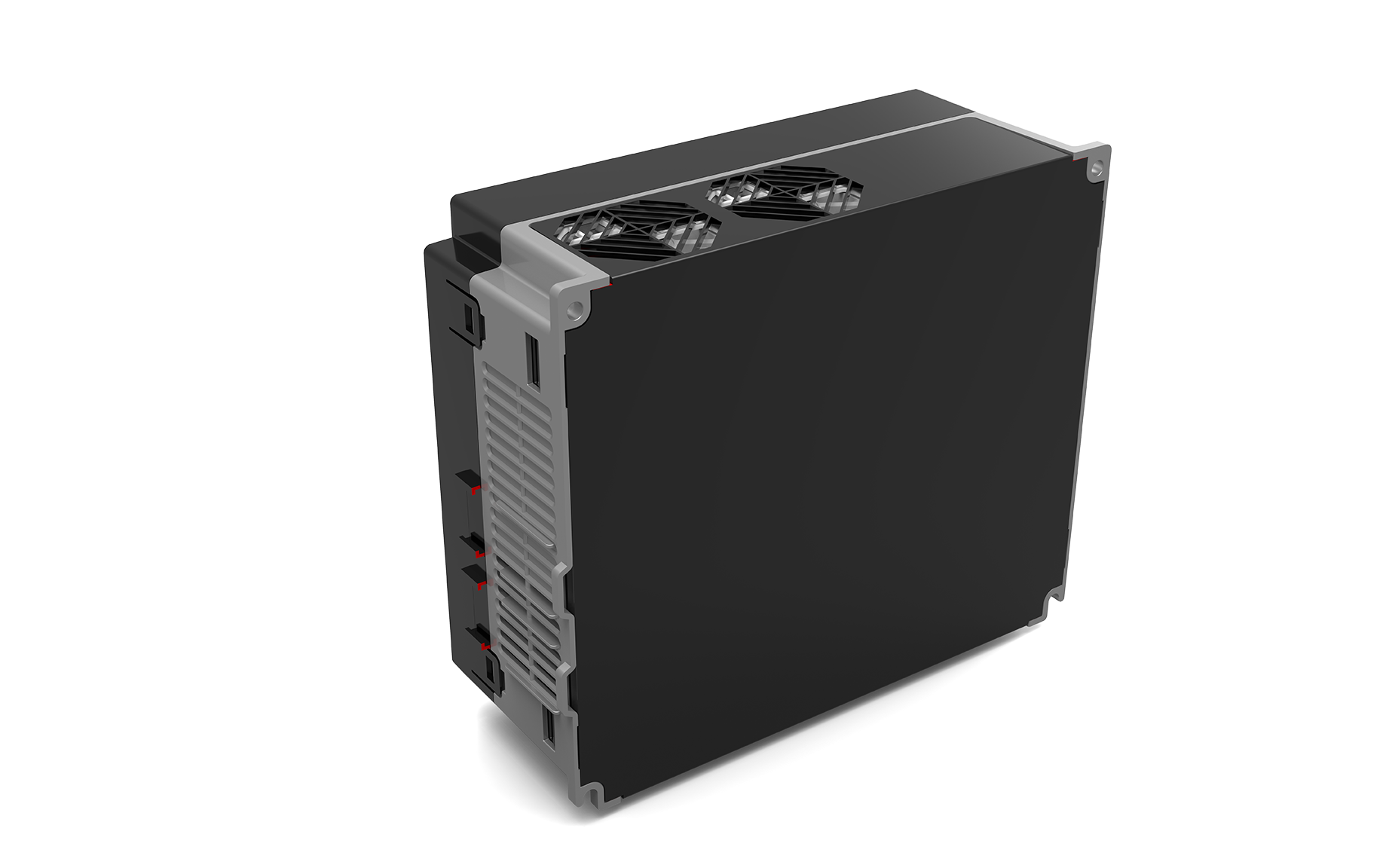

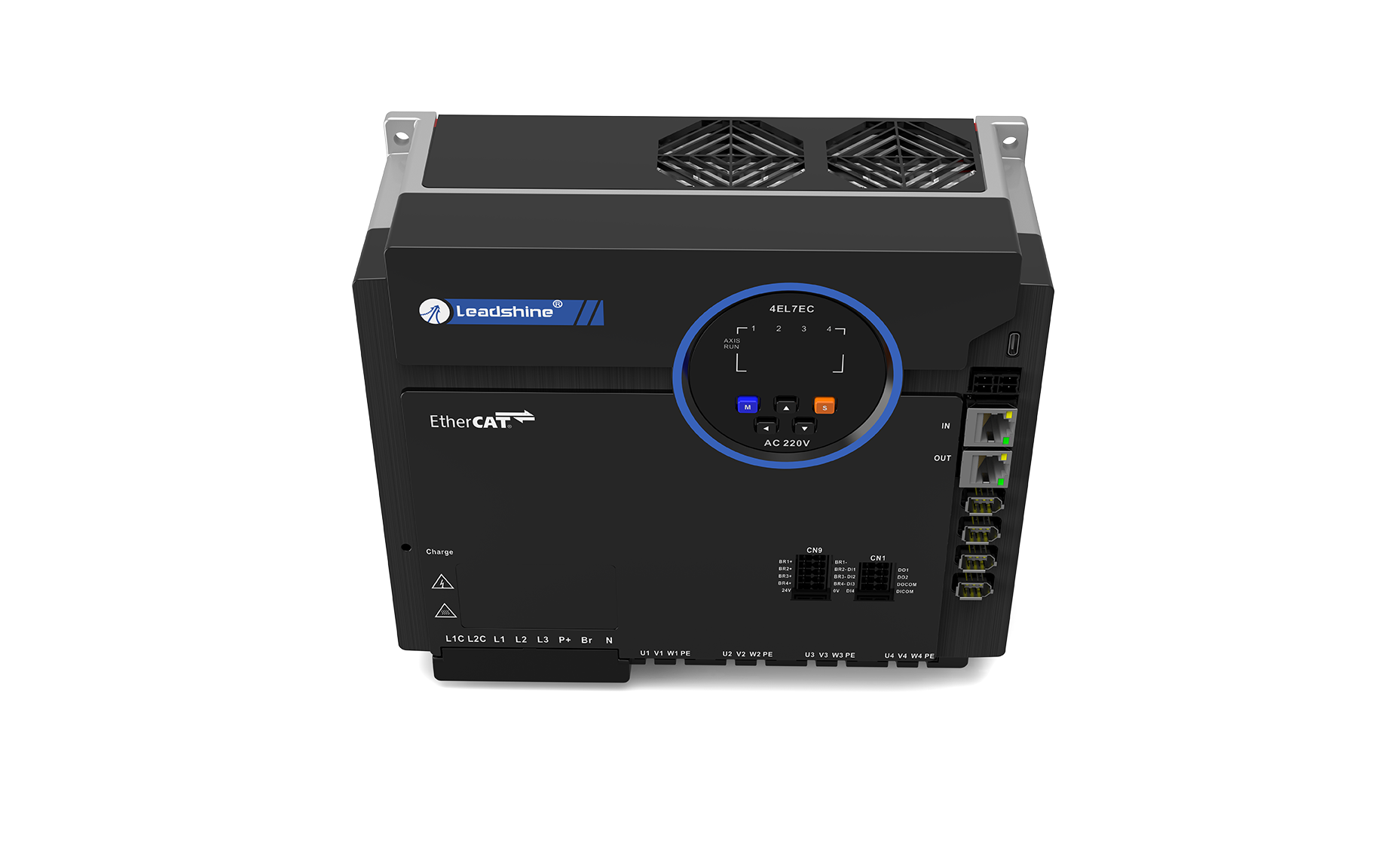

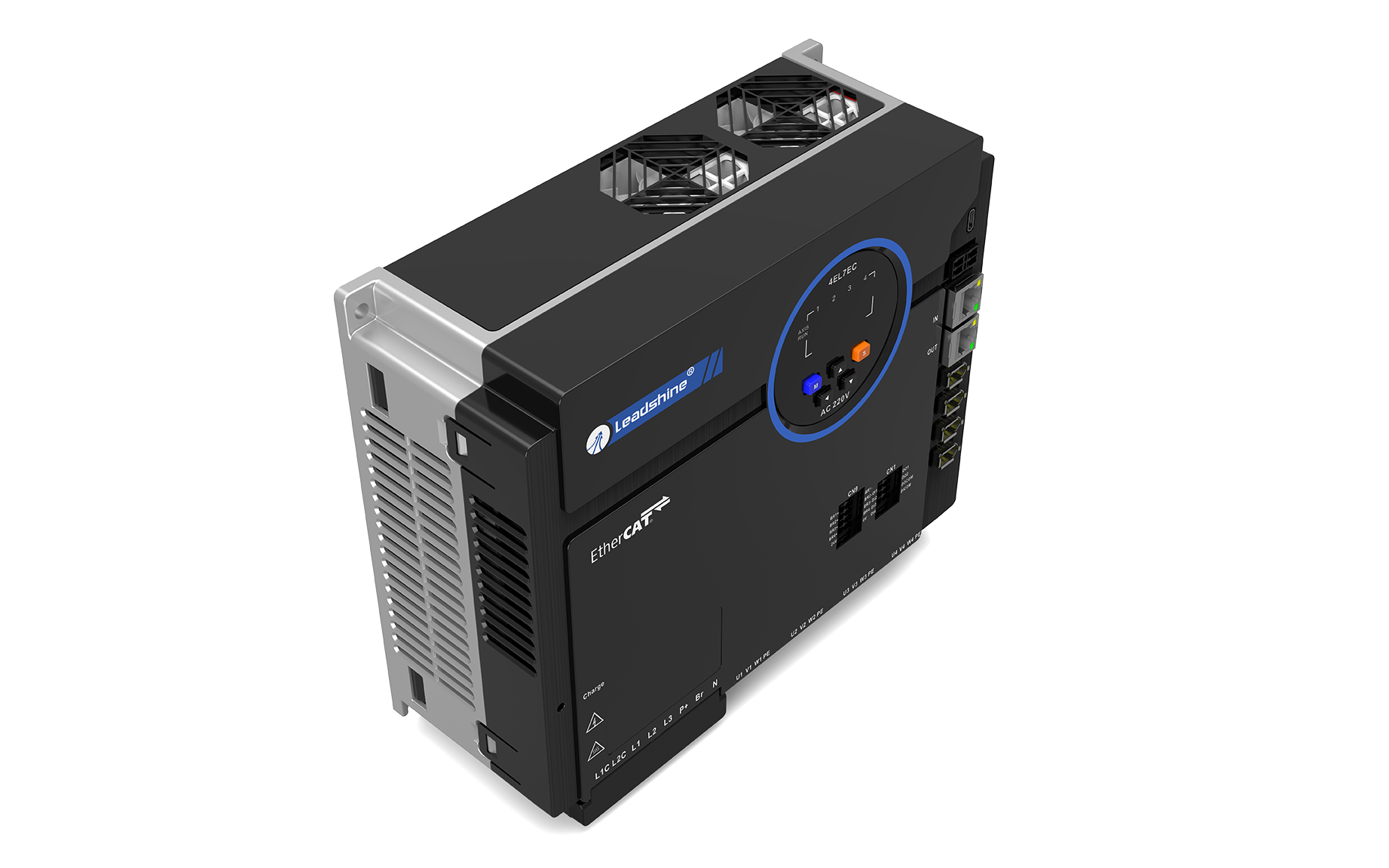

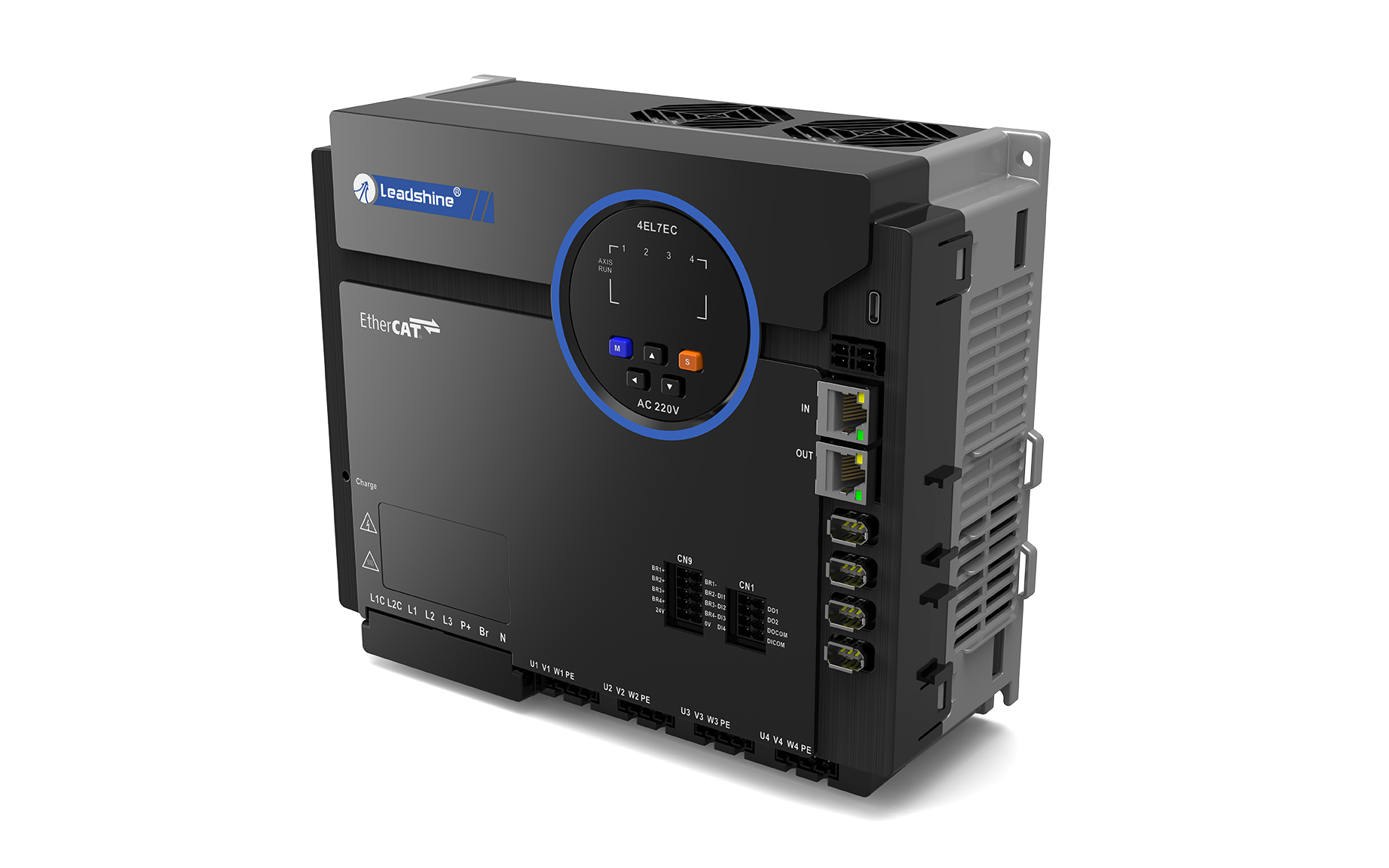

The 4EL7-EC four‑in‑one series servo drive, covering a power range of 400–1500 W, Its multi‑axis integrated design saves up to 35% installation space. By sharing power cables, communication cables, and partial I/O signals, it reduces additional wiring requirements, saving up to 45% on labor and cabling costs. Furthermore, the shared rectifier module and regenerative resistor improve conversion efficiency, achieving energy savings of up to 30%. The drive supports Type‑C offline commissioning,One-click tuning , and multi‑axis synchronous monitoring. Equipped with a direct brake terminal (no external relay needed), standard dynamic braking, and STO safety function, it ensures reliable and secure system operation. One drive, multiple benefits — the ideal choice for multi‑axis applications demanding space efficiency, cost control, performance, and safety.
