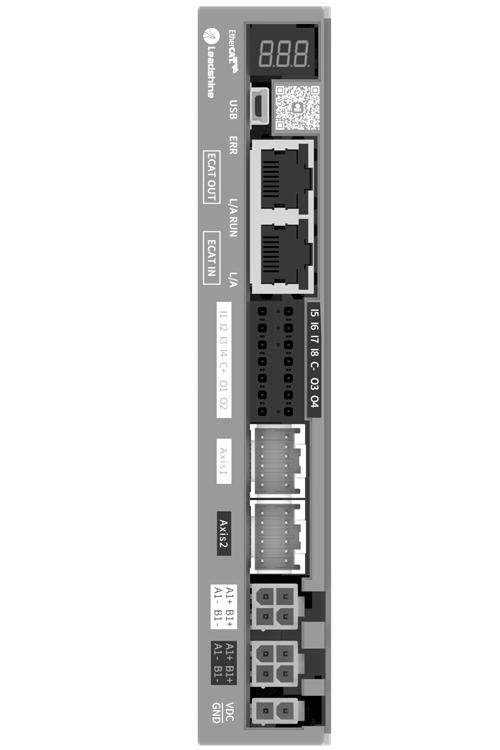

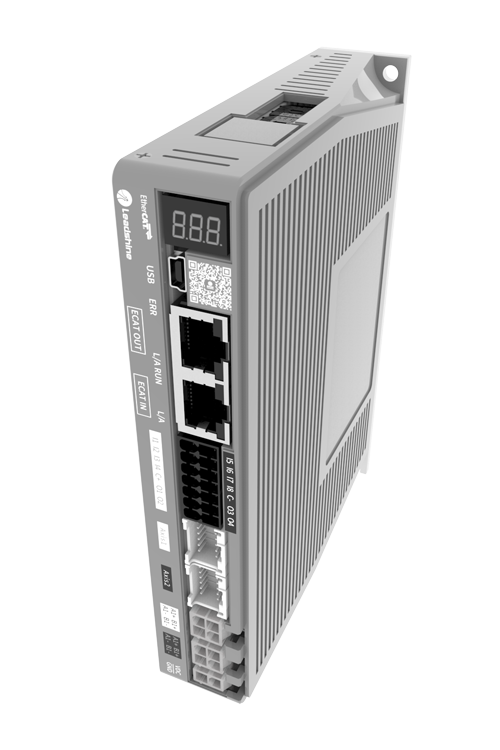

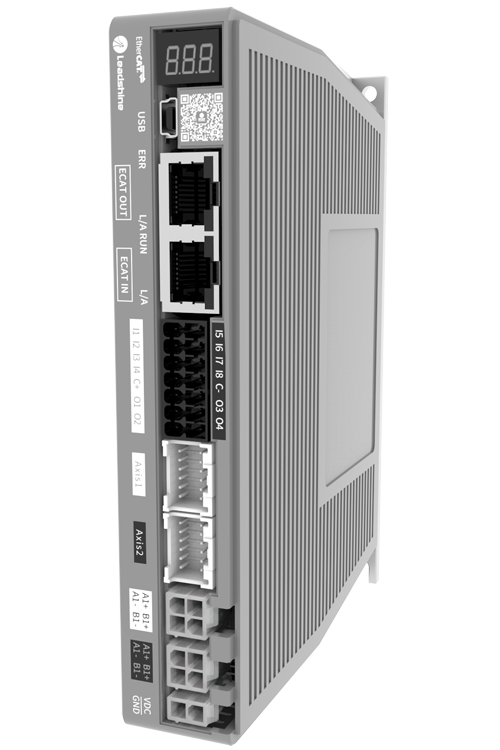

2CS3E-D503
Product Category

2CS3E-D503

  • No loss of step, no hunting, no torque reservation

  • Dual-axis control via one IP address, support CiA402

  • EtherCAT communication

  • Support operation modes: Profile Position, Profile Velocity, Homing

  • 2*4 configurable digital inputs, 2*2 optically isolated digital outputs include brake output

  • Low noise and vibration, smooth motion

  • USB port for Leadshine software connection

  • Two 7-segment display velocity or slave ID or operation mode or error code

  • Over voltage, over current and position following error, encoder cable error, etc. protections

  • STO optional

List Price: $ 199.00
Online Special Price: $ 199.00

2CS3E series drives support operating modes: PP, PV, HM, CSP. The products can be matched with most of master station such as Beckhoff, Omron, Keyence, Panasonic etc.

Technical Data
Model2CS3E-D503
Series2CS3E
Command   SourceEtherCAT
Operation   Voltage (VDC)20-50
Output   Current (A, Peak)2.2
Input   Frequency (KHz, Max.)10
Logical   Voltage   (VDC)12-24
# of Inputs2*4
# of Outputs2*2
CharacteristicsStandard


Mechanical
