● Power supply 20-50VDC

● Output current 0.3-2.2A,

● Support CANopen field bus, standard protocol of DS301 V4.02 and DSP 402 V2.01

● Setting address and the baud rate via DIP switch

● Operates in velocity, position or home mode

● 3 digital inputs and 1 digital output, 5-24VDC

● Over voltage and over current, etc. protections

List Price: $ 199.00
Online Special Price: $ 199.00

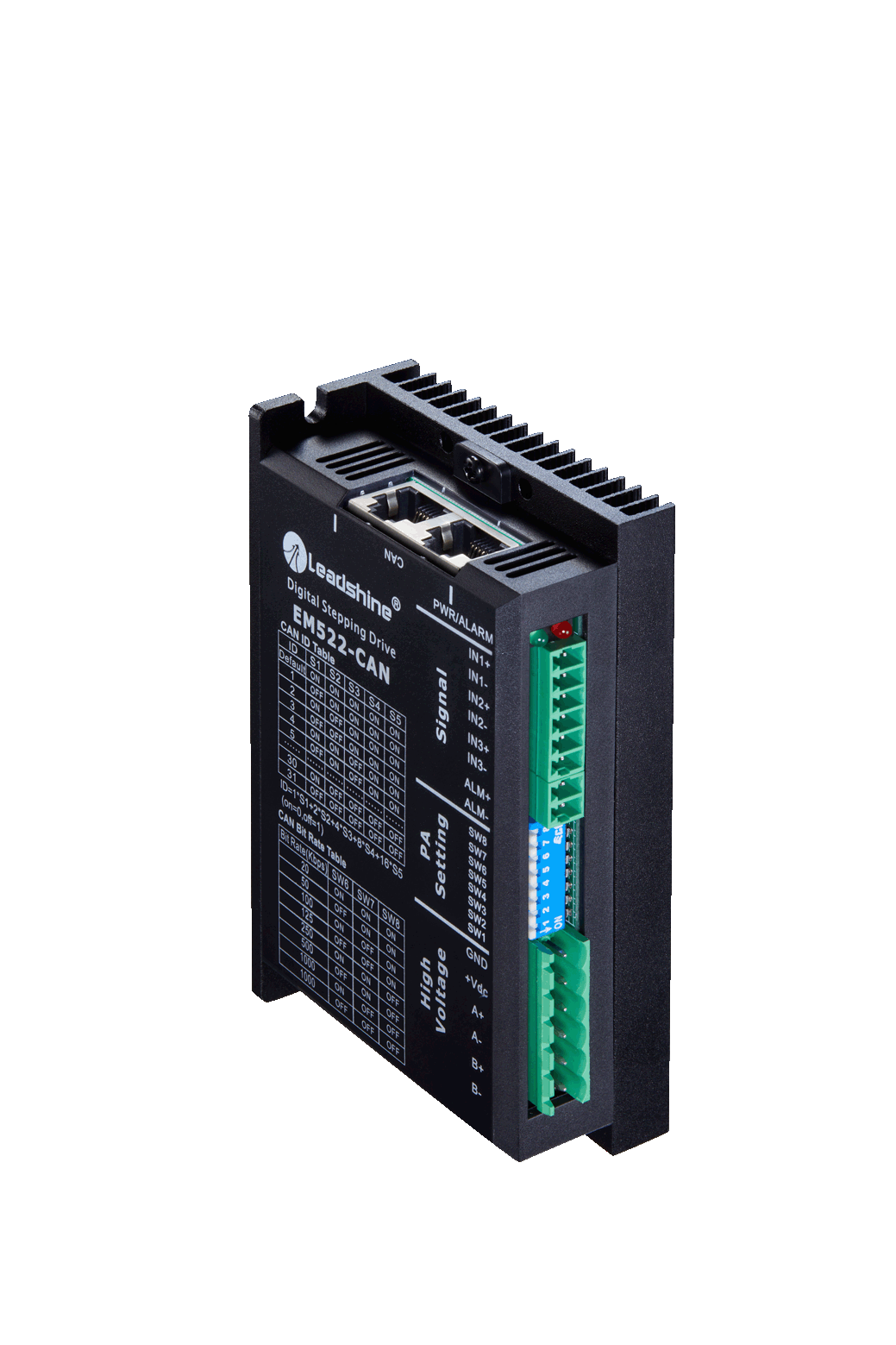

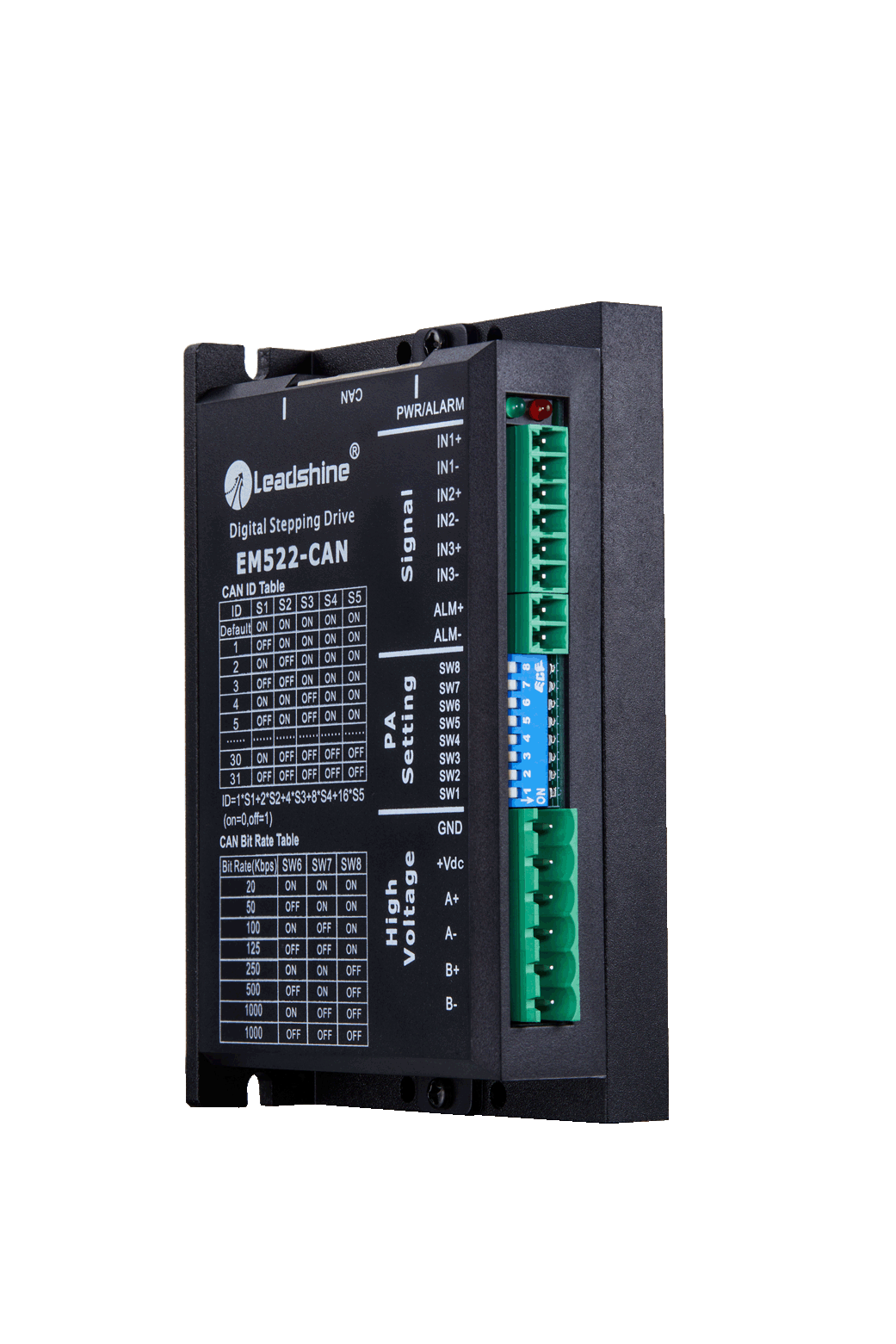

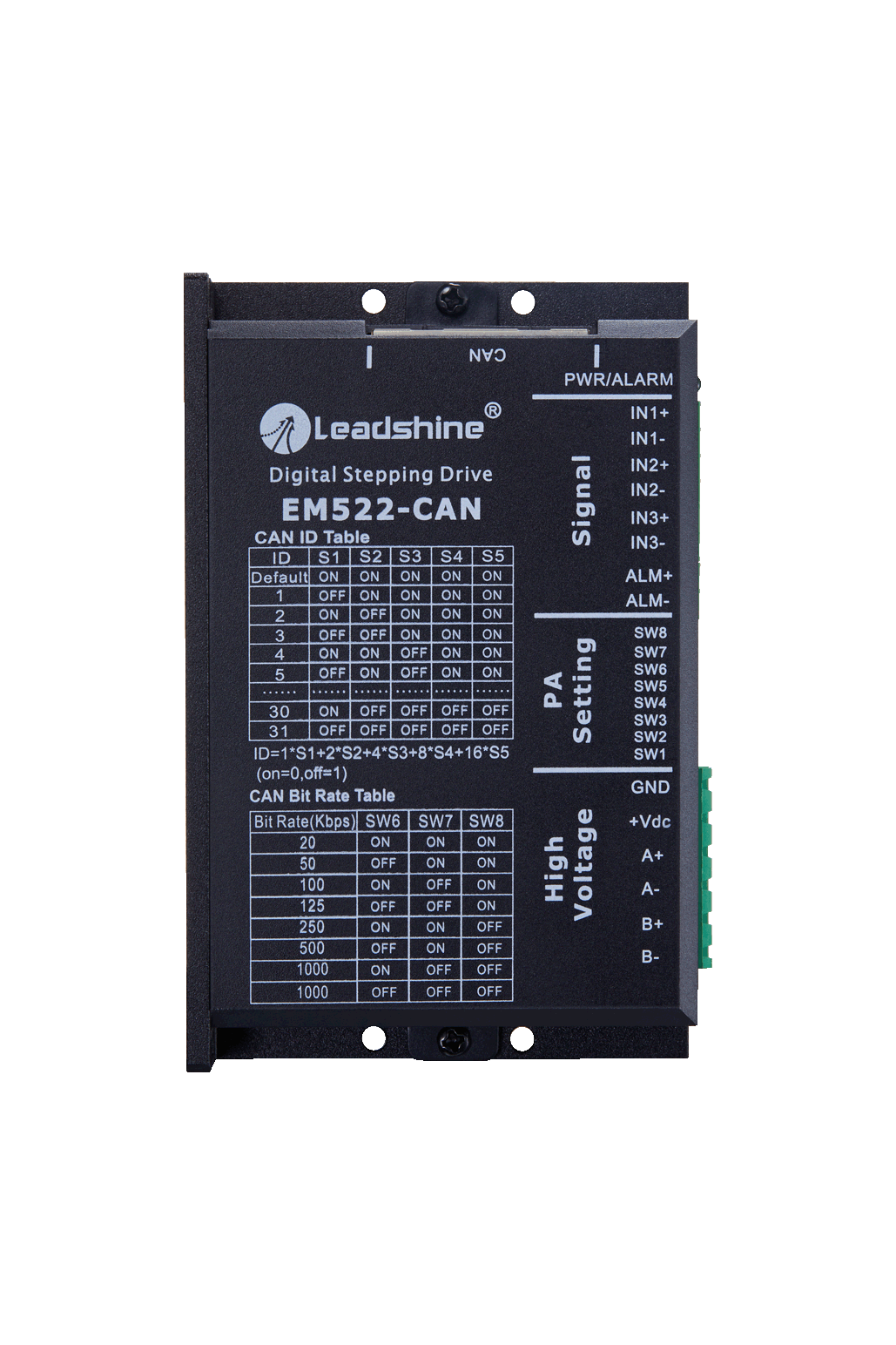

The EM522-CAN is with CANopen standard protocol of DS301 V4.02 and DSP 402 V2.01. It has excellent performance include enhanced reliability, super-low stepper noise, anti-resonance, low-speed ripple smoothing. Adding CANopen allows the drives not only to support operating modes including Profile Position (PP), Profile Velocity (PV), Homing (HM), etc, but also to build a CANopen networks up to 127 nodes. Therefore, Leadshine EM-CAN series is an ideal choice for field-bus applications, which need high reliability and good performance.
