● Power supply 20-80 VAC or 30-100 VDC

● Output current 0.5-8.2A

● Support CANopen field bus, standard protocol of DS301 V4.02 and DSP 402 V2.01

● Setting address and the baud rate via DIP switch

● Operates in velocity, position or home mode

● 4 digital inputs and 2 digital outputs, 5-24VDC

● Over-voltage and over-current, etc. protections

List Price: $ 199.00
Online Special Price: $ 199.00

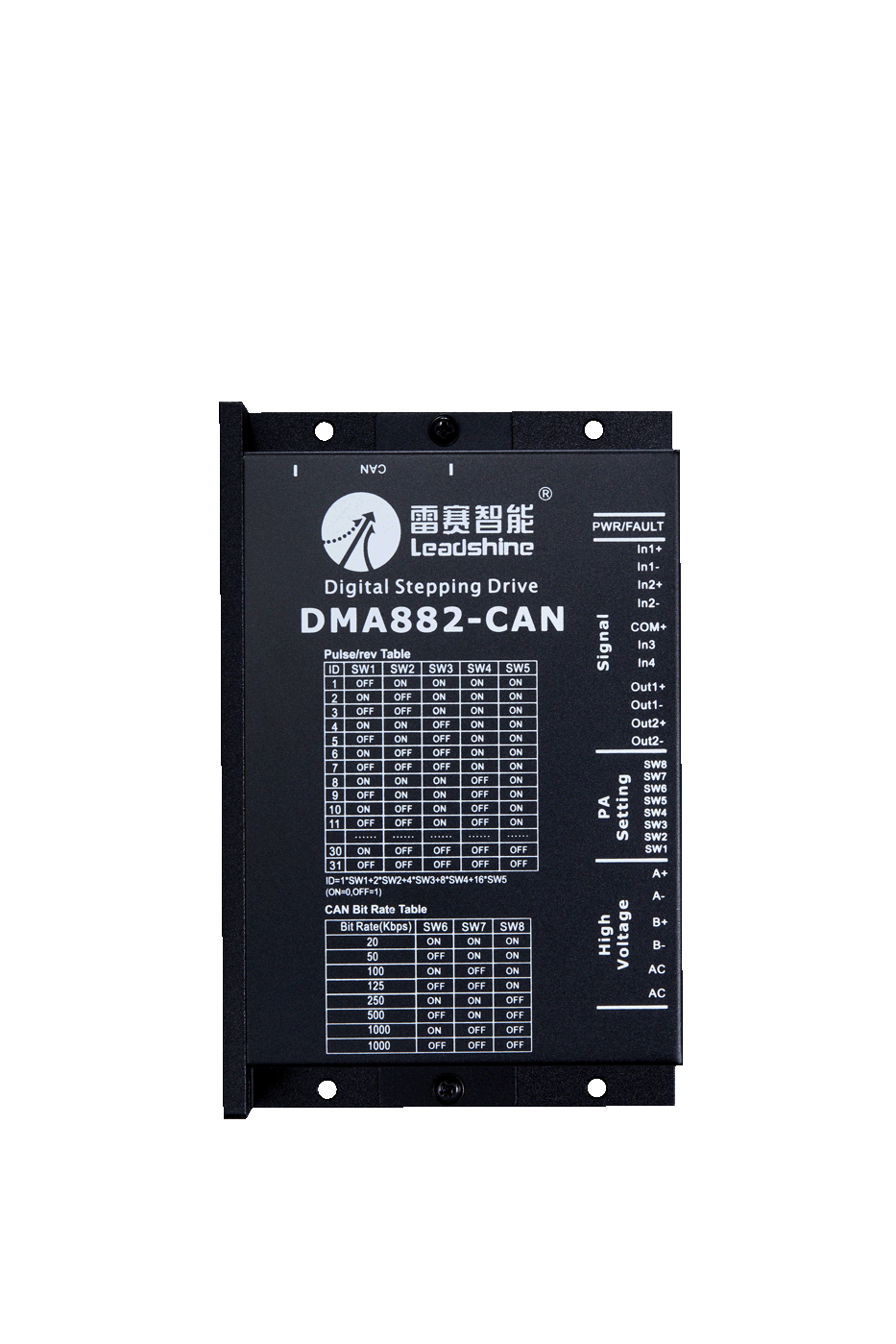

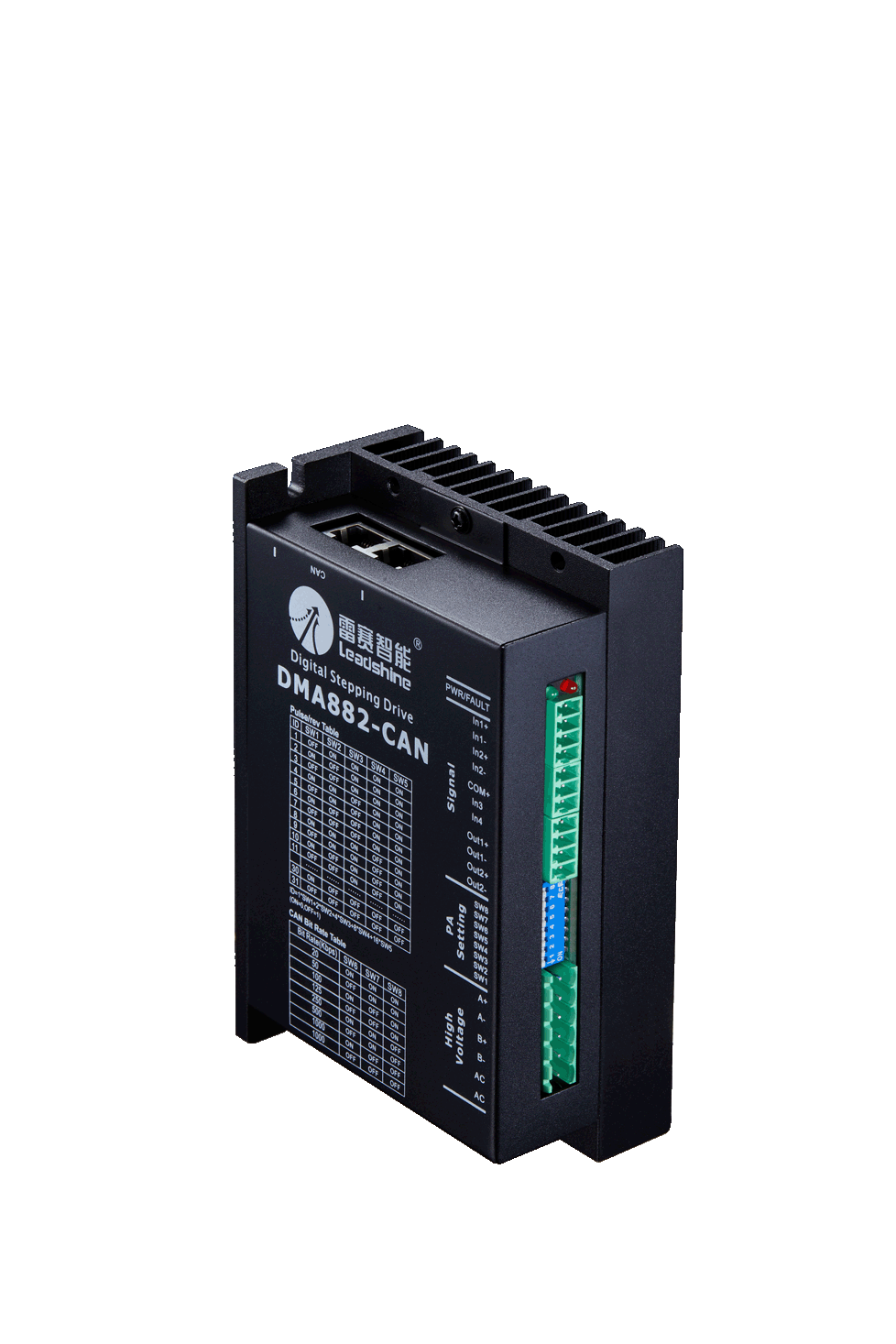

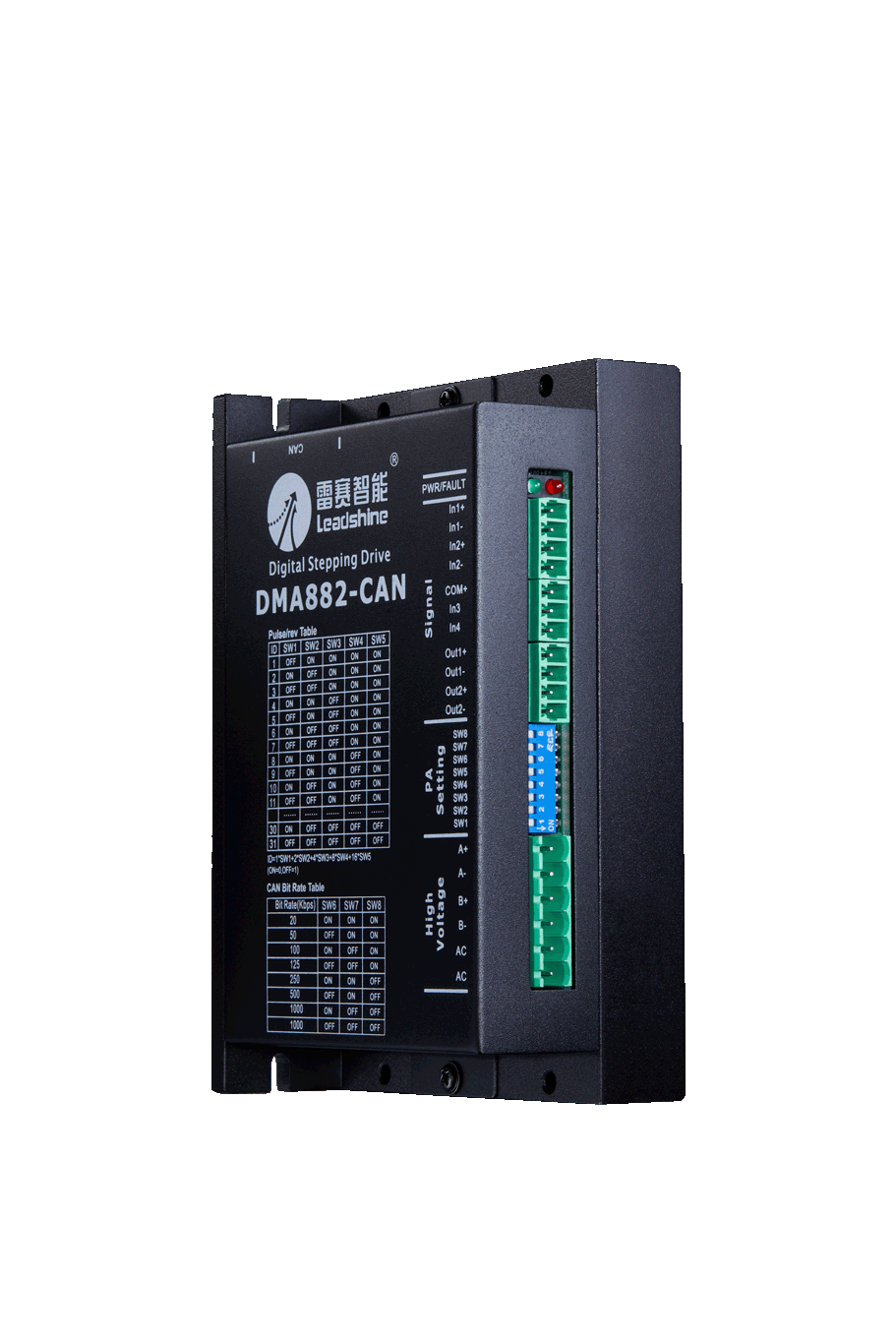

The DM series consists of stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.

Technical Data
Command SourceCANopen
Operation Voltage (VDC)18-80VAC or 30-110VDC
Output Current (A, Peak)8.2
Input Frequency (KHz, Max.)10
Logical Voltage (VDC)5-24
# of Inputs4
# of Outputs2
