Power up to 3 stepper motors of NEMA 17, 23, or 24
Sophisticated stepper motor control based on the latest DSP technology
Built-in breakout board and I/O’s
Step & direction Control
200 KHz maximum frequency for each axis
20 - 60 VDC supply voltage
1.41 - 6.0A output current per axis
8 micro step settings: 1, 1/2, 1/4, 1/8, 1/10, 1/16, 1/32, 1/64
8 output current settings of 1.41 - 6.0A for each axis
Damping and anti resonance
Allowing individual output current & micro step settings for each axis
Input pulse smoothing for less jittering, higher torque, and quicker response
Extra low motor heating & noise
Extra smooth motor movement
Simple micro step & output current configuration via DIP switches
Fault output
Compact size and easy setup
50% automatic idle current reduction

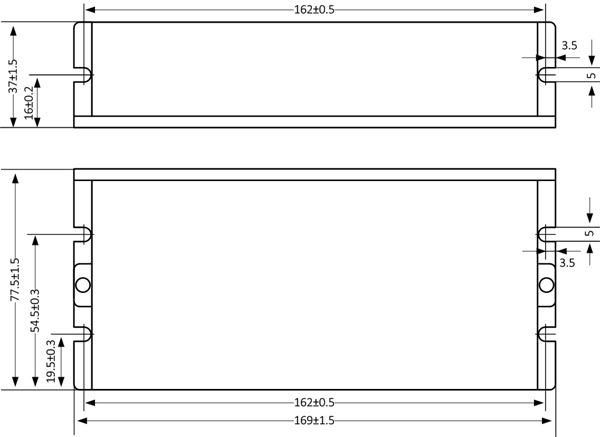

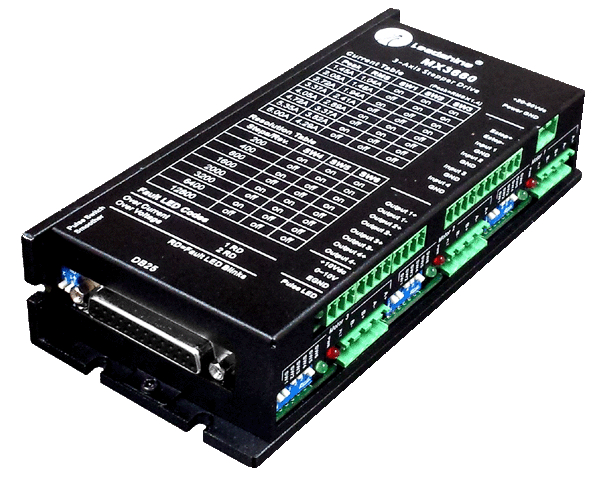

The Leadshine MX3660 is a high performance 3-axis stepper drive with built-in breakout board and I/O’s based on the latest DSP technology. It is specially designed for EASY and RAPID control of up to three 2-phase (1.8?) in frame sizes NEMA 17, 23, and 24. The MX3660 3-axis stepper drive operates under 20-60 VDC input voltage and can output up to 6.0A current (peak of sinusoidal) per axis. It takes step & direction control and is easy to implement for OEM applications.
By adopting Leadshine advanced stepper motor control technology, the MX3660 3-axis stepper drive can power stepper motors in high precision, at extra smoothness, and with extra low motor heating & noise. It is featured with anti resonance, multi-stepping, vibration suppression, input command smoothing, 50% idle current reduction, etc.
The MX3660 3-axis stepper drive is easy to configure. Via the 6-pin DIP switch of each of the 3 stepper drive modules, a user can easily set the output current and micro step to one of their 8 available settings, 1.45-6.0A and full step - 1/64 respectively. Each axis can have its own current & micro step configurations to satisfy different requirements for the controlled stepper motor. For example, a user can set axis X at 8 micro step & 4.0A for a NEMA 24 motor, axis Y at 10 micro step & 2.83A to drive a NEMA 23 motor, and axis Z at 16 micro step & 1.41A to for a NEMA 17 motor.
The MX3660 3-axis stepper drive is integrated with a breakout board with a DB25 connector and built-in I/O’s. This allows convenient, easy and quick connection for controllers (e.g. PC-based control systems, motion controllers, PLC’s…) and external devices (limit switches, VFD…). It simplifies system setup, save installation space & time, minimize wiring, increase reliability, and cut costs. In addition, the MX3660 offers a built-in digital “smoother” to allow filtering/smoothing of "noise" pulses for better system performance (application dependant).
The MX3660 adopts modular designs. If any of the three stepper drive modules malfunctions, a user can simply replace it with a Leadshine SDM660 stepper drive module at minimal cost.
