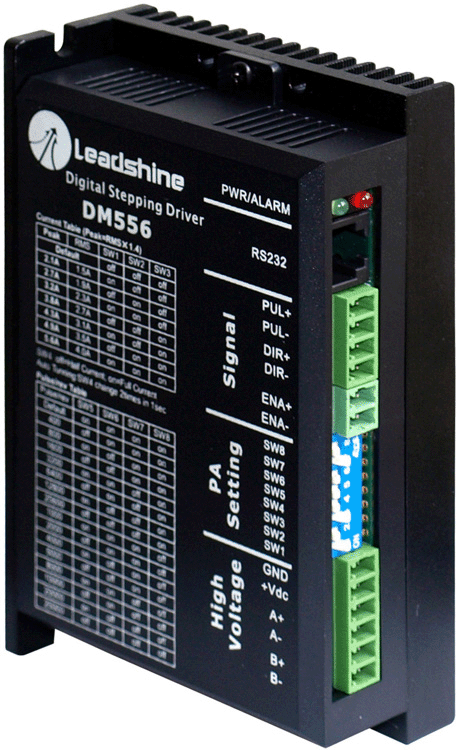

DM556

Product Category
DM556
  • Extra-low motor noise offers excellent quietness

  • Anti-Resonance, provides optimum torque and nulls mid-range instability

  • Self-test and Auto-configuration technology, offers optimum responses with different motors

  • Microstep resolutions programmable, from full-step to 102,400 steps/rev

  • Supply voltage up to 50 VDC

  • Output current programmable, from 0.5A to 5.6A

  • Pulse input frequency up to 200 KHz

  • Automatic idle-current reduction

  • Supports PUL/DIR and CW/CCW modes


The DM556 is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The Self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives in the markets. Its unique features make the DM556 an ideal solution for applications that require low-speed smoothness.

Technical Data
ParametersDM556
MinTypicalMaxUnit
   Output current0.5-5.6   (4.0 RMS)A
   Supply voltage20-50VDC
   Logic signal current71016mA
   Pulse input frequency0-200kHz
   Isolation resistance500

Mohm
