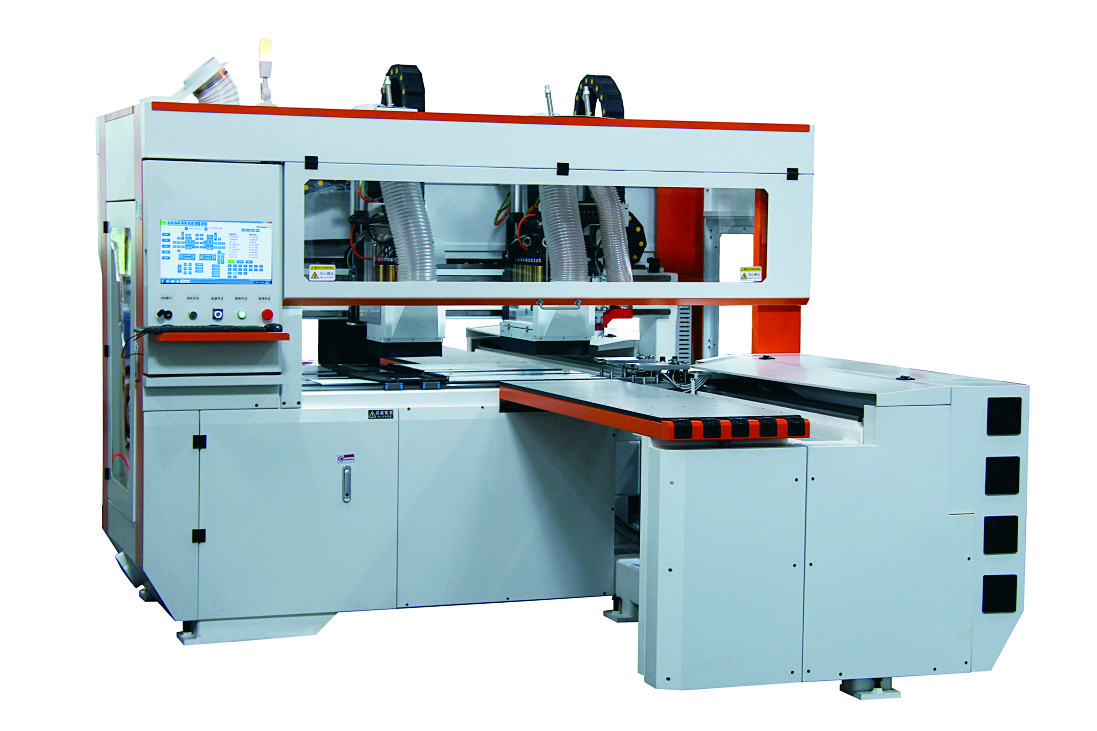

六面钻运动控制解决方案

通过EtherCAT总线伺服L7系列，可实现六面钻设备板材六面高效率

六面钻

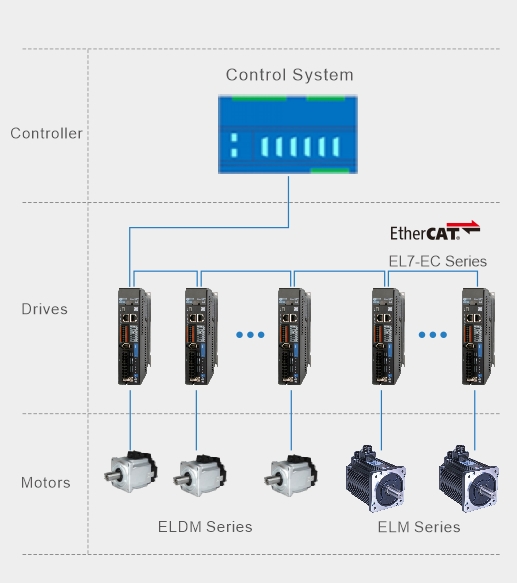

EtherCAT总线解决方案架构图

控制层

驱动层

执行层

数控系统

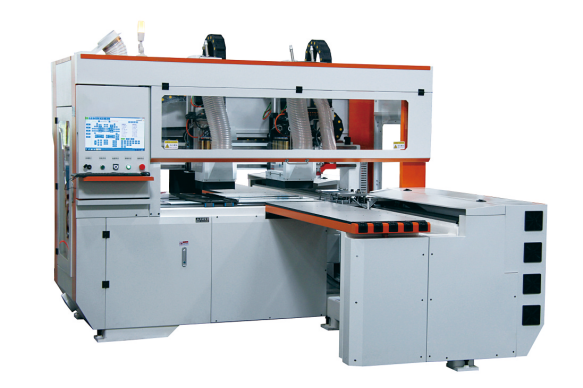

   六面钻作为一种典型的木材加工设备，广泛应用于木材的加工，能全自动一次完成多个面的加工，提升整个加工精度，减轻工人的劳动强度，大幅提升加工效率；雷赛总线伺服L7系列，可实现对板材的高效加工；

方案优势：

■ 高响应伺服：速度环带宽2.5KHZ,响应迅速

■ 工业以太网通讯：100M EtherCAT总线，高效率

■ 丰富的伺服报警功能：报警清晰明确，减少售后

■ 适配性强：可完美适配宝元/新代等主流的六面钻控制系统

产品典型配置表

EtherCAT总线伺服高精度方案

EtherCAT总线伺服高性价比方案

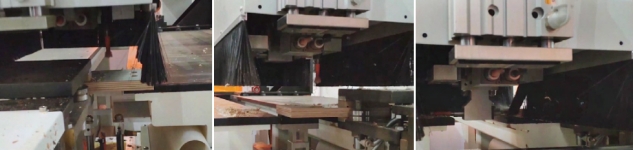

应用场景

垂直钻孔加工

抓手自动避让打孔

水平钻孔加工

Leadshine solution for six-side NC drilling machine

Abstract: Leadshine EL7 Series AC Servo provide a high-efficiency solution for six-side NC drilling machine for drilling, slotting, chamfering, etc .

Keywords: Leadshine Servo , Six-side NC Drilling

1. Equipment Introduction

As a typical wooden processing equipment, six-side NC drilling machine is widely used to complete the processing of six-side wooden material at one time automatically, to improve the whole processing faster and more accurately, and to reduce the labor cost for the whole wooden processing line , leadshine EL7 Series AC Servo provide a high-efficiency solution for six-side NC drilling machine

for drilling, slotting, chamfering, etc .

2. System Configuration

3. Product configuration

  3.1 High-accurate solution

3.2 Cost-effective solution

4. Solution advantage:

■ High performance: up to 2.5KHz for velocity-bandwidth , vibration suppression

■ Network communication: EtherCAT for high speed communication

■ Abundant “alarm list”: easier for after-sales service

■ Strong adaptability: perfectly matched with drilling control system from LNC/Syntec

Added value for customer:

■ High-efficiency ：high response servo make drilling and slotting faster and easier ;

■ Simpler operation：position memory after power off, no need to do homing

■ High reliability: successfully used for large number of customers

5. Application Scenario

 Vertical drilling             Gripper automatic avoidance drilling       Horizontal drilling
