● Step & direction (PUL/DIR) control

● Input voltage 12-30VDC

● 8 selectable micro-step resolutions of 400-12800 via DIP switches

● 8 selectable output current settings of 0.3 – 2.2A via DIP switches

● Soft-start with no “jump” when powered on

● Pulse input frequency up to 70 KHz.

List Price: $ 199.00
Online Special Price: $ 199.00

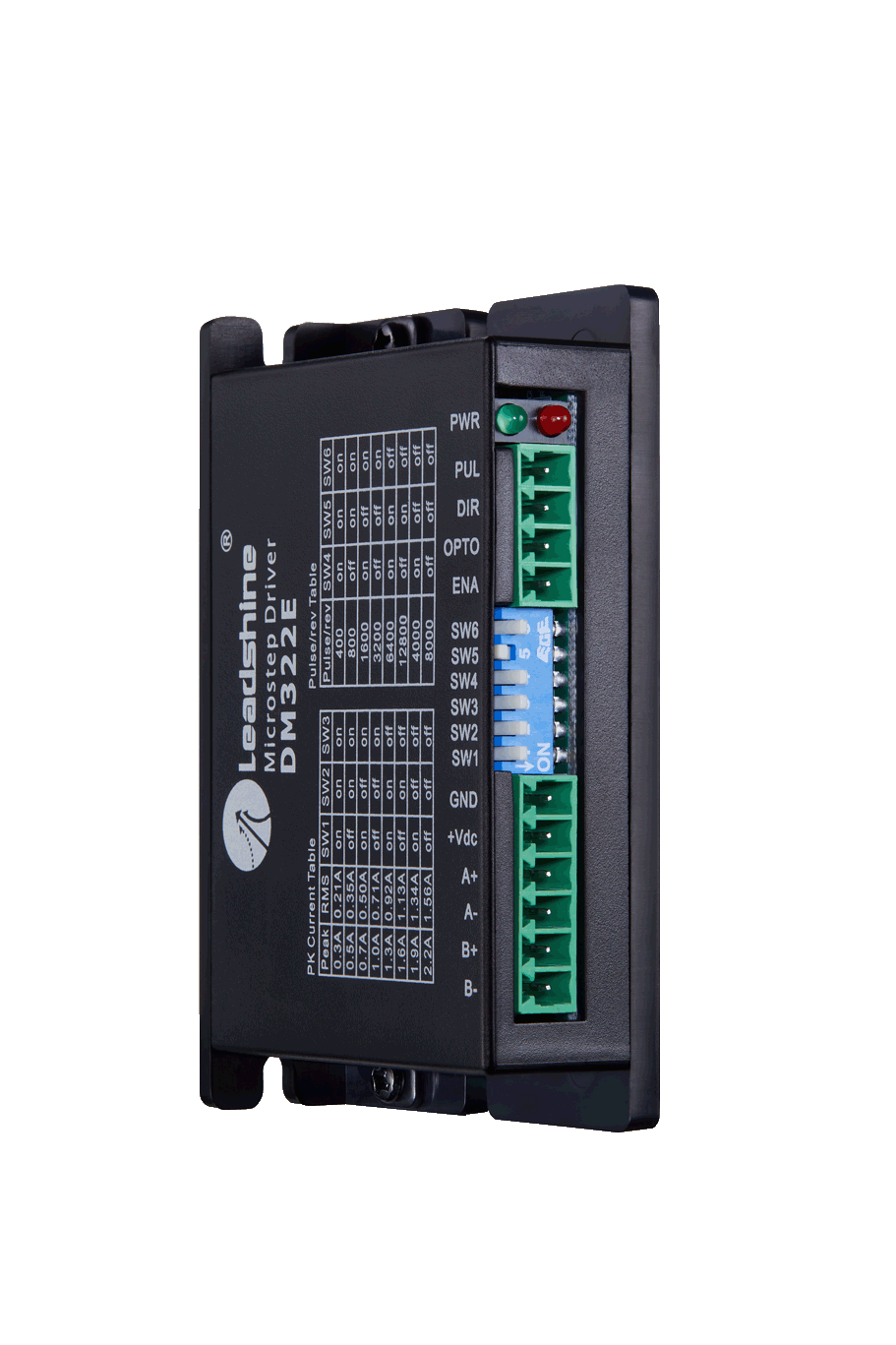

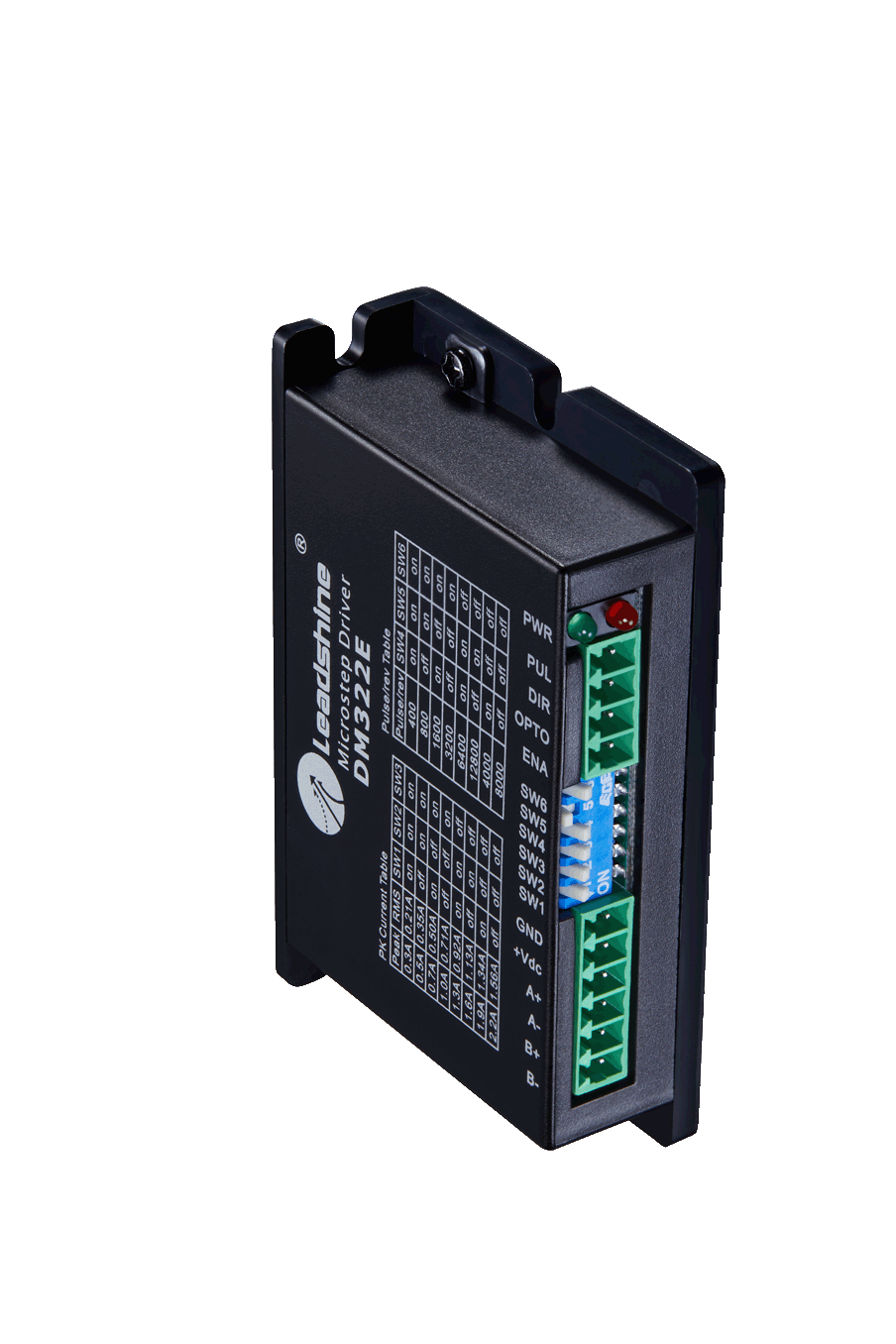

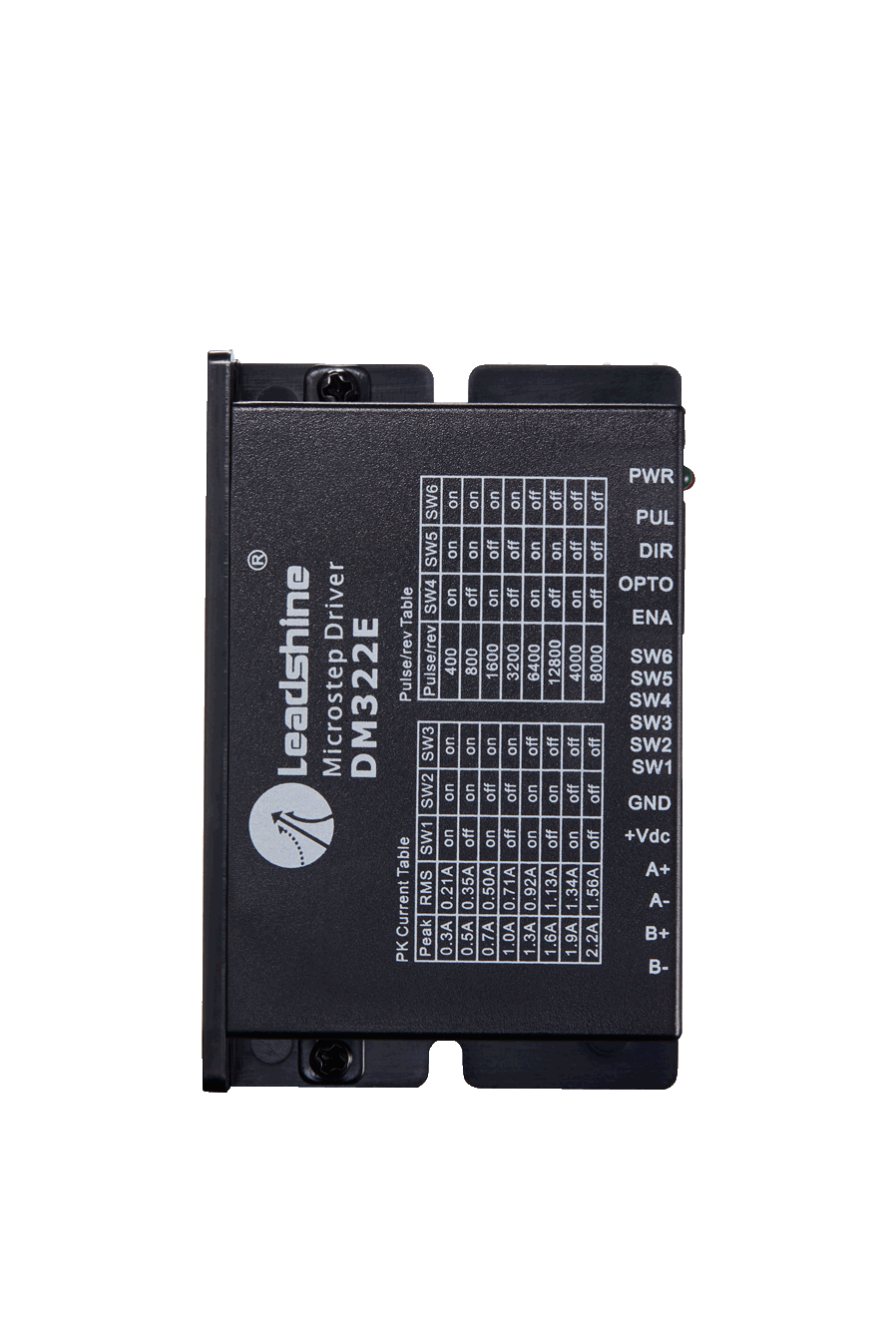

The DM322E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 12-30VDC and it can output 2.2A current. All the micro step and output current are done via DIP switches. Therefore, the DM322E are ideal choices for applications requiring simple step & direction control of NEMA11, 14, 16, 17 stepper motors.

Technical Data
Command SourcePUL&DIR
Operation Voltage (VDC)12-30VDC
Output Current (A, Peak)2.2
Input Frequency (KHz, Max.)70
Logical Voltage (VDC)5
# of Inputs3
# of Outputs/
