● 24VDC or 36VDC power supply

● Command source: simple switch signal, or I/O signal of PLC, or 0-10V analog input

● 24V logical voltage for motor start/stop and motor direction.

● Output current 5.6A for single-axis, 2.8A per motor for dual-axis

● Matched with NEMA 11, 17, 23 stepper motors

● Suitable for speed control applications

List Price: $ 199.00
Online Special Price: $ 199.00

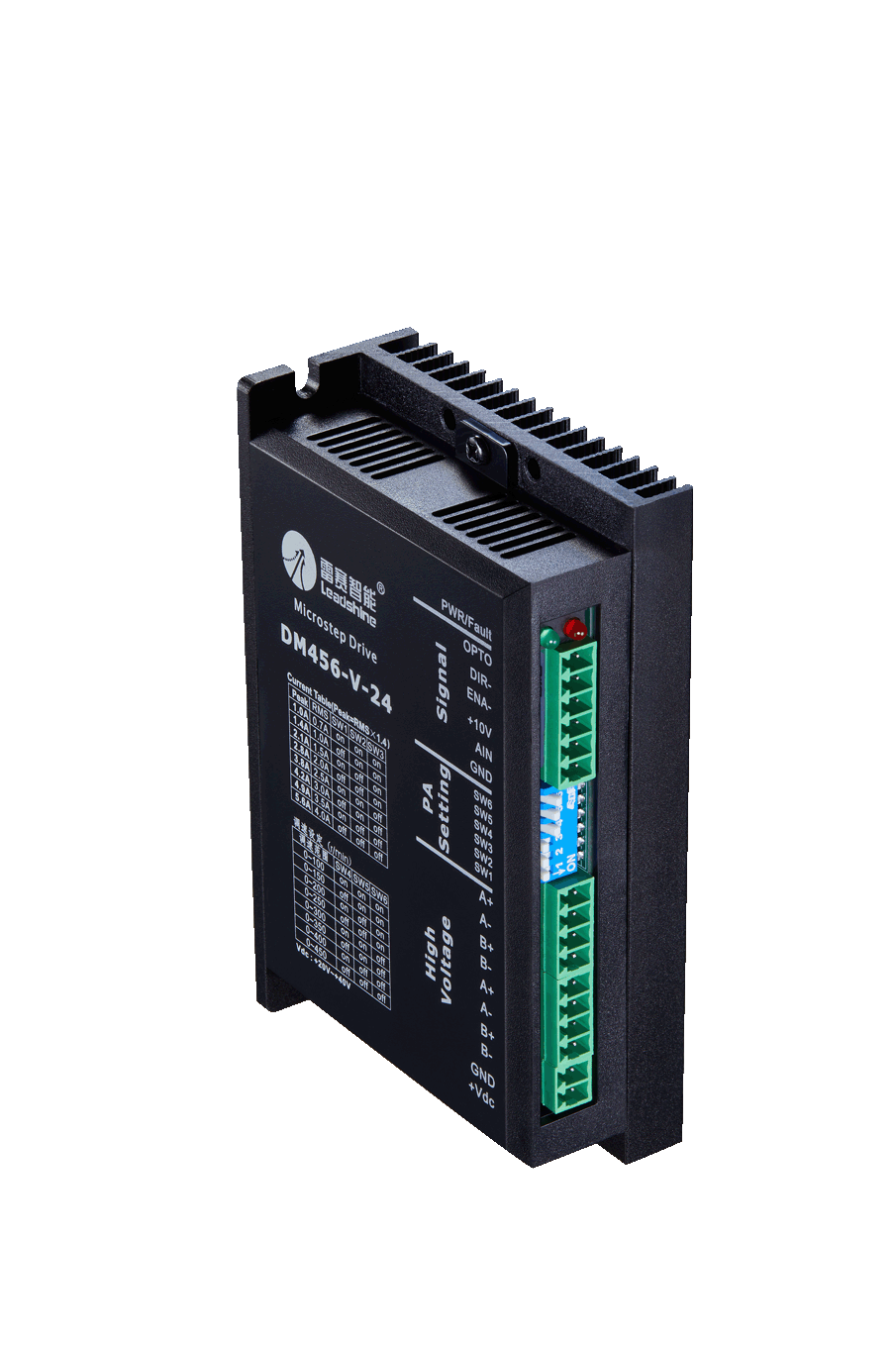

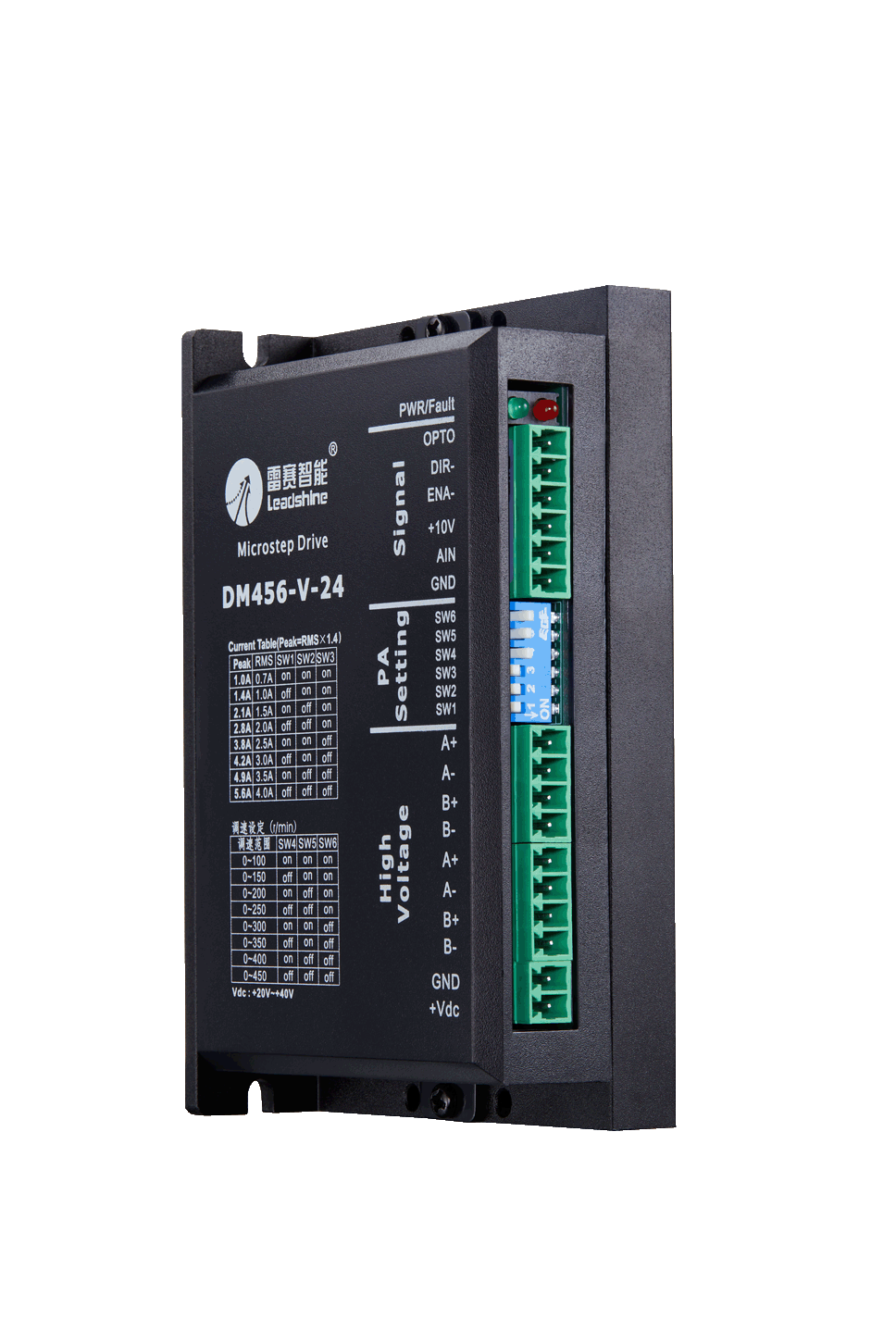

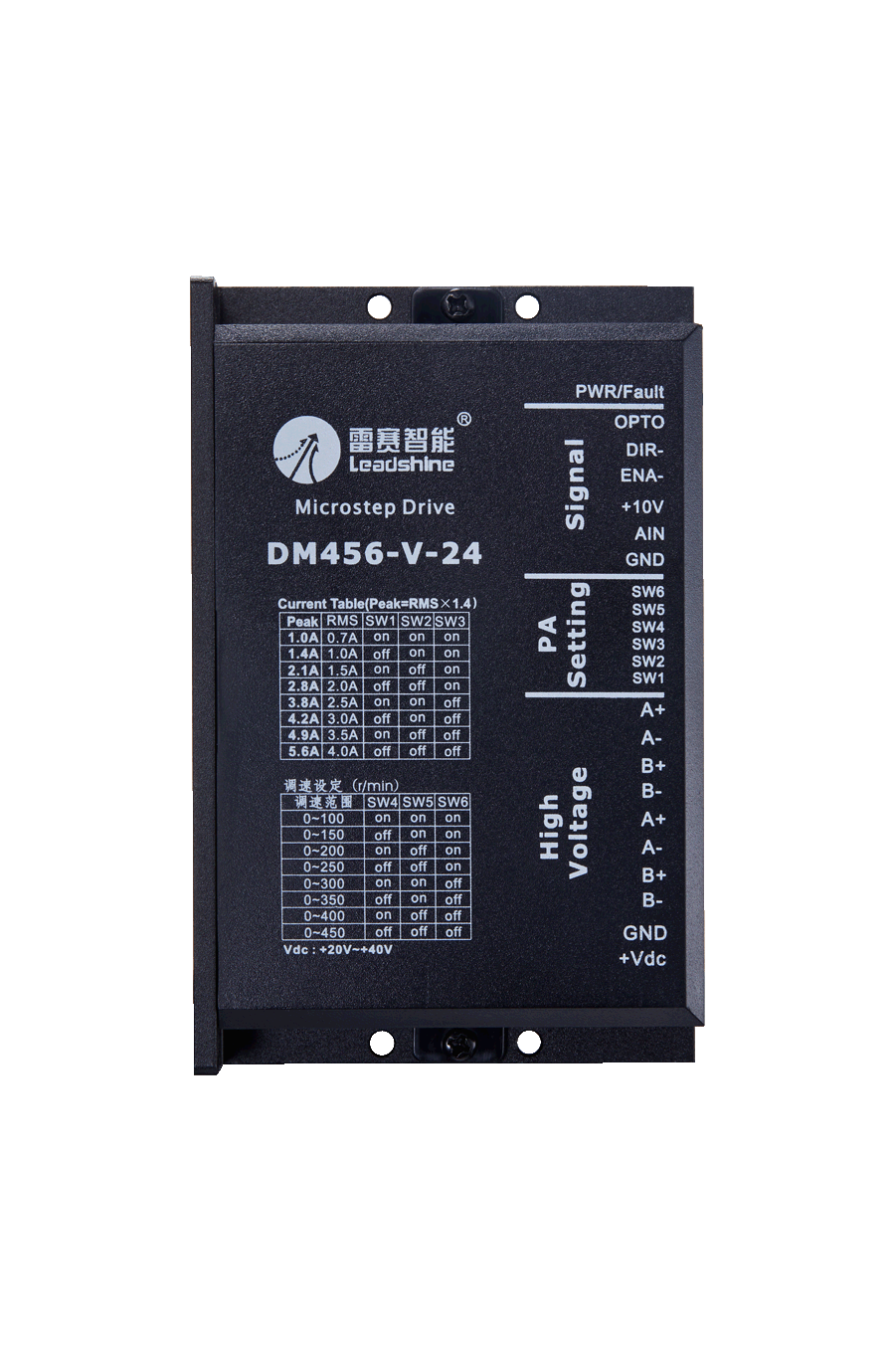

The DM series consists of stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM-E stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.

Technical Data
Command SourceI/O, 0-10V analog
Operation Voltage (VDC)20-40
Output Current (A, Peak)5.6
Input Frequency (KHz, Max.)/
Logical Voltage (VDC)24
# of Inputs3
# of Outputs1
CharacteristicsDual-axis,   built-in a pulser for speed control
