1103S20
Product Category

1103S20

List Price: $ 199.00
Online Special Price: $ 199.00

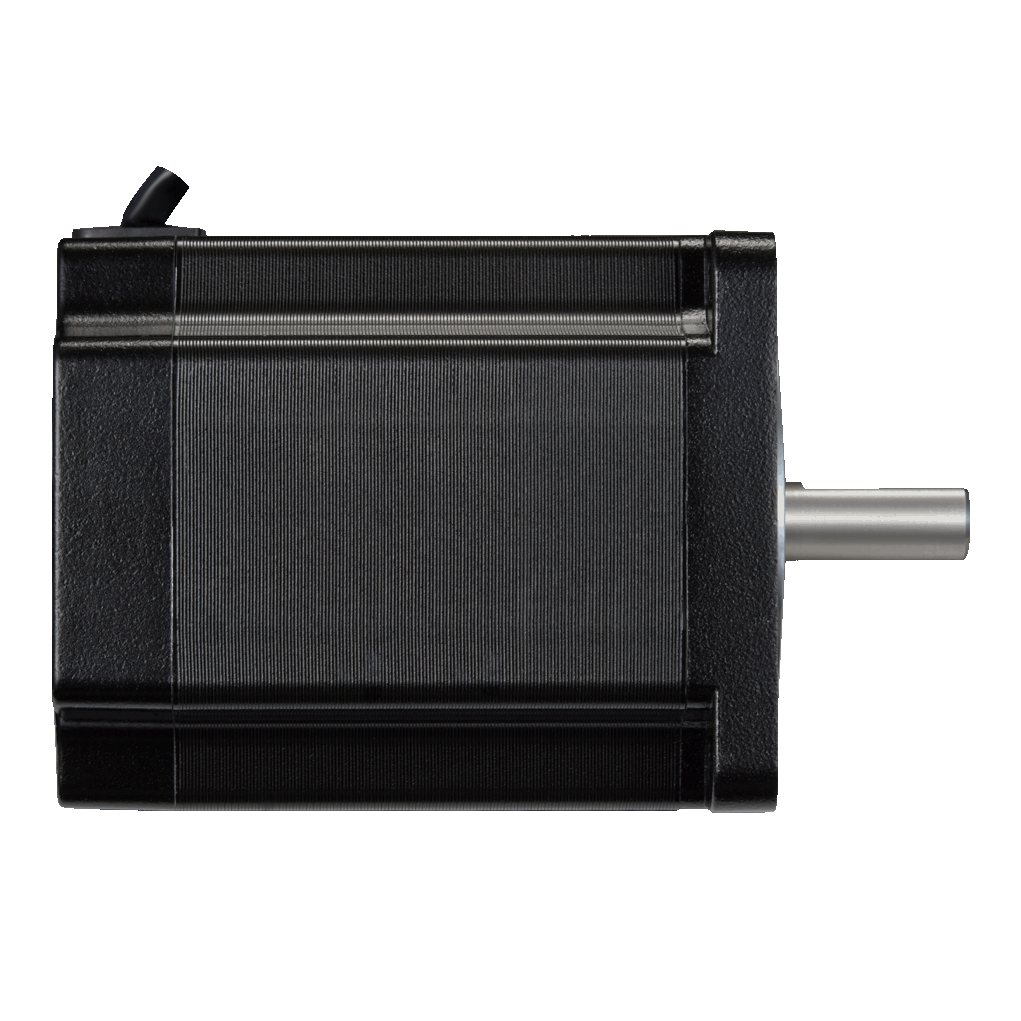

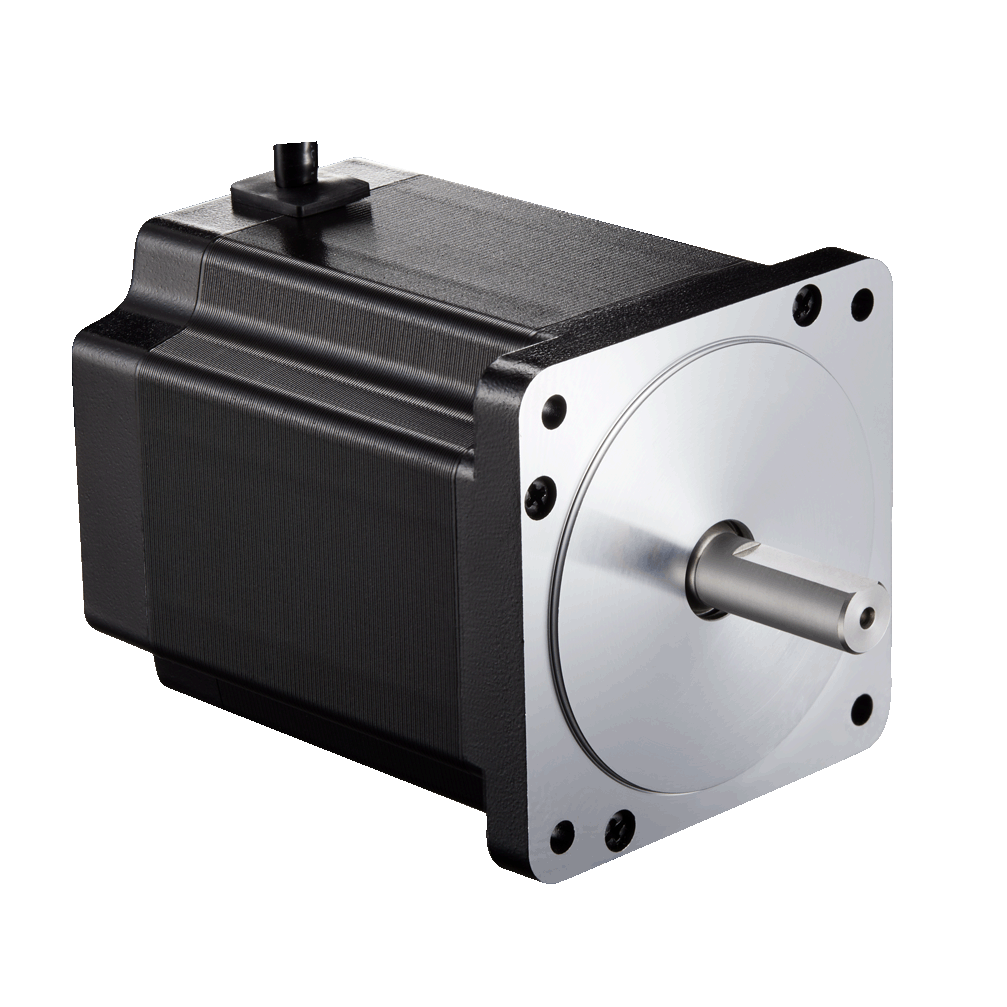

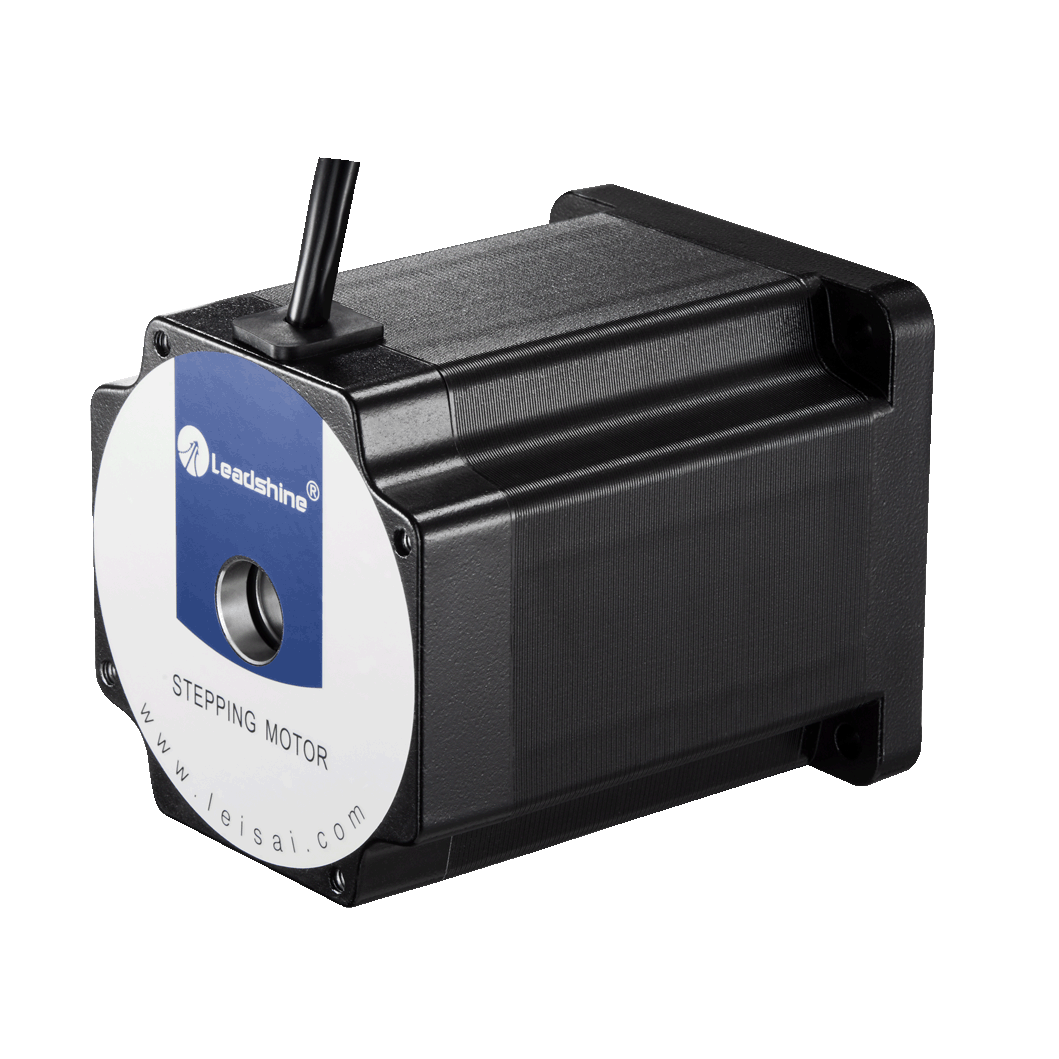

The 3S series are 3-phase hybrid stepper motors, can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.


Technical Data
Model1103S20
Frame Size (NEMA)42
Length (mm)221
Holding Torque (N.m)20
Phase Current (A)5.2
Shaft Diameter (mm)19
Center Diameter (mm)85
IP RateIP40
CharacteristicsStandard
Resistance (ohm)1.88
Inductance (mH)18
Inertia (kg/cm2)10.9
Weight (kg)8.4

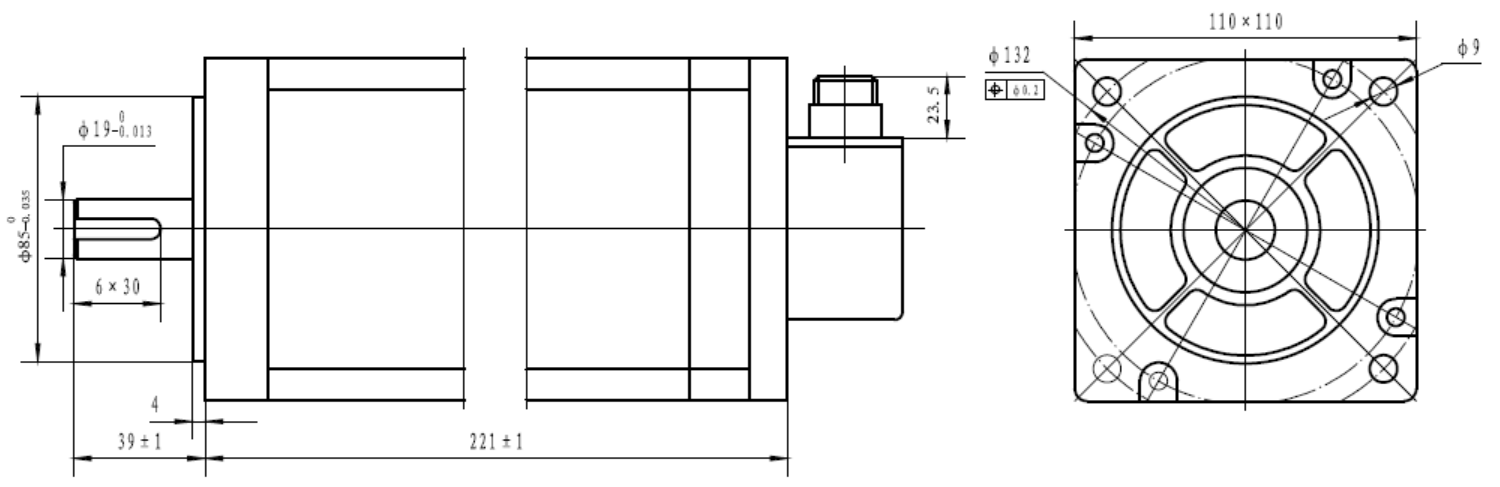

Mechanical
