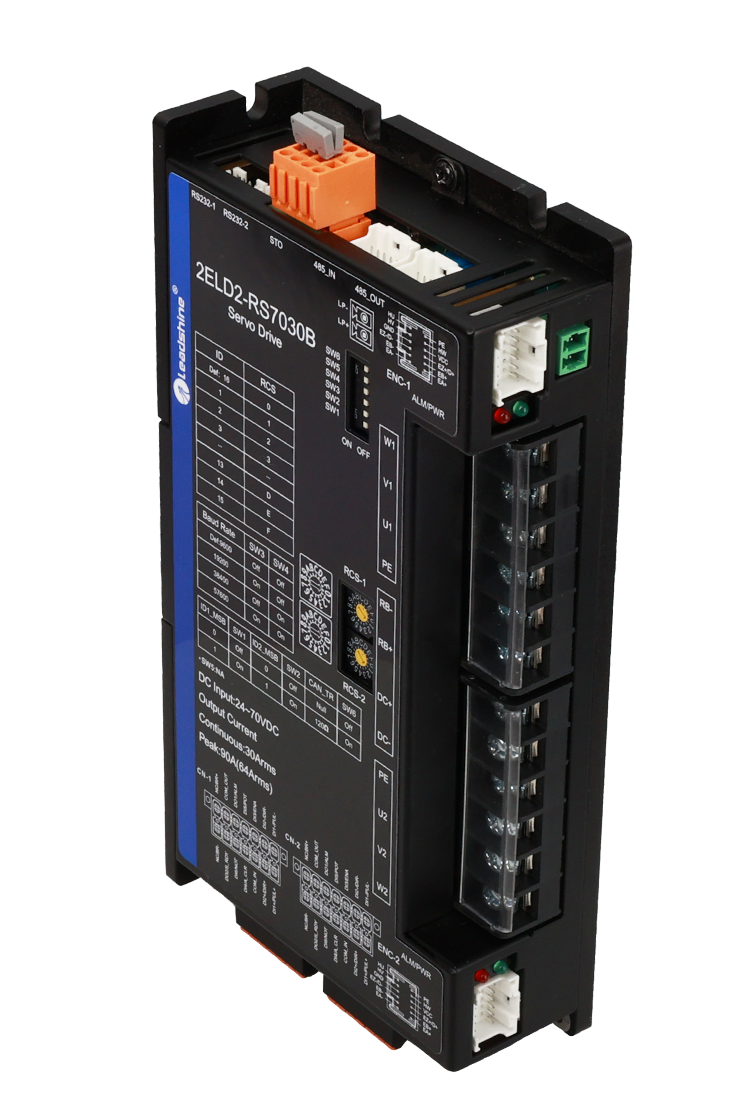

2ELD2-RS7030B
Product Category

2ELD2-RS7030B

● Dual-axis, Pulse+Direction

● Main power voltage: 24-70VDC. Logic power voltage: 24-70VDC

● Output current: 2 x 30Arms continuous/ 90A peak

● Direct brake output: 24V/1A

● Modbus RTU over RS485. Build-In 16 PR paths

● Dip switch for node ID, baud rate and terminating resistor settings

● STO function safety

● RS-232 serial interface for easy tuning with Motion Studio


List Price: $ 199.00
Online Special Price: $ 199.00

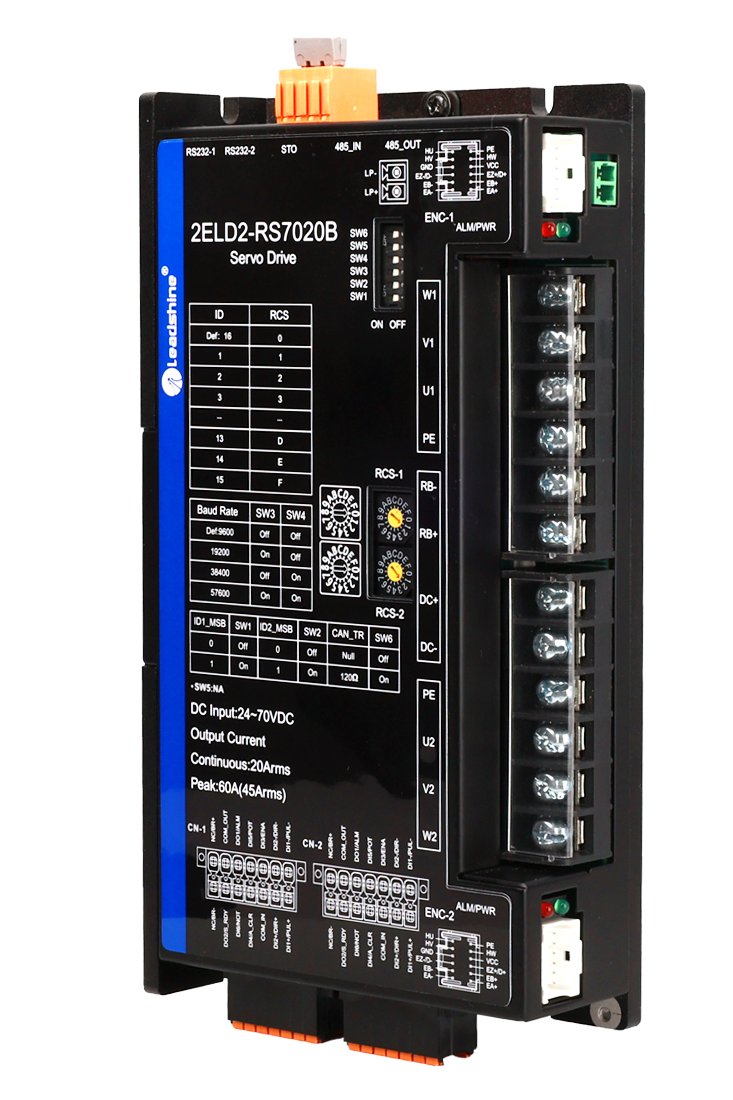

The 2ELD2 series is a new low voltage DC servo drive developed from Leadshine, dual-axis, that one 2ELD2 drive can drive two DC servo motors at the same time.

2ELD2 series keep the same performance of ELD2 series, relying on the special dual-axis structure, 2ELD2 series achieve less wiring, space saving, energy saving, while having a high cost performance. 2ELD2 series can be applied to mobile robots, logistics, electronics, CNC machine and other industries.


Technical Data
Drive model2ELD2-RS7030B
Size(mm)194*103*41
Rated power(kW)1.2*2
Rated current(Arms)30
Peak current(Apeak)90
Main powerVoltage(V)DC24~70
Current(A)10Arms (≤48Vdc)
7Arms(>48Vdc)
Logic powerVoltage(V)DC24-70
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe functionSTO
Protection rankIP20
