iCS-RS2313
Product Category

iCS-RS2313

● NEMA23, 1.3N.m

● 14-bit single-turn increment encoder

● Support Modbus RTU protocol, internal 16-segment position commands

● Motion can be started by external I/O or RS485 or HMI

● Support operation modes: profile position, profile velocity, homing

● 7 configurable digital inputs, 3 optically isolated digital outputs

● RS232 port for Leadshine software connection, RS485 port for motion control

● Over voltage, over current, position following error, etc. protections



List Price: $ 199.00
Online Special Price: $ 199.00

iCS series is integrated closed-loop stepper motor with 14-bit single-turn absolute encoder for smooth and jitter-free motor start-up.

iCS series motors output torque can up to 3.5Nm and supports Modbus RS485 communication with Indexer control function. And with a more compact design, it is especially suitable for applications with strict mounting space requirements, and it is easy to use, which can further reduce customers' procurement and labor costs.

Technical Data
ModeliCS-RS2313
SeriesiCS-RS
Frame Size (NEMA)NEMA23
Length (mm)78
Holding Torque (N.m)1.3
Command SourceModbus-RTU
Operation Voltage (VDC)24, 36
Input Frequency (KHz, Max.)10
Logical Voltage (VDC)12 -24
# of Inputs3
# of Outputs1

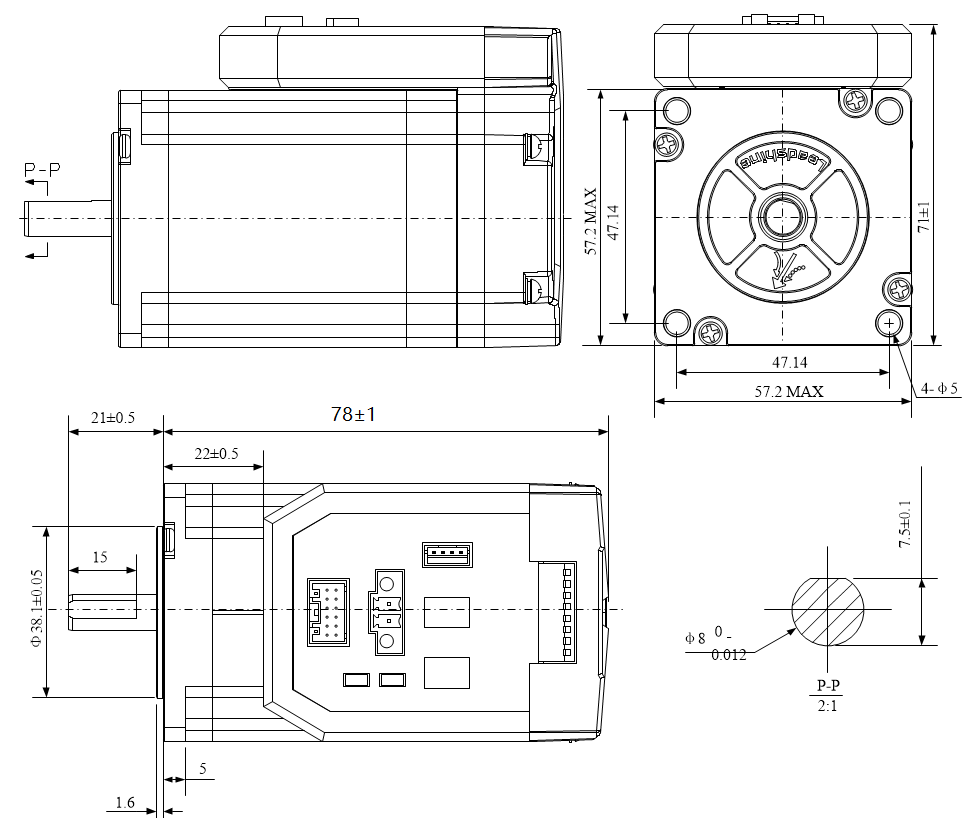

Mechanical

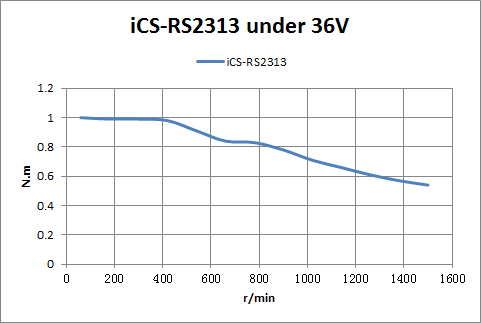

Speed-Torque Curve
