  • Step & direction or CW/CCW control modes

  • Supply voltage of 20-80 VAC or 20-100 VDC, maximum output current of 8.0A

  • Powering 2-phase stepper motors of NEMA 23, 24, 34, and 42

  • Fault output, brake control, or in-position output.

  • No lose of steps for closed position loop

  • No tuning

  • No overshooting

  • No torque margin

  • Reduced motor heating and more efficient

  • Smooth motion and super-low motor noise

  • CE certified and RoHS compliant

List Price: $ 199.00
Online Special Price: $ 199.00

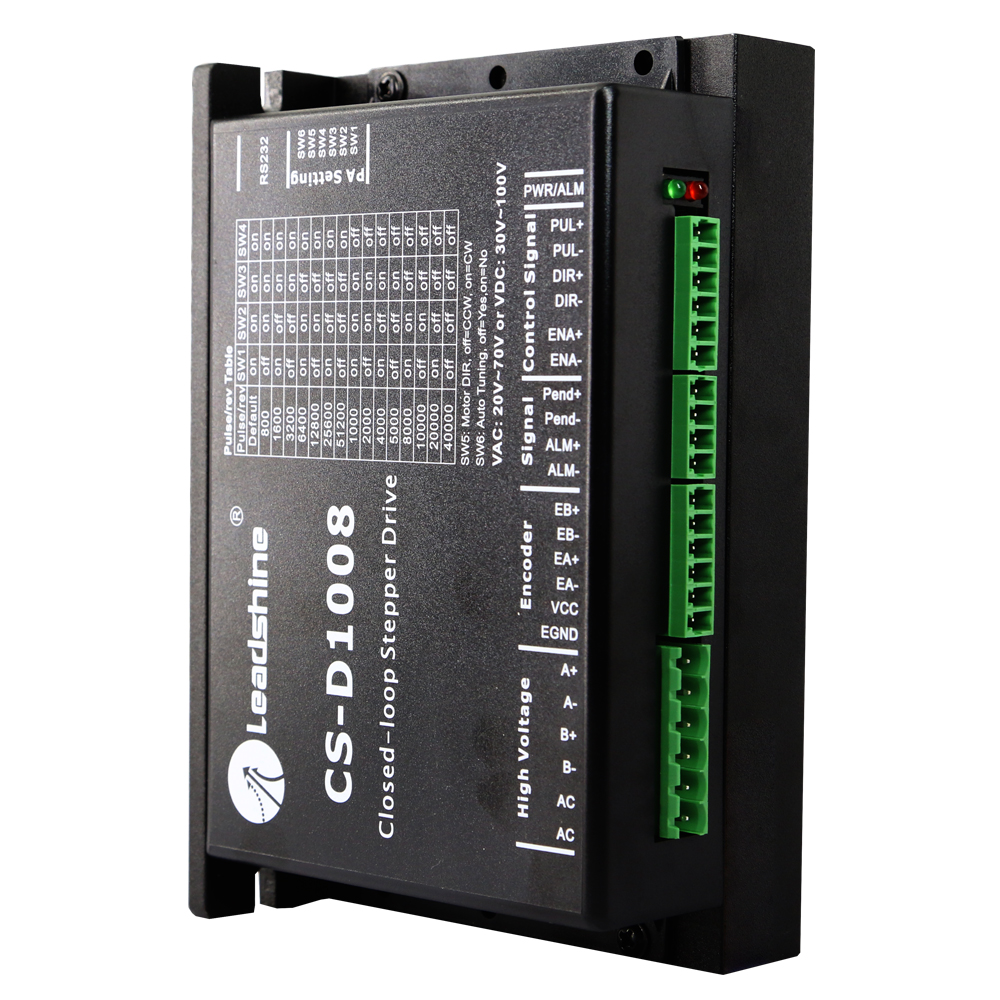

Leadshine CS-D1008 is a closed loop stepper drive. When used to drive a 2-phase stepper motor in frame sizes NEMA 23, 24, 34 or 42 with incremental rotary encoder, it can close the position loop between the motor and drive and therefore eliminate the loss of step problem in an open loop system. The CS-D1008 adopts Leadshine advanced control algorithm. It is very easy to configure and setup. It It is ideal for upgrading open loop stepper systems, or replacing servo systems in some low to middle speed applications.

Compared with an open loop stepper system, a CS-D1008 adopted closed loop stepper system can eliminate loss of step, make real-time position error correction, and use 100% available torque of the driven stepper motor. It can also power the driven stepper motor with reduced heating, lower noise, low vibration, …

When compared with a servo system, a CS-D1008 adopted closed loop stepper system can have much higher low-to-middle-speed torque. such a control system also has the advantages of no tuning, no hunting, no overshooting, and much lower cost.

Technical Data
Control Mode:Step   & Direction, CW & CCW
Max Input Frequency:200   KHz
Input Voltage Range:20   - 80 VAC or 30 - 100 VDC
Suggested Power Supply Voltage Range:36   - 92 VDC or 30 - 70 VAC
Software Cofig. Microstep Range:200   - 512,000 (increased by 200)
# of DIP Switch Microstep Configurations:16
DIP Switch Microstep Settings:800,   1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000,   20000, 40000
Software Cofig. Current Range:0.5   - 8.0 A (default by 8.0 A, increased by 0.1 A)
DIP Switch Functions:Microstep,   motor direction, auto-tuning
Logic Current Range:7   - 16 mA (10mA typical)
Logic Voltage range:0-0.5   VDC for pulse active low, or 4.5-5 VDC for pulse active high
Communication Type:RS232   for tuning
Pulse enabled at:Falling   edge
Software Config. Idle Current Percentage:0   - 100%
# of Digital Inputs:3
Digital Outputs:Fault   outout, in-position output or brake control
Step Width:2.5   us (when dutycycle = 50% )
Minimal Direction Setup Time:5.0   us
Protection:Over   current; over voltage; chip error; motor cable error; ROM error; auto-tuning   error; position following error
Isolation Resistance:500   Mohm
Environment:Avoid   dust, oil fog and corrosive gases
Operating Temperature:0   - 50 °C
Humidity:40   - 95% RH
Vibration:5.9   m/s2 Max
Storage Temperature:-20   - 65°C

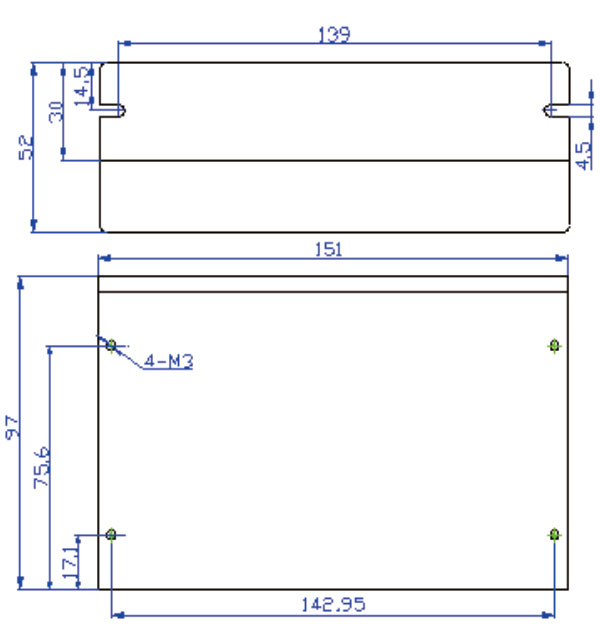

Mechanical:151   * 97 * 52 mm
