● No loss of step & no torque reservation & no hunting & no tuning.

● Enhance performance, especially at low-speed application (<60RPM).

● Auto-tuning to match wide-range NEMA 17, 23 and 24 closed-loop stepper motors.

● Max 500 KHz input frequency.

● 15 micro step settings of 800-51,200 via DIP switches, or 200-51,200 via software.

● 2 out current settings and gain tuning via S1 rotating switch.

List Price: $ 199.00
Online Special Price: $ 199.00

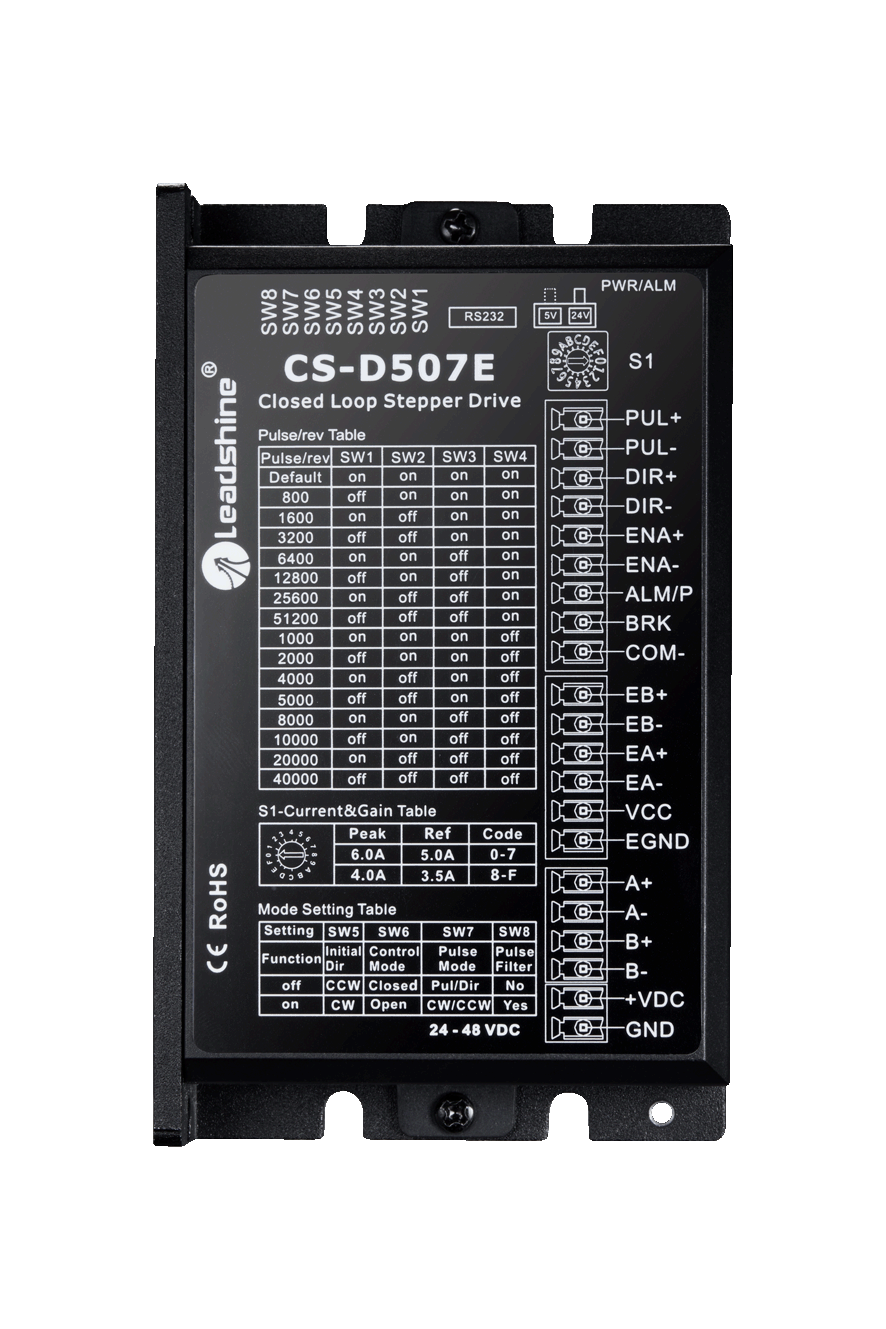

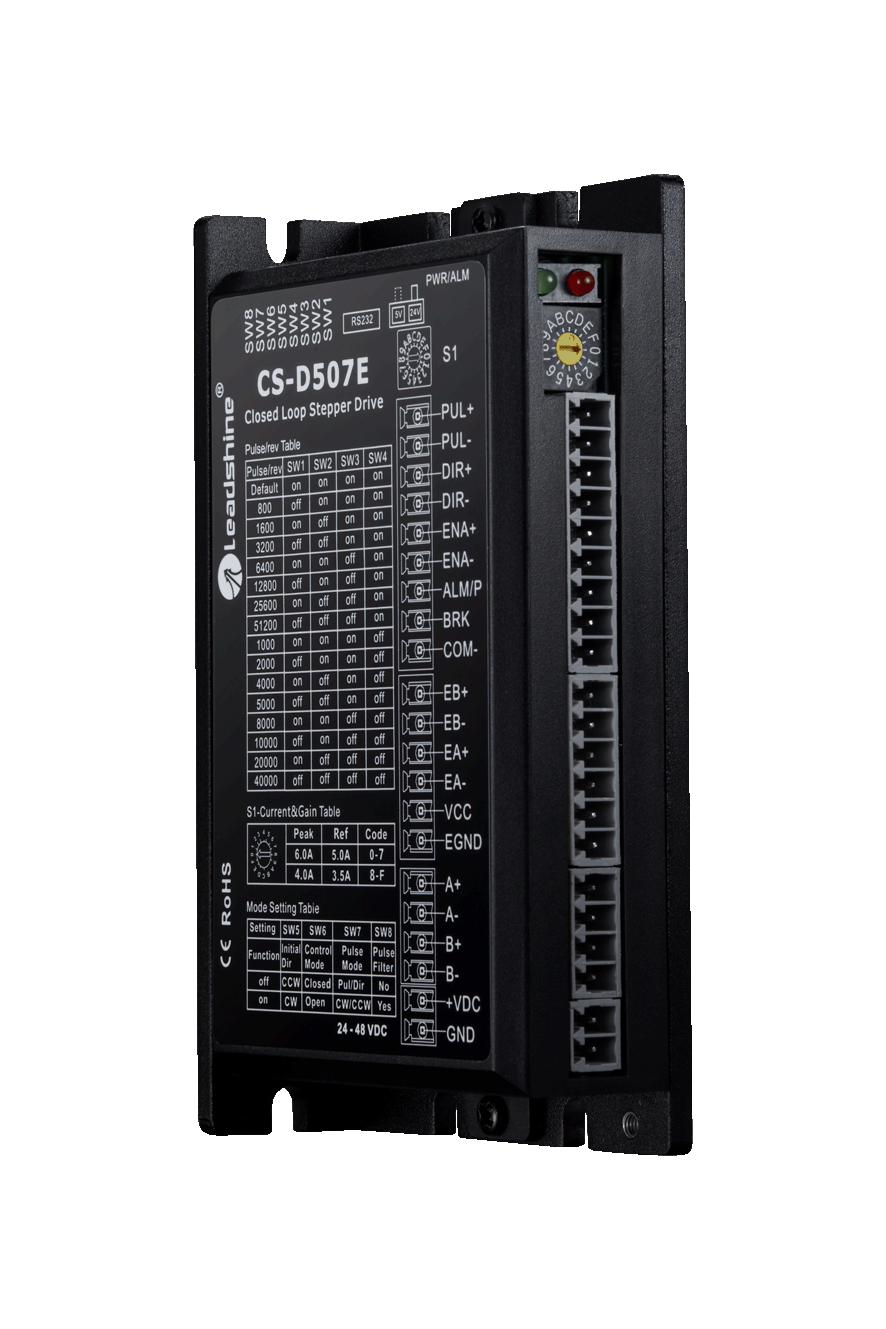

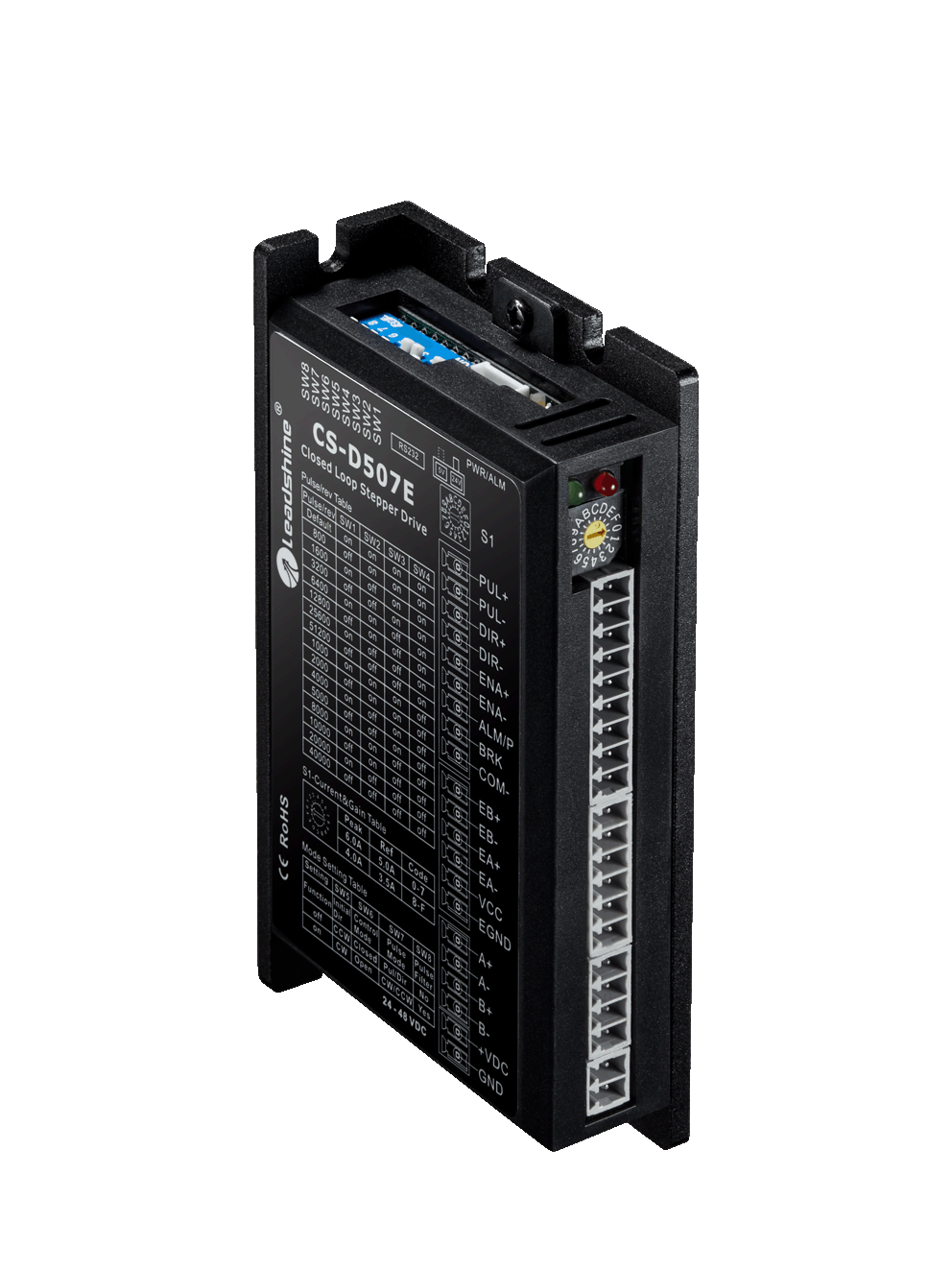

The CS series consists of ES seasy servo drives adopting Leadshine latest advanced closed loop control technology. Those drives are highly reliable with good performance and highly competitive cost. They can power a wide range of closed loop stepper motors from NEMA 8 to NEMA 34 (model dependent) with incremental encoders. CS series drives are easy to configure and setup.

Technical Data
Command SourcePUL&DIR,   CW&CCW
Operation Voltage (VDC)20-50
Output Current (A, Peak)7.0
Input Frequency (KHz, Max.)500
Logical Voltage (VDC)5 or 24
# of Inputs3
# of Outputs2
