  • R3-0808-N Remote I/O Modules

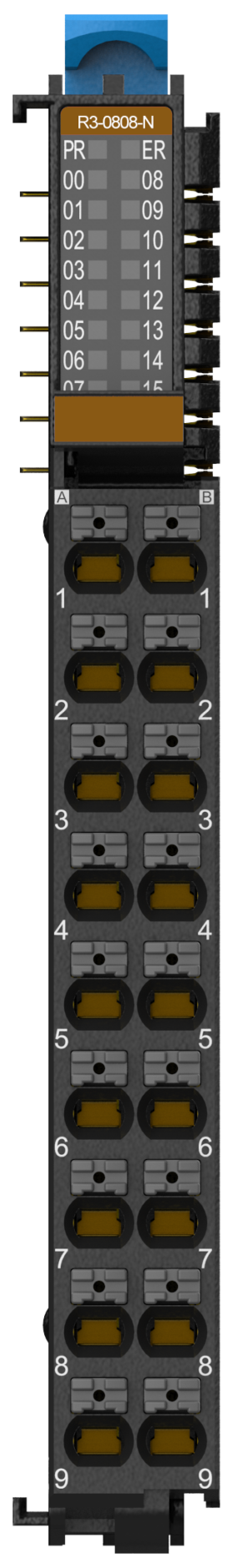

R3-0808-N

8 digital inputs, NPN/PNP input type, and 8 digital outputs, NPN output type, push-in terminal

List Price： $ 199.00
Online Special Price： $ 199.00
Add to Cart

Description

Specifications

Downloads

8 digital inputs, NPN/PNP input type, and 8 digital outputs, NPN output type, push-in terminal

Technical Data
Mechanical
Technical Data
ModelR3-0808-N Digital I/O Module
Channel8 inputs and 8 outputs
OFF to ON(Input)>15VDC, 1.5mA or above
ON to OFF(Input)<5VDC, 1.0mA or below
Output voltage5-25VDC
Output Current500mA/channel
Input/Output Frequency1kHz
ON/OFF Response Time20µs/50µs
Input TypeNPN/PNP
Output TypeNPN
Input Resistance(max)4.7kΩ
Input ProtectionOptocoupler isolation, Interference Filter
Output ProtectionOptocoupler isolation, short circuit and over current protection
Common1 common per 8 output channels
TerminalPush-in
DimensionW12*H100*D75 mm
InstallationStandard DIN rail
OthersCE
