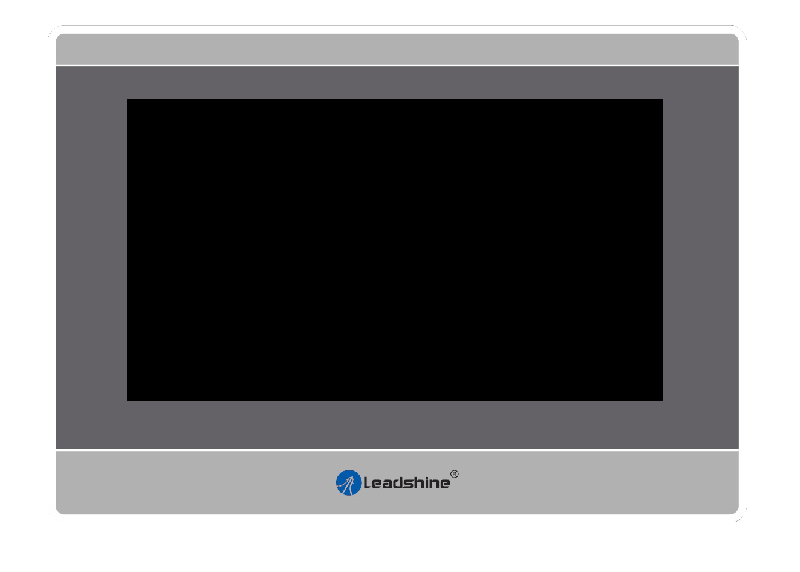

LT2070
Product Category

LT2070

  • 7 Inch Standard HMI

  • High resolution, high brightness

  • Support IOT expansion modules

  • Rich communication interfaces

List Price: $ 199.00
Online Special Price: $ 199.00
  • High resolution, high brightness, high-quality image display

  • Professional level appearance design creates a high aesthetic value

  • Practical downward wiring method is convenient for quick installation and wiring

  • Rich library resources, powerful programming functions, create operation interface easily

  • Using industrial ABS plastic casing, low cost, high reliability, and high cost-effectiveness

  • Support USB data storage and download

Technical Data
ModelLT2070
Display Screen7"  16:9 TFT LCD
Resolution800×480
Display Color16   bit
Brightness250   cd/m² (maximum275cd/m²)
BacklightLED
LCD Lifetime50000   Hours
Touch Screen4-Wire   Industrial Resistive Touch Screen
CPU"720MHz
Flash64MB   RAM+128MB Flash
RTCconfigured   RTC
Ethernet/
SD CARD/
USB PORT1*USB   Slave 2.0 port
1*USB Host 2.0port
Program Download MethodUSB   Slave/ USB Flash drive
Serial Communication PortCOM1:RS232/RS485/RS422
COM3:RS232
Rated Power<   10W
Rated VoltageDC24V, Range DC 9V~28V
Power ProtectionLightning  surge protection
Power-Off Time<   5ms
CE & RoHSEN61000-6-2:2005,EN61000-6-4:2007
Operating Temperature0~50℃
Storage Temperature-20~60℃
UV ProtectionDo   not expose the HMI to environments with strong UV (such as outdoors with direct sunlight) for a long time
Operating Humidity10~90%RH (without condensation)
Vibration Resistance10~25HzXYZ   Direction 2G/30 minutes
Cooling MethodAir   Cooling
IPIP65   for front panel and IP20 for rear cover
Mechanical StructureABS
Cut-Out Mounting192mm×138mm
Overall Dimensions204mm×145mm×33.8mm
Weight575g

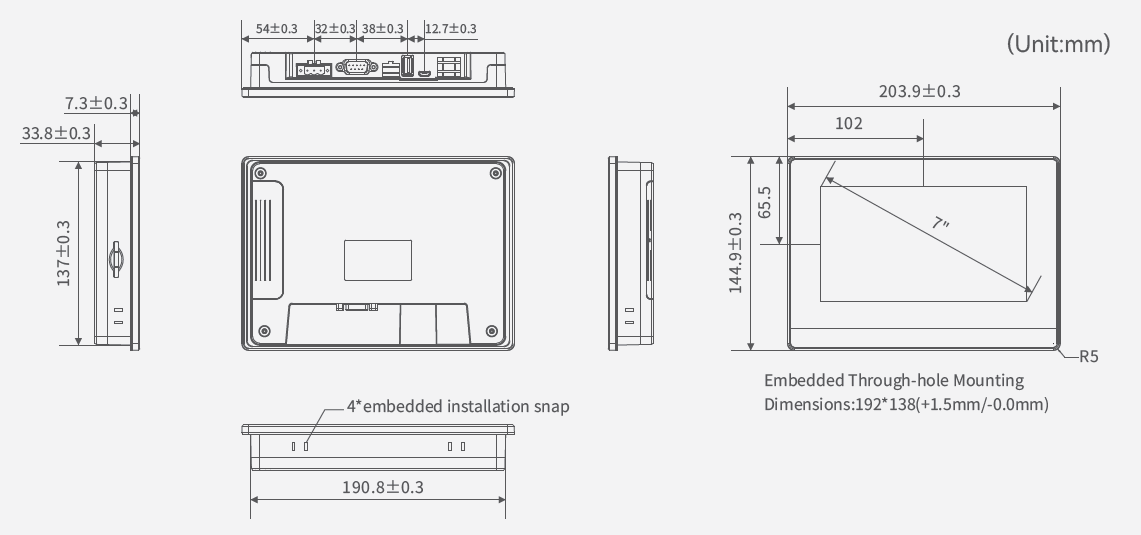

Mechanical
