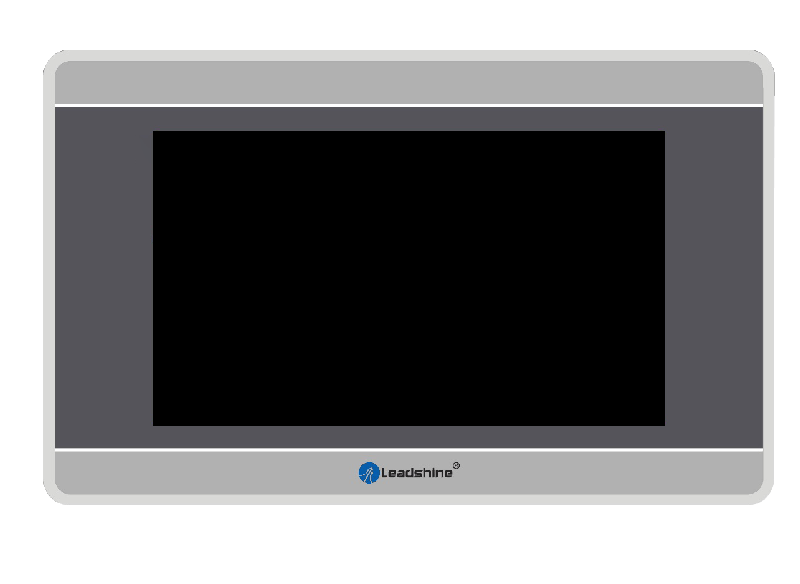

LT2043
Product Category

LT2043

  • 4.3 Inch Standard HMI

  • High resolution, high brightness

  • Support IOT expansion modules

  • Rich communication interfaces

List Price: $ 199.00
Online Special Price: $ 199.00
  • High resolution, high brightness, high-quality image display

  • Professional level appearance design creates a high aesthetic value

  • Practical downward wiring method is convenient for quick installation and wiring

  • Rich library resources, powerful programming functions, create operation interface easily

  • Using industrial ABS plastic casing, low cost, high reliability, and high cost-effectiveness

  • Support USB data storage and download

Technical Data
ModelLT2043
Display Screen4.3"  16:9 TFT LCD
Resolution800×480
Display Color16-Bit
Brightness250   cd/m² (maximum 275cd/m²)
BacklightLED
LCD  Lifetime50000   Hours
Touch Screen4-Wire   Industrial Resistive Touch Screen
CPU720MHz   ARM
Flash64MB   RAM+128MB Flash
RTCConfigured   RTC
Ethernet/
SD Card/
USB  Port1   * Type-C OTG  Port
Program Download MethodUSB   Slave / USB Flash Drive
Serial Communication PortCOM1:RS232/RS485/RS422
LCD Viewing Angle
    (T/B/L/R)
80'/80'/80'/80'
Rated Power<   2.5W
Rated VoltageDC24V,Range  DC 9V~28V
Power ProtectionLightning   Surge Protection
Power-Off Time<   5ms
CE & RoHSEN61000-6-2:2005EN61000-6-4:2007 ;
    Lightning Surge±1KV
Group-Pulse±2KV;
    Contact Discharge    4KV
Air Discharge 8KV ;
    ROHS
Operating Temperature0~50℃
Storage Temperature-20~60℃
UV ProtectionDo   Not Expose The HMITo Environments With Strong UV
    (Such As Outdoors With Direct Sunlight) For A Long Time
Operating Humidity10~90%RH   (Without Condensation)
Vibration Resistance10~25HzXYZ  Direction 2G/30 Minutes
Cooling MethodAir   Cooling
IPIP65   For Front Panel And IP20 For Rear Cover
Mechanical StructureABS

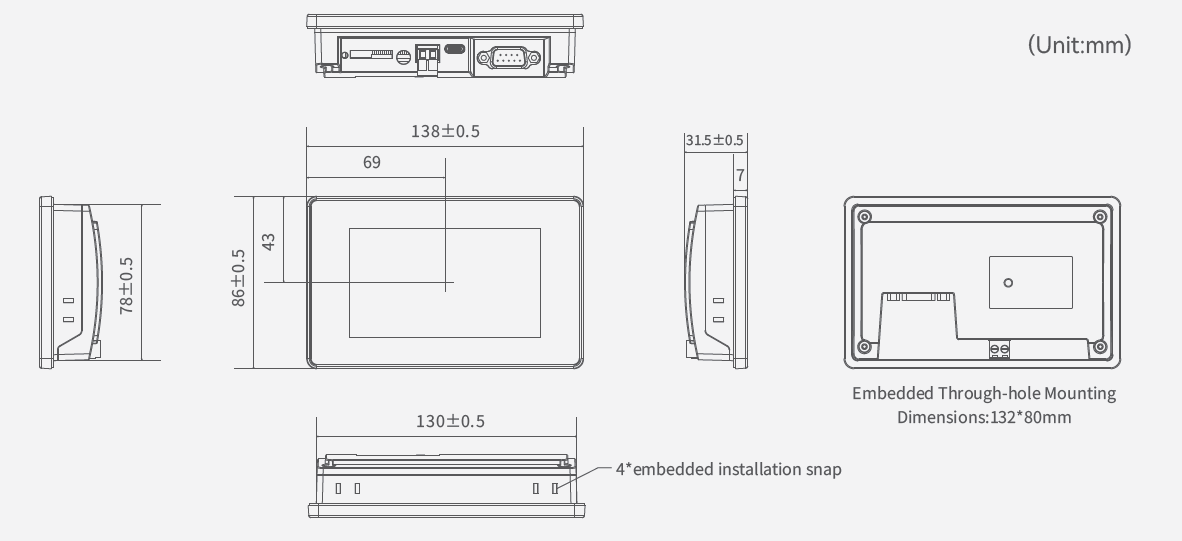

Cut-Out Mounting Dimensions (Mm)132mm×80mm
Overall Dimensions138mm×86mm×32mm
Weight300g


Mechanical
