Step & direction (PUL/DIR) control
Input voltage 18-30VDC
8 selectable micro-step resolutions of 400-12800 via DIP switches
8 selectable output current settings of 1.0 – 3.2A via DIP switches
Soft-start with no “jump” when powered on
Pulse input frequency up to 70 KHz

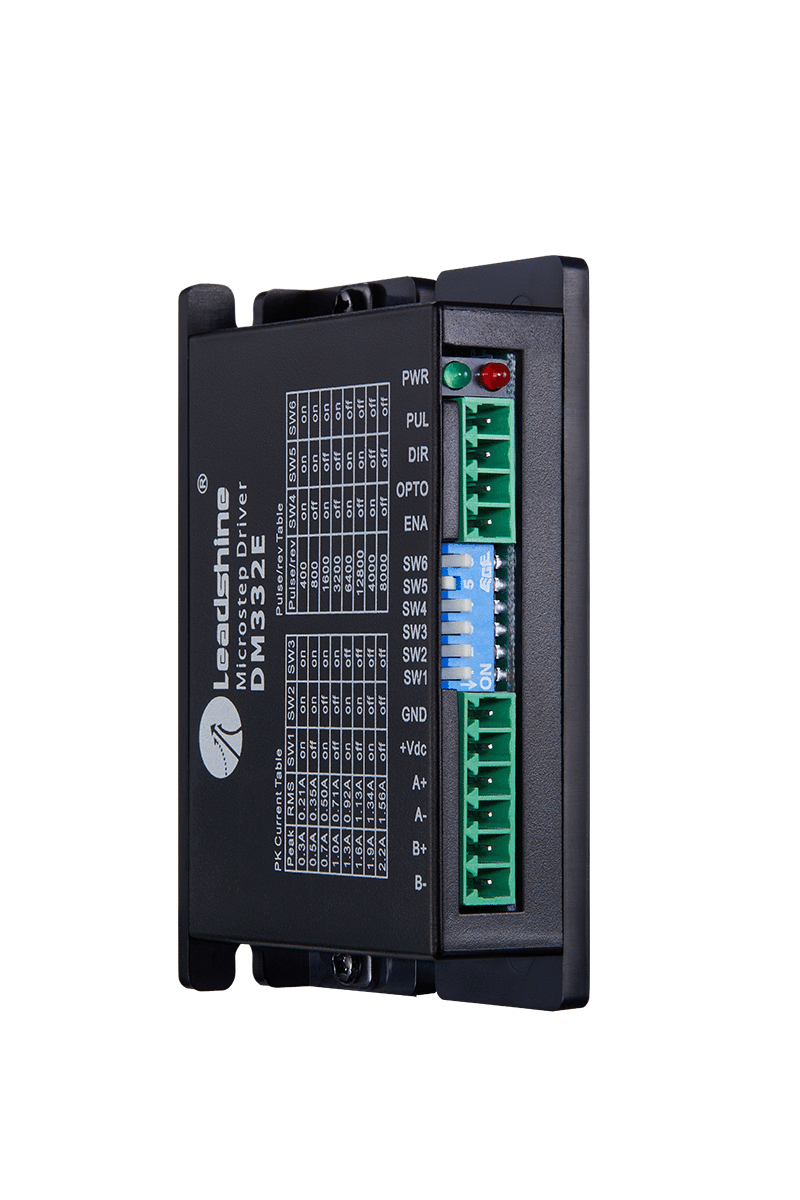

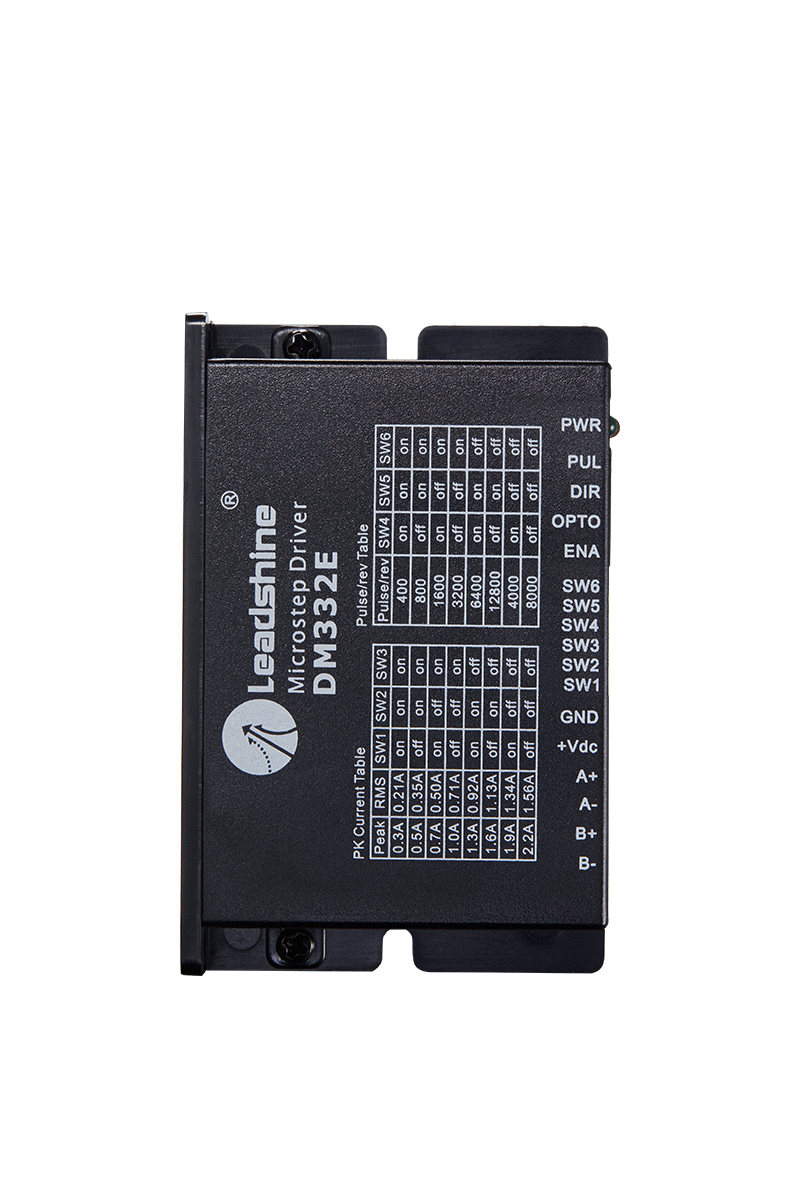

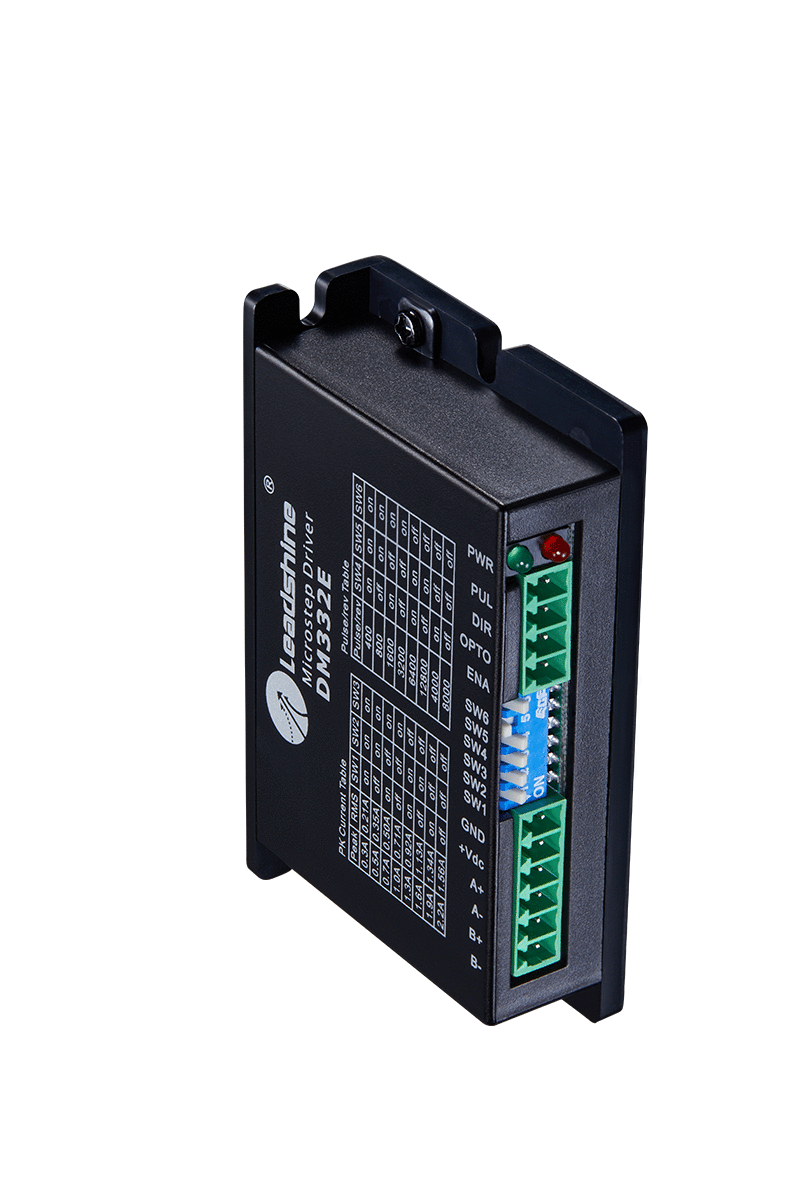

The DM332E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 12-30VDC and it can output 3.2A current. All the micro step and output current are done via DIP switches. Therefore, the DM332E are ideal choices for applications requiring simple step & direction control of NEMA11, 14, 16, 17 stepper motors.
