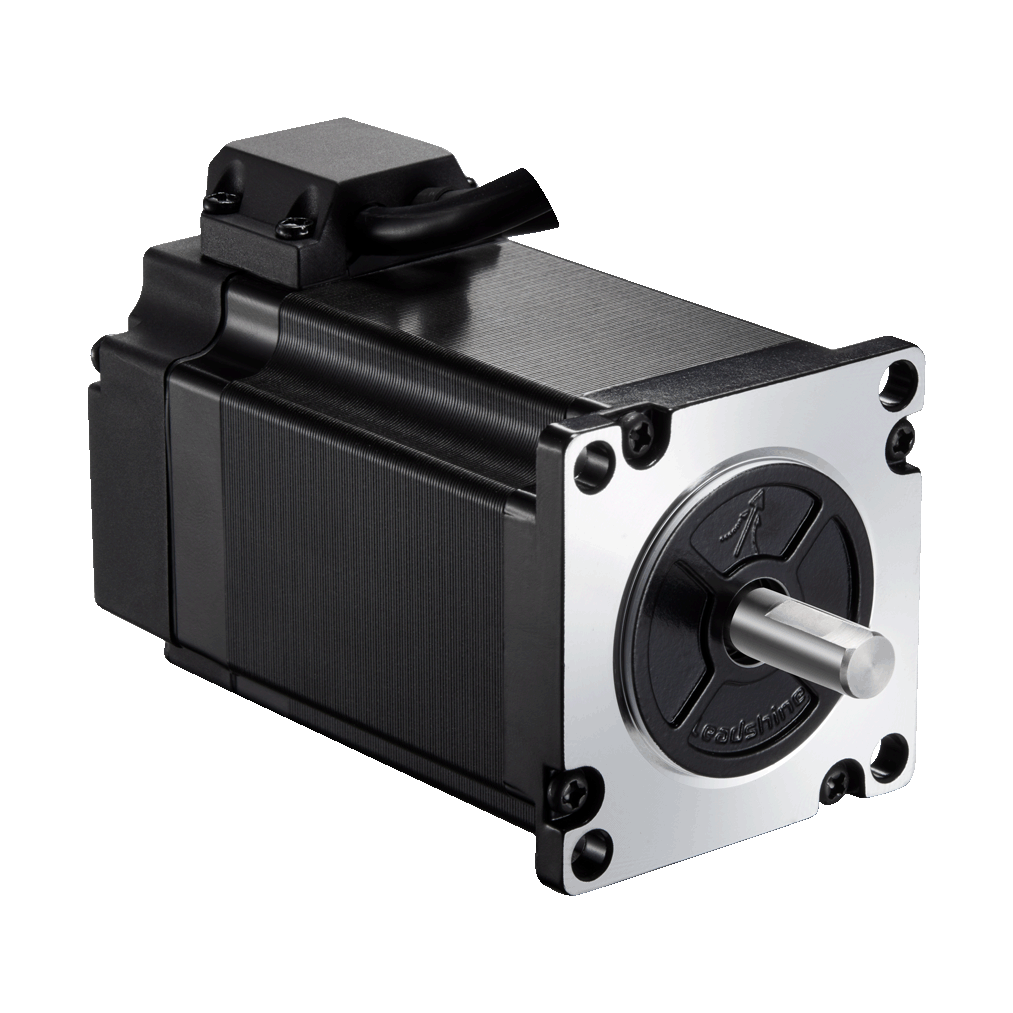

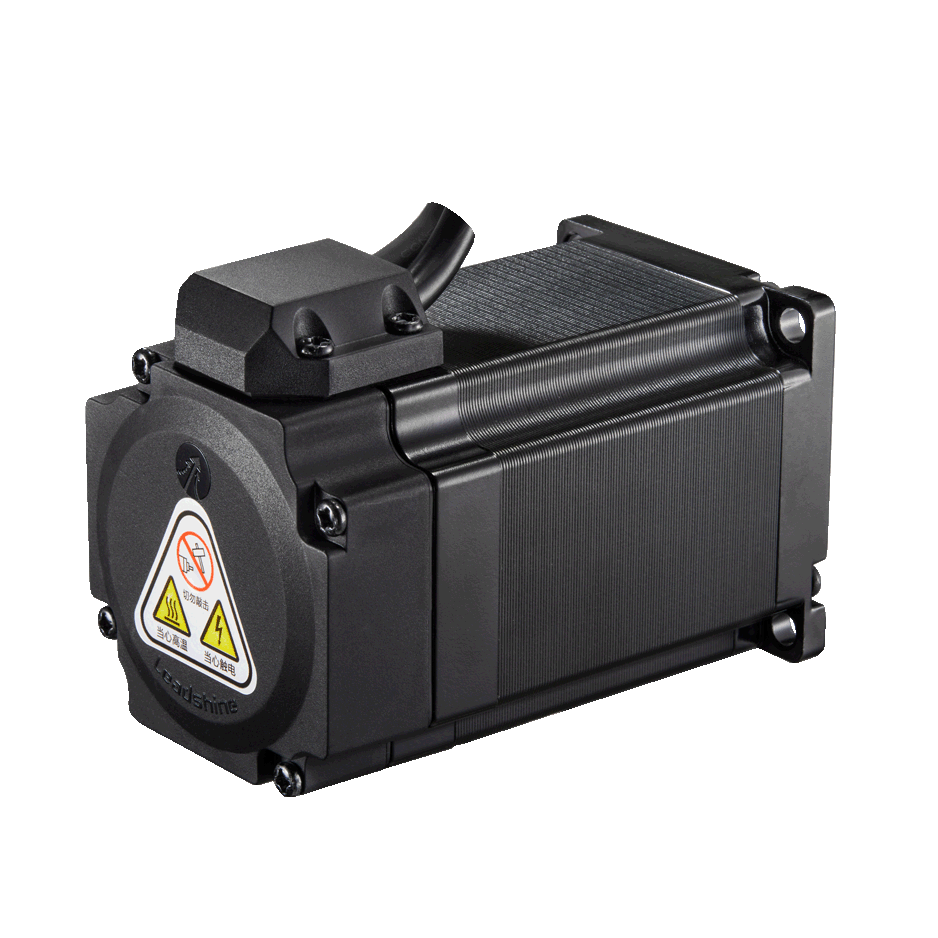

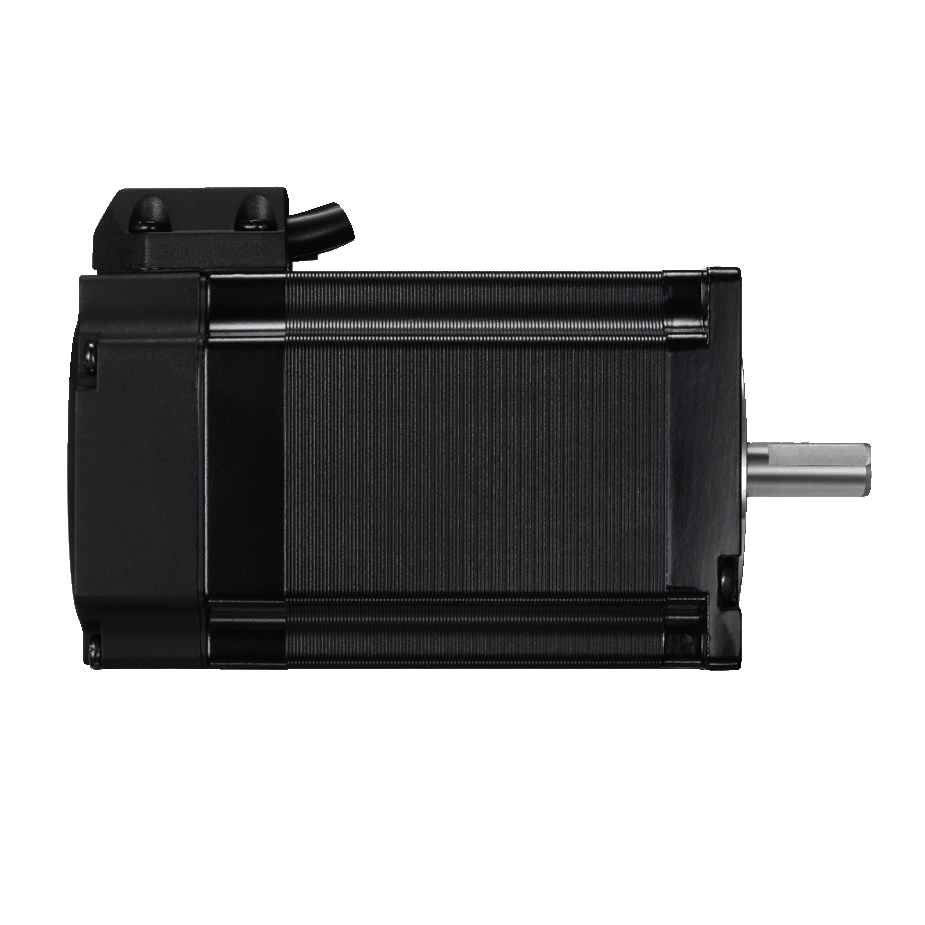

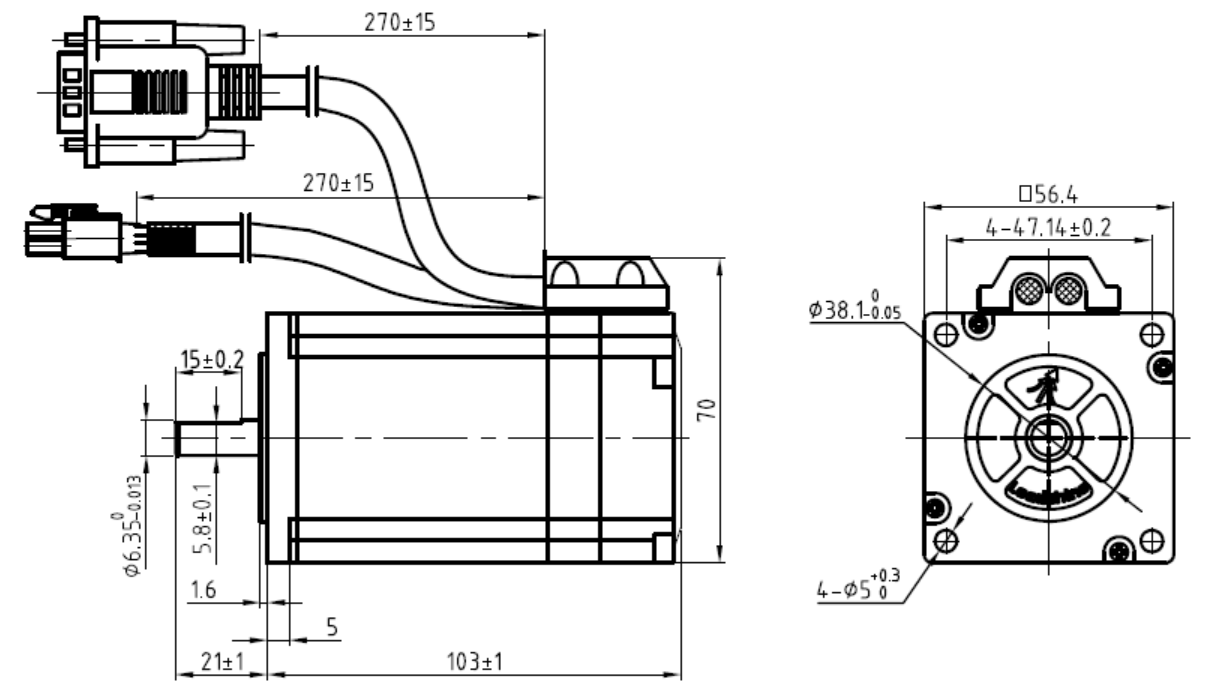

CS-M22326-S

  • 2 phase, NEMA 23 frame size

  • 104 mm (4.09 inch) long

  • 5 A phase current

  • 2.6 N.m (369 oz-in) holding torque

  • 6.35 mm (0.25 inch) shaft size

  • Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

  • High precision, low motor heating, and low vibration

List Price: $ 199.00
Online Special Price: $ 199.00

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line (20,000 counts/revolution) differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.

Technical Data
ModelCS-M22326-S
SeriesCS-M
Phase2 phase
Frame Size (NEMA)23
Length (mm)104
Holding Torque (N.m)2.6
Phase Current (A)5.0
Shaft Diameter (mm)6.35
Center Diameter (mm)38.1
IP RateIP40
CharacteristicsInch shaft
Resistance (Ohm)0.44
Inductance (mH)2.0
Inertia (kg/cm2)0.52
Weightkg1.6
