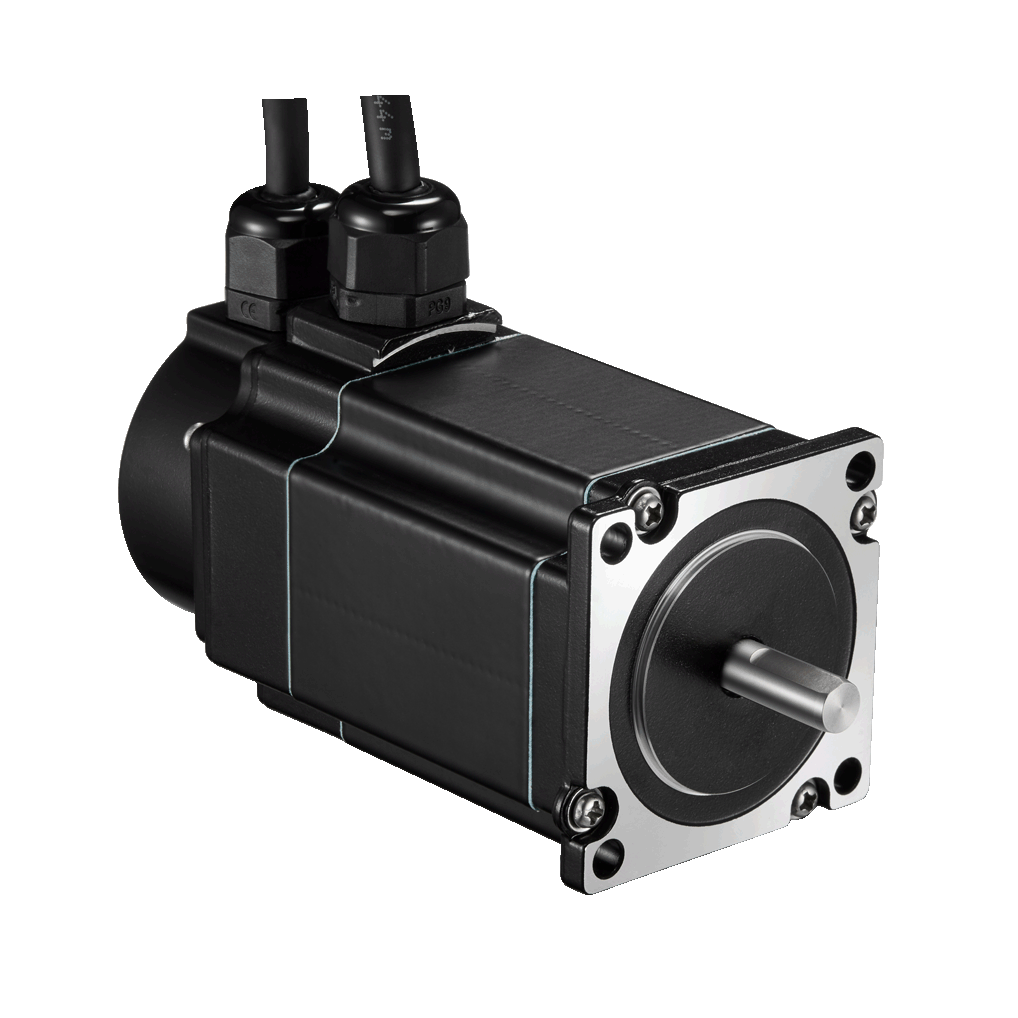

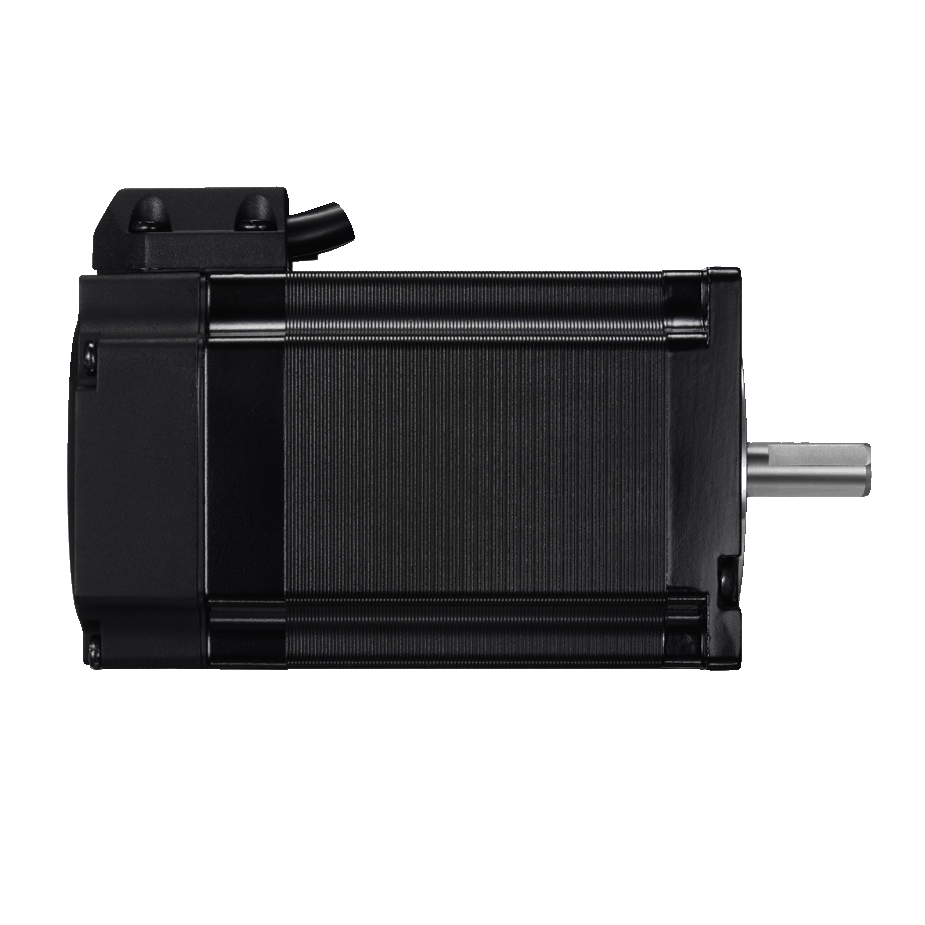

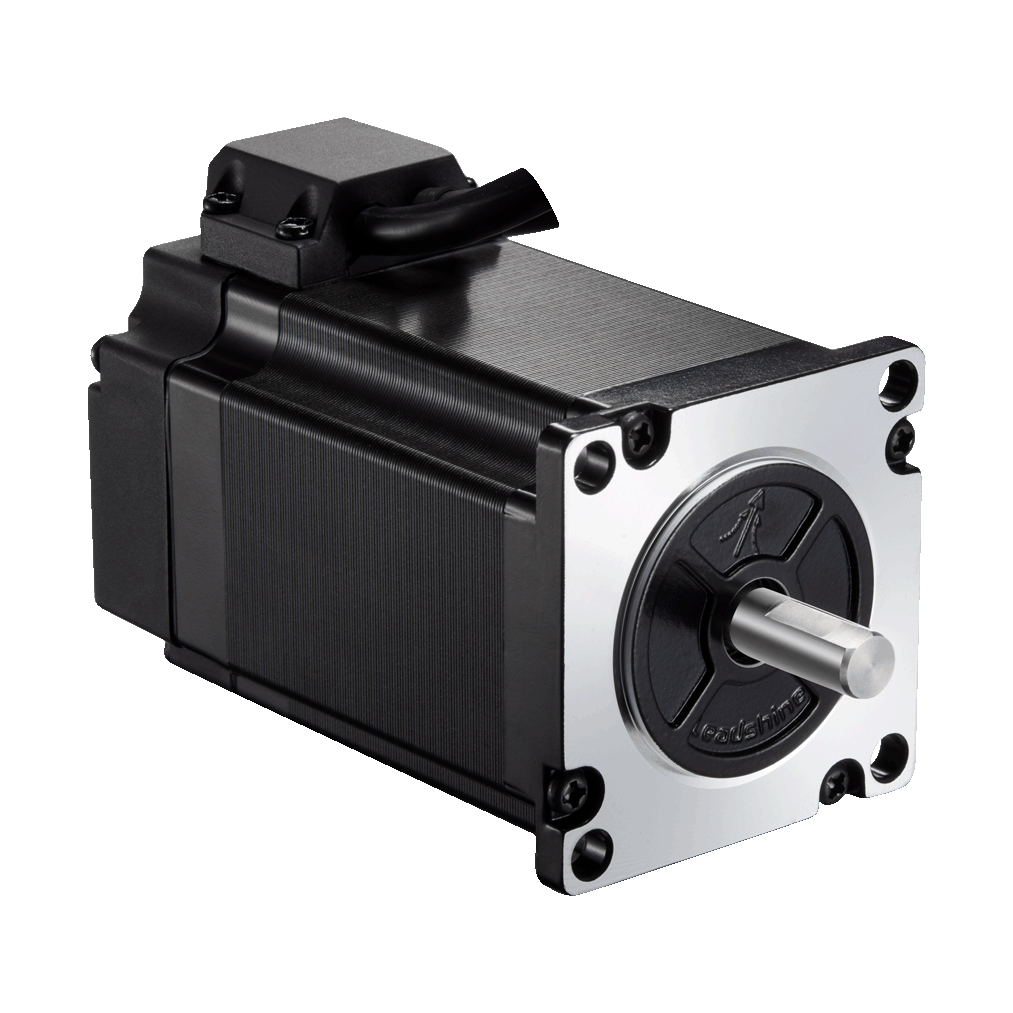

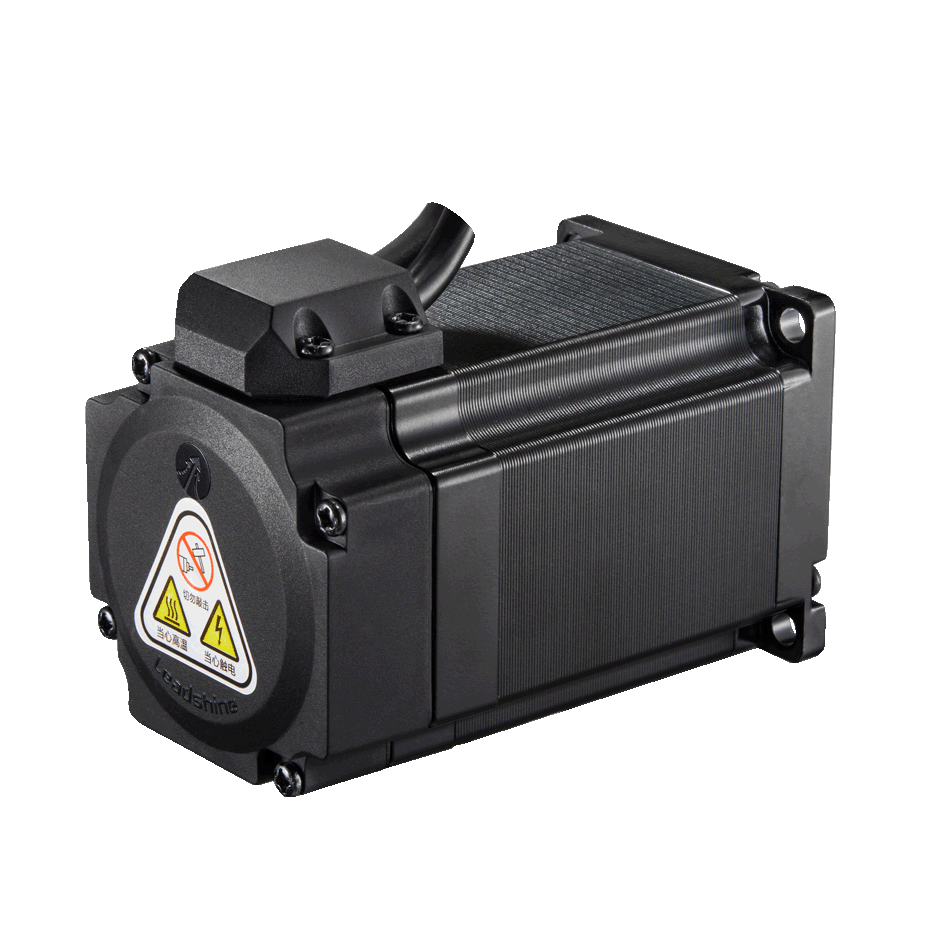

CS-M22313B
Product Category

CS-M22313B

  • 2 phase, NEMA 23 frame size

  • 117 mm (4.61 inch) long

  • 4 A phase current

  • 1.2 N.m (170 oz-in) holding torque

  • 8 mm (0.315 inch) shaft size

  • Permanent magnet brakes

  • High precision, low motor heating, and low noise

  • Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

List Price: $ 199.00
Online Special Price: $ 199.00

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line (20,000 counts/revolution) differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.

Technical Data
ModelCS-M22313B
SeriesCS-M
Phase2 phase
Frame Size (NEMA)23
Length (mm)117
Holding Torque (N.m)1.2
Phase Current (A)4.0
Shaft Diameter (mm)8
Center Diameter (mm)38.1
IP RateIP40
CharacteristicsBrake
Resistance (Ohm)0.45
Inductance (mH)1.4
Inertia (kg/cm2)0.30
Weightkg1.25

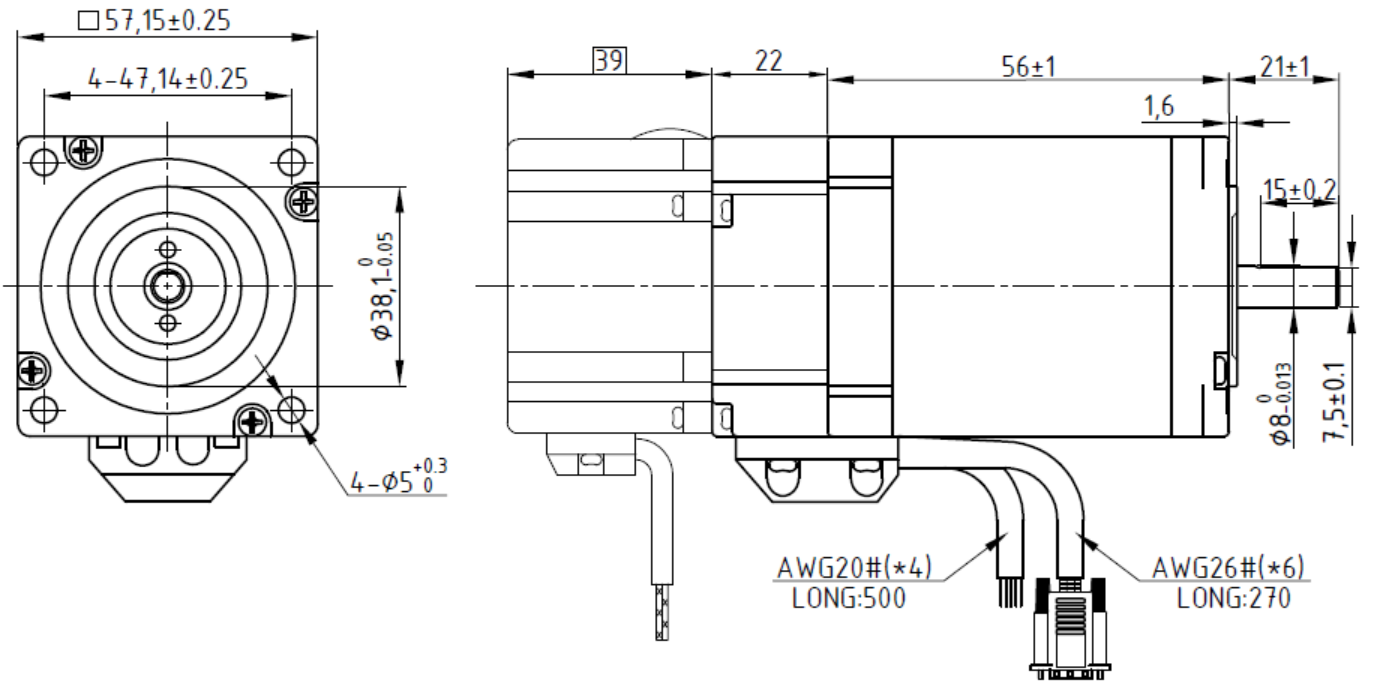

Mechanical
