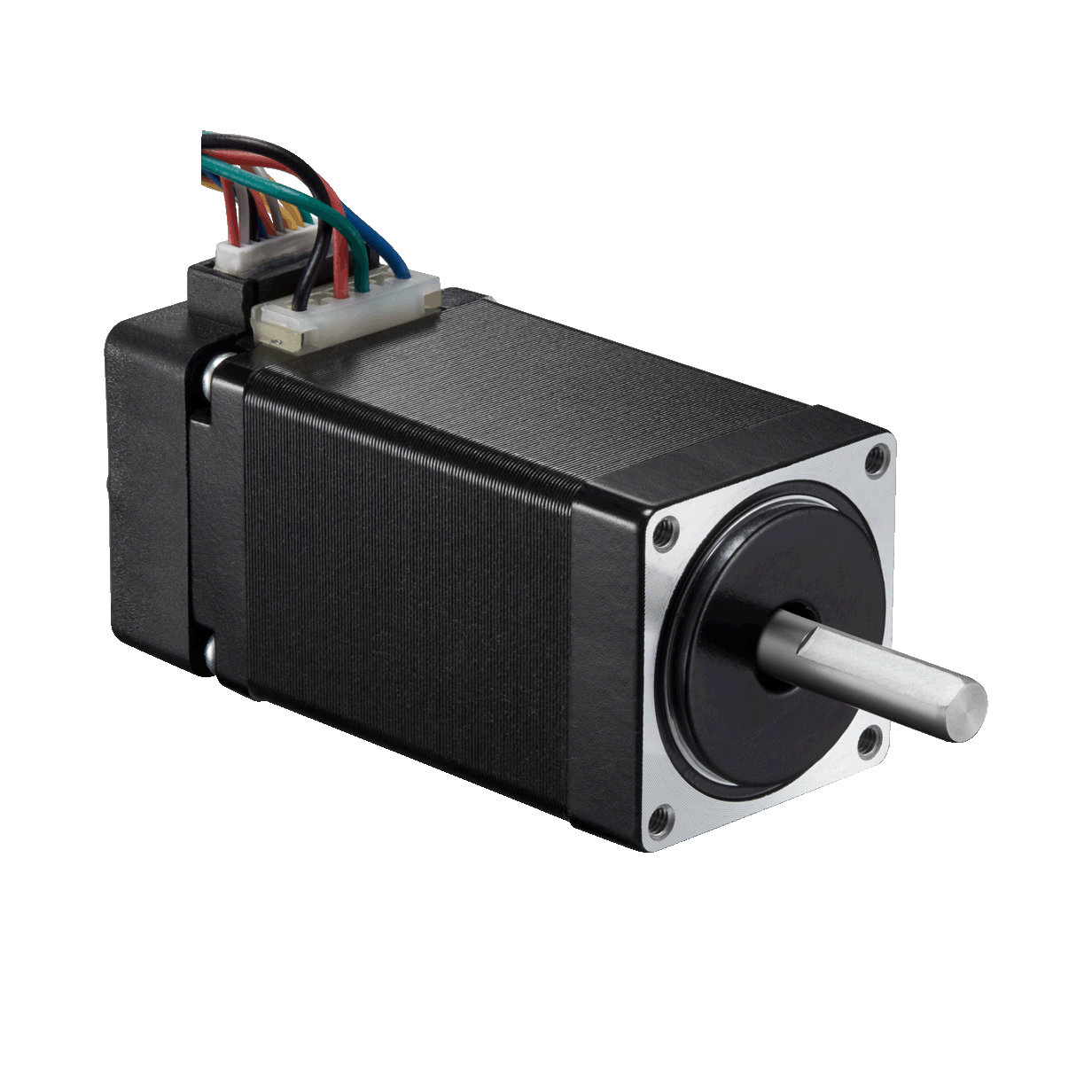

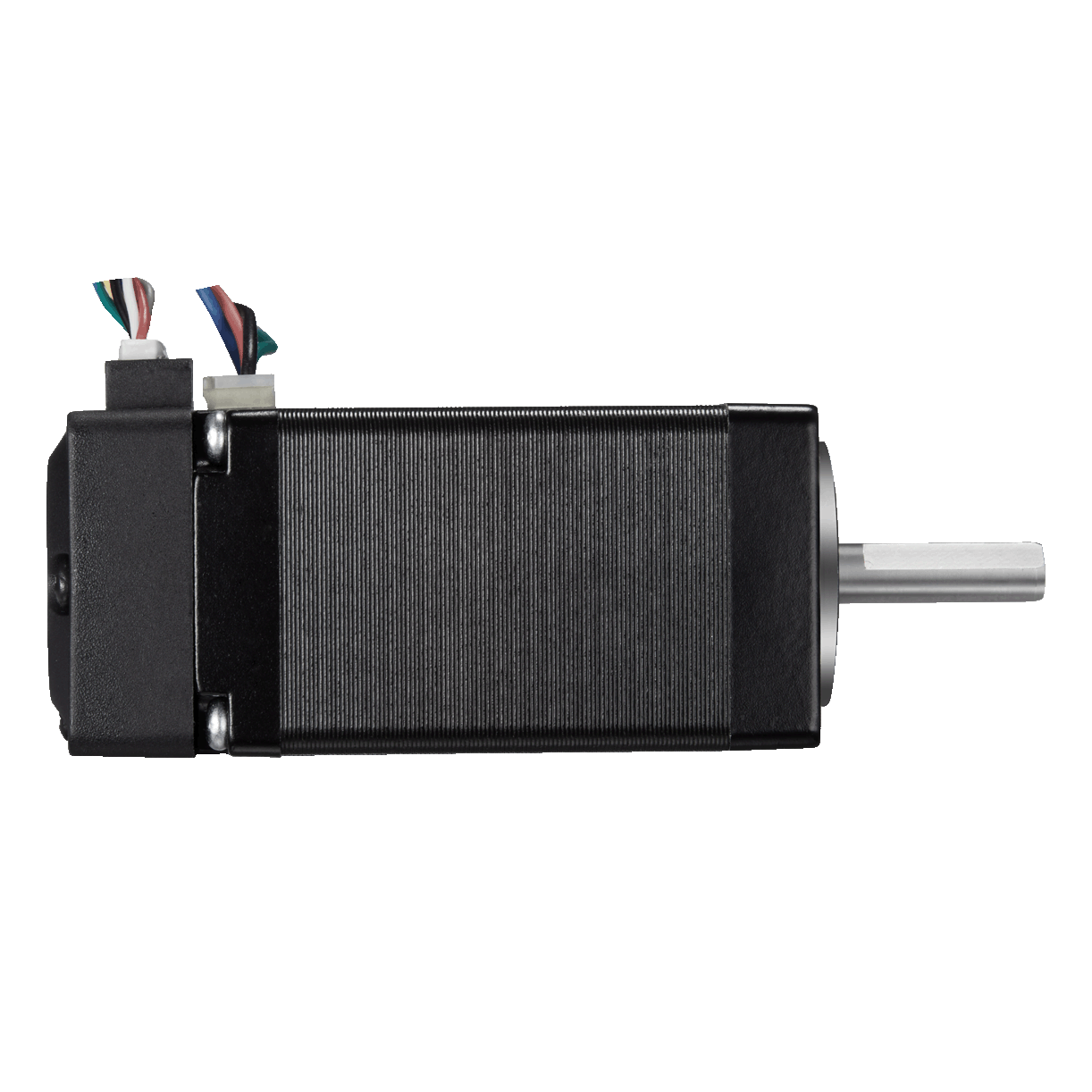

CS-M211013
Product Category

CS-M211013

  • 2 phase, NEMA 11 frame size

  • 62 mm (2.44 inch) long

  • 1.2 A phase current

  • 0.13 N.m (19 oz-in) holding torque

  • 5 mm (0.197 inch) shaft size

  • Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

  • High precision, low motor heating, and low vibration

List Price: $ 199.00
Online Special Price: $ 199.00

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line (20,000 counts/revolution) differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.

Technical Data
ModelCS-M211013
SeriesCS-M
Phase2 phase
Frame Size (NEMA)11
Length (mm)62
Holding Torque (N.m)0.13
Phase Current (A)1.2
Shaft Diameter (mm)5
Center Diameter (mm)22
IP RateIP40
CharacteristicsStandard
Resistance (Ohm)2.20
Inductance (mH)2.30
Inertia (kg/cm2)0.013
Weightkg0.25

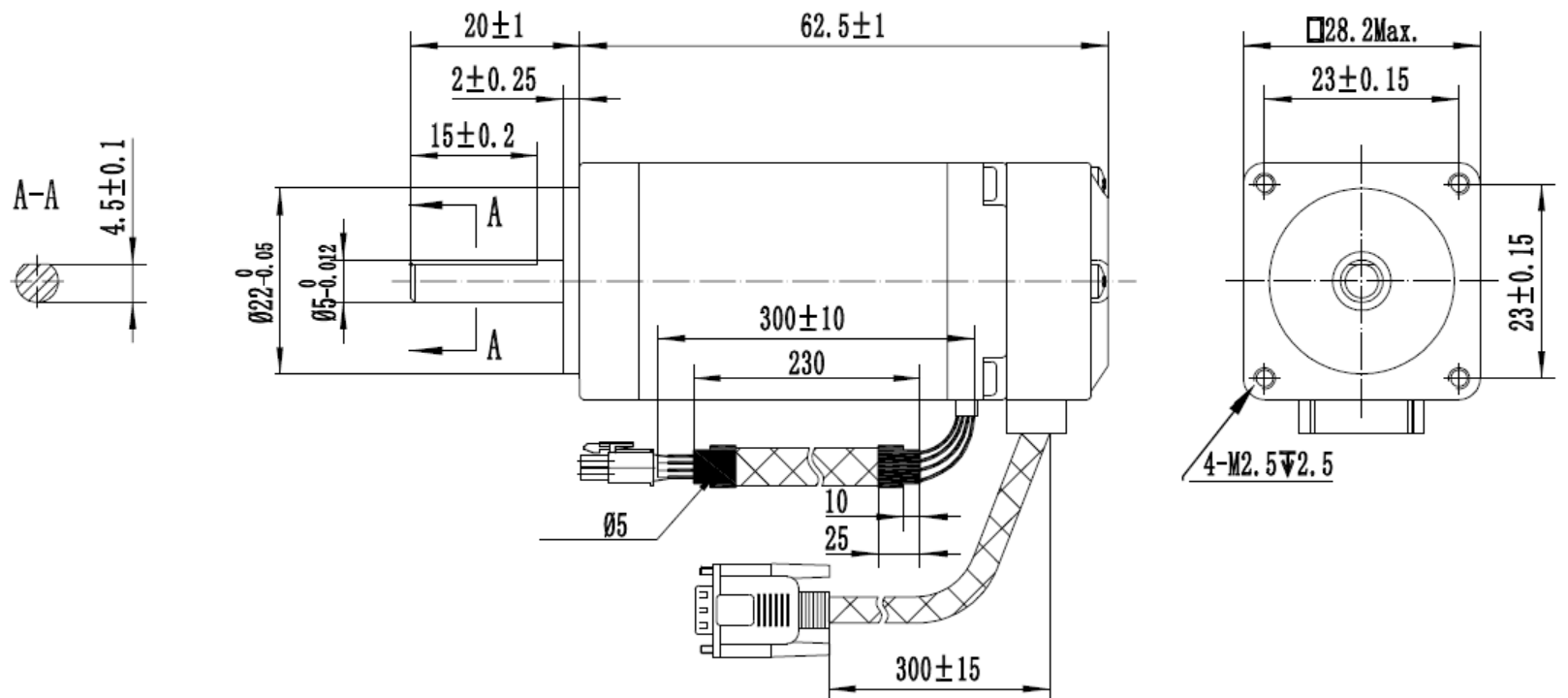

Mechanical
