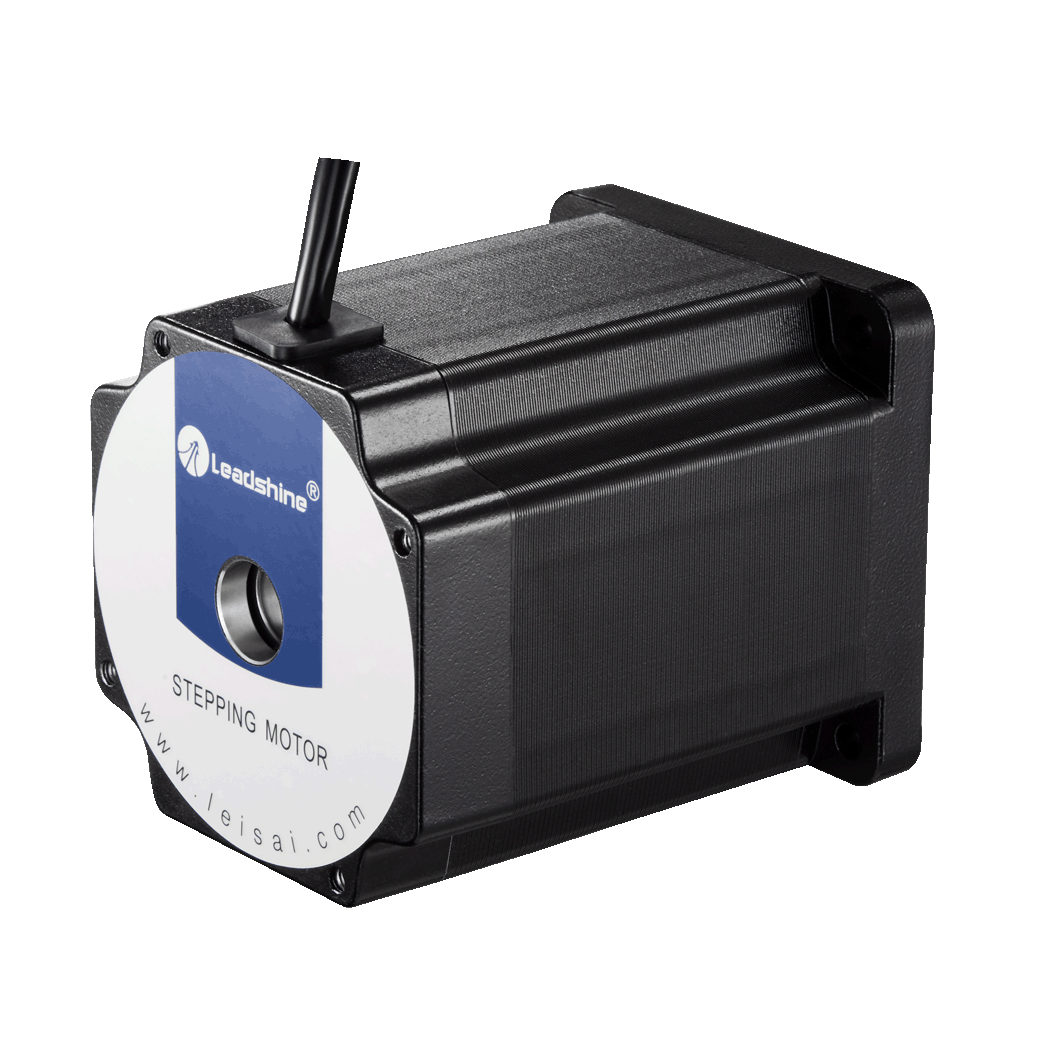

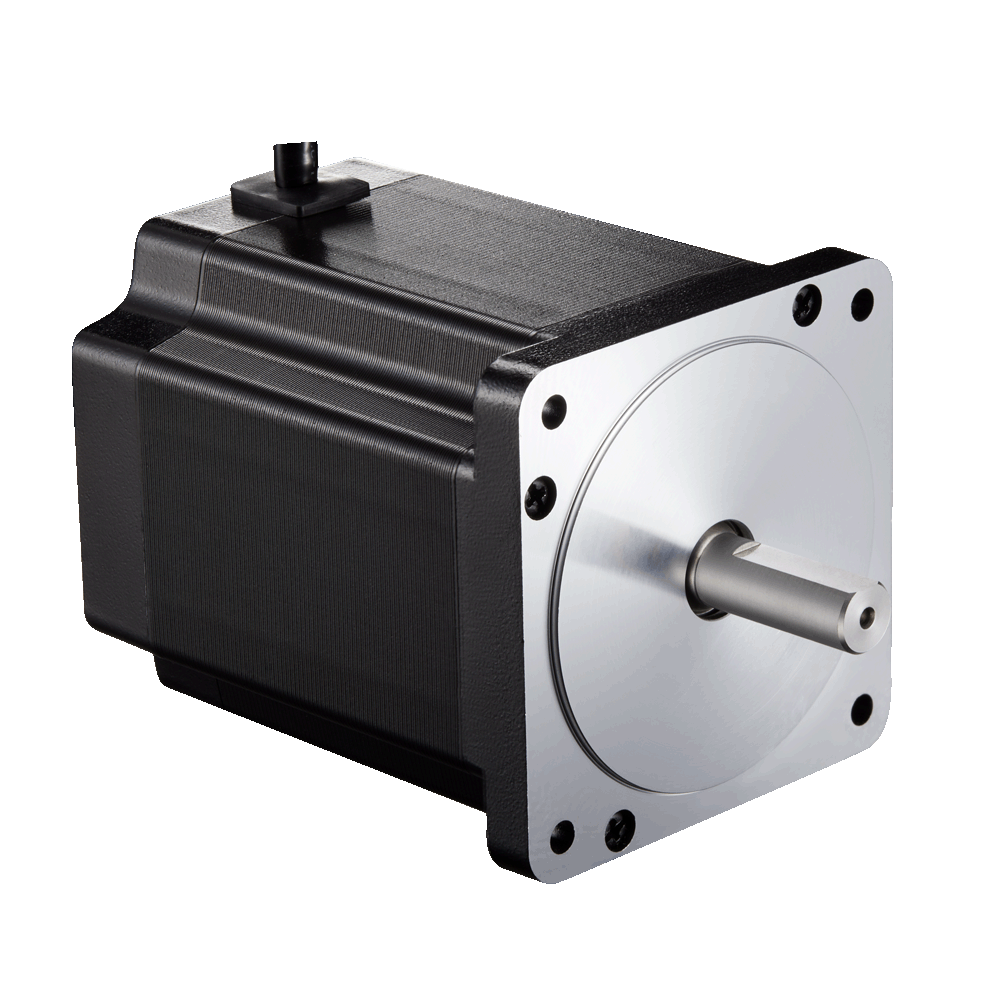

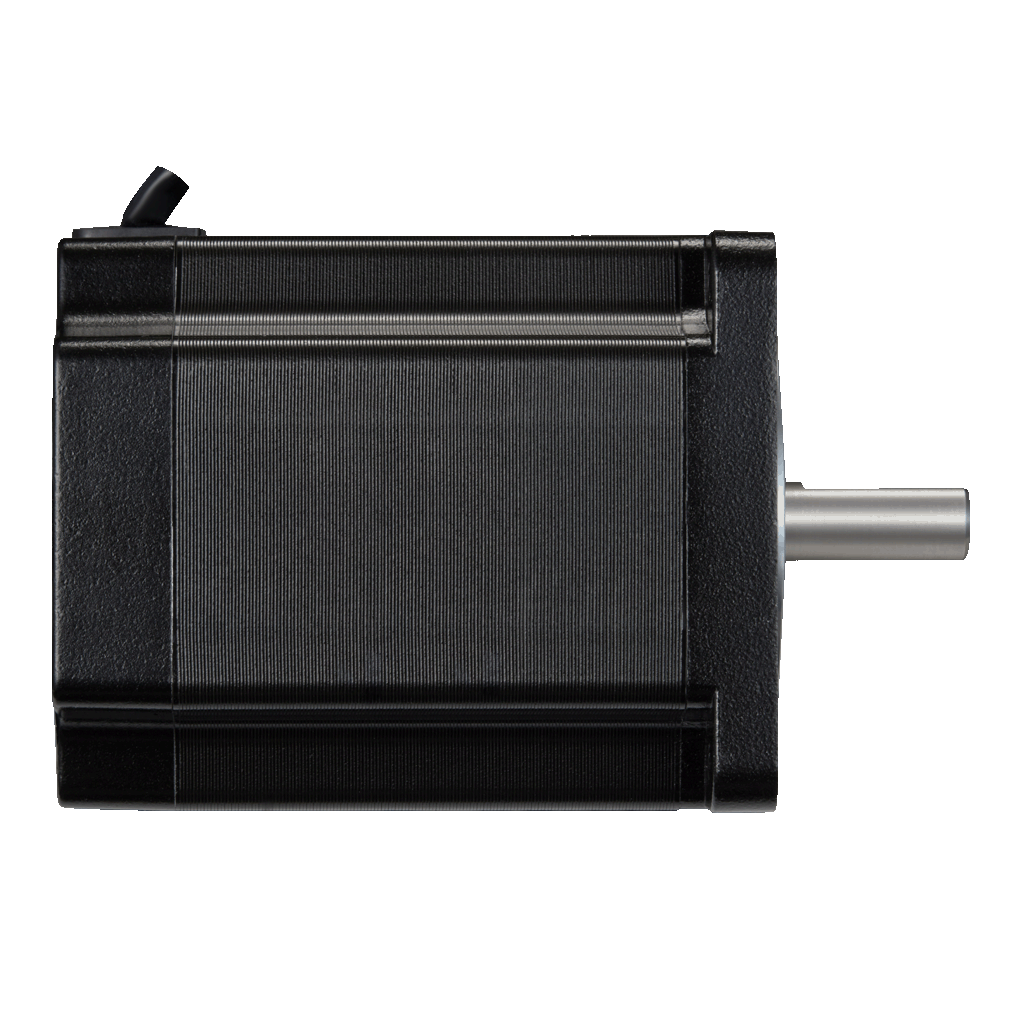

863S68H

● 3 phase 1.2° stepping angle

● Standard NEMA 34 dimensions

● Holding toque of 6.8 Nm (963 oz-in)

● High precision

● Smooth movement

● Low motor heating

● Low movement noise


List Price: $ 199.00
Online Special Price: $ 199.00

The 3S series are 3-phase hybrid stepper motors, can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.


Technical Data
Model863S68H
Frame Size (NEMA)34
Length (mm)127
Holding Torque (N.m)6.8
Phase Current (A)3.5
Shaft Diameter (mm)14
Center Diameter (mm)73
IP RateIP40
CharacteristicsStandard
Resistance (ohm)4.5
Inductance (mH)20
Inertia (kg/cm2)2.8
Weight (kg)4

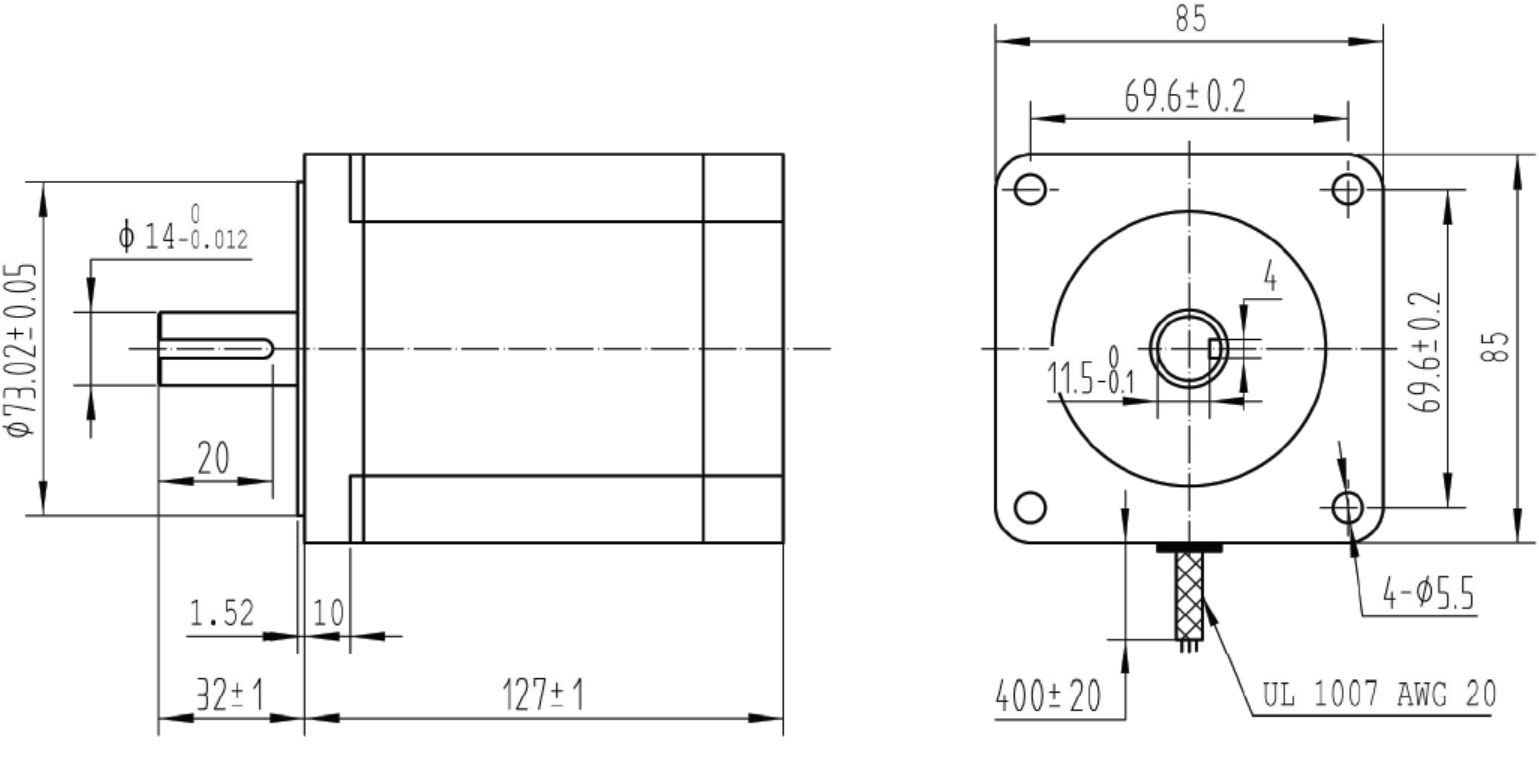

Mechanical

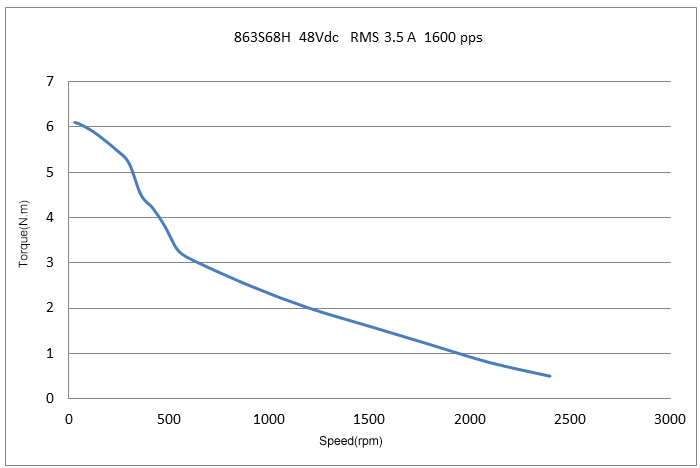

Speed-Torque Curve
