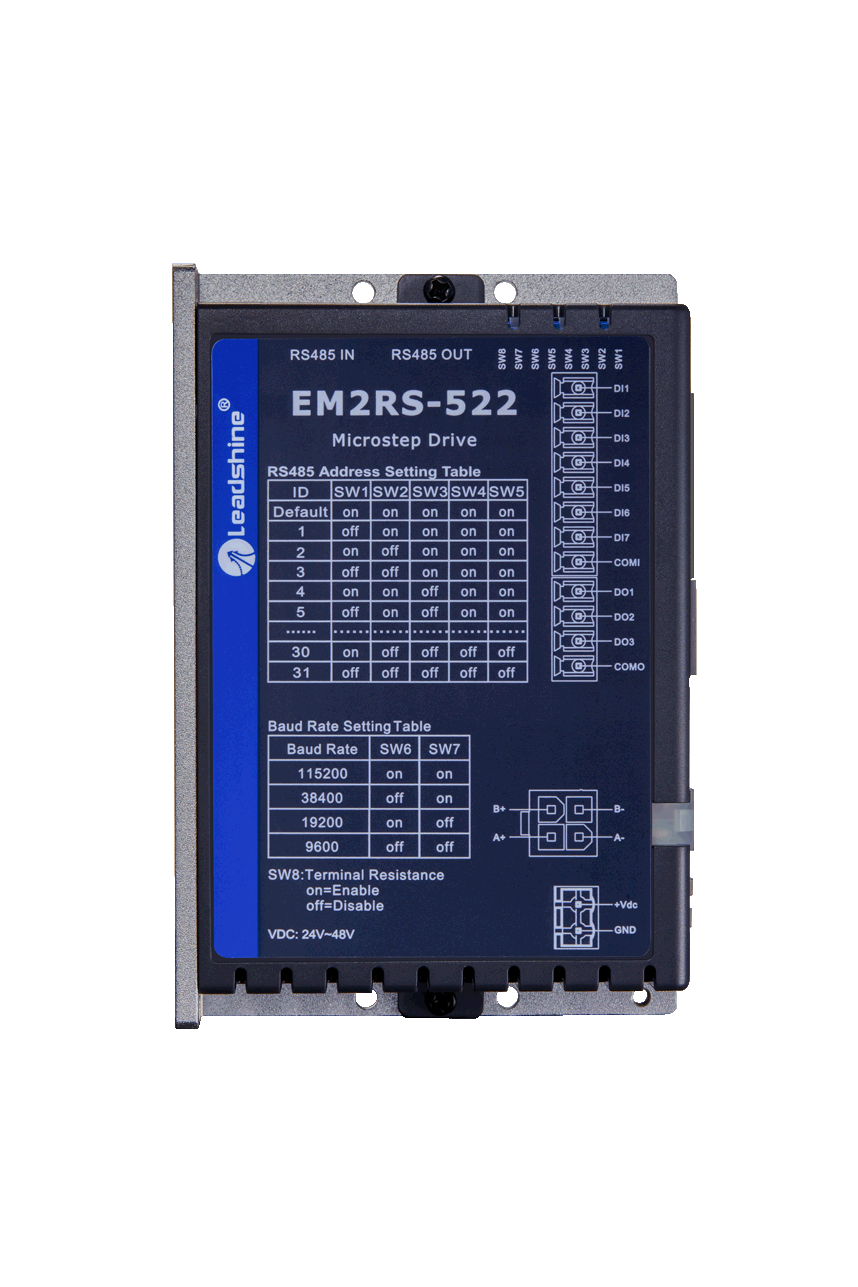

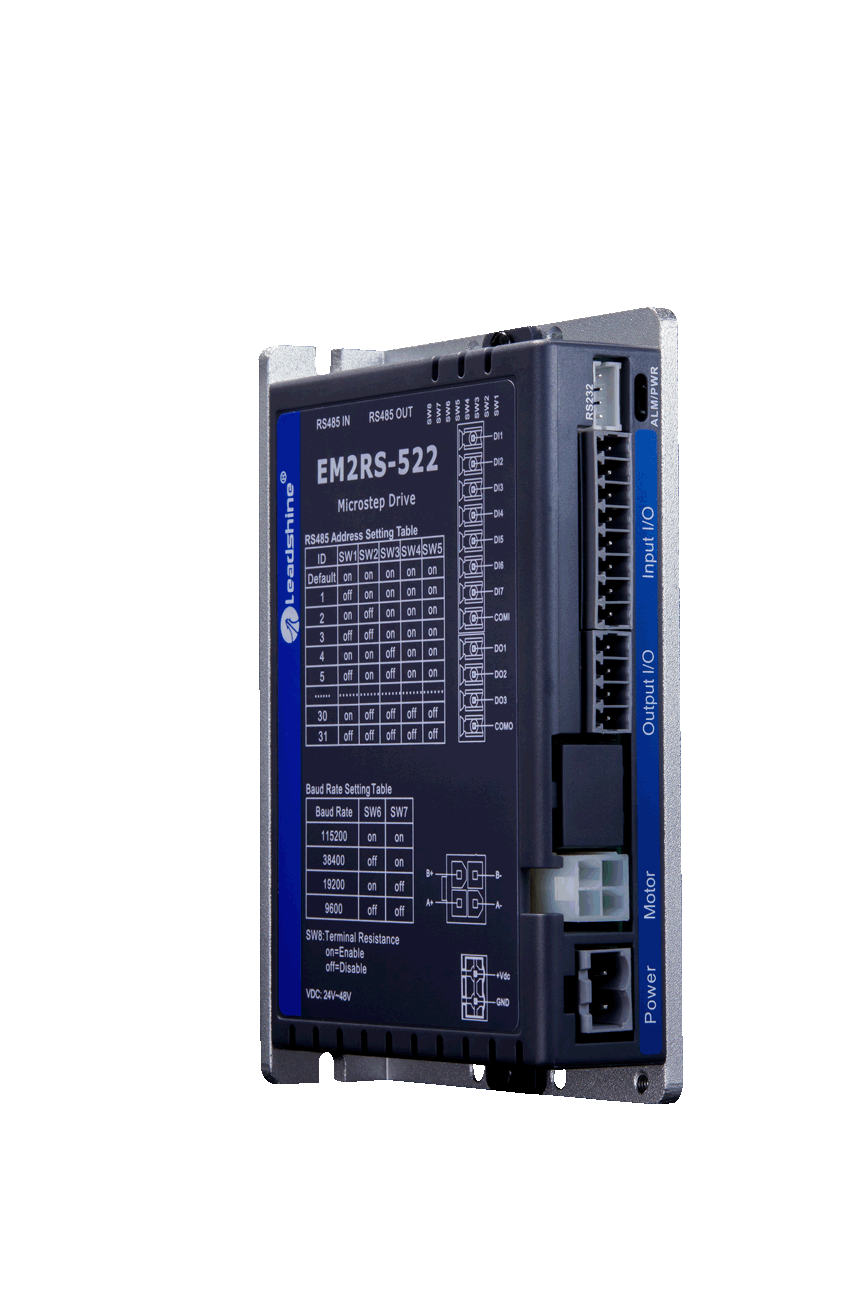

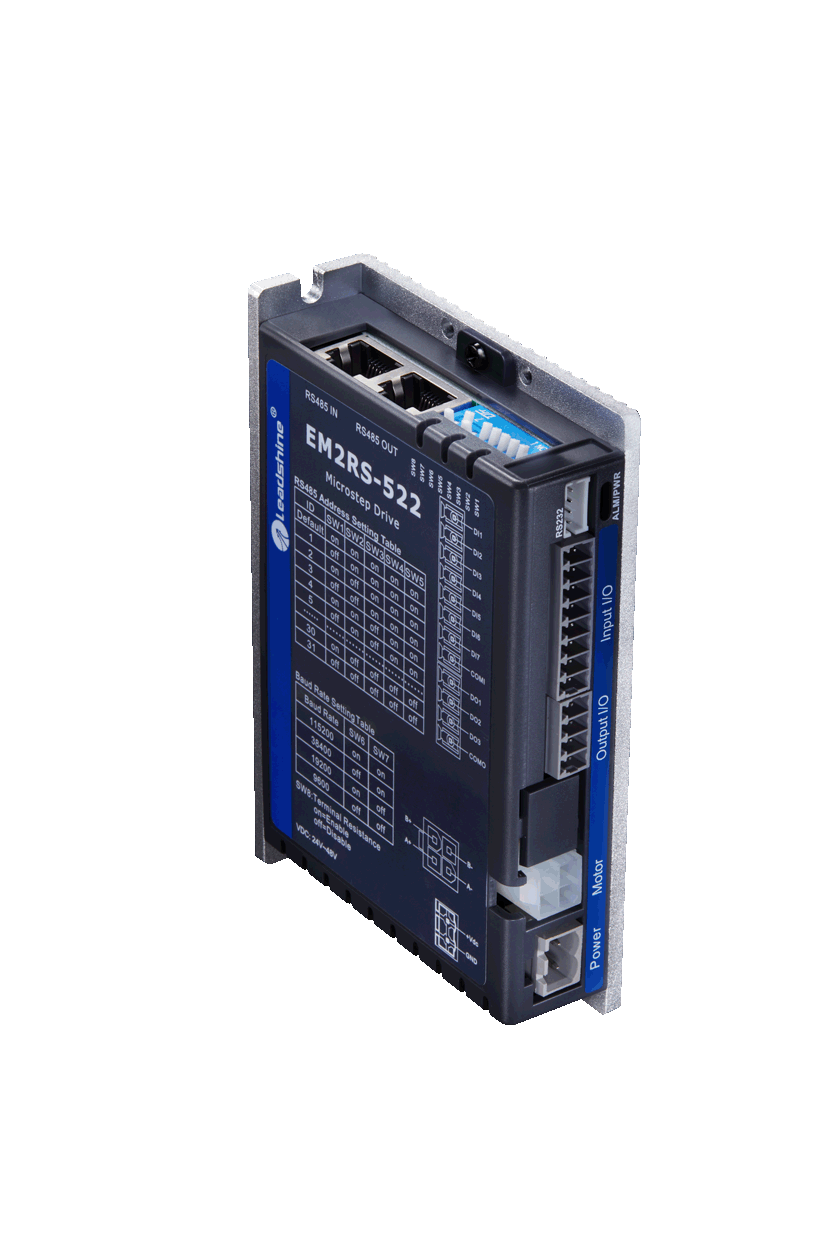

EM2RS-522
Product Category

EM2RS-522

  • Standard Isolated RS485 Modbus

  • HMI, PLC or External I/O start motion

  • 7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs

  • 3 Programmable Outputs: Alarm, Brake, Homing / Instruction / Path complete

  • Modes of Operation: Velocity, Position, Homing

  • Support Functions: Teaching, Interrupt, Skip, Suspend, Circulate motion

  • 20-50VDC supply voltage, max 2.2A output current



List Price: $ 199.00
Online Special Price: $ 199.00

EM2RS Series are stepper drive based on standard Modbus RTU protocol, using RS485 communication can network up to 31 axes. They built-in PR feature with 16-segment position table (PR Mode) can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. EM2RS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing. EM2RS-522 can power 2-phase NEMA 8, 11, 14, 17 stepper motors.

2
ModelEM2RS-522
SeriesEM2RS
Command SourceModbus RTU
Operation Voltage (VDC)20-50
Output Current (A, Peak)2.2
Input Frequency (KHz, Max.)10
Logical Voltage (VDC)12-24
# of Inputs7
# of Outputs3
CharacteristicsStandard
