EL7-EC7500NT
Product Category

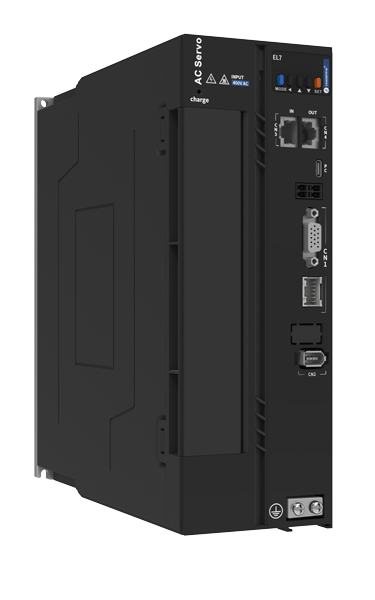

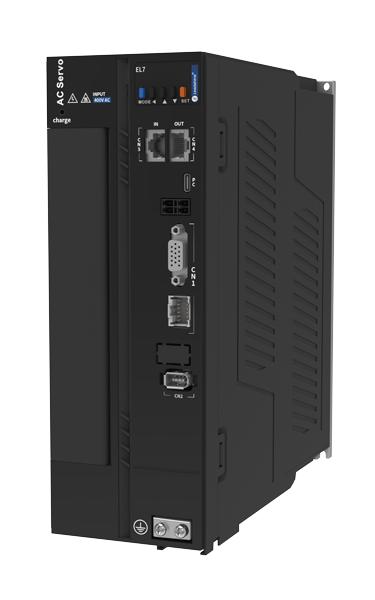

EL7-EC7500NT

  • Servo drive with power rating from 750W to 7500W

  • User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe inputs

  • Equipped with internal regenerative resistor

  • Position, velocity and torque loop control

  • Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments, etc

  • Safety functions such as Safe Torque Off (STO) with SIL3 grading

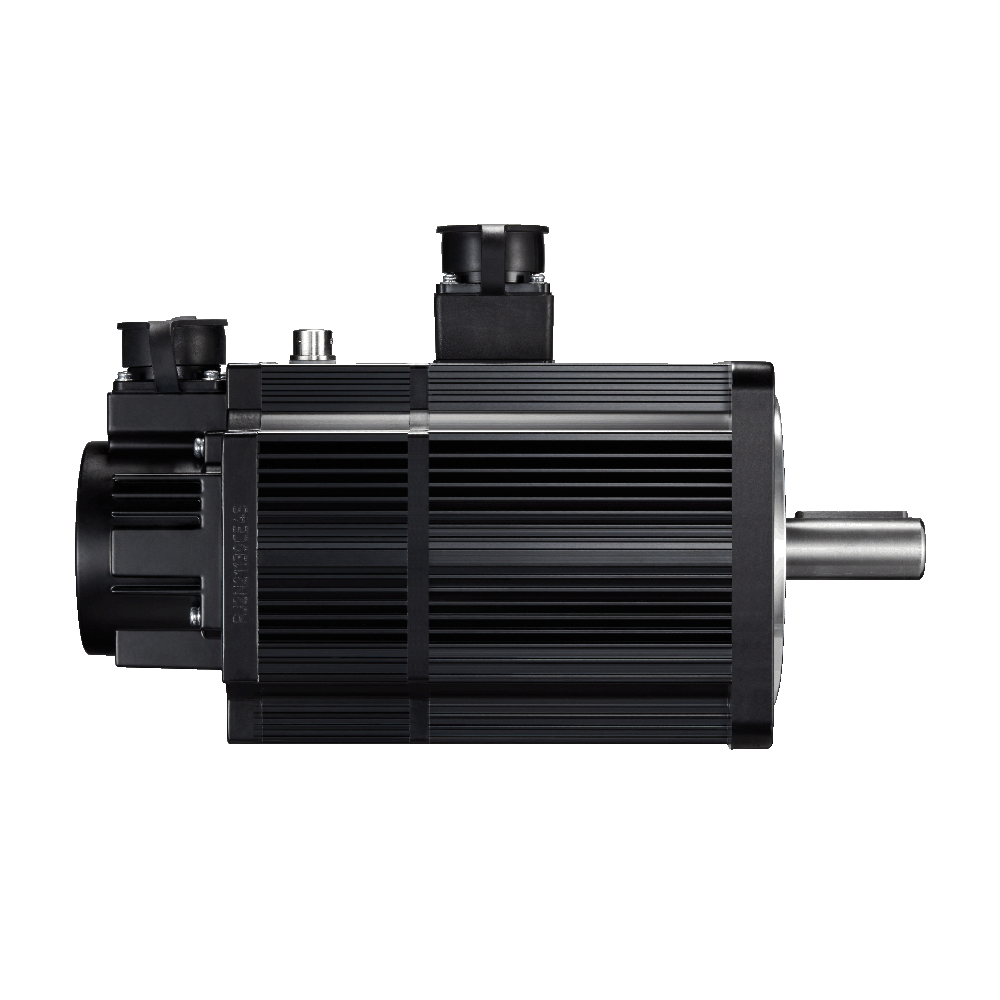

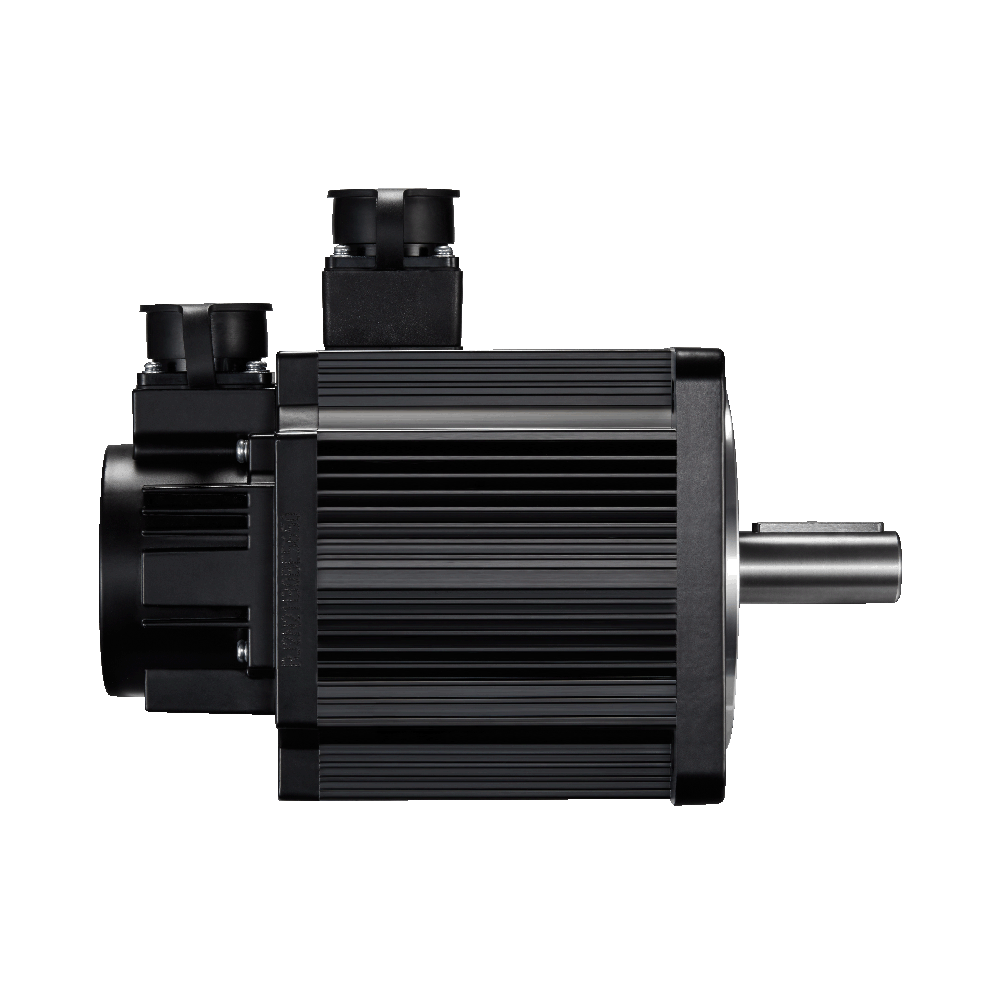

  • Matching motors with power rating from 750W to 7500W

  • Motors with 23-bit magnetic/optical encoders

  • Optional holding brake


List Price: $ 199.00
Online Special Price: $ 199.00

EL7-EC 400V Series AC servo products are high performance AC digital servo which is designed for high accuracy position/velocity/torque control with power rating ranging from 750W up to 7.5kW which provides a perfect solution for different applications with easy tuning process.


EL7-EC Series AC Servo products are using latest digital signal processing (DSP) chip and intelligent power module (IPM). The series comes with highly compacted integration, small volume and great reliability. Also highly competitive using our best PID controls for pulse width modulation (PWM).

Technical Data
ModelEL7-EC7500FT
Input Voltage400VAC 3ph
Rated Power (W)7500
Rated Current (Arms)25.7
Peak Current (Arms)63.6
Command SourceEtherCAT
# of Inputs4
# of Outputs3


Mechanical
