Servo drive with power rating from 400W to 2000W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input DB15 I/O port
USB Type-C tuning port, stable and easy to get
Equipped with internal regenerative resistor
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
Safety functions such as Safe Torque Off (STO) with SIL3 grading
Matching motors with power rating from 30W to 2000W
Motors with 23-bit magnetic/optical encoders
Optional holding brake

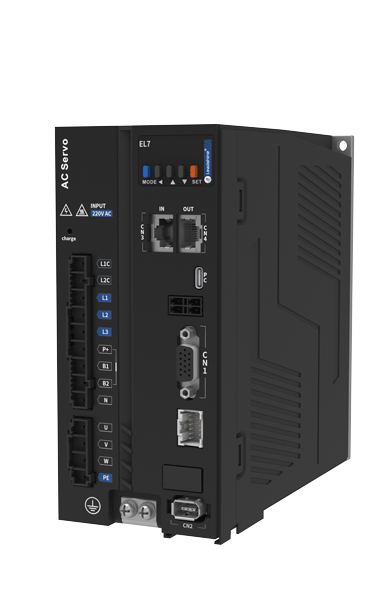

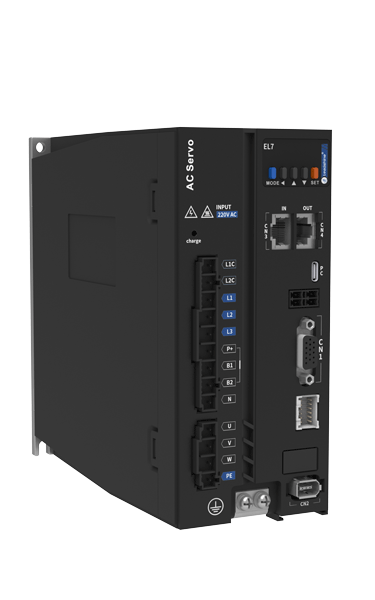

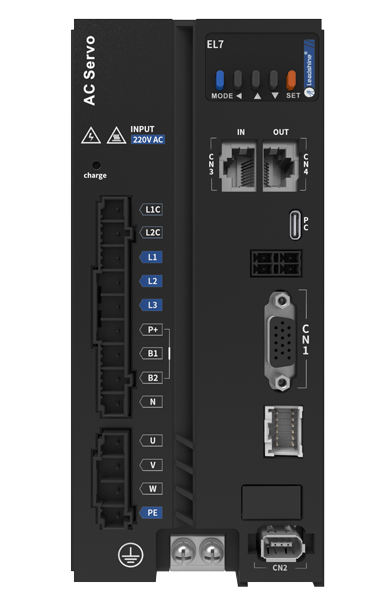

EL7-EC Series AC servo products are high performance 220V 1ph AC digital servo which is designed for position/velocity/torque
high accurate control with power rating ranging up to 2.0kW which provides a perfect solution for different applications with
easy tuning process. Based on the ETG COE + EtherCAT DSP402 protocol, it can be seamlessly connected to controllers/drives
that support this standard protocol.
EL7-EC series AC servo drives are using the latest Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM) with
compact components integration and great reliability. Using the best PID calculation for Pulse Width Modulation (PWM) control,
our EL7-EC series products are the one to beat in this product category.
