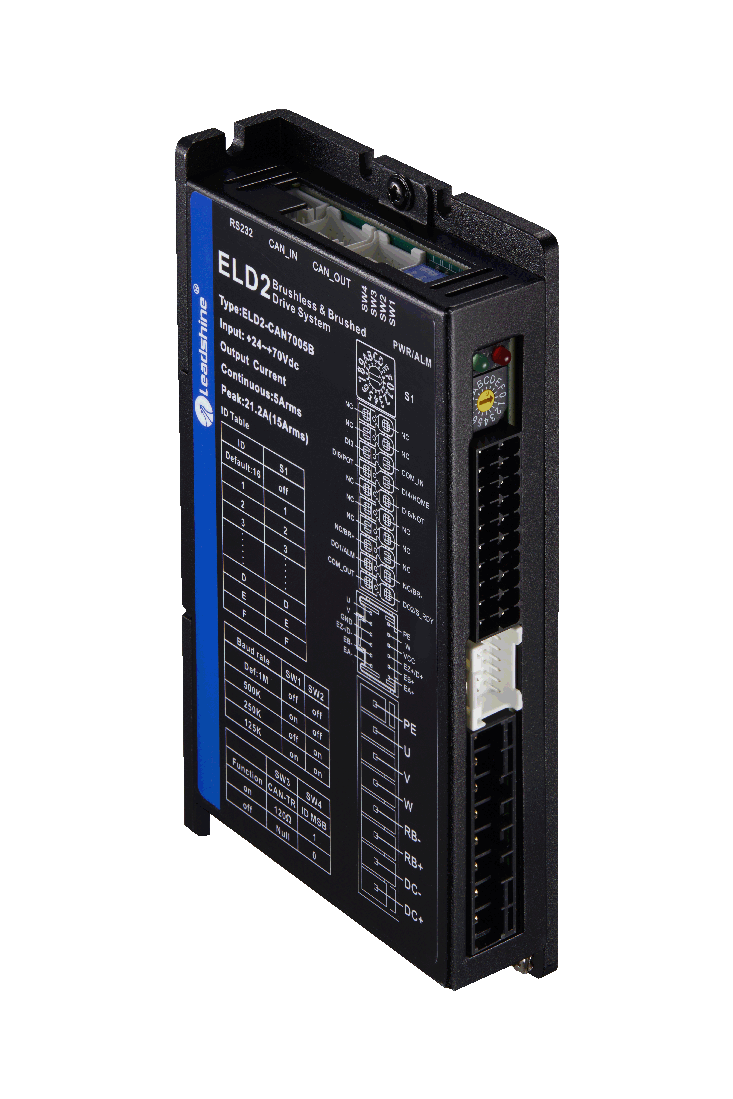

ELD2-CAN7005B
Product Category

ELD2-CAN7005B

● Main power voltage: 24-70VDC

● Output current: 5Arms continuous; 21A peak

● Direct brake output: 24VDC/0.5A

● CANopen: CiA301. CiA402. Profile Position/Profile velocity/Profile Torque/Homing

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● RS-232 serial interface for easy tuning with Motion Studio


List Price: $ 199.00
Online Special Price: $ 199.00

The ELD2-CAN7005B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.


Technical Data
Drive modelELD2-CAN7005B

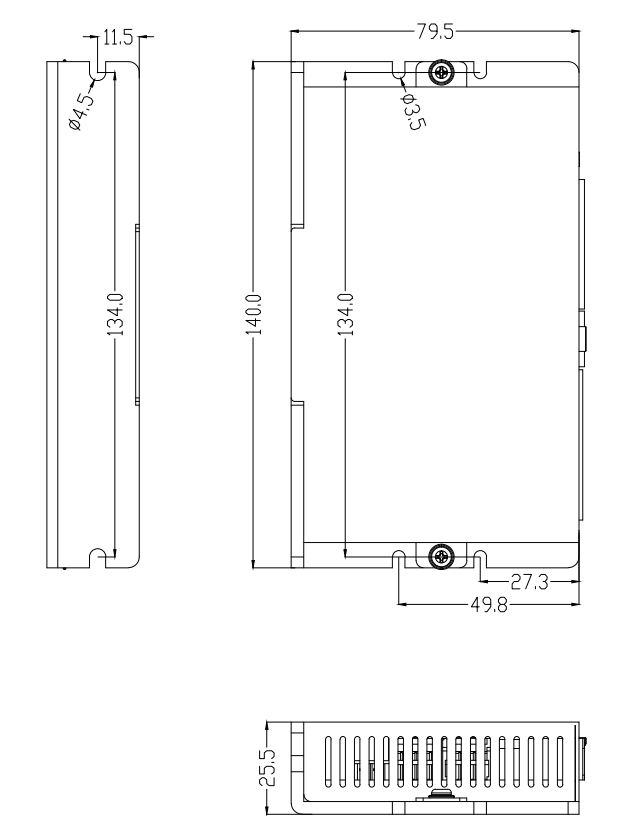

Size(mm)140*79.5*25.5
Rated power(kW)0.1
Rated current(Arms)5
Peak current(Apeak)21.2
Main powerVoltage(V)DC24~70
Current(A)5Arms (≤48Vdc)
3.5Arms(>48Vdc)
Logic powerVoltage(V)——
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe function——
Protection rankIP20




Mechanical
