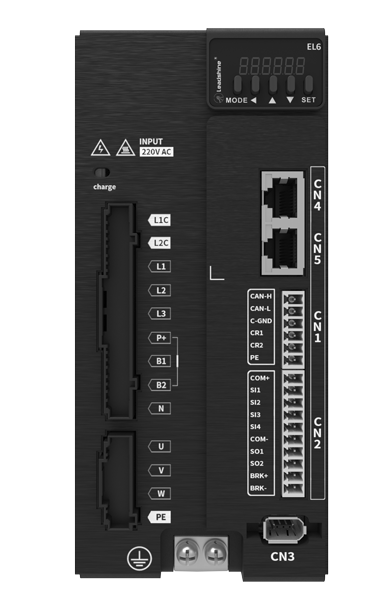

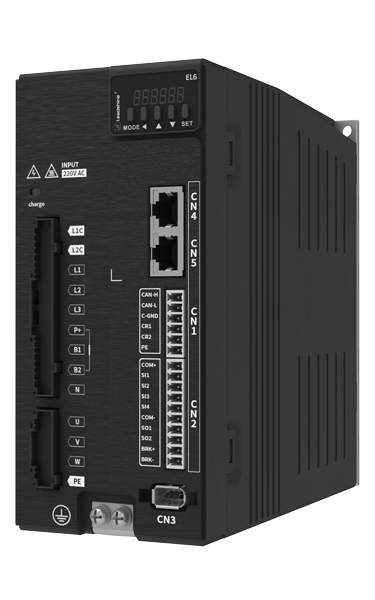

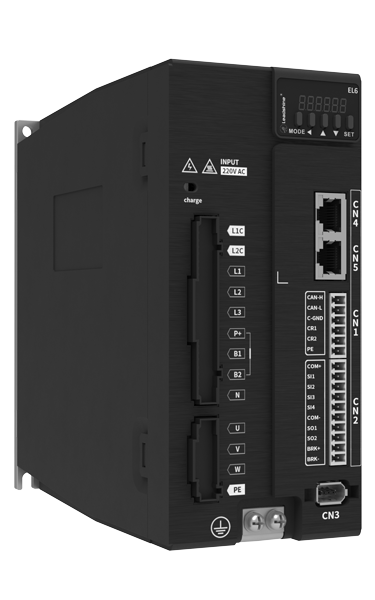

EL6-CAN1500Z
Product Category

EL6-CAN1500Z

  • CANopen communication

  • Support CiA402

  • 4 inputs and 3 outputs

  • Rated voltage 220VAC 1ph

  • Rated power 1500W

  • Automatic motor identification

  • 23-bit optical/magnetic encoder available

List Price: $ 199.00
Online Special Price: $ 199.00

EL6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control,

power range up to 2kW, which can provide a perfect solution for different applications, performance with easy configuration process.


Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder

resolution 17bit or 23bit, it can provide machines a intelligent performance.


Technical Data
ModelEL6-CAN1500Z
Input Voltage220VAC   1ph/3ph
Rated Power   (W)1500
Rated Current (Arms)9.5
Peak Current (Arms)28.5
Command   SourceCANopen
# of Inputs4
# of Outputs3


Mechanical
