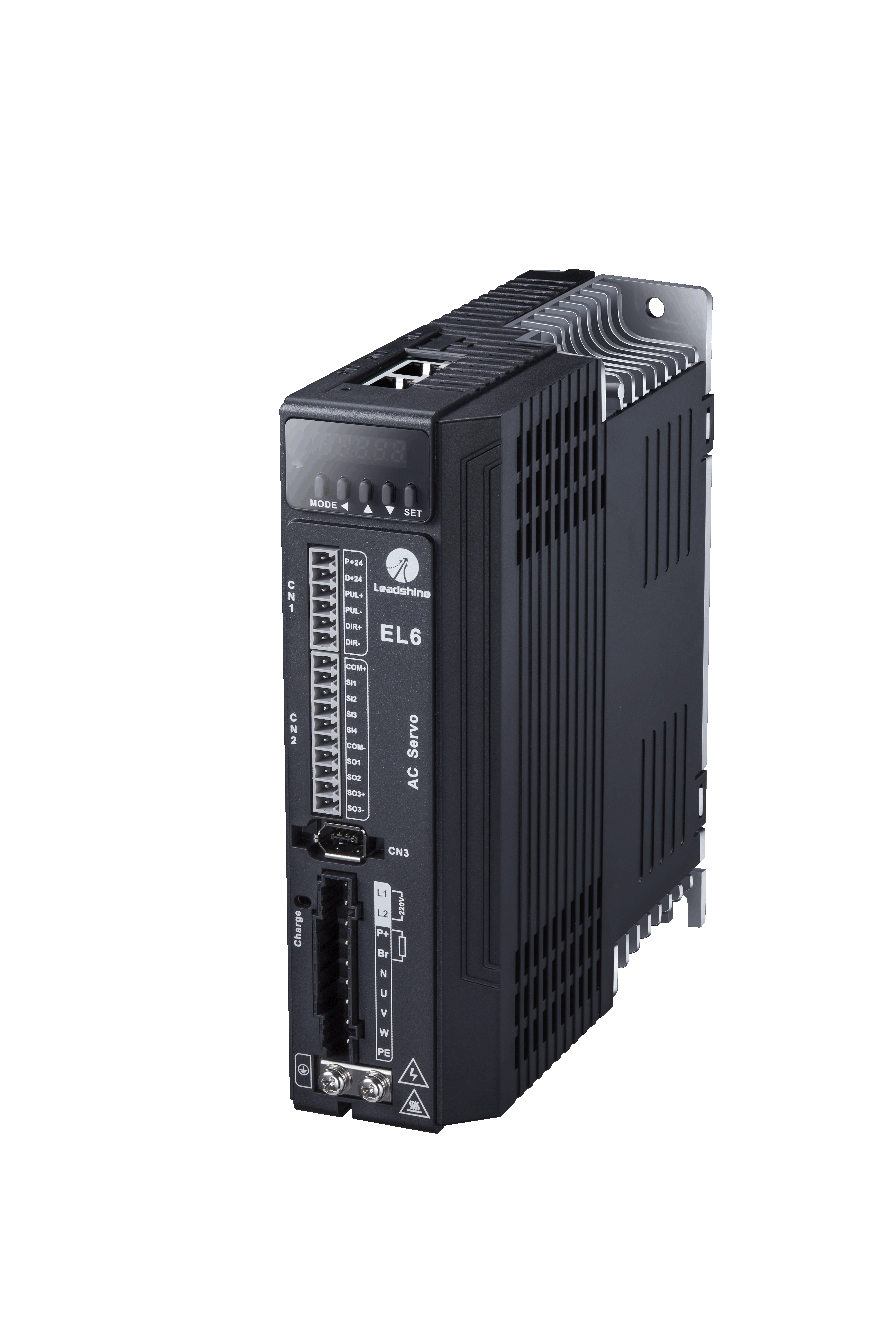

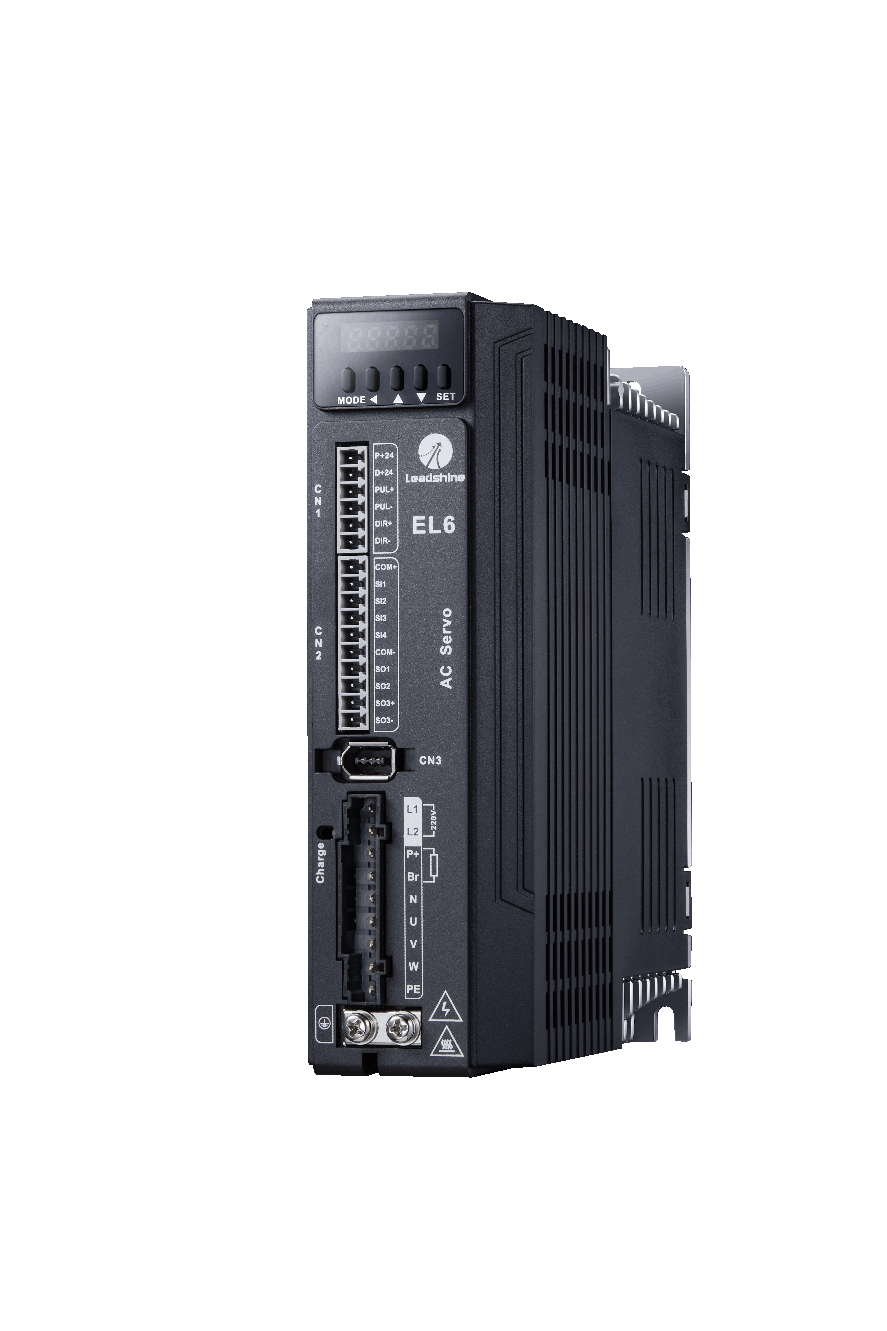

EL6-CAN1000Z
Product Category

EL6-CAN1000Z

● CANopen communication

● Support CiA402

● 4 inputs and 3 outputs

● Rated voltage 220VAC 1ph

● Rated power 1000W

● Available 17-bit/23-bit encoder

● Automatic motor identification


Unit Price: $1.0000

EL6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control, power range up to 1kW, which can provide a perfect solution for different applications, performance with easy configuration process.


Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.


Technical Data
ModelEL6-CAN1000Z
Input Voltage220VAC 1ph
Rated Power (W)1000
Rated Current (Arms)7.5
Peak Current (Arms)18.7
Command SourceCANopen
# of Inputs4
# of Outputs3

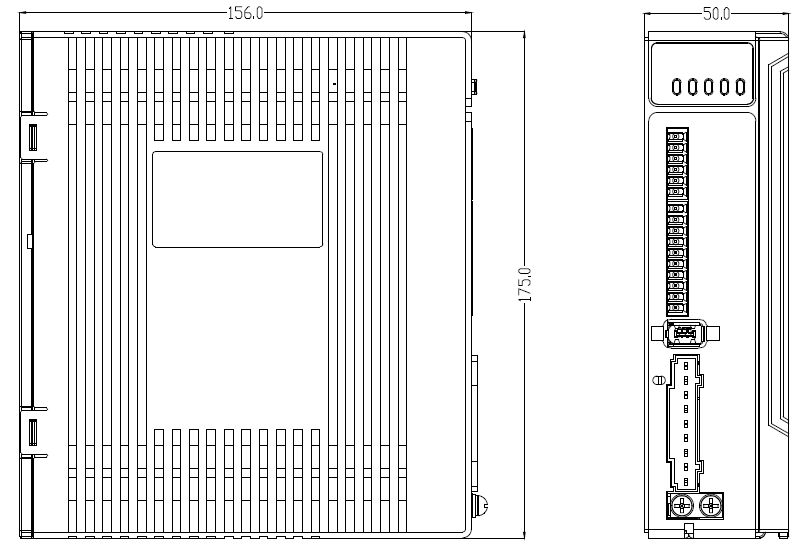

Mechanical
